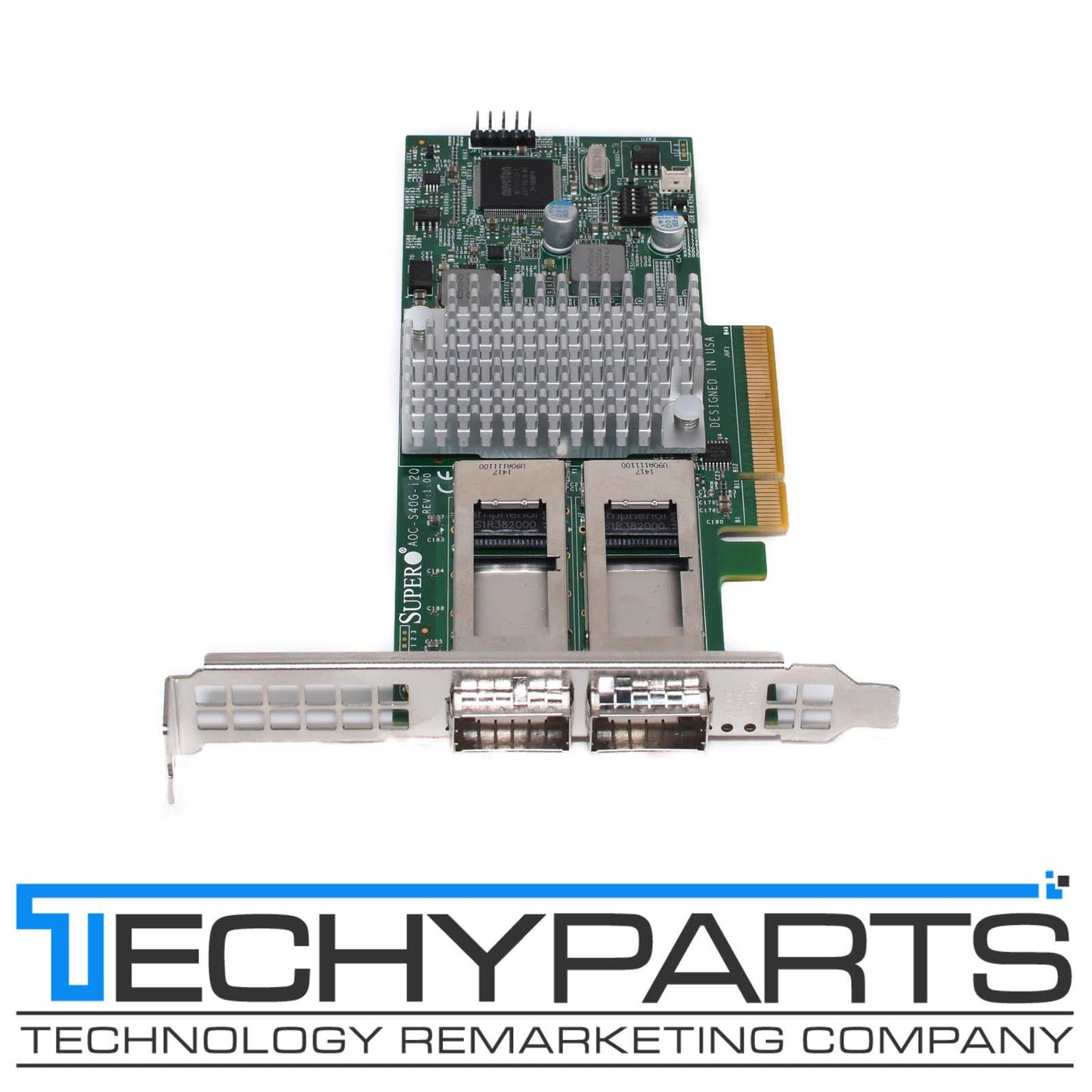

Supermicro AOC-S40G-i2Q 40GbE Dual-Port QSFP+ PCIe3.0 x8 Network Interface Card

Supermicro AOC-S40G-i2Q 40GbE Dual-Port QSFP+ PCIe3.0 x8 Network Interface Card Ethernet Controller for Virtualization with Full Height Mounting Bracket

SUPERMICRO P/N: AOC-S40G-I2Q

Tranceiver(s): Not included

Condition: Clean, tested pull - Guaranteed 100% working!

No software, cables or other accessories included. Comes with full height mounting bracket only.

30-Day Warranty!

Manufacturer's description and specifications:

The 40G Ethernet Controller for Virtualization The S40G-i2Q is an advanced, market-leading 40Gb Ethernet controller. It extends virtualization beyond the server level to the network level. This, combined with hardware optimizations and off-loads, allows these controllers to enable rapid network provisioning in an agile data center. For customers who require faster and more reliable networking equipment, the AOC-S40G-i2Q is the best choice.

Key Features:

  • Low-Profile Standard Short-length Form Factor
  • PCI Express 3.0 (8GT/s)
  • 2 QSFP+ Ports
  • Network Virtualization Offloads
  • Ethernet Flow Director
  • Data Plane Developer Kit for Efficient Packet Processing
  • Small Packet Performance
  • Intelligent Offloads
  • Unified Networking Support for NAS and SAN
  • Asset Management Features
  • RoHS compliant 6/6 • Supports Both Direct Attach Copper and Fiber Cables

Specifications

General

  • Intel® XL710 40GbE controller
  • Half-length low-profile standard form factor
  • PCI-E 3.0 x8 (8GT/s) interface
  • Double QSFP+ connectors
  • 40Gb/s per port
  • Load balancing on multiple CPUs
  • Intel® PROSet Utility for Windows Device Manager

I/O Features

  • Intel® Flow Director
  • MSI-X support
  • Multiple queues: 1,536 Tx and Rx queues per port
  • Tx/Rx IP, SCTP, TCP, and UDP checksum offloading (IPv4, IPv6) capabilities

Virtualization Features

  • Next-Generation VMDq with up to 256 VMDq VMs supported
  • SR-IOV with up to 128 virtual ports
  • Virtual Machine Load Balancing (VMLB)
  • Advanced Packet Filtering
  • VLAN support for up to 4096 VLAN tags
  • VXLAN and NVGRE support

Storage Interface Features

  • Preboot eXecution Environment (PXE) support
  • iSCSI remote boot
  • iSCSI Acceleration
  • Simple Network Management Protocol (SNMP) and Remote Network Monitoring (RMON) static counters

Management Features

  • Asset Management support on Supermicro® X10 generation platforms
  • Controller asset tags such as part number, revision, serial number, and MAC addresses
  • Controller thermal sensor

Advanced Software Features

  • Teaming support
  • IEEE 802.3ad (link aggregation control protocol)
  • IEEE 802.1Q VLANs
  • IEEE 802.3 2005 flow control support
  • IEEE 802.1p
  • TCP segmentation/large send offload
  • Interrupt moderation

OS Support

  • Windows® Server 2012 R2, 2012, 2008 R2 X86-64
  • Linux RedHat EL 6.5 and 7.0 IA-32, X86-64, and IA-64
  • Linux SuSE SLES 11 SP3 and 12 IA-32, X86-64, and IA-64
  • FreeBSD 9 and 10 IA-32, X86-64, and IA-64
  • UEFI 2.1 and 2.3 X86-64 and I-64
  • VMware ESXi 5.1 and ESXi 5.5 X86-64

Cable Support

  • QSFP+ direct attach twinax copper cables up to 7m
  • Fiber-optic cables (with required optional transceivers)

Power Consumption

  • AOC-S40G-i2Q: Typical: 4.9W Maximum: 7.0W

Operating Conditions

  • Operating temperature: 0°C to 55°C (32°F to 131°F)
  • Storage temperature: -40°C to 70°C (-40°F to 158°F)
  • Storage humidity: 90% non-condensing relative humidity at 35°C

Physical Dimensions

  • Card PCB dimensions: 14.99cm (5.9in) x 6.90cm (2.73in) (L x H)
  • Height of end brackets: standard – 12cm (4.725in), low-profile – 7.94cm (3.13in)

Supported Platforms

  • Supermicro® motherboards with minimum PCI-E x8 slot
  • Supermicro® server systems with low-profile or full-height PCI-E x8 expansion slot

Compliance/Environmental

  • RoHS Compliant 6/6, Pb Free
