Manufacturer's description and specifications:

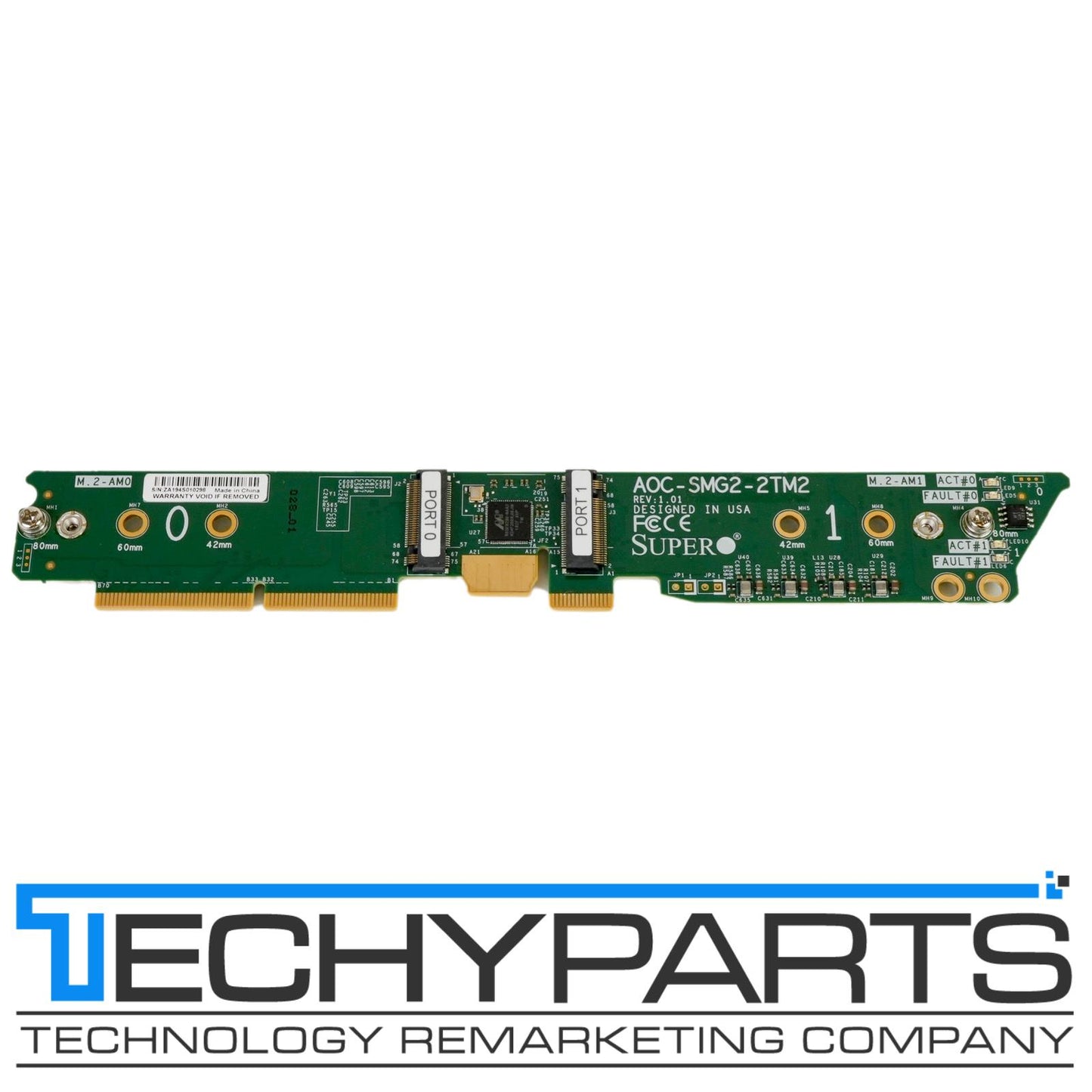

The Supermicro ‘Butterfly Style’ SATA M.2 Carrier Card AOC-SMG2-2TM2 features 2 M-key connectors for 2x M.2 SATA3 SSDs. This carrier card integrates a RAID controller to provide mirror RAID protection. With HW RAID1 support, this new M.2 carrier is intended to offer another layer of redundancy for M.2 SSDs, typically used for OS support. This space- saving solution helps maximize the OS reliability and performance on each BigTwin™ node. It delivers a cost-effective and reliable OS solution with SATA SSDs.

Key Features

• ‘Butterfly Style’ SATA M.2 Carrier Card for X11 BigTwin™
• Supports 2x SATA3 M.2 connectors in the following lengths: 80mm, 60mm, 42mm
• BMC-enabled management through API
• Supports onboard activity and status LEDs for each M.2 SSD
• OS Support : Windows, Linux, and VMWare
• Operating Temp: 0° to 55°C

Compatible Supermicro servers:
