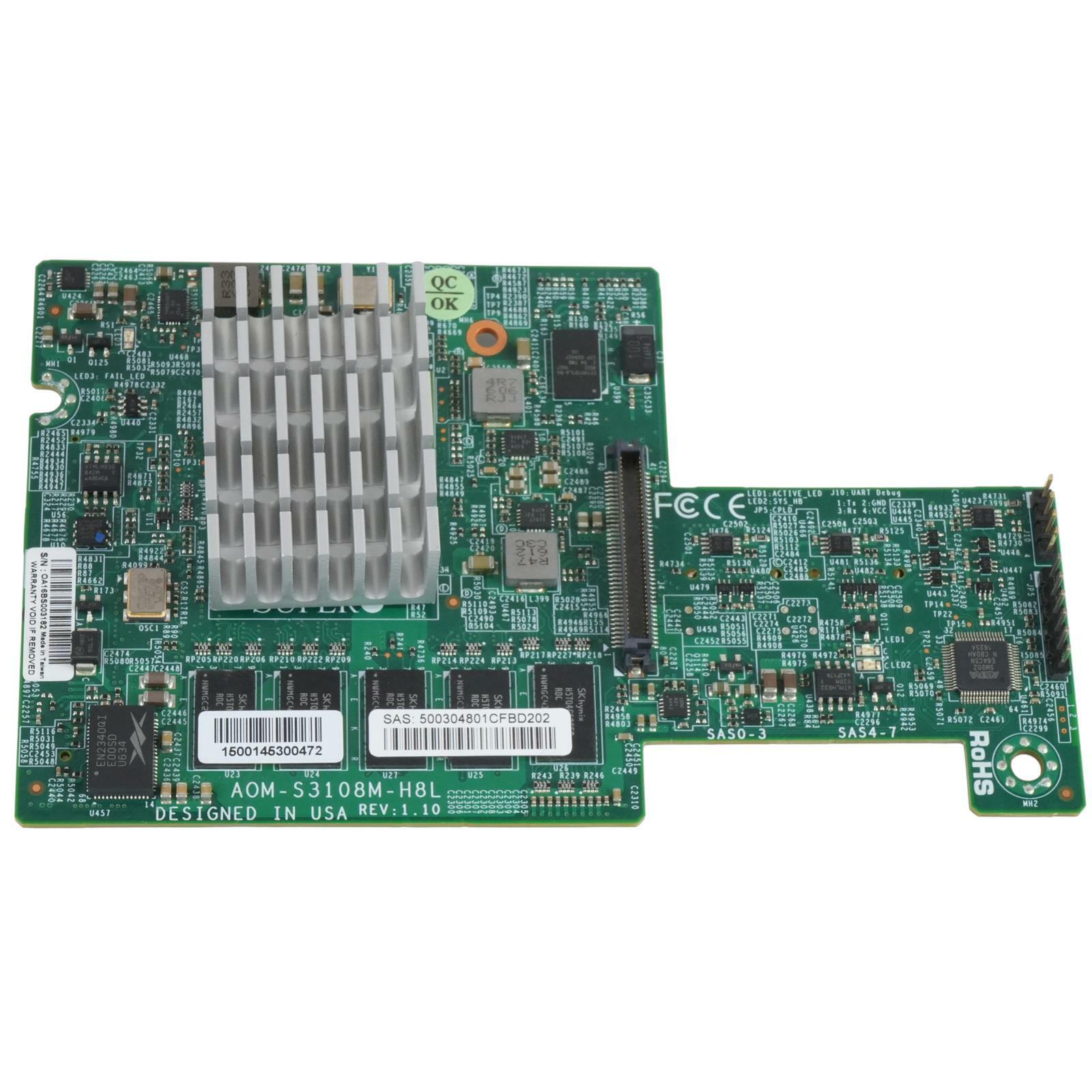

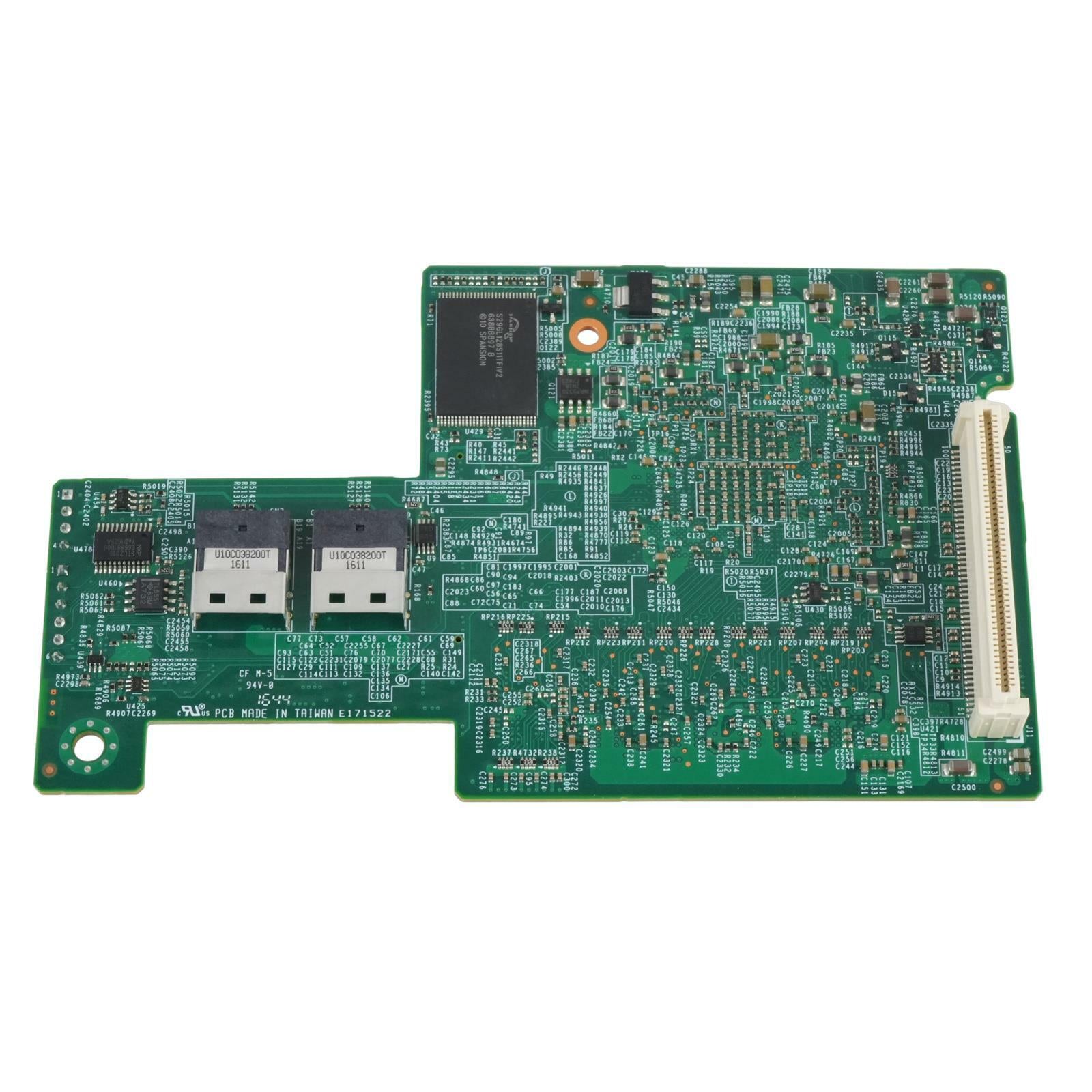

Supermicro AOM-S3108M-H8L 12Gb/s 8-Port SAS3 Internal RAID Mezzanine Card
94259Supermicro AOM-S3108M-H8L 12Gb/s 8-Port SAS3 Internal RAID Mezzanine Card
Supermicro AOM-S3108M-H8L Low Profile 12Gb/s 8-Port SAS3 Internal RAID Mezzanine Card
SUPERMICRO P/N: AOM-S3108M-H8L
Condition: Clean, tested pull - Guaranteed 100% working!
30-Day Warranty!
Manufacturer's description and specifications:
The Supermicro MegaRAID Low Profile AOM-S3108M-H8L features 8 internal SAS connectors for high-performance storage connectivity. It addresses the growing demand for increased data throughput and scalability requirement across the enterprise-class server platforms. With high performance RAID architecture, including hardware RAID 5 and 6, this new RAID controller card supports high capacity storage applications. It delivers cost effective storage solutions using SATA drives and maximum performance and reliability with SAS drives.
With the option of SuperCap/TFM unit, this provides cached data protection and allows system builders to protect cached data during power failures.
Optional Cachecade feature significantly boosts systems performance and minimize rebuild times (not included in the listing).
The AOM-S3108M-H8L supports up to 240 HDD w/ RAID 0, 1, 5, 6, 10, 50 and 60.
Key Features:
- Broadcom 3108 8-port PCI-E SAS-3 controller
- 8-port (8 internal) 12Gb/s per port
- Supports RAID 0, 1, 5, 6, 10, 50, 60
- On-board hardware IO Processor
- 2GB 1866MHz DDR3 on-card cache
- MegaRAID configuration and management utilities
- Power management support
- SAS transfer rates up to 12Gb/s and SATA rates up to 6Gb/s
- Supports SSP, SMP, STP, and SATA protocols
- Operating temperature (Ambient): 10C - 55C
- OS Support: Windows 2012, 2008 64/32 bit, Red Hat Enterprise, and SUSE Linux
- Power Usage: 16W
Dimensions:
- Height x Length: 3.2" x 5.2"
Compliance:
- RoHS Compliant 6/6, Pb Free
