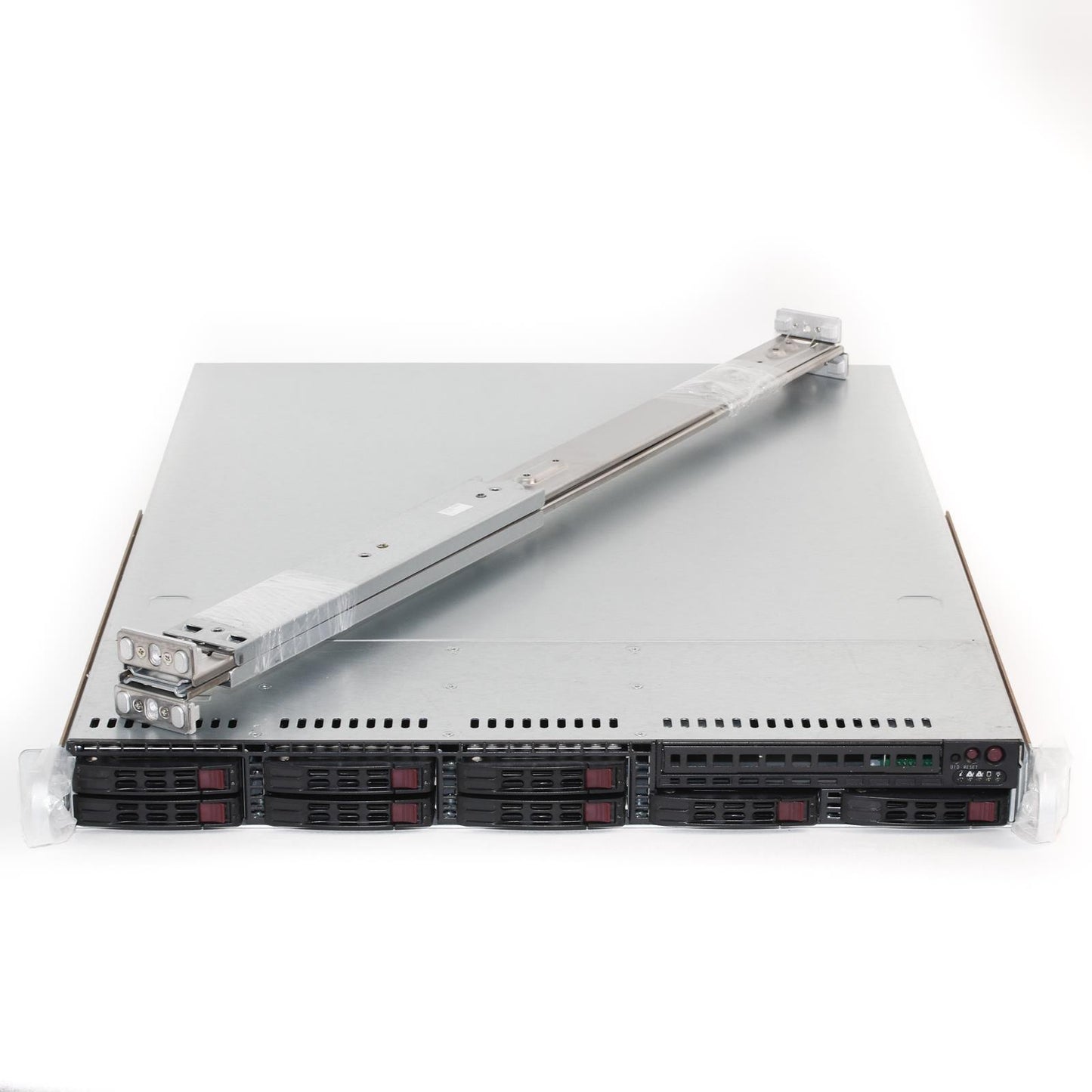

Supermicro CSE-113TQ-600CB X9DRH-7F 2xLGA2011 8-bay 2.5" SFF 1U Rackmount Server

86157

Supermicro CSE-113TQ-600CB X9DRH-7F 2xLGA2011 8-bay 2.5" SFF 1U Rackmount Server

Skip to product information
1 of 1

SUPERMICRO

Regular price $300.00 USD
Regular price Sale price $300.00 USD
Sale Sold out
Shipping calculated at checkout.

Out of stock

View full details

Supermicro CSE-113TQ-600CB X9DRH-7F 2xLGA2011 8-bay 2.5" SFF 1U Rackmount Server

Supermicro CSE-113TQ-600CB 8-bay 2.5" SFF 600W E-ATX 1U Rackmount Server Chassis with X9DRH-7F Dual Socket LGA2011 Intel Xeon Motherboard and Rail Kit

Chassis Specifications:

  • 1U rackmount chassis, support for motherboard size: 12" x 13" E-ATX and 13.68" x 13"
  • 8 x 2.5" hot-swap SAS/SATA drive bay
  • SAS or enterprise SATA HDD only recommended
  • 8-port 1U TQ (W/ AMI 9072) backplane, support up to 8x 2.5-inch SAS/SATA HDD/SSD
  • 1U PWS-605P-1H 600W platinum efficiency multiple output power supply w/PMBus
  • 1 full-height & full-length expansion slot(s) (Riser Card Required)
  • 4 x 40x56mm counter-rotation PWM fan(s)
  • Dimensions:Height 1.7" (43 mm) Width 17.2" (437 mm) Depth 23.5" (597 mm) Gross Weight 35 lbs (15.88 kg)

Motherboard Specifications:

  • Dual socket R (LGA 2011) supports Intel® Xeon processor E5-2600 and E5-2600 v2 family
  • Intel® C602 chipset; QPI up to 8.0GT/s
  • Up to 1TB ECC DDR3, up to 1866MHz; 16x DIMM slots
  • Expansion slots: 1 PCI-E 3.0 x16 and 6 PCI-E 3.0 x8
  • Intel® i350 Dual port GbE LAN
  • 8x SATA2 and 2x SATA3 ports
  • 8x SAS2 ports from Broadcom 2208
  • Integrated IPMI 2.0 and KVM with Dedicated LAN
  • 9. 7x USB 2.0 ports (4 rear, 2 via header + 1 Type A)

Item condition: used - tested. Guaranteed working. Sold as pictured, no other accessories included. CPU Heatsinks and Rackmount Rail kit is included.

30-Day Warranty!
