Supermicro CSE-116AC2-R504WB 1U Server Chassis, 10-Bay SFF SAS3/NVMe, 2×500W PSU

Supermicro CSE-116AC2-R504WB 1U Server Chassis, 10-Bay SFF, SAS3/NVMe, 2×500W PSU

Description:

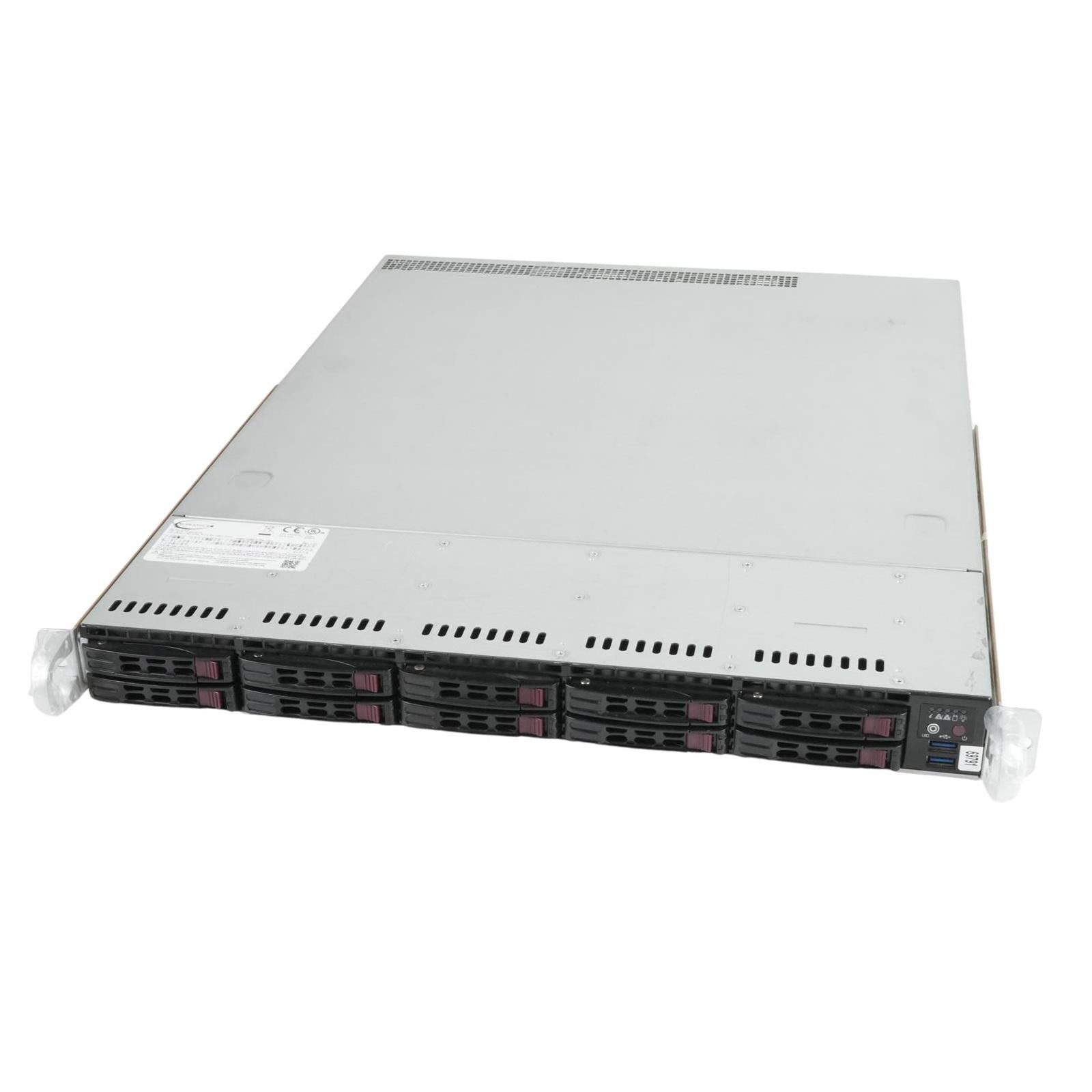

For sale is a Supermicro CSE-116AC2-R504WB 1U rackmount server chassis in excellent condition.

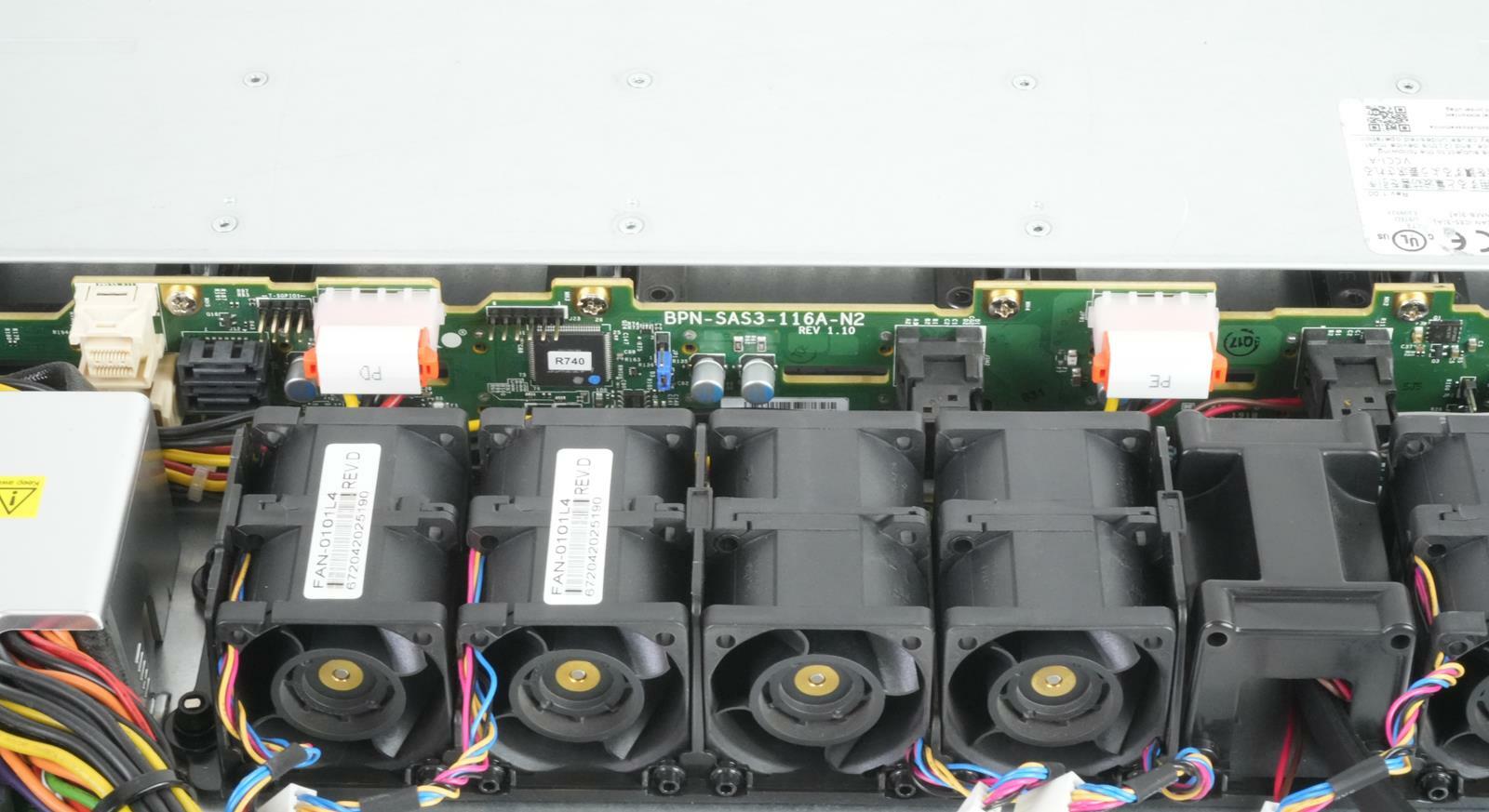

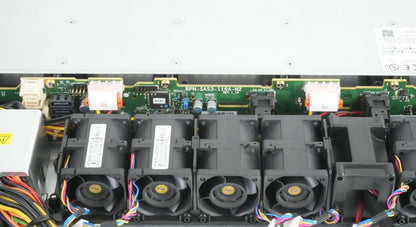

This high-density chassis supports up to 10 hot-swap 2.5" SFF drives and comes equipped with a BPN-SAS3-116A-N2 backplane, supporting SAS3 12Gb/s, SATA 6Gb/s, and up to 2× U.2 NVMe drives for maximum flexibility and performance.

Key Features:

• Model: CSE-116AC2-R504WB
• Form Factor: 1U Rackmount
• Drive Bays: 10× 2.5" SFF hot-swap bays (SAS3/SATA, with 2× NVMe support via BPN-SAS3-116A-N2)
• Backplane: BPN-SAS3-116A-N2 (12Gb/s SAS3 / 6Gb/s SATA / NVMe support)
• Expansion: UIO layout, compatible with select Supermicro motherboards

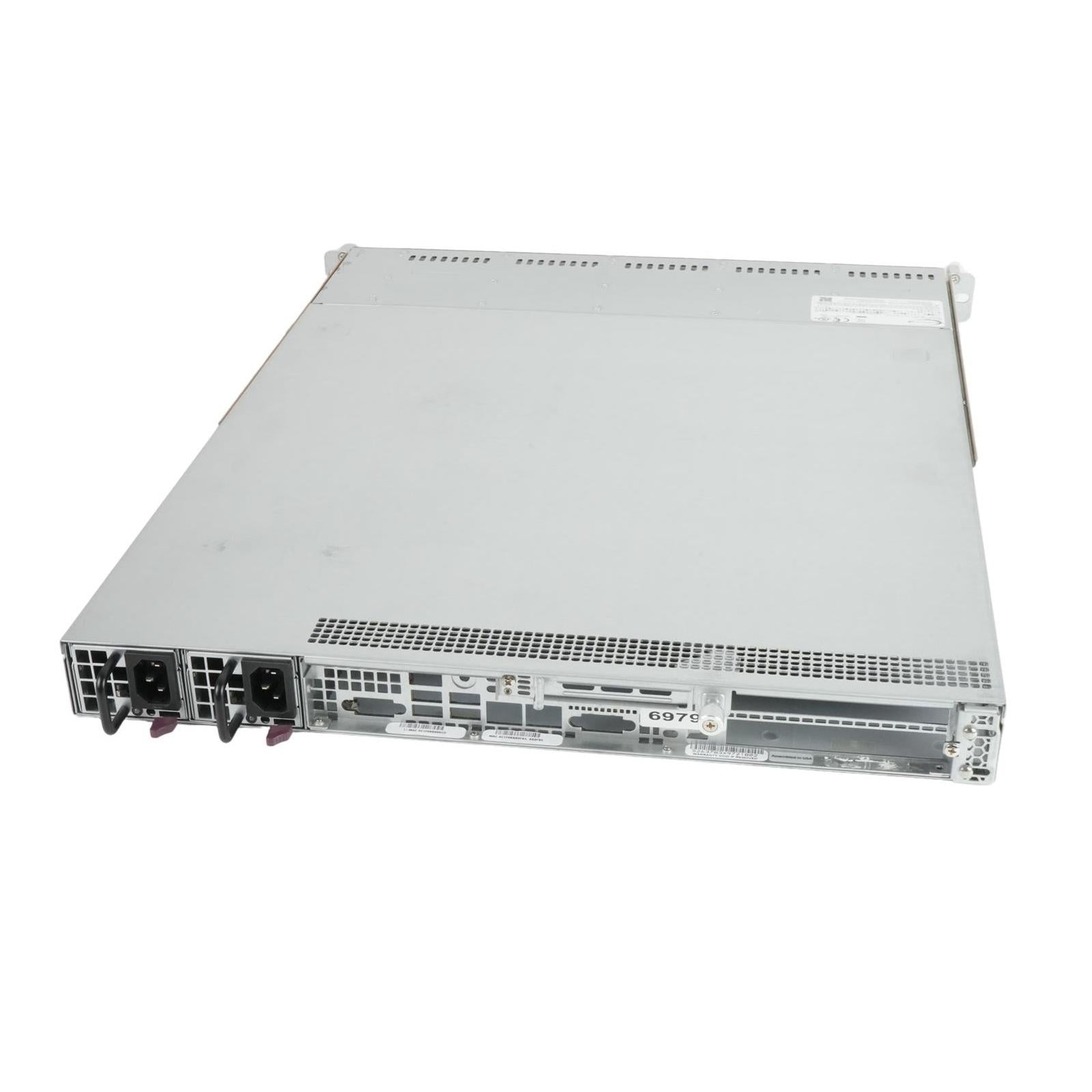

• Power Supply: 2× 500W Platinum-rated hot-swap redundant PSU (PWS-R504W-1R)
• Cooling: High-performance hot-swap fans for optimal airflow in 1U deployments
• Includes: Chassis with front bezel, drive trays, and rack ears
• Rails: Rail kit is NOT included
• Condition: Tested for power-on, fans and PSU fully functional. No motherboard, CPU, RAM, or storage included.

Notes:

• Ideal for high-density storage, virtualization, or HPC deployments requiring mixed SAS/SATA and NVMe.
• Item will be carefully packed for safe delivery.
