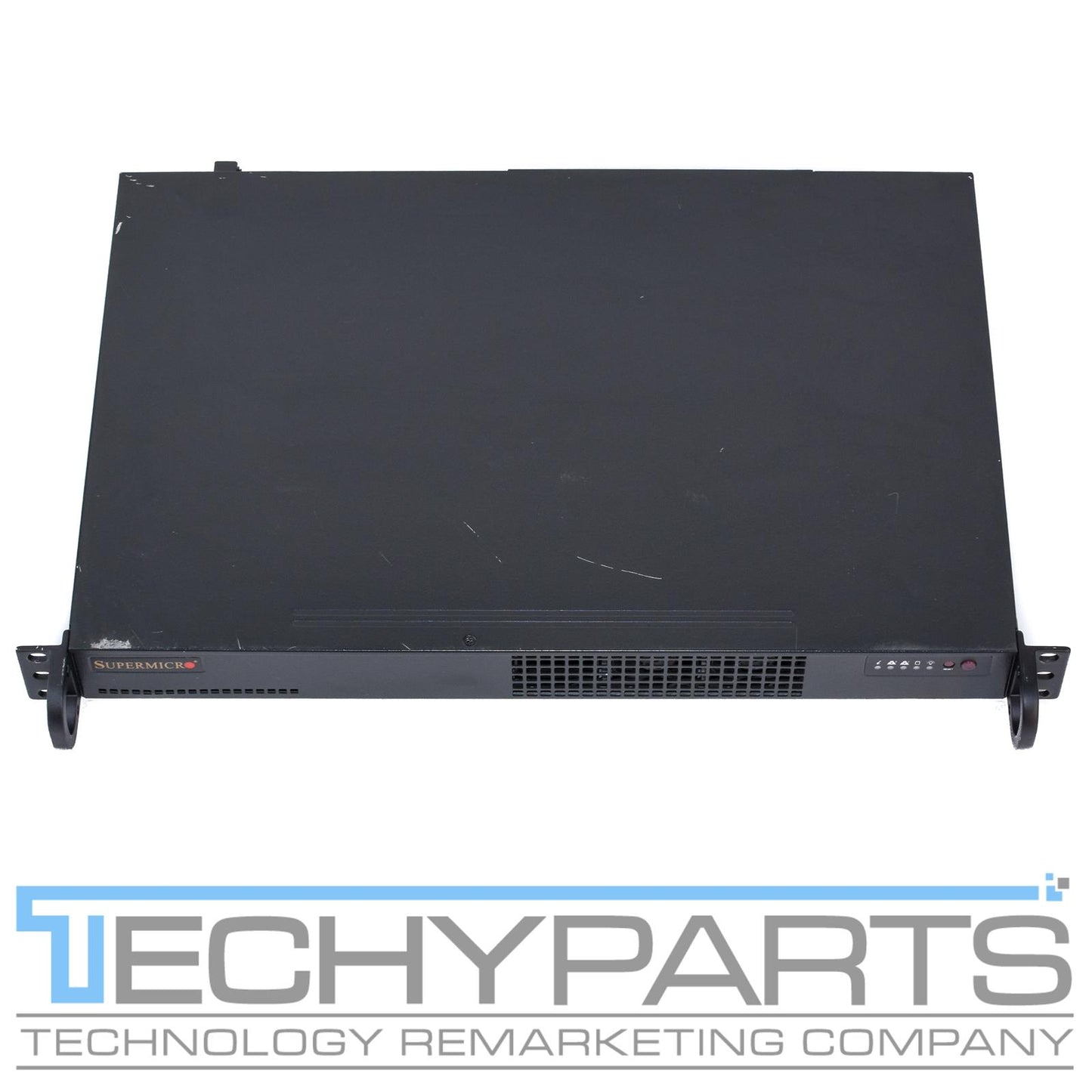

SUPERMICRO CSE-510-203B A1SRM-LN7F-2758 Intel Atom C2758 2.4GHZ 32GB 1U Server
87903SUPERMICRO CSE-510-203B A1SRM-LN7F-2758 Intel Atom C2758 2.4GHZ 32GB 1U Server
SUPERMICRO CSE-510-203B A1SRM-LN7F-2758 Intel Atom C2758 2.4GHZ 32GB 1U Server
SUPERMICRO CSE-510-203B A1SRM-LN7F-2758 Intel Atom C2758 2.4GHZ 32GB 1U Server
Specifications:
| Form Factor | 1U 1U Rackmount |
|---|---|
| Chassis Model | SUPERMICRO CSE-510-203B |
| Processor(s) |
|
| Memory | 32GB PC3L-12800E (DDR3-1600MHZ) |
| # of DIMMs and Capacity | 4x 8GB PC3L-12800E (DDR3-1600MHZ) |
| Hard Drives | NONE |
| SATA |
|
| RAID Levels | N/A |
| Power Supply | 1x 200W PWS-203-1H |
| Optical Drive | N/A |
| Network |
|
| Remote Access |
|
| Rackmount Rails | Not Included |
| Input / Output |
Serial ATA
2x SATA3 (6Gbps) ports
4x SATA2 (3Gbps) ports
LAN
7x RJ45 Gigabit Ethernet LAN ports with shared LAN IPMI 2.0
USB
7x USB 2.0 ports (4 rear, 1 Type A, 2 via header)
Serial Port
2x Fast UART 16550 Serial Port (1 rear with RJ45, 1 via header)
DOM
1x SATA DOM (Disk on Module) power connector
1x SuperDOM Supermicro SATA DOM with built-in power connector
VGA
1x VGA Port
Others
TPM header
|
| Power Cord | Not Included |
Condition: Off-lease equipment. Clean and tested by a qualified technician.
- BIOS and firmware updates are installed
- All logs are cleared
- Passwords and settings are restored to factory defaults
Custom configurations are available. Please contact us for a quote or if you have questions regarding the current configuration.
30-Day Warranty!
