Supermicro CSE-815TQ-600WB w/X9SRW-F Single LGA2011 1U Rackmount Server Barebone

83660

Supermicro CSE-815TQ-600WB w/X9SRW-F Single LGA2011 1U Rackmount Server Barebone

  • 83660-CSE-815TQ-600WB-X9SRW-F_36461_base
1 1

SUPERMICRO

$299.99 USD
$299.99 USD
Sale Sold out
Shipping calculated at checkout.

Out of stock
View full details

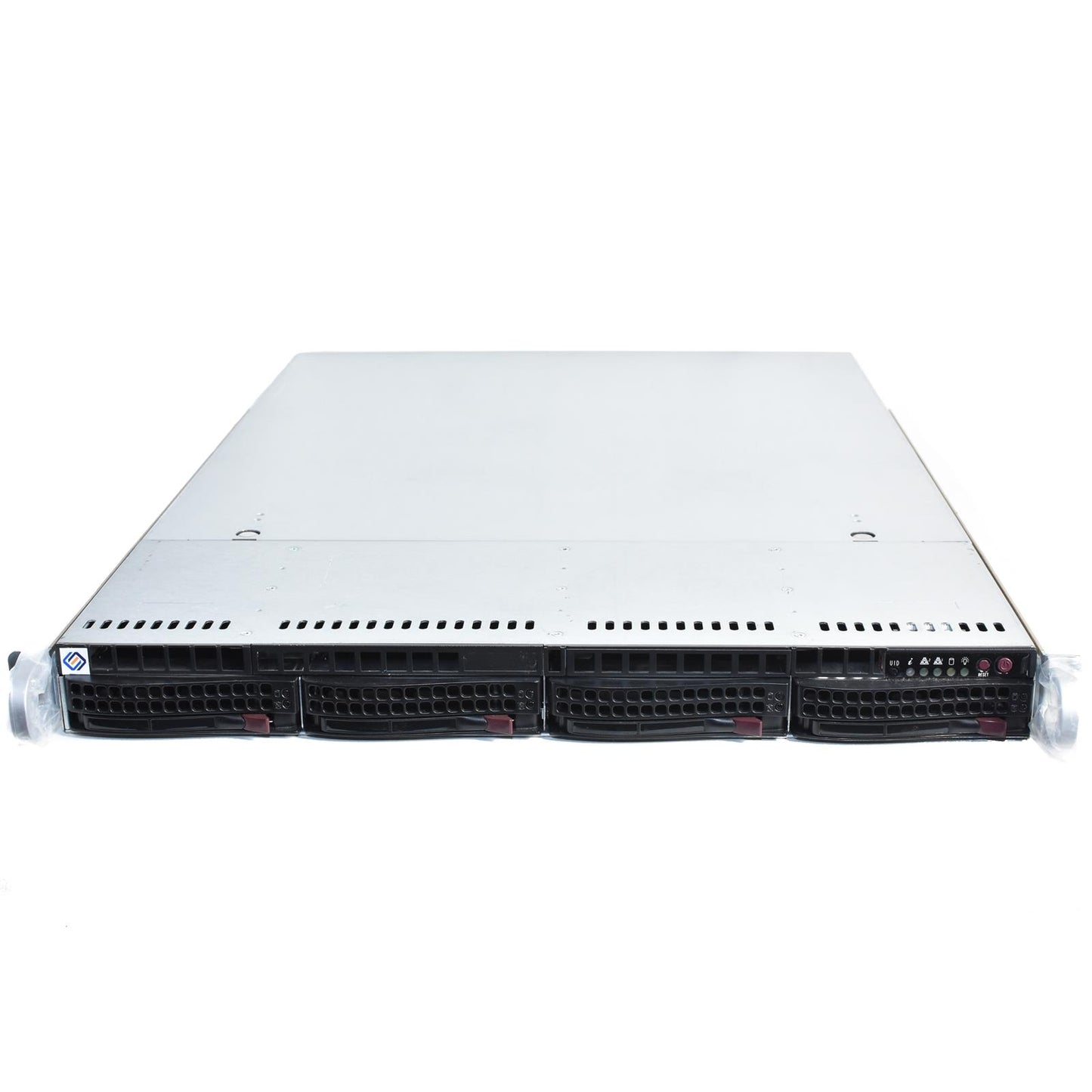

Supermicro CSE-815TQ-600WB w/X9SRW-F Single LGA2011 1U Rackmount Server Barebone

SUPERMICRO CSE-815TQ-600WB 1U Server Barebone chassis with X9SRW-F Motherboard, 600W Power Supply, 1x Heatsink

Item sold as pictured. X9SRW-F Rev 1.02 Single Xeon Socket LGA2011 motherboard is installed. Comes with 1 CPU Heatsink.

NO CPUs/No Memory, No HDDs included!

HDD trays are included, Rail kit is not included, unit comes with inner rails only.

Specifications:

Form Factor 1U Rack Mount SUPERMICRO CSE-815TQ-600WB - 4 3.5" Bays
Motherboard Model X9SRW-F Rev 1.02
Processor(s) supported
  • Single Socket R (LGA 2011)
  • Intel® Xeon® processor E5-2600 and E5-2600v2 Family
Memory supported
  • 8x 240-pin DDR3 DIMM slots
  • Up to 512GB DDR3 ECC LRDIMM
  • Up to 256GB DDR3 ECC RDIMM
  • Up to 64GB DDR3 ECC/non-ECC UDIMM
Memory Type
  • 1866/1600/1333/1066/800MHz* ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
Hard Drive Bays 4x SATA 3.5" Hot Plug
RAID Controller

Intel C602 chipset

  • SATA 2.0 3Gb/s with RAID 0, 1, 5, 10
  • SATA 3.0 6Gb/s with RAID 0, 1, 5, 10
PCI-E Risers 1x RSC-R1UW-2E16 Riser Board included
Power Supply 1x 600W
Optical Drive NONE
Network
  • ntel® i350 Dual Port Gigabit Ethernet
  • Virtual Machine Device Queues reduce I/O overhead
  • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • Nuvoton WPCM450RA0BX
Rackmount Rails Not Included
Operating System Not Included
Power Cord Not Included

Condition: Off-lease equipment. Clean and tested by qualified technician.

Each server is configured to order. This process involves rigorous quality control which includes:

  • Throughout visual inspection for physical damages
  • Verification of all components and their functionality
  • Full diagnostic test is performed utilizing manufacturer's diagnostic tools
  • BIOS and firmware updates are installed
  • All logs are cleared
  • Passwords and settings are restored to factory defaults

Custom configurations are available. Please contact us for a quote or if you have questions regarding current configuration.

30-Day Warranty!
