Supermicro CSE-826 12-Bay 2U Server Chassis w/ X8DTU-F Dual LGA1366 Motherboard

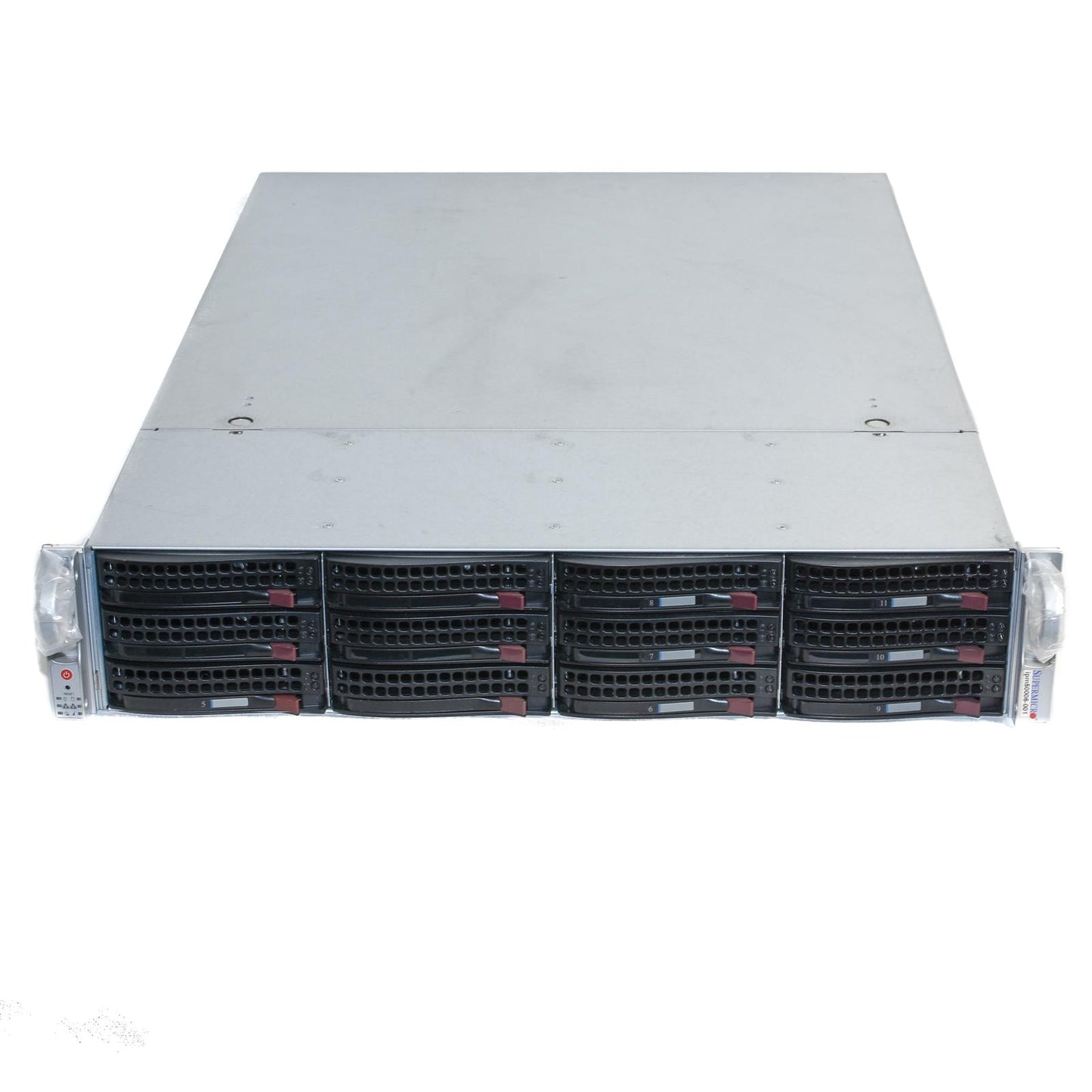

Supermicro CSE-826 12-Bay 2U Rackmount Server Chassis w/ X8DTU-F Dual LGA1366 Motherboard

Barebone Server Chassis.

No CPU, No Memory, No RAID Controller, NO HDDs, no Rail Kit included.

Comes as pictured, with 1 CPU Heatsink. No other parts or accessories are included except what is pictured.

Specifications:

Form Factor 2U RACKMOUNT
Model SUPERMICRO CSE-826-X8DTU-F - 12 3.5" Bays
Processor(s)

NONE INSTALLED, Comes with 1 CPU Heatsink installed

  • Dual 1366-pin LGA Sockets
  • Supports up to two Intel® 64-bit Xeon processor(s) of the same type below:
    • Intel

      Xeon Processor 5600 Series (Westmere)
    • Intel

      Xeon Processor 5500 Series (Nehalem-EP)
Memory NONE INSTALLED
# of DIMMs and Capacity
Memory Capacity
  • 12x 240-pin DIMM slots
  • Supports up to 192 GB 1333 / 1066 / 800MHz DDR3 ECC Registered memory
  • Supports up to 48 GB 1333 / 1066 / 800MHz DDR3 ECC / Non ECC Unbuffered memory
  • Memory Mirroring supported
Memory Type
  • 1333 / 1066 / 800MHz ECC Registered / ECC or Non ECC Unbuffered DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes
  • 1GB, 2GB, 4GB , 8GB , 16GB
Hard Drives NONE INSTALLED, Comes with 12x 3.5" LFF Hot Plug HDD Trays
RAID Controller NONE INSTALLED
HDD Backplane Model

BPN-SAS-826TQ

12-port SAS/SATA hard drive backplane, support up to 12x 3.5" hot-swap SAS/SATA hard drives.

2U Direct Attached Backplane, features:

• 3Gb/6Gb support

• SES-2 Enclosure Management Support

• SAS/SATA support

• 12 SATA connectors

Power Supply 2x 800W Hot Plug PWS-801-1R Power Supplies
Optical Drive NONE
Network
Network Controllers
  • Intel 82576 Dual-Port Gigabit Ethernet Controller
  • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
  • Intel I/OAT 3 support for fast, scaleable, and reliable networking
  • VMDq support for better performance of virtualization
  • 1x Realtek RTL8201N PHY (dedicated IPMI)
Remote Access
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • Winbond® WPCM450 BMC
Rackmount Rails NOT INCLUDED
HDD Backplane Model BPN-SAS-826TQ
Power Cord INCLUDED

Condition: Off-lease equipment. Clean and tested by qualified technician. Latest version BIOS and IPMI flashed.

30-Day Warranty!
