Supermicro CSE-826BE1C-R920LPB 2U Server Chassis with 2x 920W PSUs, 12 x 3.5" hot-swap SAS/SATA Drive Bays and Optional Rear 2.5 x 2 hot-swap HDD kit

Condition: Off-lease equipment. Clean and tested by qualified technician. Sold as pictured, no other accessories are included. Rail kit is not included. 12x 3.5" and 2x 2.5" HDD trays and screws are included.

Specifications:

Form Factor:

• Supermicro CSE-826BE1C-R920LPB 12x 3.5" Drive Bays 2U rackmount chassis with Optional Rear 2.5 x 2 hot-swap HDD kit installed
• 2U chassis support for maximum motherboard size - 12" x 13", 13" x 13.68".
• Support up to 12"x13" MB with rear 2.5" HDD option installed.

Expansion Slots:

• Seven low-profile PCI expansion slots

Drive Bays:

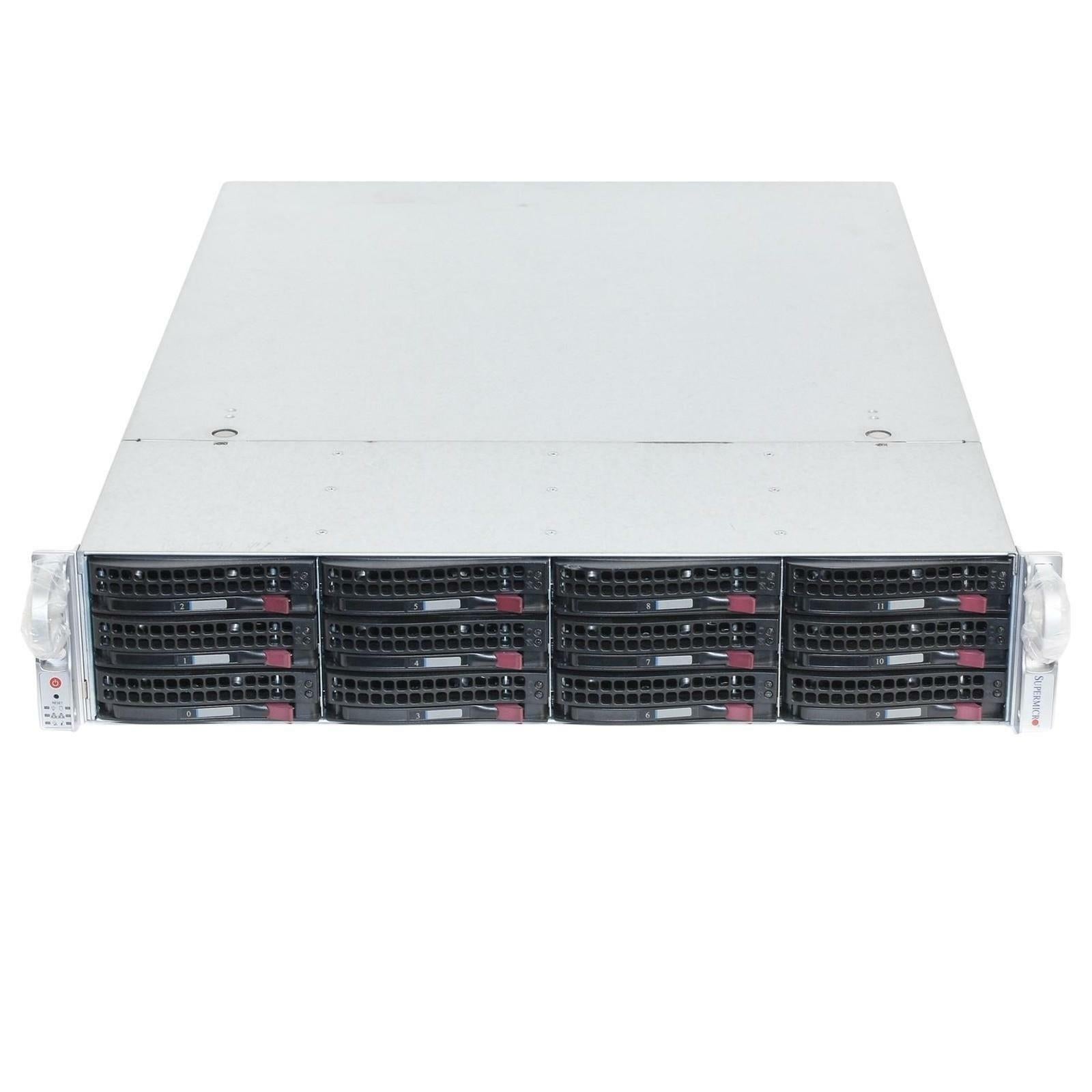

• 12x 3.5" drive bays front and 2x 2.5" rear with HDD Hot-swap trays, SAS HDD and Enterprise SATA HDD recommended.

  Supermicro BPN-SAS3-826EL1 (front) SAS Backplane with single expander and BPN-SAS826-2PT (rear) direct attach backplane.

  Expander support SAS3 12.0Gb/s

Front Panel:

• Buttons: Power On/Off, System Reset buttons.

  LEDs: Power, HDD, Network activity, System Overheat, & Power Fail LEDs.

System Cooling:

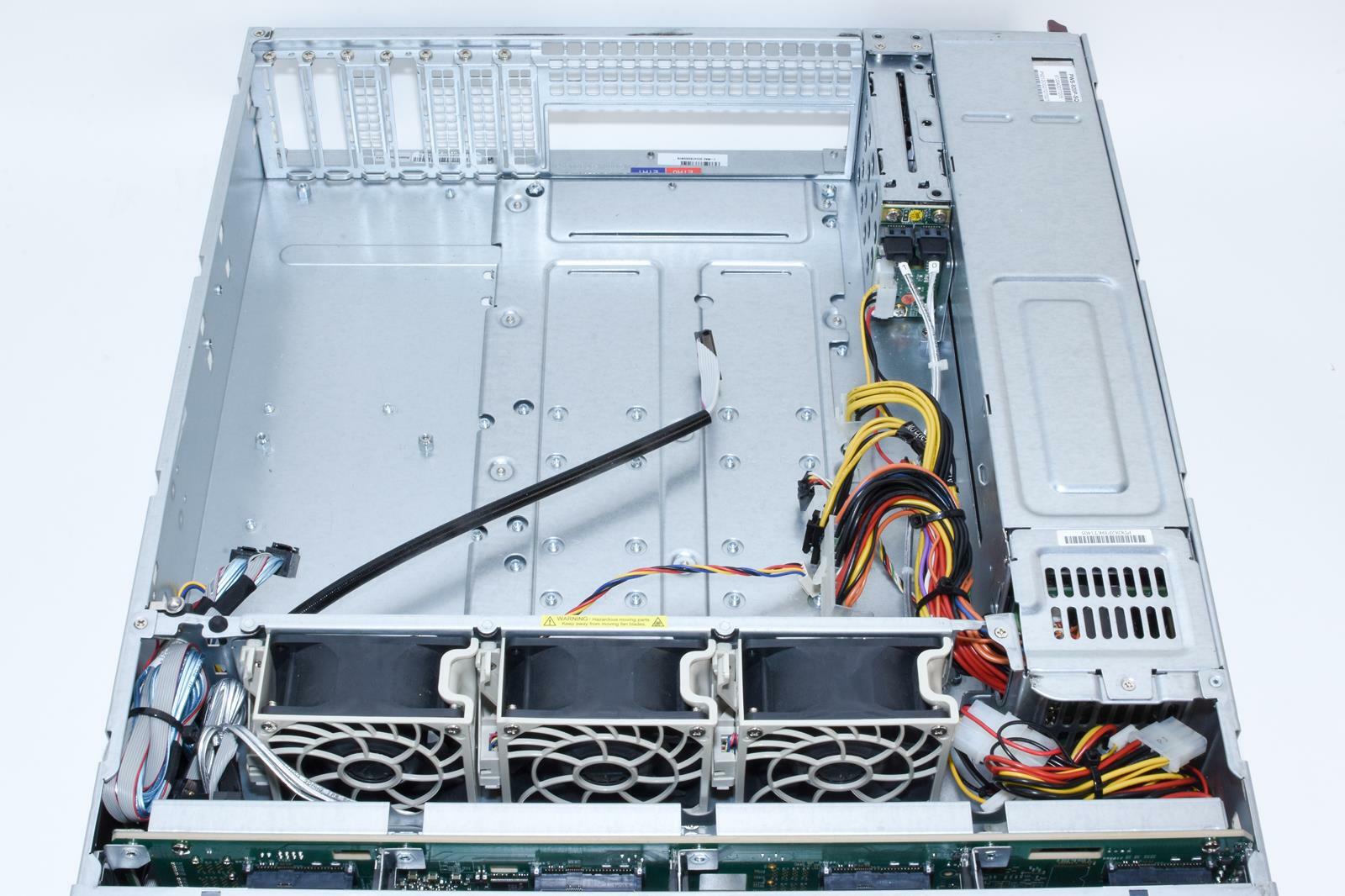

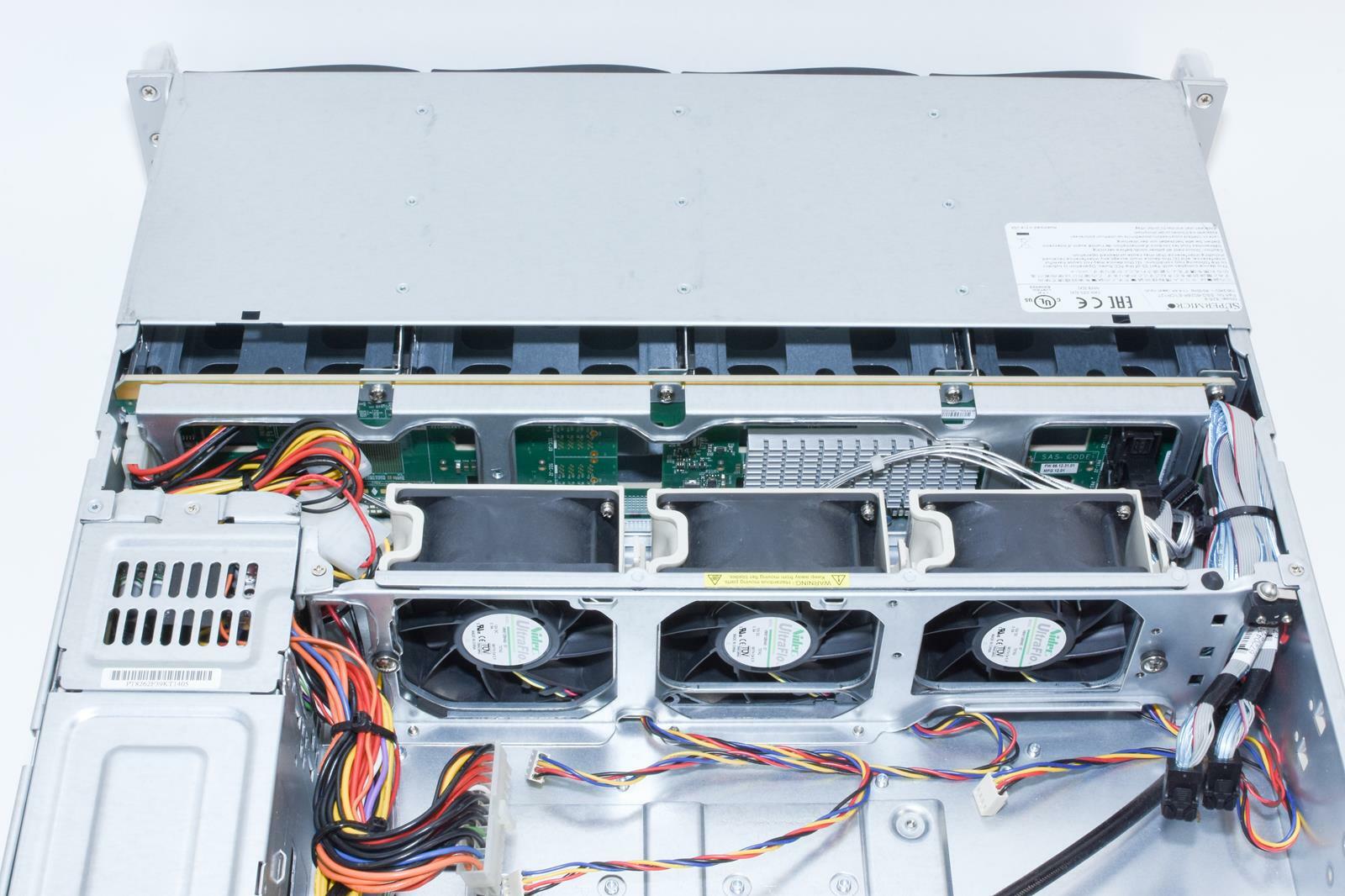

• Three 80mm x 30mm hot-swap middle cooling fans

  Support redundant cooling function

Power Supply:

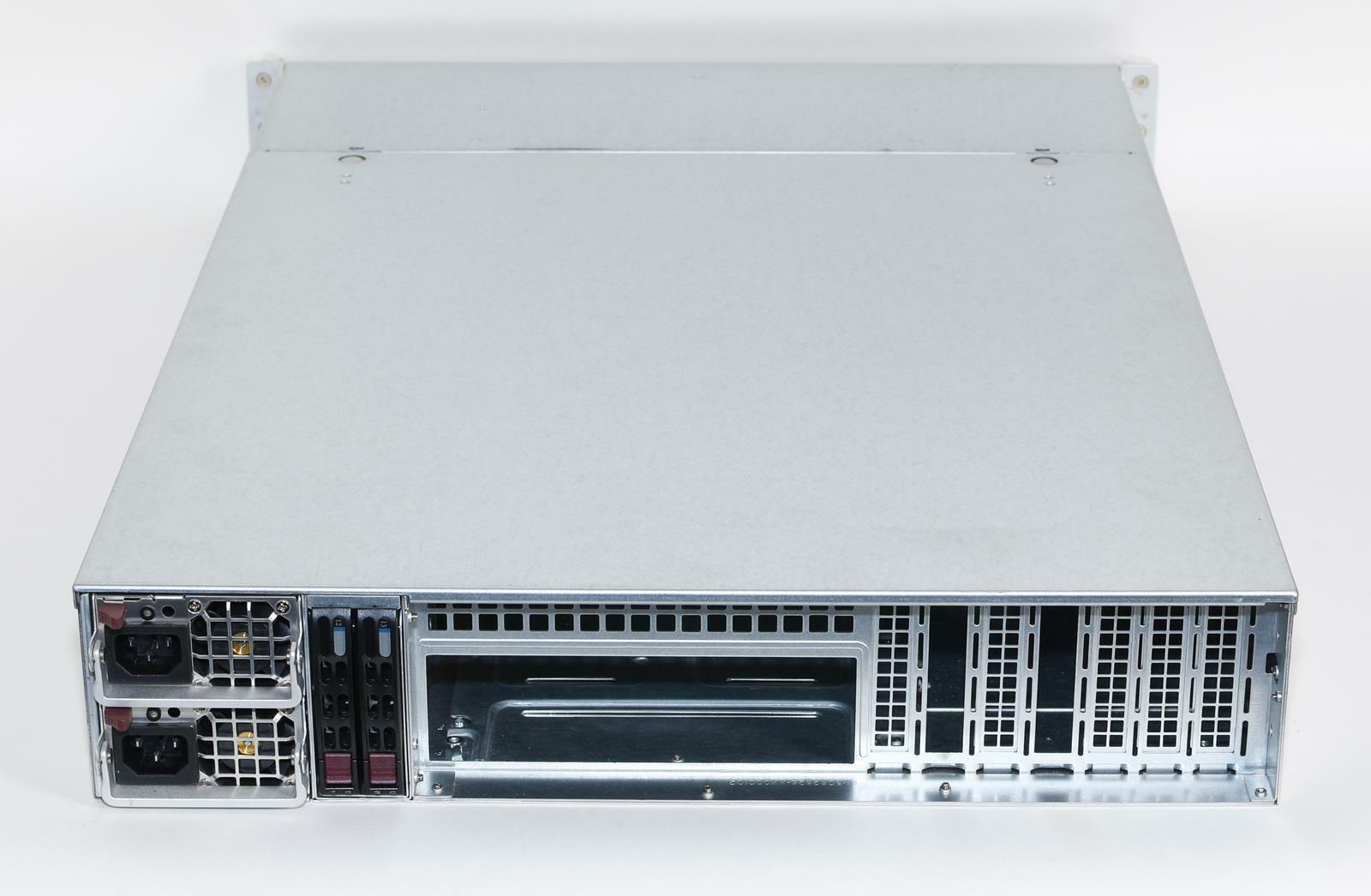

• 2x Redundant (1+1) 920W Redundant Platinum Super Quiet power supply W/PMbus

  94% High-efficiency with 80 PLUS Platinum Certified
