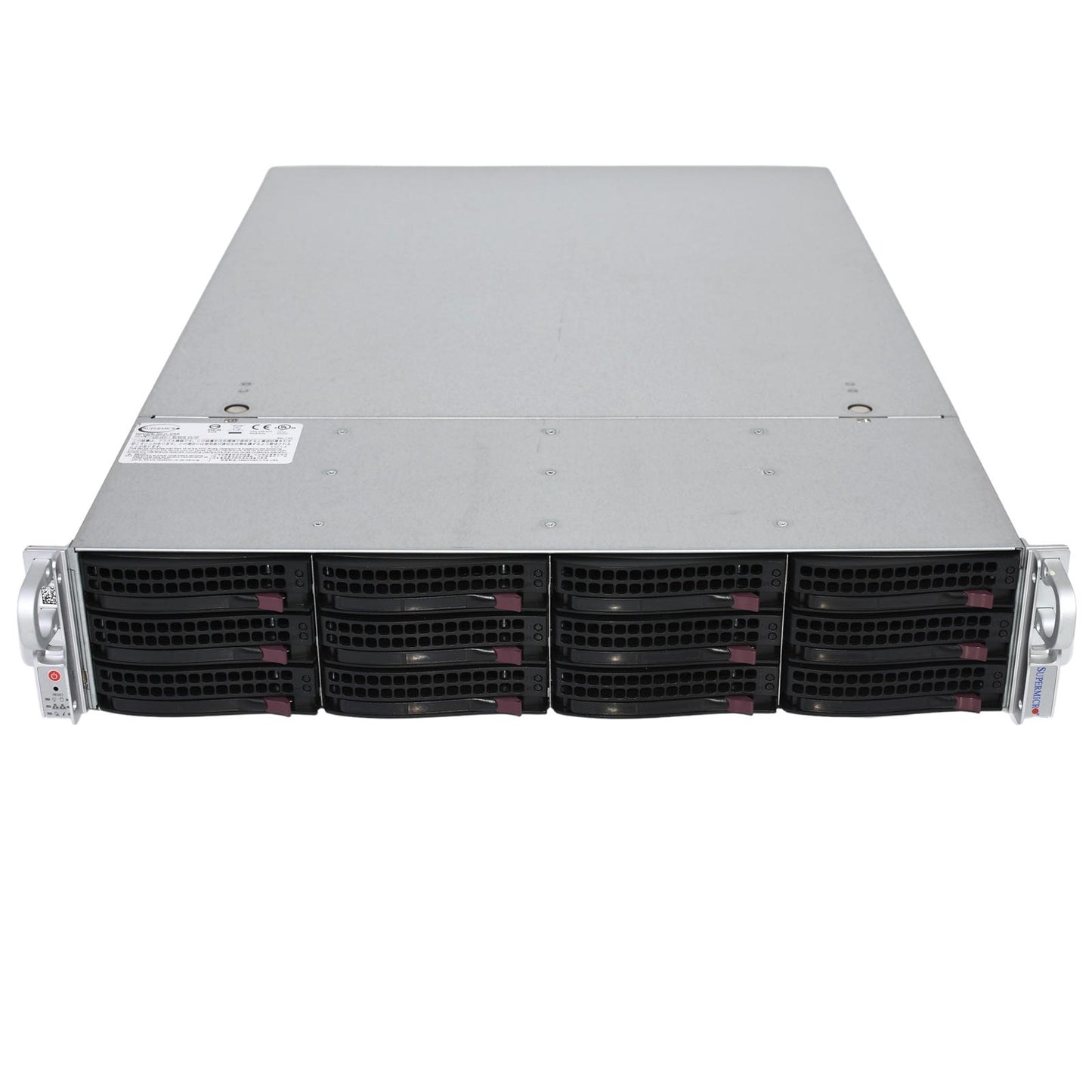

Supermicro CSE-826BE1C4-R1K23LPB 12-Bay 3.5" SAS3 12Gbps 2U Server Chassis NVME

Condition: Off-lease equipment. Clean and tested by a qualified technician. Sold as pictured, no other accessories are included. Optional Rear 2.5" x 2 hot-swap HDD kit installed. Rail kit is not included. 12x 3.5" and 2x 2.5" HDD trays and screws are included.

Specifications:

Form Factor:

• Supermicro CSE-826BE1C4-R1K23LPB 12x 3.5" Drive Bays 2U rackmount chassis with BPN-SAS3-826EL1-N4 with NVMe capabilities and optional Rear 2.5 x 2 hot-swap HDD kit installed
• 2U chassis support for maximum motherboard size - 12" x 13", 13" x 13.68".
• Support up to 12"x13" MB with a rear 2.5" HDD option installed.

Expansion Slots:

• Seven low-profile PCI expansion slots

Drive Bays:

• 12x 3.5" drive bays front and 2x 2.5" rear with HDD Hot-swap trays, SAS HDD, and Enterprise SATA HDD recommended.

  Supermicro BPN-SAS3-826EL1-N4 (front) SAS Backplane with a single expander and NVMe capabilities. BPN-SAS826-2PT (rear) direct attach backplane.

  Expander support SAS3 12.0Gb/s

Front Panel:

• Buttons: Power On/Off, System Reset buttons.

  LEDs: Power, HDD, Network activity, System Overheat, & Power Fail LEDs.

System Cooling:

• Three 80mm x 30mm hot-swap middle cooling fans

  Support redundant cooling function

Power Supply:

• 2x Redundant (1+1) PWS-1K23A-1R Redundant power supply W/PMbus High-efficiency with 80 PLUS Titanium Certified
