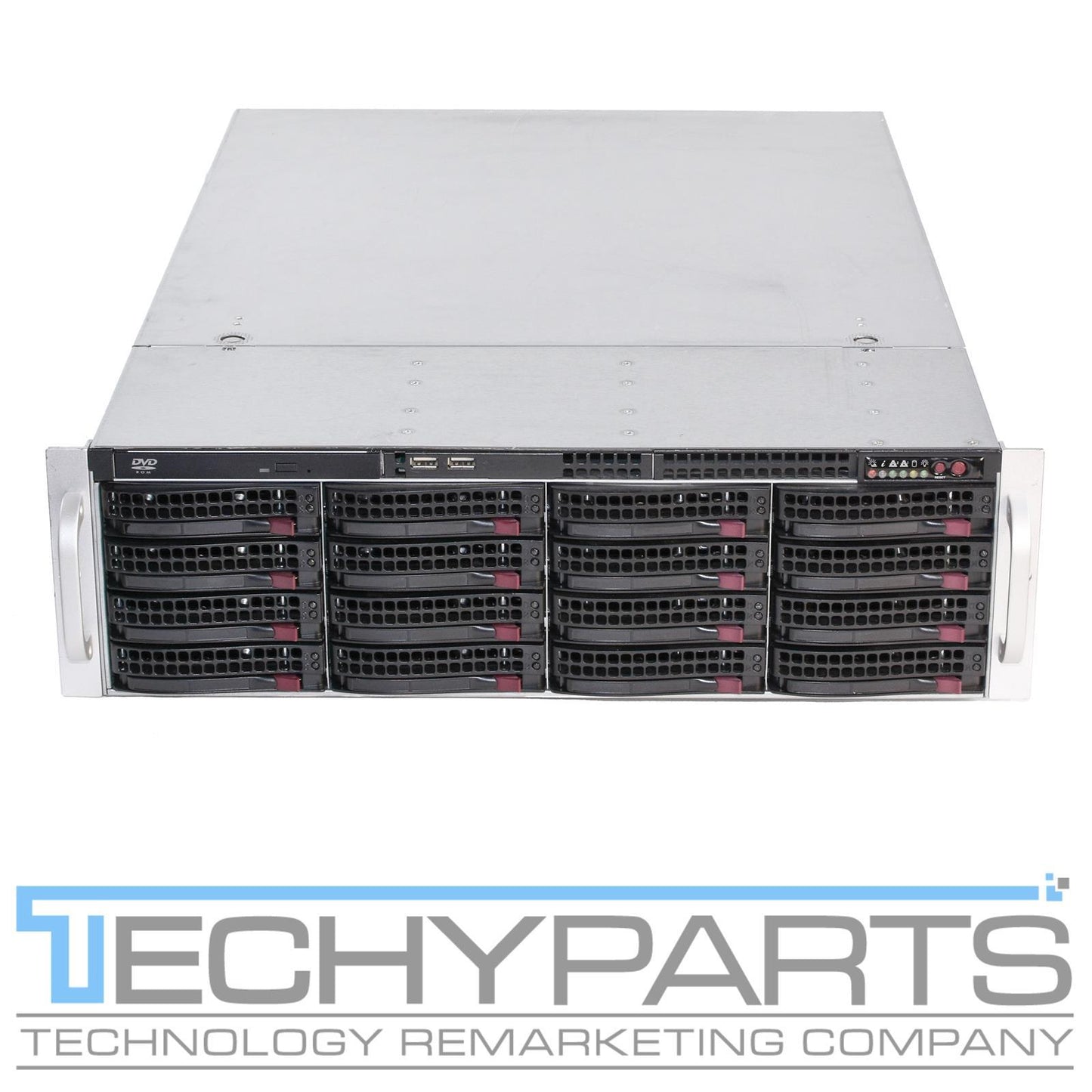

Supermicro CSE-836BE16-R1K28B 3U Server Chassis 2x1280W 16x 3.5" BPN-SAS2-836EL1
87953Supermicro CSE-836BE16-R1K28B 3U Server Chassis 2x1280W 16x 3.5" BPN-SAS2-836EL1
Supermicro CSE-836BE16-R1K28B 3U Server Chassis 2x1280W 16x 3.5" BPN-SAS2-836EL1
Supermicro CSE-836BE16-R1K28B 3U Server Chassis with 2x 1280W SQ PSUs, 16 x 3.5" hot-swap SAS/SATA Drive Bays
Condition: Off-lease equipment. Clean and tested by a qualified technician. Sold as pictured, no other accessories are included. Rail kit is not included. 16x 3.5" HDD trays and screws are included.
Specifications:
Form Factor:
- Supermicro CSE-836BE16-R1K28B 16x 3.5" Drive Bays 3U rackmount chassis
- 3U chassis support for maximum motherboard size - 12" x 13", 13" x 13.68".
Expansion Slots:
- Seven full-profile PCI expansion slots
Drive Bays:
- 16x 3.5" drive bays front with HDD Hot-swap trays, SAS HDD, and Enterprise SATA HDD recommended.
Supermicro BPN-SAS2-836EL1 (front) SAS Backplane with a single expander.
Expander support SAS2 6.0Gb/s
Front Panel:
- Buttons: Power On/Off, System Reset buttons.
LEDs: Power, HDD, Network activity, System Overheat, & Power Fail LEDs.
System Cooling:
- 3 x 80mm Hot-swap PWM Fans
- 2 x 80mm rear hot-swap exhaust PWM fan(s)
Power Supply:
- 2x Redundant (1+1) 1280W Redundant Platinum Super Quiet power supply W/PMbus
94% High-efficiency with 80 PLUS Platinum Certified
30-Day Warranty!
