Supermicro CSE-846 24-Bay 4U Server Chassis BPN-SAS3-846EL1 2x 920W PWS-920P-SQ
95016Supermicro CSE-846 24-Bay 4U Server Chassis BPN-SAS3-846EL1 2x 920W PWS-920P-SQ

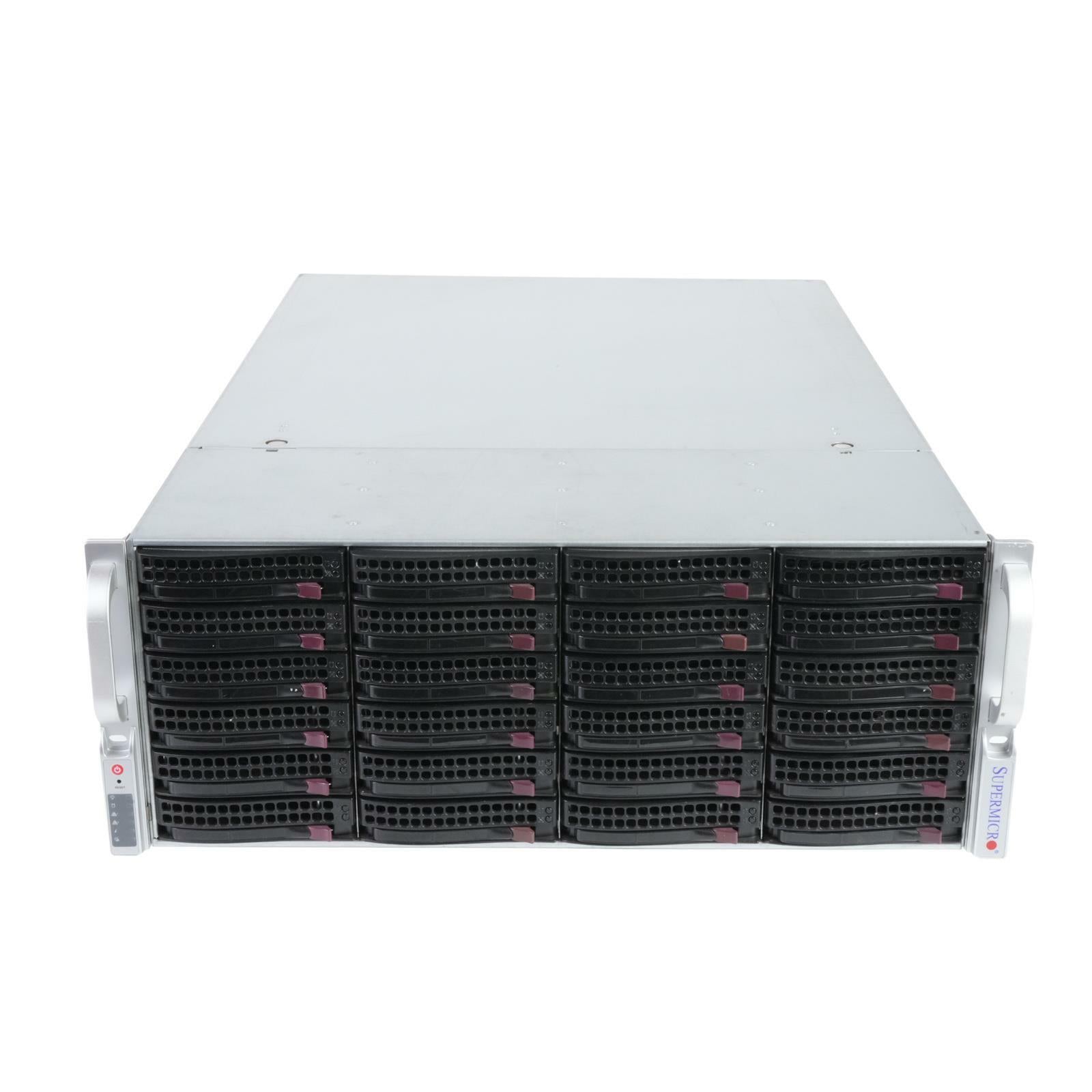

Supermicro CSE-846 SuperChassis 4U 24-Bay Rackmount Server Chassis with 2x 920W SQ (SuperQuiet) PSUs and 24 x 3.5" Front hot-swap SAS/SATA Drive Bays
Manufacturer: Supermicro
Model: CSE-846
Part Number: CSE-846
Condition: Clean working pull from enterprise equipment. Fully tested by a qualified technician and guaranteed 100% working.
What's Included:
Supermicro CSE-846 4U Chassis

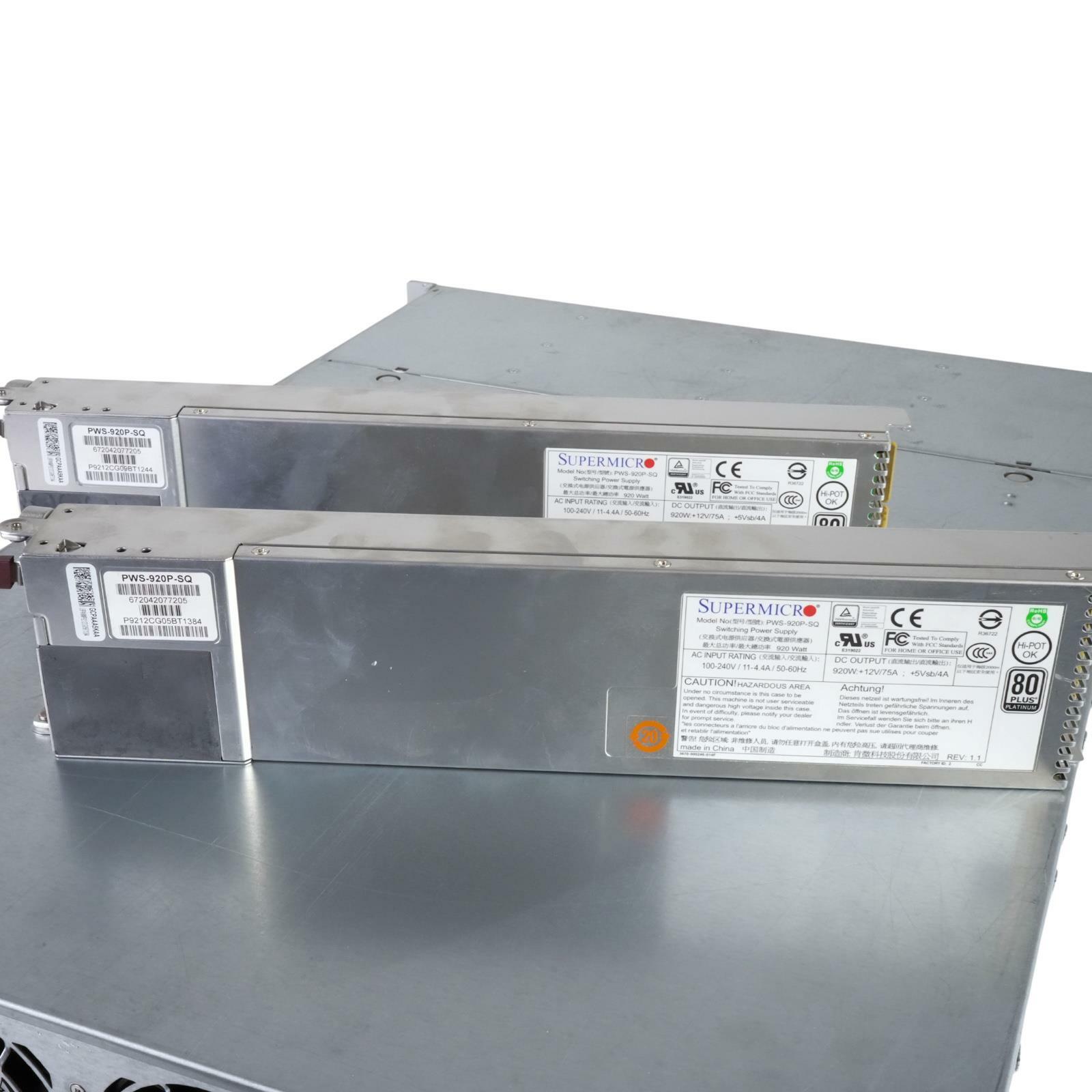

2x PWS-920P-SQ 920W SuperQuiet Redundant PSUs
24x 3.5" Hot-Swap HDD Trays + Screws
Supermicro BPN-SAS3-846EL1 24-Port SAS3 Backplane

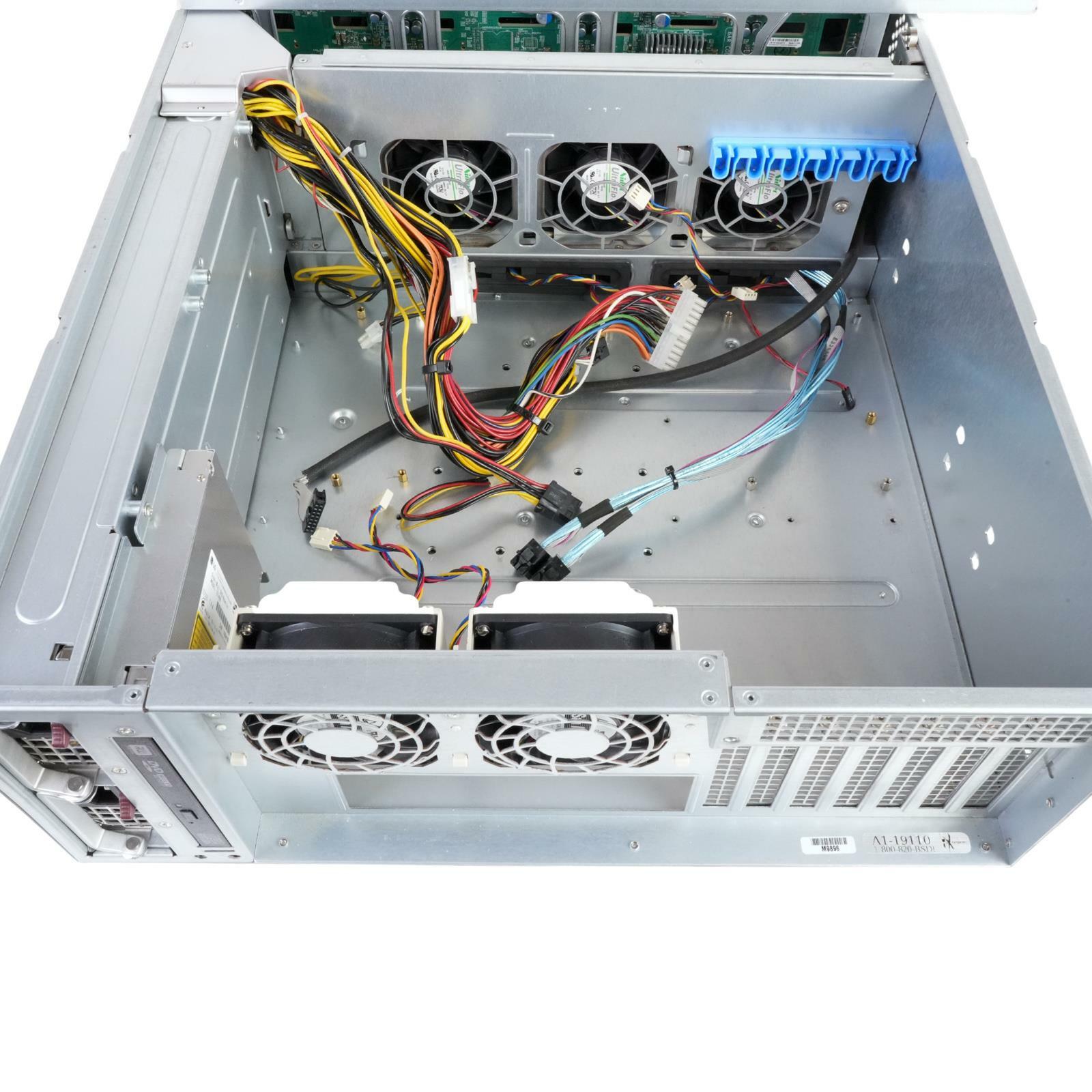

Cooling Fans: 3x 80mm hot-swap PWM (FAN-0127L4) + 2x 80mm rear hot-swap PWM (FAN-0125L4)
2x SFF-8643 SAS3 Cables
Motherboard screws
Note: Rail kit is not included. Plastic CPU air shroud is missing/not included. Sold as pictured.
30-Day Warranty Included!
Build high-density storage or compute servers with this robust 24-bay chassis featuring quiet redundant Platinum PSUs and enterprise-grade cooling.
This is a genuine Supermicro CSE-846 4U rackmount server chassis. It delivers excellent expandability with 24 hot-swap drive bays, redundant high-efficiency power, and strong cooling - perfect for storage servers, backup systems, or high-capacity data solutions in home labs or enterprise environments.
Manufacturer's description and specifications:
Supermicro CSE-846 SuperChassis 4U 24-Bay Rackmount Server Chassis with 2x 920W SQ (SuperQuiet) PSUs, 24 x 3.5" Front hot-swap SAS/SATA Drive Bays.
Key Specifications:
Form Factor: 4U Rackmount
Motherboard Support: EE-ATX (13.68" x 13"), E-ATX (12" x 13"), ATX (12" x 10")
Expansion Slots: 7 full-height full-length
Drive Bays: 24 x 3.5" hot-swap (SAS3/SATA3 supported)
Backplane: BPN-SAS3-846EL1 24-port SAS3 12Gbps single-expander
Cooling: 3x 8cm hot-swap PWM fans (FAN-0127L4) + 2x 80mm rear hot-swap PWM fans (FAN-0125L4)
Power Supply: 2x PWS-920P-SQ 920W Redundant Platinum (80 PLUS Platinum Certified)
Front Panel:
Buttons: Power On/Off, System Reset
LEDs: 2x Network Activity, Fan Fail/Over Heat, HDD Activity, Power Status, UID
