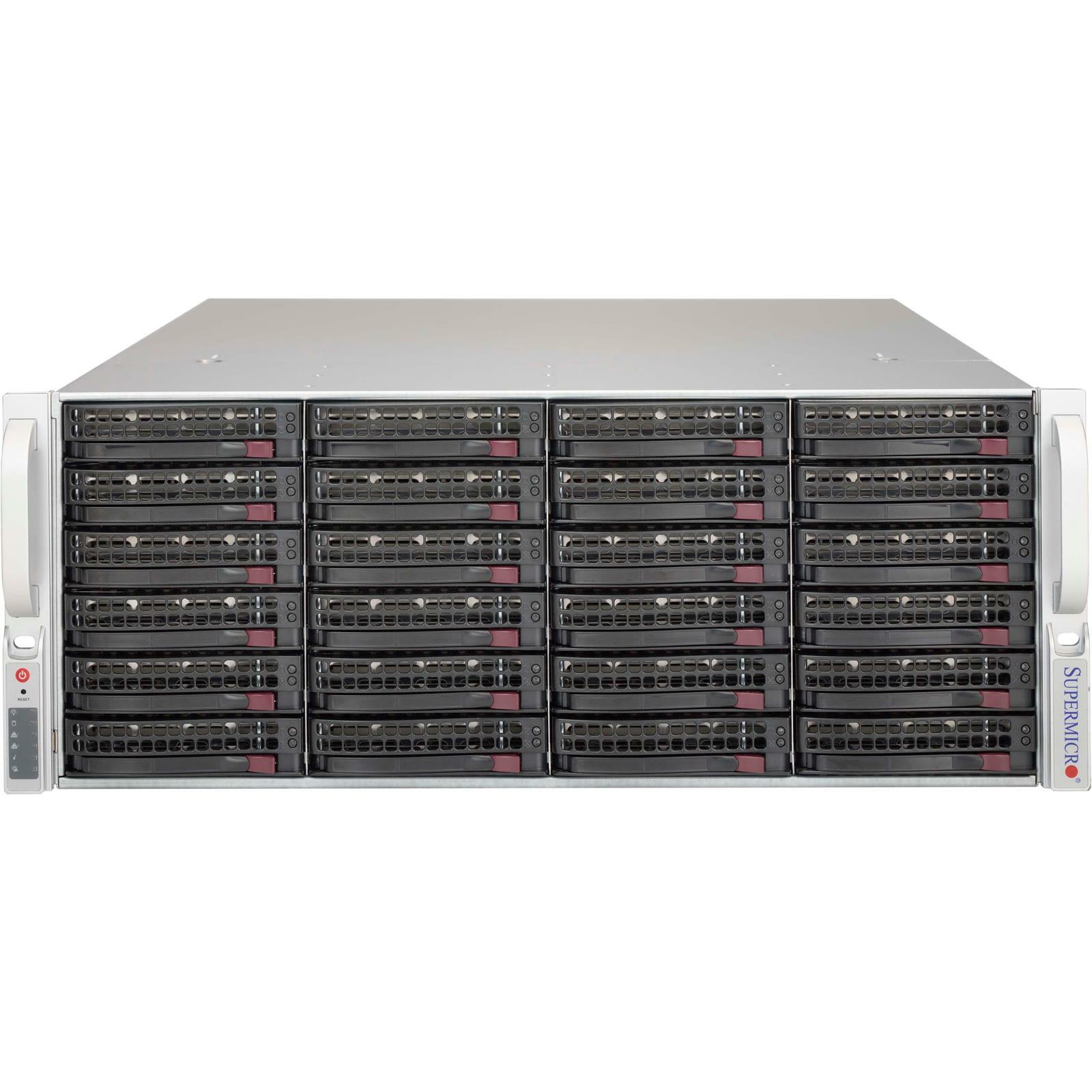

Supermicro CSE-846BE1C-R1K03JBOD 4U 24-Bay Rackmount JBOD Chassis with 2x 1000W PSUs, 24 x 3.5" Front hot-swap SAS3/SATA3 Drive Bays

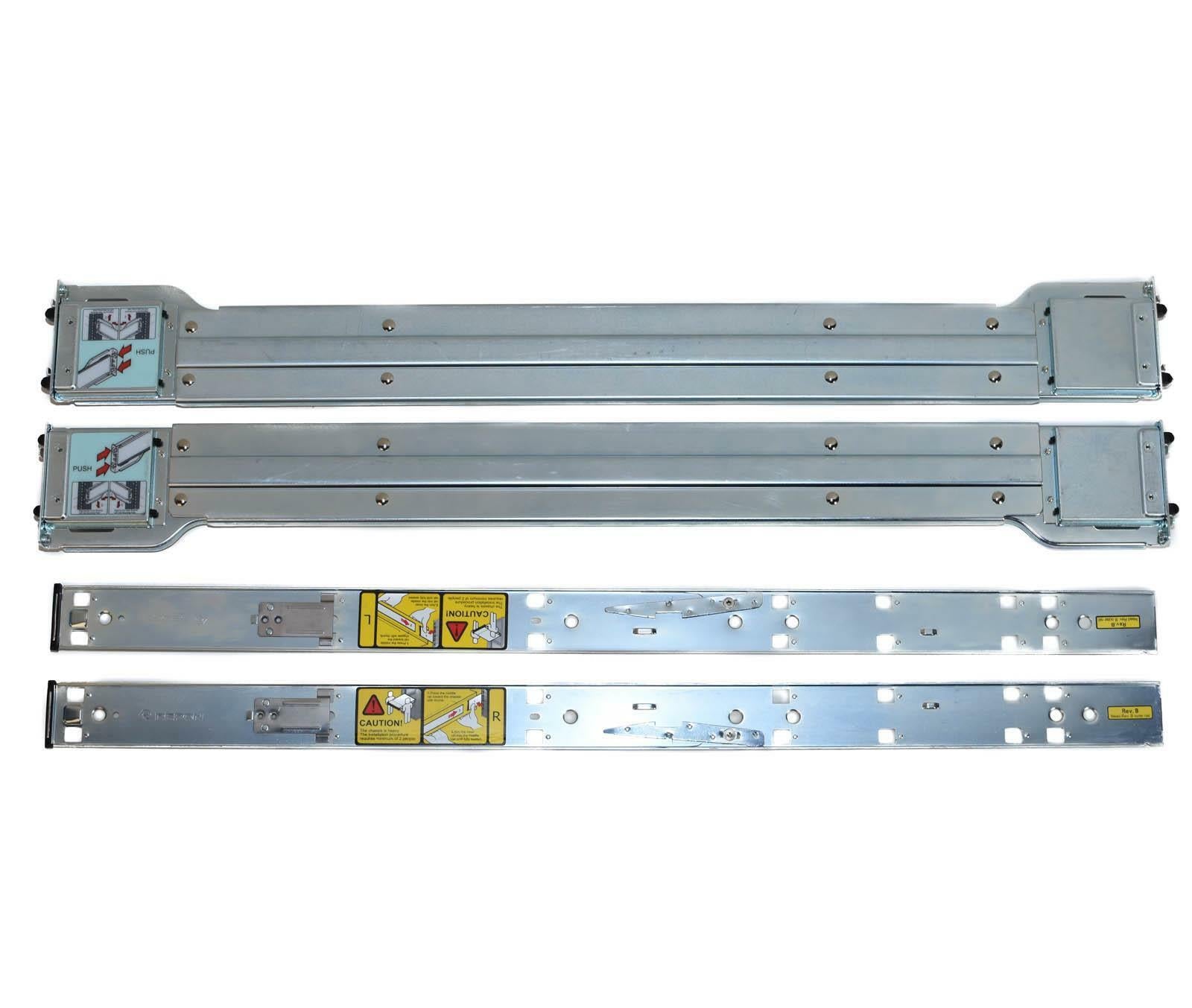

Condition: Used - tested. Comes with rackmount rails and HDD trays/caddies.

Key Features

1. 4U Storage JBOD Chassis with capacity 24 x 3.5" hot-swappable HDDs bays
2. Single Expander Backplane Boards support SAS3/2 HDDs with 12Gb/s throughput
3. 4 x Mini-SAS HD ports for Internal / External Cascading Expander Combination for high performance, high availability or high redundancy requirements
4. 1x IPMI port for Remote System Power on/off and system monitoring
5. Support NTP for time synchronization & RTC battery backup
6. 1000W (1+1) 96% efficient Titanium level power supplies
7. 5 hot-plug redundant cooling fans
8. Ideal for Cloud backup, data Replication or High desnsity Archive Storage Applications
9. Qualified SAS HBA / controller:
   AOC-SAS3-9500-8E - 12Gb/s 2-external ports SAS3 HBA **** SOLD SEPARATELY - NOT INCLUDED with JBOD *****
   AOC-SAS3-9500-16E - 12Gb/s 4-external ports SAS3 HBA **** SOLD SEPARATELY - NOT INCLUDED with JBOD *****
   AOC-SAS3-9580-8I8E - 12Gb/s 2-external ports SAS3 RAID Controller **** SOLD SEPARATELY - NOT INCLUDED with JBOD *****

Specifications:

Form Factor:

• Supermicro CSE-846BE1C-R1K03JBOD 24x 3.5" Drive Bays 4U rackmount chassis

Drive Bays:

• 24 x 3.5" hot-swap HDD bays for JBOD solution

Front Panel:

• Buttons: Power On/Off, System Reset, Unit Identification (UID) buttons
• LEDs: 1 Network Activity LEDs, Fan Fail/System Over Heat LED, Power Status LED, Power Fail LED, Unit Identification (UID) LED

System Cooling:

• 2x 8cm hot-swap exhaust fan(s) & air shroud
• 3x 8cm hot-swap redundant PWM cooling fan(s)

Power Supply:

• 2x Redundant (1+1) 1000W Titanium 96% Efficient Power Supplies with PMbus

90-Day Warranty!
