Supermicro CSE-847BE1C-R1K28LPB 4U 36-Bay Server Chassis 2x1280W BPN-SAS3-846EL1

Supermicro CSE-847BE1C-R1K28LPB 4U 36-Bay Server Chassis 2x1280W BPN-SAS3-846EL1

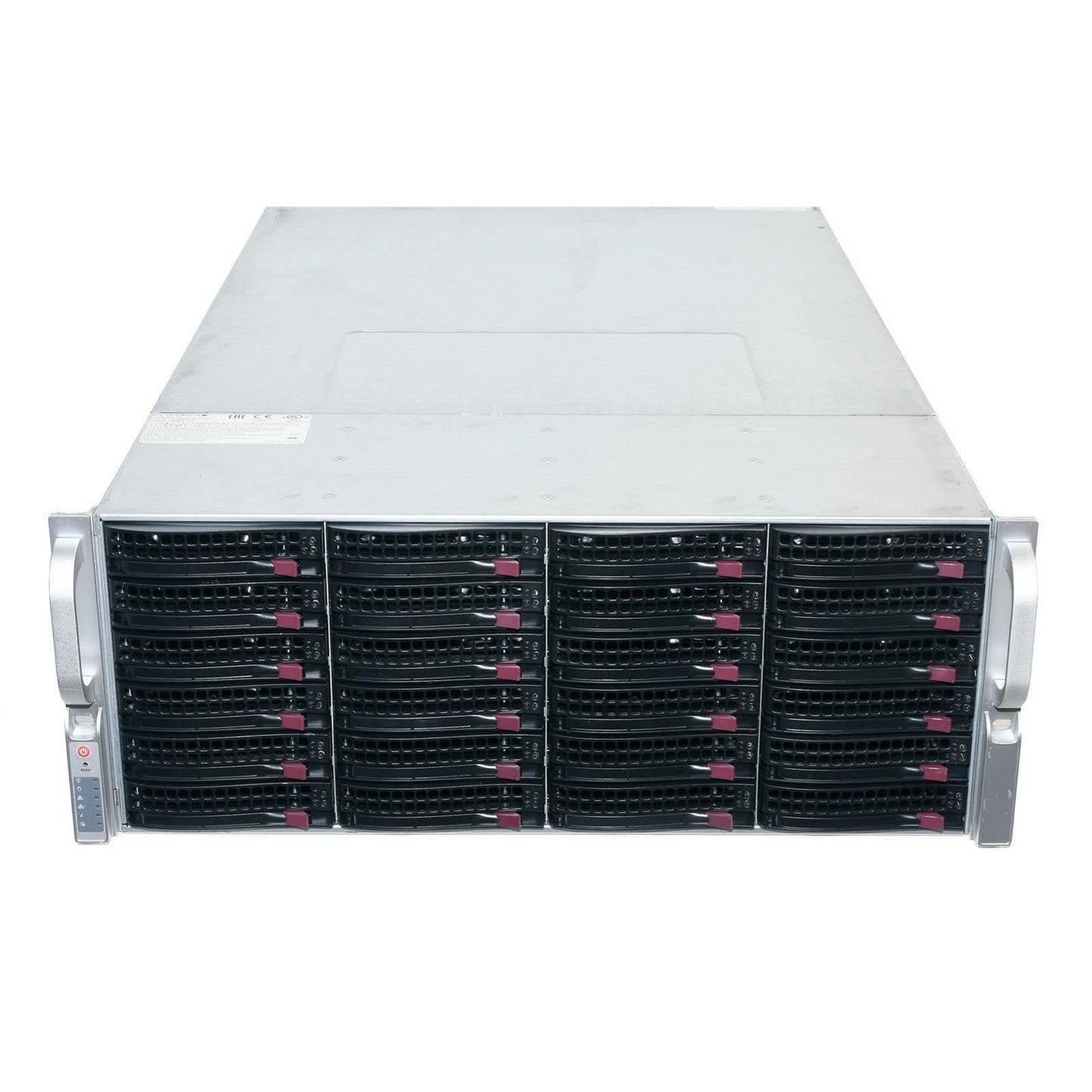

Supermicro CSE-847E1C-R1K28LPB 4U Server Chassis with 2x 1280W PSUs, 24 x 3.5" Front, 12x 3.5" Rear hot-swap SAS/SATA Drive Bays

Condition: Off-lease equipment. Clean and tested by a qualified technician. Sold as pictured, no other accessories are included. Rail kit is not included. 36x 3.5" HDD trays and screws are included.

Specifications:

Form Factor:

• Supermicro CSE-847E1C-R1K28LPB 36x 3.5" Drive Bays 4U rackmount chassis
• 4U chassis support for max. motherboard size - 13.68" x 13" E-ATX, 12" x 10" ATX and 9.6" x 9.6" Micro-ATX

Expansion Slots:

• Seven low profile SFF PCI expansion slots

Drive Bays:

• 36x 3.5" drive bays with HDD Hot-swap trays, SAS HDD, and Enterprise SATA HDD recommended.

  Supermicro BPN-SAS3-846EL1 (front) SAS Backplane with single expander and BPN-SAS3-826EL1 (rear) Backplane.

  Expander support SAS3 12.0Gb/s

Front Panel:

• Buttons: Power On/Off, System Reset buttons.

  LEDs: Power, HDD, Network activity, System Overheat, & Power Fail LEDs.

System Cooling:

• 7 x 8cm hot-swap redundant PWM cooling fan(s)

Power Supply:

• 2x Redundant (1+1) 1280WPWS-1K28P-SQ Redundant Platinum Level power supply W/PMbus

  94% High-efficiency with 80 PLUS Platinum Certified
