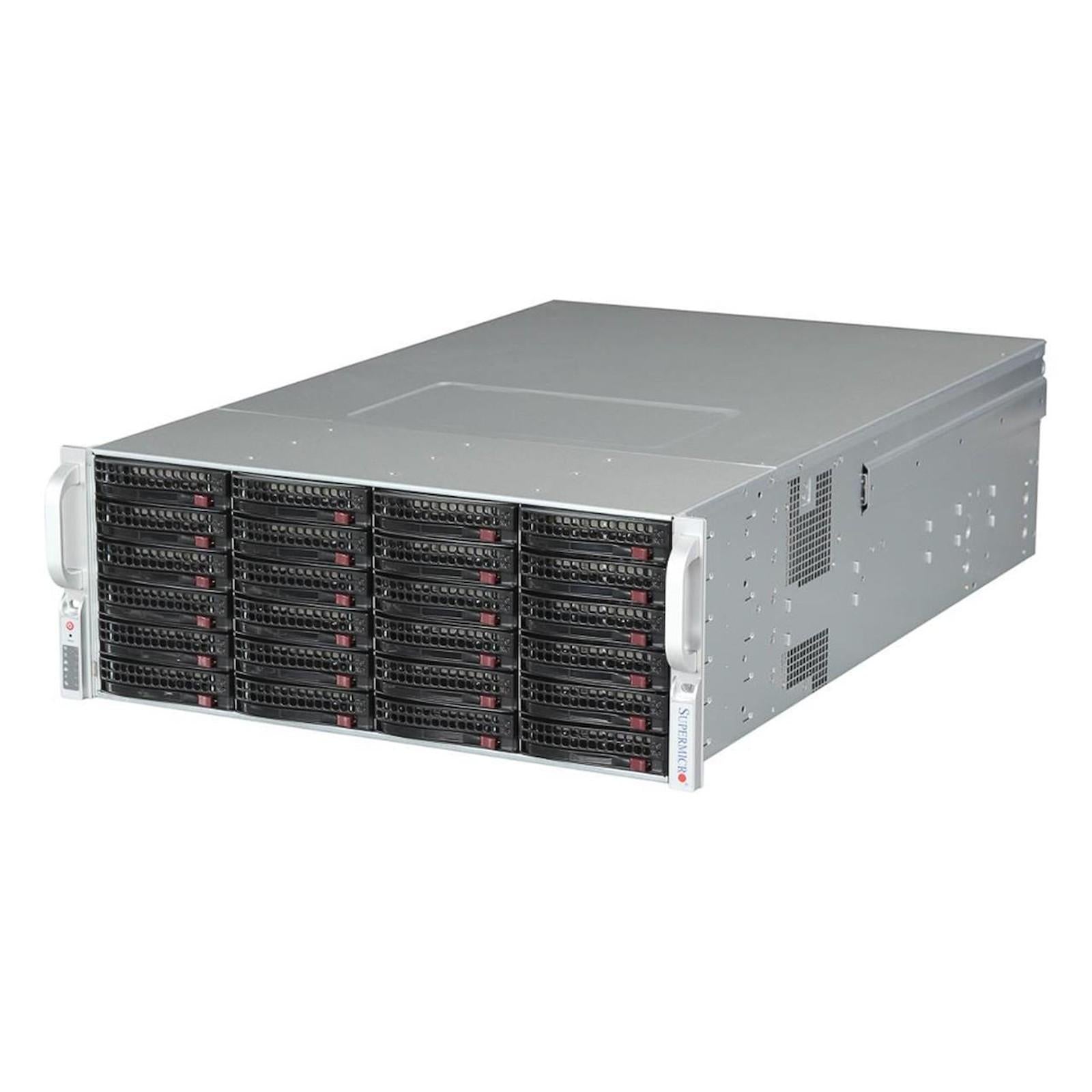

Supermicro CSE-847E16-R1400LPB 4U Server Chassis 2x 1400W 36-Bay BPN-SAS2-846EL1

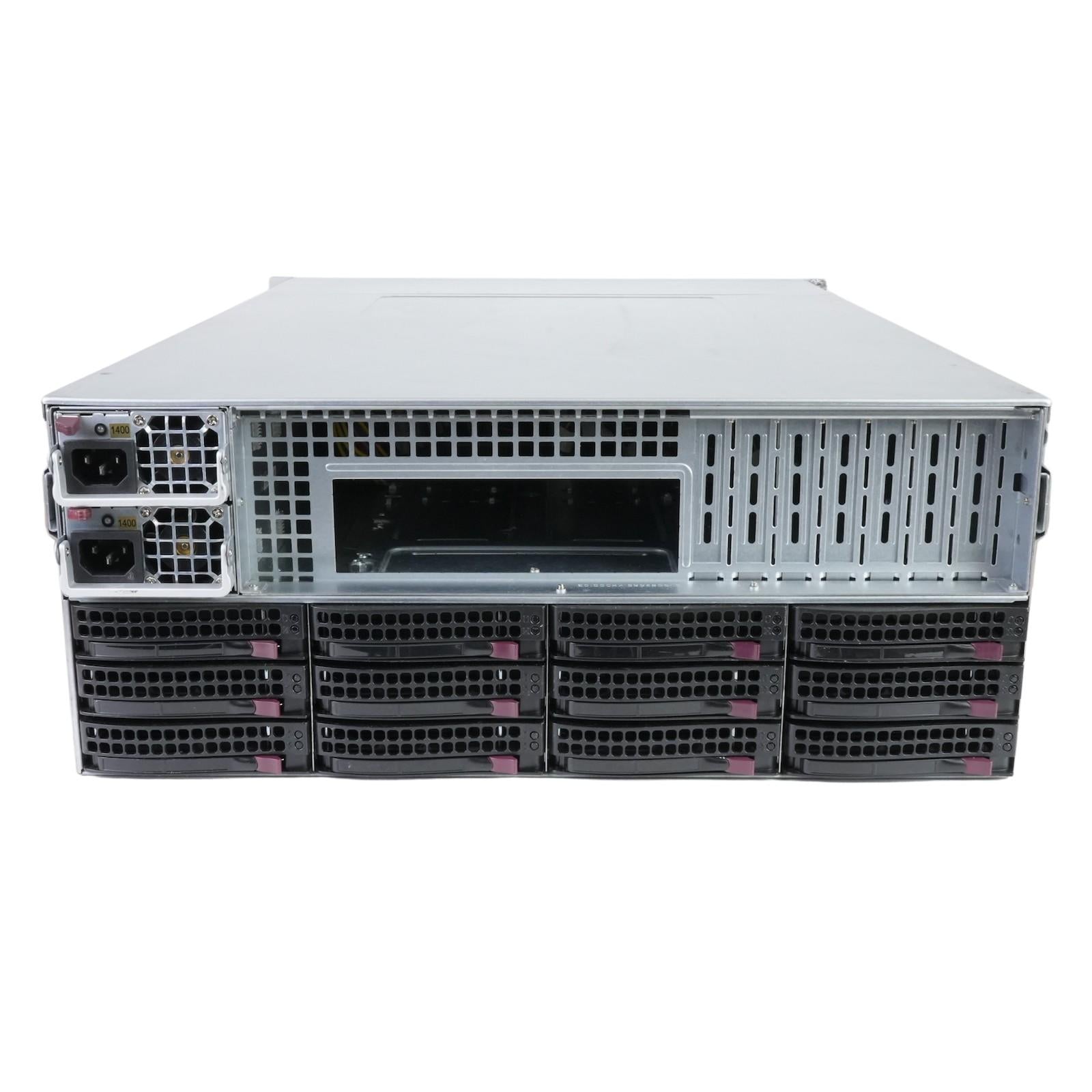

Supermicro CSE-847E16-R1400LPB 4U Server Chassis with 2x 1400W PSUs, 24 x 3.5" Front, 12x 3.5" Rear hot-swap SAS/SATA Drive Bays and 2x Internal HDD trays

Condition: Off-lease equipment. Clean and tested by qualified technician. Sold as pictured, no other accessories are included. Rail kit is not included. 36x 3.5" HDD trays and screws are included.

Specifications:

Form Factor:

• Supermicro CSE-847E16-R1400LPB 36x 3.5" Drive Bays 4U rackmount chassis
• 4U chassis support for max. motherboard size - 13.68" x 13" E-ATX, 12" x 10" ATX and 9.6" x 9.6" Micro-ATX

Expansion Slots:

• Seven low profile SFF PCI expansion slots

Drive Bays:

• 36x 3.5" drive bays with HDD Hot-swap trays, SAS HDD and Enterprise SATA HDD recommended.
  Supermicro BPN-SAS2-846EL1 (front) SAS Backplane with single expander and BPN-SAS2-826EL1 (rear) Backplane.
  Expander support SAS2 6.0Gb/s

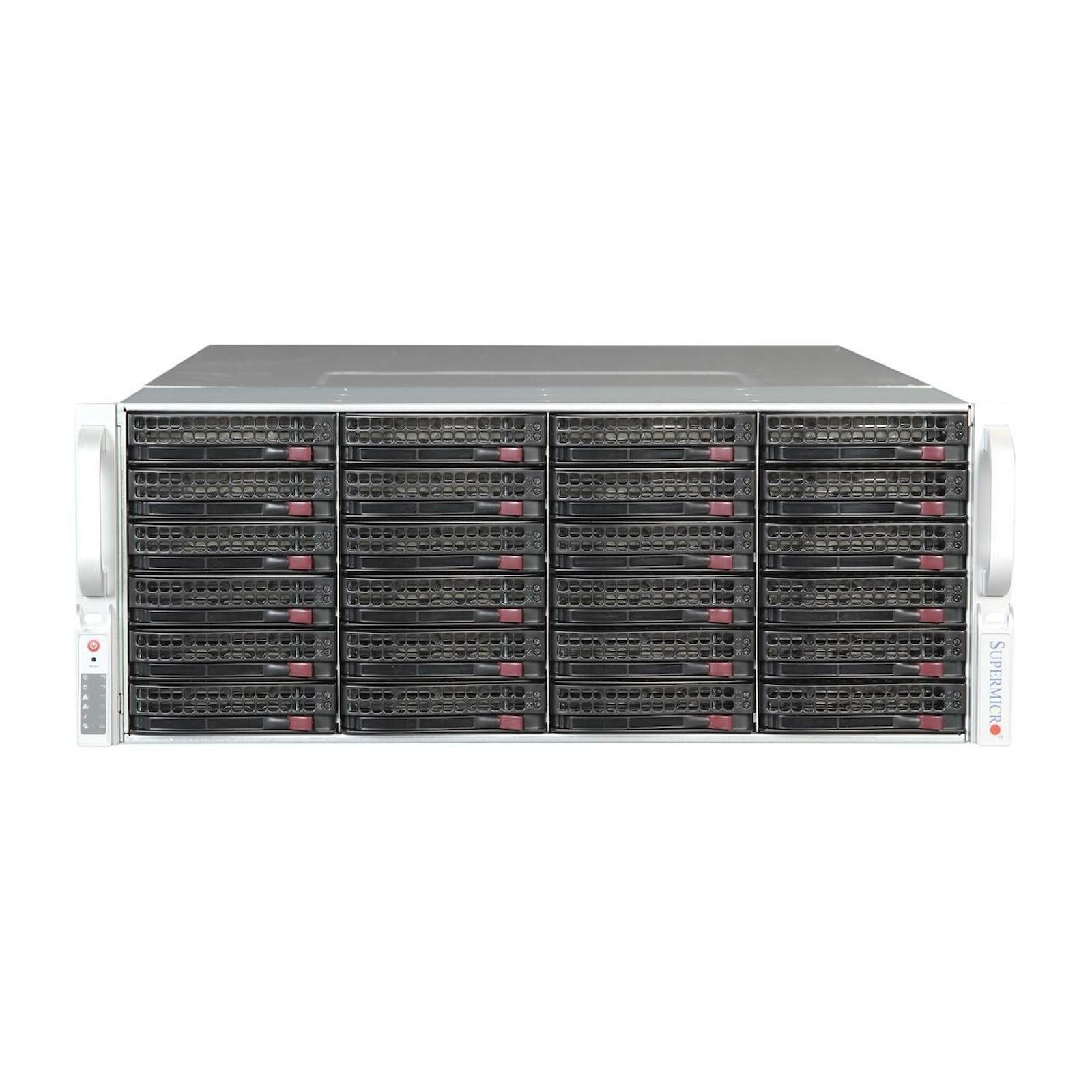

Front Panel:

• Buttons: Power On/Off, System Reset buttons.
  LEDs: Power, HDD, Network activity, System Overheat, & Power Fail LEDs.

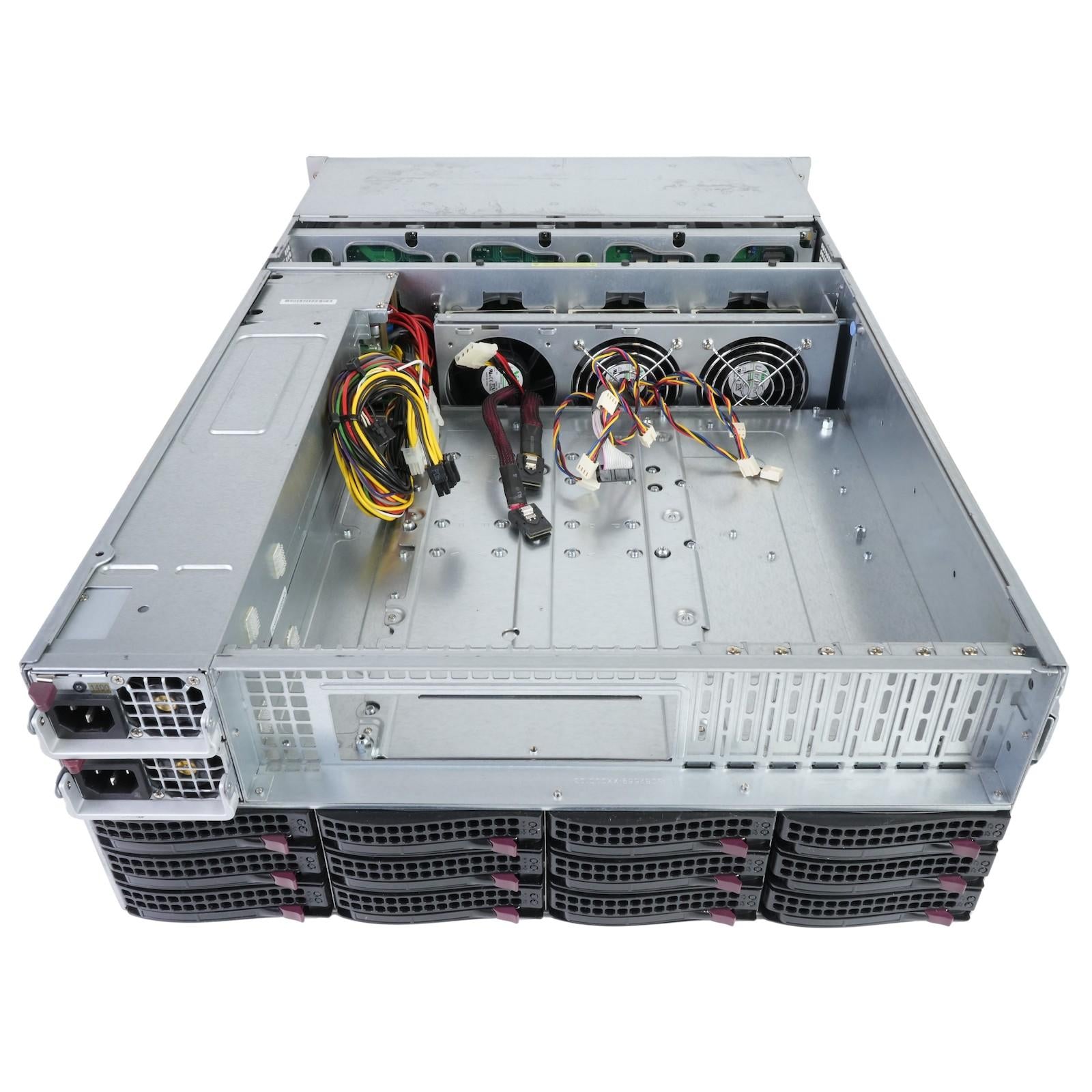

System Cooling:

• 7 x 8cm hot-swap redundant PWM cooling fan(s)

Power Supply:

• 2x Redundant (1+1) 1400W PWS-1K41P-1R Redundant Gold Level power supply W/PMbus
  92% High-efficiency with 80 PLUS Gold Certified
