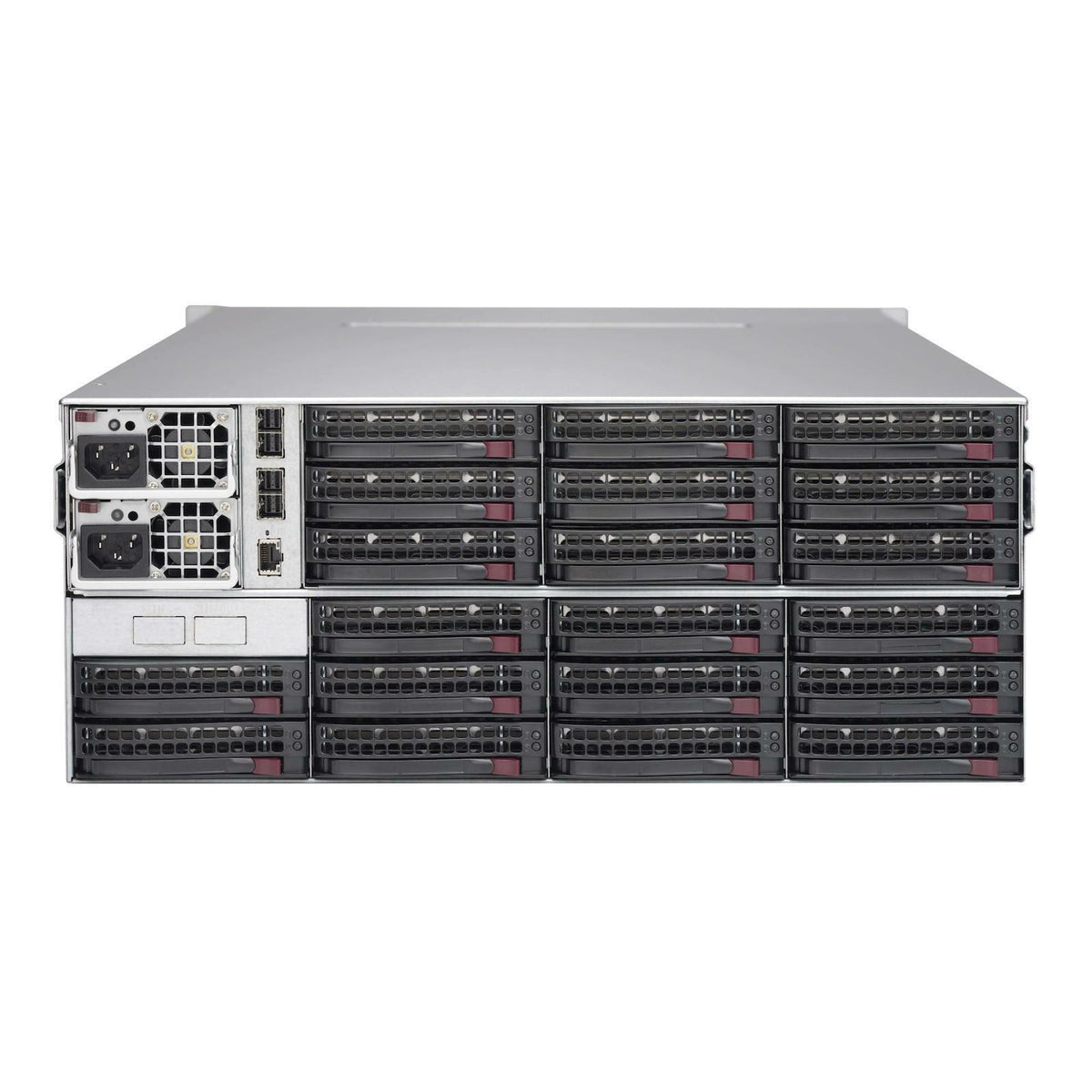

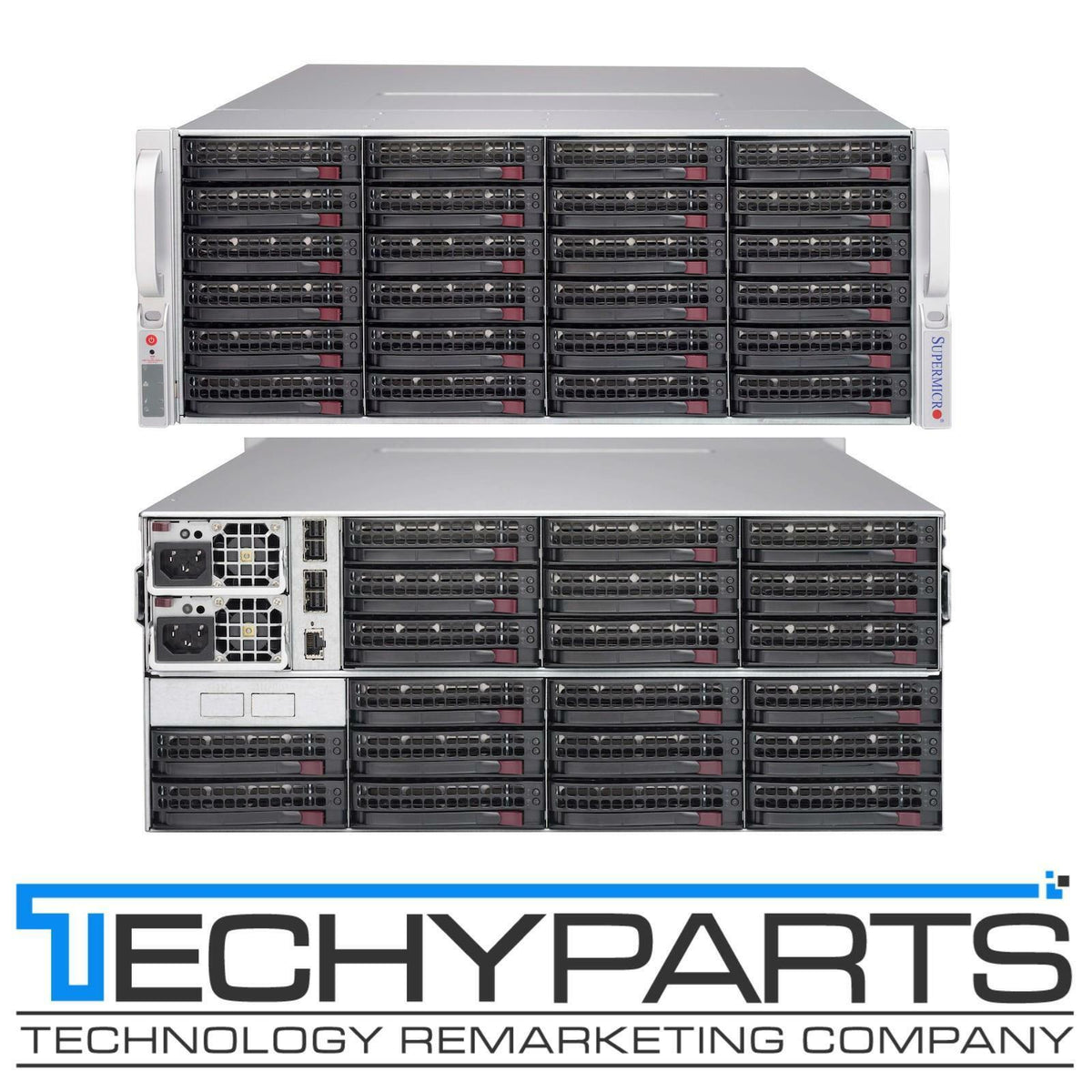

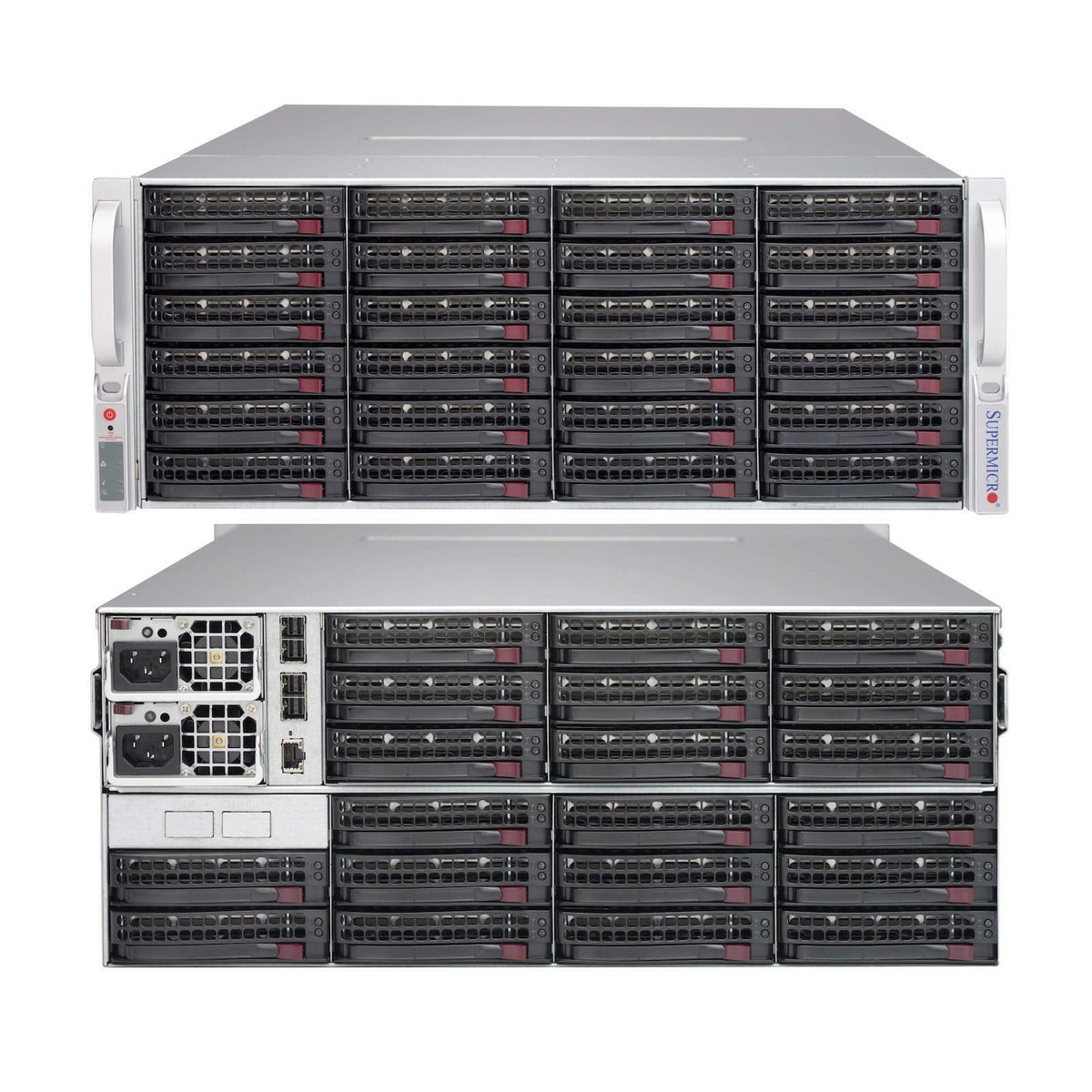

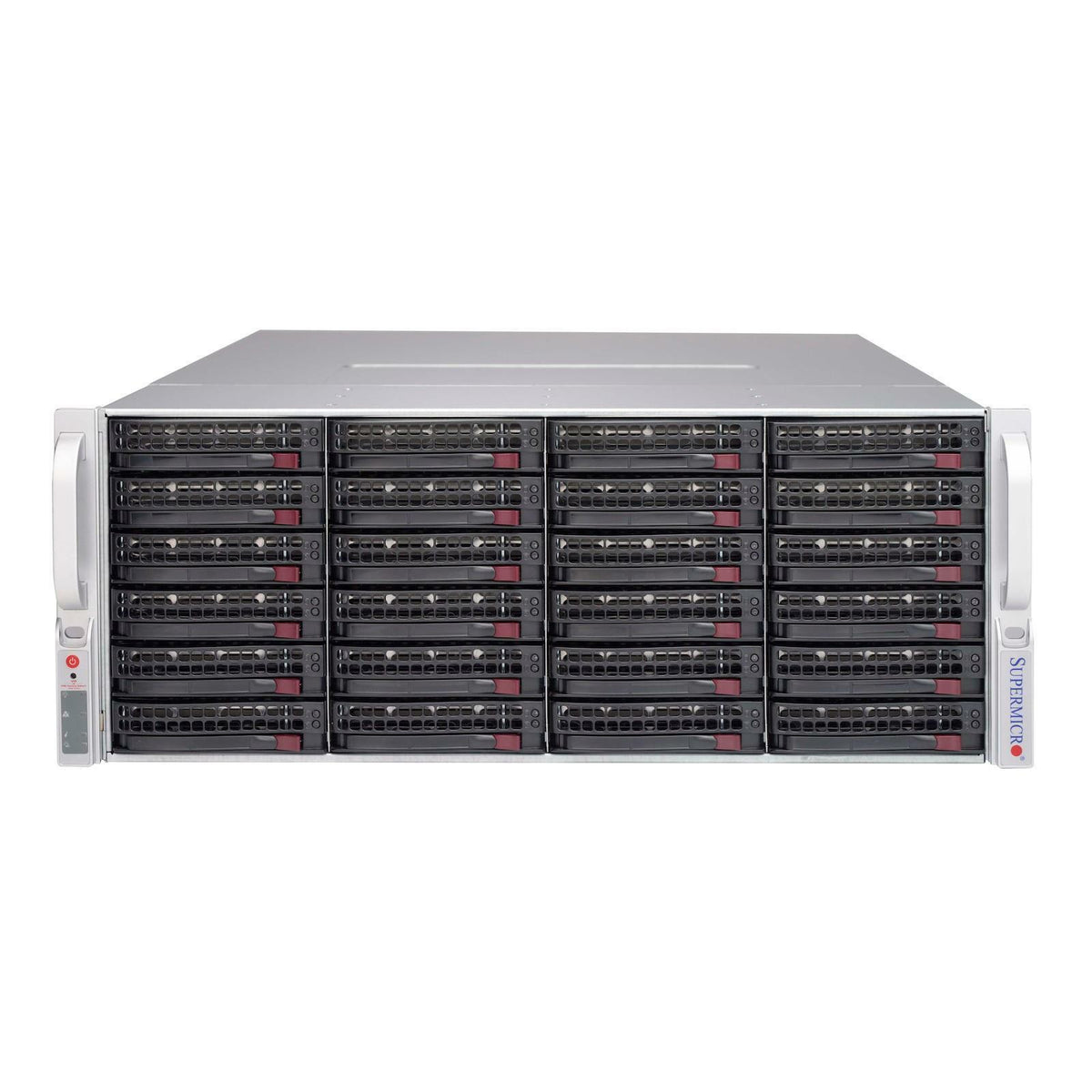

Supermicro CSE-847E1C-R1K23JBOD 4U Rackmount 3.5" 44-Bay JBOD Chassis 2x1200W, 24 x 3.5" Front and 20 x 3.5" Rear hot-swap SAS3/SATA3 Drive Bays

Condition: Used - tested. Comes with rackmount rails and HDD trays/caddies.

Key Features

1. 44x (24 front + 20 rear) 3.5" hot-swap SAS/SATA drive bays supporting SAS3/2 or SATA3 HDDs with 12Gbps throughput
2. Redundant 1200W Titanium Level (1+1) power supplies with PMBus
3. 7x 8cm (middle) hot-swap redundant cooling fans
4. SAS3 (12Gbps) backplane with single expander supports SAS3/SATA3 drives for capacity expansion
5. JBOD Power Control Board with IPMI for remote monitor and power on-off
6. 4x External mini SAS HD (SFF 8644) connectivity and IPMI RJ45 port
7. Palletized packaging for easy shipping and handling
8. Qualified SAS HBA / controller:
   AOC-SAS3-9500-8E - 12Gb/s 2-external ports SAS3 HBA **** SOLD SEPARATELY - NOT INCLUDED with JBOD *****
   AOC-SAS3-9500-16E - 12Gb/s 4-external ports SAS3 HBA **** SOLD SEPARATELY - NOT INCLUDED with JBOD *****
   AOC-SAS3-9580-8I8E - 12Gb/s 2-external ports SAS3 RAID Controller **** SOLD SEPARATELY - NOT INCLUDED with JBOD *****

Specifications:

Form Factor:

• Supermicro CSE-847E1C-R1K23JBOD 44x 3.5" Drive Bays 4U rackmount chassis

Drive Bays:

• 44 x 3.5" hot-swap HDD bays for JBOD solution

Front Panel:

• Buttons: Power On/Off, System Reset,Unit Identification (UID) buttons
  LEDs: 1 Network Activity LEDs, Fan Fail/System Over Heat LED, Power Status LED, Power Fail LED, Unit Identification (UID) LED

System Cooling:

• 7 x 8cm hot-swap redundant PWM cooling fan(s)

Power Supply:

• 2x Redundant (1+1) 1200W Titanium 96%+ Power Supplies with PMbus
