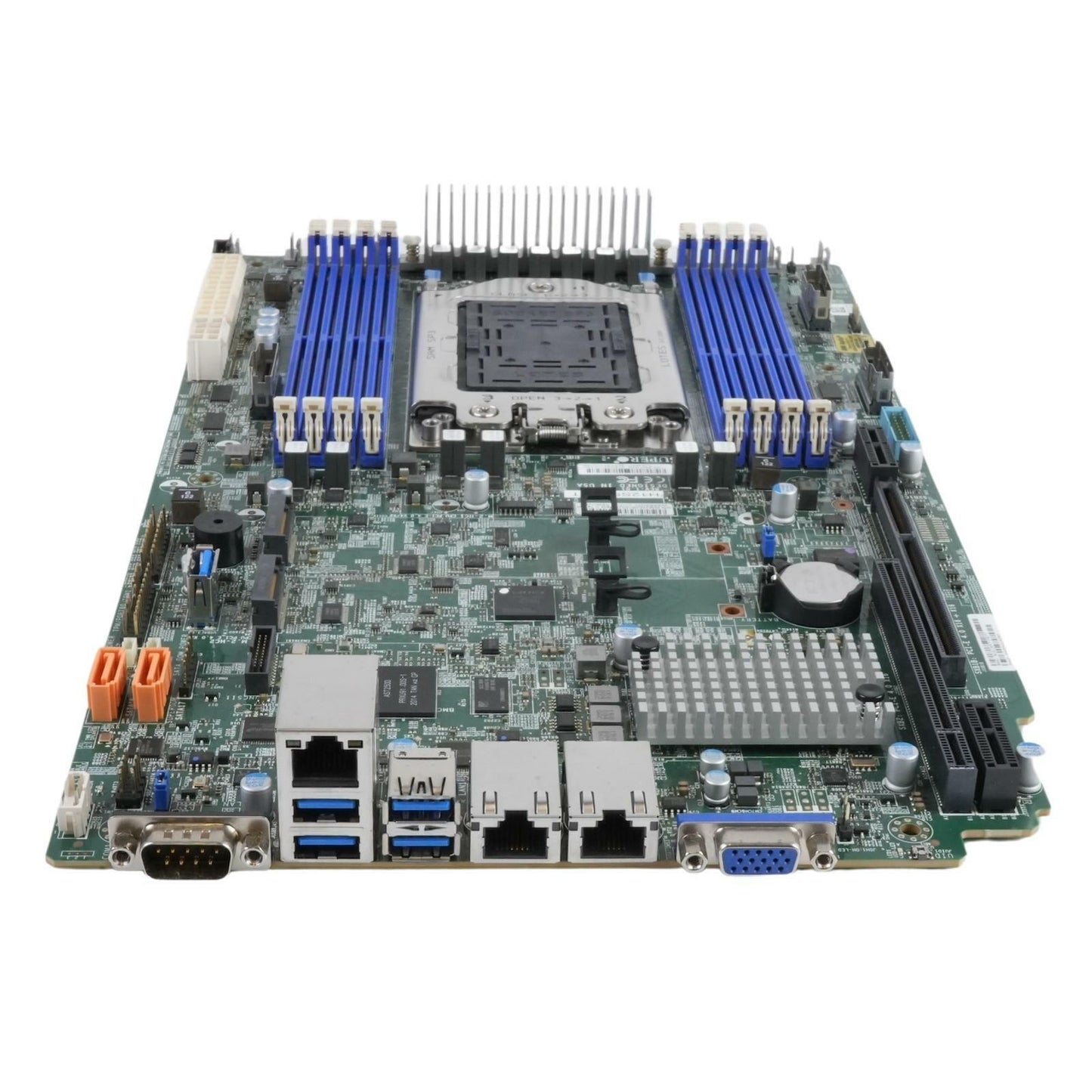

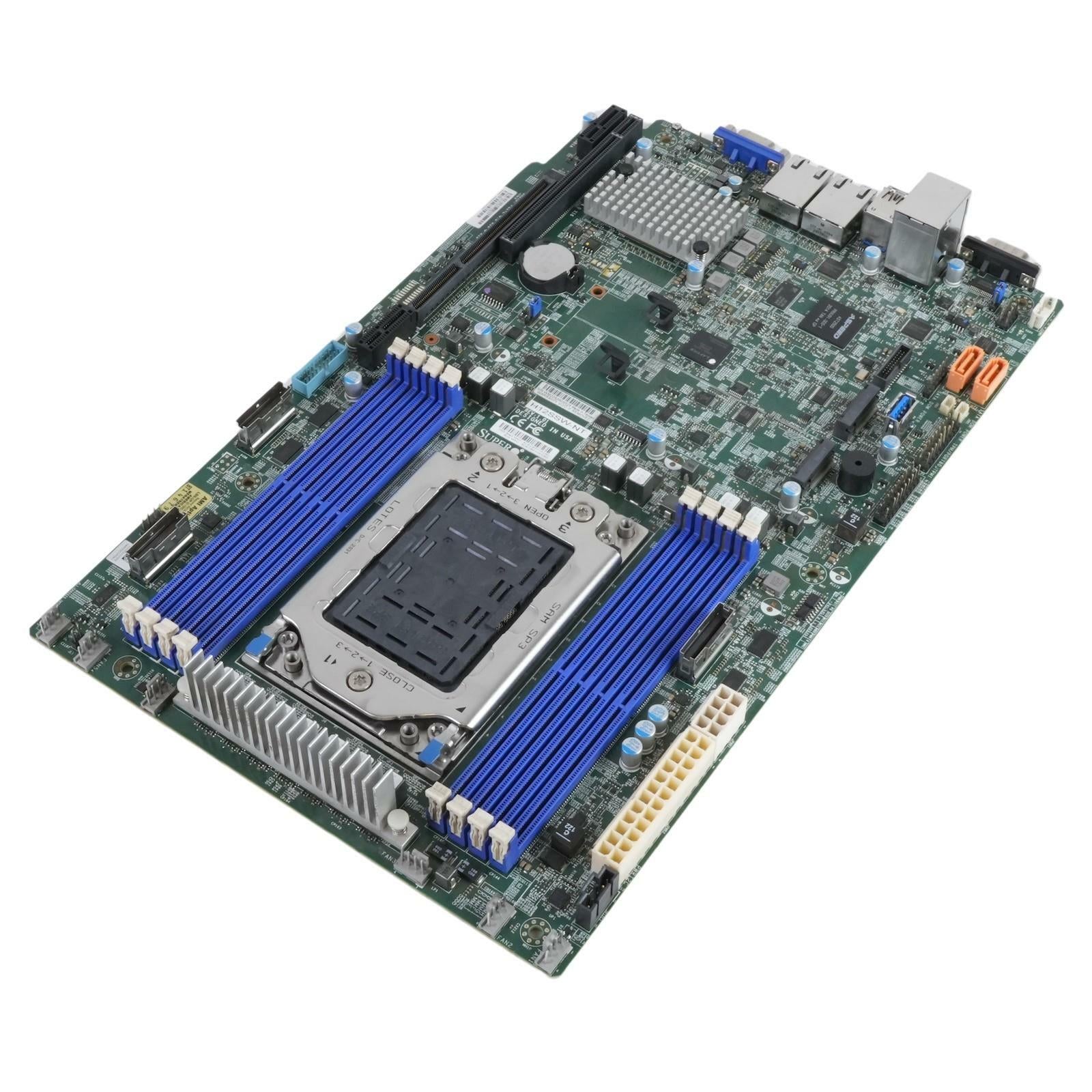

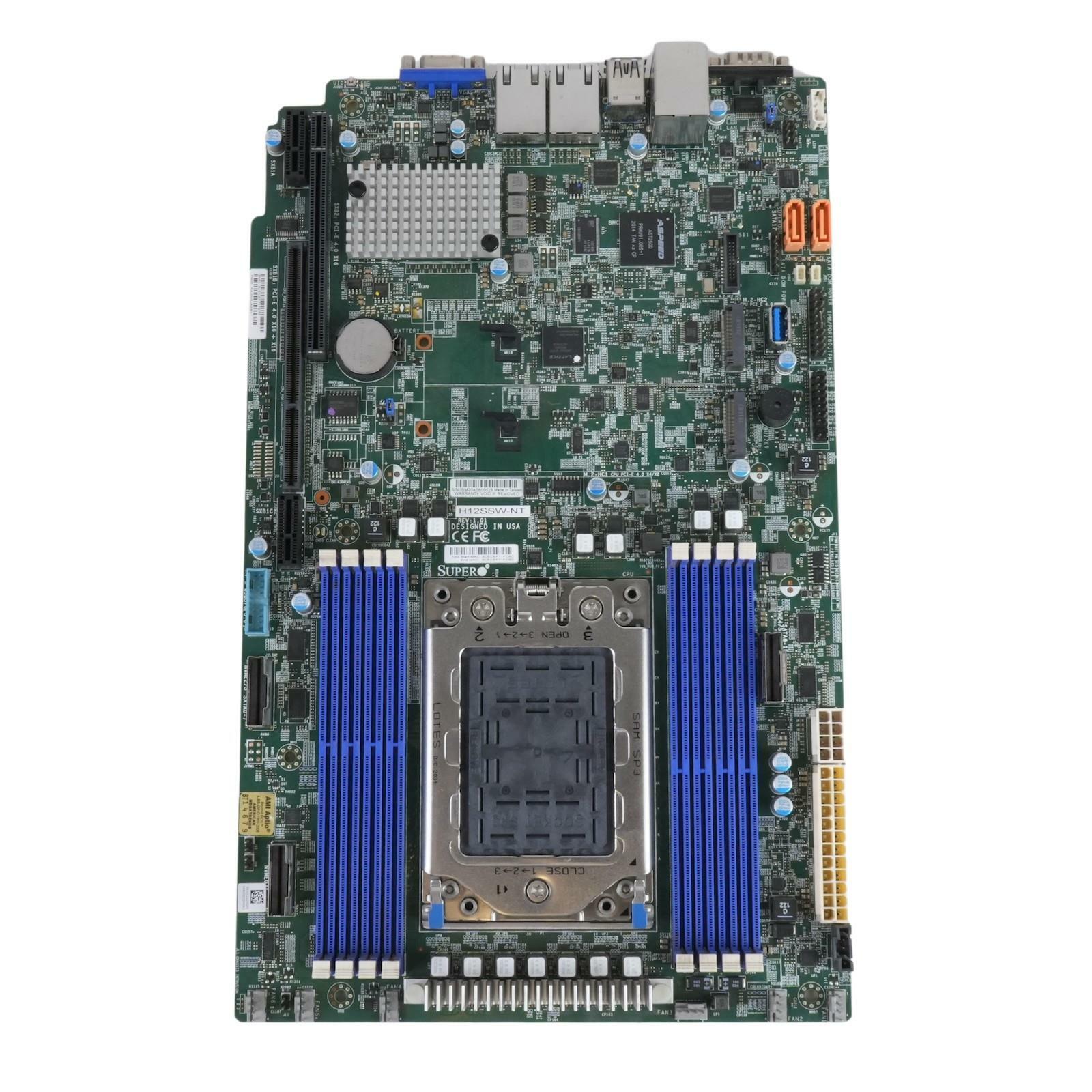

Supermicro H12SSW-NT AMD EPYC 7003/7002 Series Proprietary WIO Server Motherboard

Condition: Clean, tested pull - Guaranteed 100% working!

Revision: 1.01

30-Day Warranty!

Manufacturer's Specifications:

Physical Stats

• Form Factor: Proprietary WIO
• Dimensions: 8.15" x 13.05"

Processor/Chipset

• CPU:
  • Single AMD EPYC™ 7003/7002 Series Processor
    (The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
  • Socket SP3
• Cores: Up to 64 Cores
• Chipset: System on Chip

System Memory

• Memory Capacity:
  • 8 DIMM slots
  • Supports up to 2TB Registered ECC DDR4 3200MHz SDRAM in 8 DIMMs
  • 8-channel memory bus
• Memory Type: DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs
• DIMM Sizes: 8GB, 16GB, 32GB, 64GB, 128GB, 256GB
• Memory Voltage: 1.2V
• Error Detection:
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)

On-Board Devices

• SATA: SATA3 (6 Gbps)
• IPMI:
  • Support for Intelligent Platform Management Interface v. 2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • ASPEED AST2500 BMC
• Network Controllers:
  • 2x 10GbE LAN Ports via Broadcom BCM57416
  • 1 Realtek RTL8211E PHY (dedicated IPMI)
• VGA: ASPEED AST2500 BMC

Input / Output

• SATA: 2 SATA3 (6 Gbps) ports
• SATA/NVMe Hybrid: 16 SATA3 / 4 NVMe (PCI-E Gen3)
• NVMe: 2 NVMe (PCI-E Gen4)
• LAN:
  • 2 RJ45 10GBase-T LAN ports
  • 1 RJ45 Dedicated IPMI LAN port
• USB: 7 USB 3.0 ports (4 rear, 2 via header, 1 Type A)
• VGA: 1 VGA port
• Others:
  • 1 COM port
  • 2 SuperDOM power connectors
  • 1 TPM 1.2/2.0 header

Expansion Slots

• PCI-Express:
  • 1 PCI-E 4.0 x32 Left Riser Slot
  • 1 PCI-E 4.0 x16 Right Riser Slot
• M.2:
  • Interface: 2 SATA/PCI-E 3.0 x2
  • Form Factor: 2280, 22110
  • Key: M-key
