Supermicro PWS-563-1H20 560W/600W 1U Multi-Output 80+ Gold Power Supply

Supermicro PWS-563-1H20 560W/600W 1U Multi-Output 80+ Gold Power Supply

SUPERMICRO P/N: PWS-563-1H20

Max Power Output: 560W-600W

Input: 100-240V AC

Condition: Clean, tested pull - Guaranteed 100% Working

30-Day Warranty!

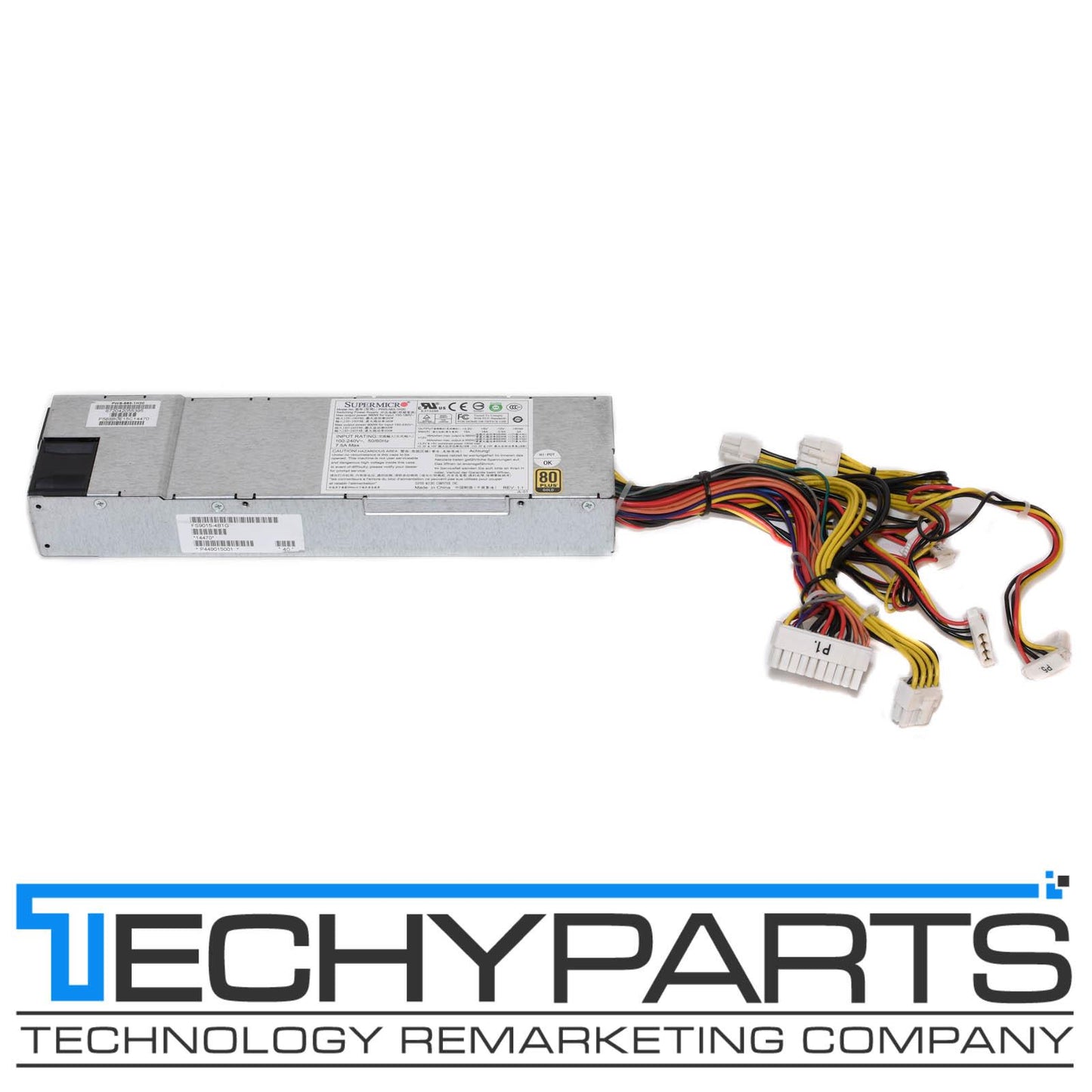

This item is priced and packaged as pictured. No other accessories other than those pictured or mentioned in the listing will be included.

Manufacturer's description:

The Supermicro PWS-563-1H20 is an 80 Plus Gold level power supply capable of supplying 560W low-line and 600W high-line output power at 90% efficiency. Enjoy the simplicity of active power factor correction (PFC) and automatically correct AC input for a full range of voltages and a quiet fan to keep it cool under heavy loads. This power supply is designed to not only provide you reliable power to your 1U server but also protects it from over voltage, over current and short circuiting via protective circuitry embedded into the unit. All materials contained comply with RoHS requirements and is certified by Supermicro.

Cables Included:

1x 20 Pin ATX (Motherboard)

2x 8 Pin 12V (CPU)

1x 4 Pin 12V (CPU)

2x 4 Pin Legacy HDD

2x 4 Pin Floppy/DVD Drive

Specifications:

TOTAL POWER OUTPUT: 560W / 600W

TYPE: Single

TYPE OF POWER SUPPLY: Power Supply

FORM FACTOR: 1U

DIMENSION (W X H X L): 76 x 40 x 379.4mm

+5V: 18A

+12V: 46/49A

+3.3V: 15A

5V STANDBY: 3A

INPUT VOLTAGE RANGE: 100-240Vac

INPUT FREQUENCY RANGE: 50-60Hz

INPUT CURRENT RANGE: 7.5A Max

OUTPUT TYPE: 20Pin ATX Cable Output

8PIN / 4PIN (12V) CONNECTOR: Both

PFC:Yes

PMBUS:No

ENERGY EFFICIENCY: 90% Peak

80 PLUS CERTIFICATION: 80 Plus Gold

PRODUCT ENVIRONMENTAL COMPLIANCE: RoHS and REACH compliant
