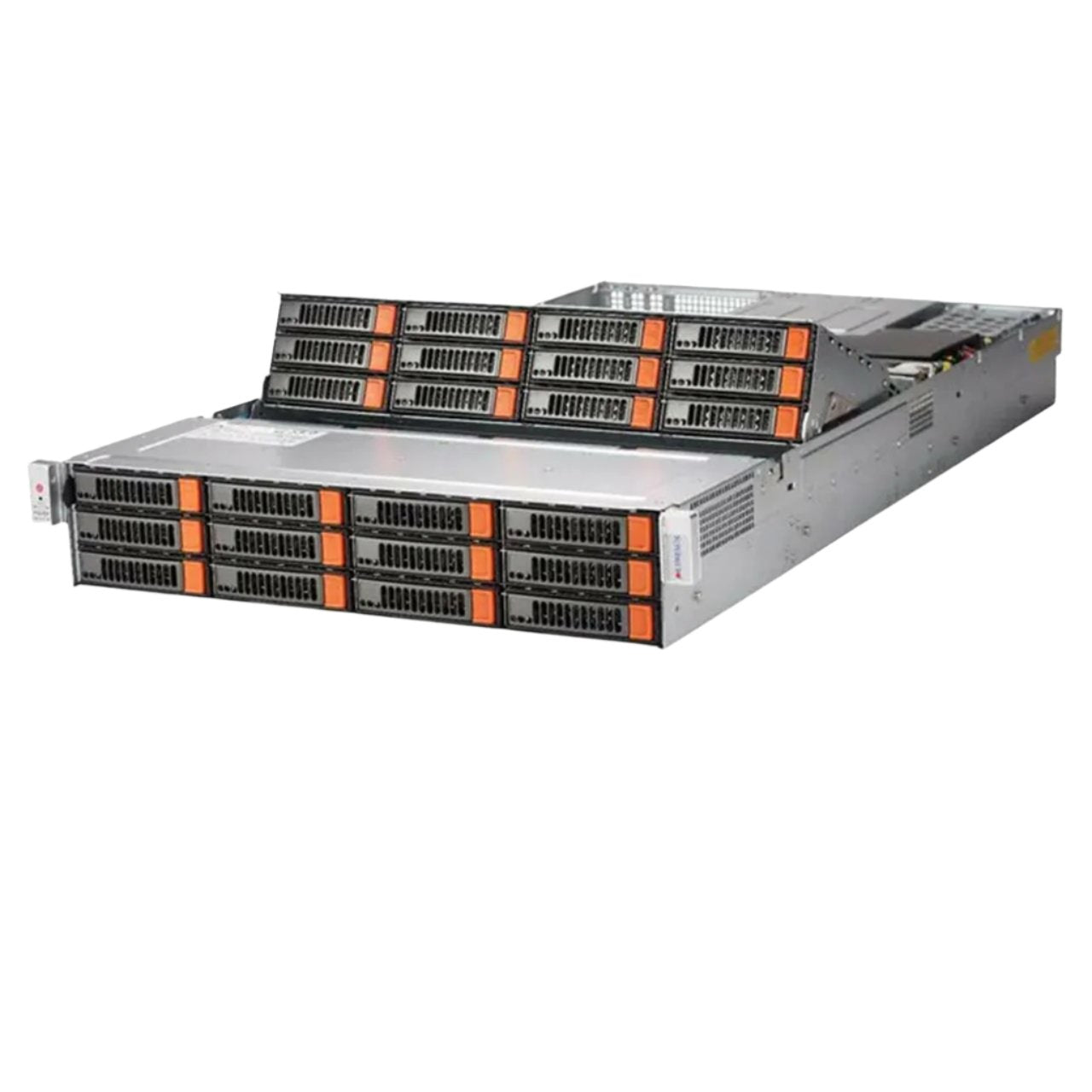

Supermicro SSG-6029P-E1CR24L 2x Xeon Gold 6130 192GB RAM 24x 3.5" Bay 2U Server

Supermicro SSG-6029P-E1CR24L 2x Xeon Gold 6130 192GB RAM 24x 3.5" Bay 2U Server

$999.90 USD
$999.90 USD
Sale Sold out
Shipping calculated at checkout.

16 in stock

92365

Supermicro SSG-6029P-E1CR24L 2x Intel Xeon Gold 6130 16-Core 2.1GHz (3.7GHz Max Turbo) 192GB RAM 24x 3.5" Bay 2U Server

Specifications:

Form Factor 2U RACKMOUNT
Model SUPERMICRO SSG-6029P-E1CR24L - 24 3.5" Bays
Processor(s) 2x Xeon Gold 6130 2.1 GHz (3.7GHz Max Turbo) 16-Core CPUs
Memory 192GB PC4-2666V (DDR4-2666MHZ) Registered ECC Memory
# of DIMMs and Capacity 12x 16GB PC4-2666V (DDR4-2666MHZ) Memory Modules
Hard Drives  24 Hot-swap 3.5" SAS3/SATA3 drive bays;
    2 hot-swap 2.5" SATA3 drive bays (rear)
    Expander based backplane
RAID Controller SAS3 (12Gbps) via Broadcom 3008; IT Mode
RAID Levels SATA3 (6Gbps); RAID 0, 1, 5, 10
Power Supply 2x PWS-1K62A-1R 1600W Redundant Power Supplies with PMBus
Optical Drive N/A
Network

Supermicro AOC-MH25G-M2S2TM SIOM 2-port 25GbE SFP28/2-port 10GbE RJ45 Intel X550

2-port 25 Gigabit & 2-port 10 Gigabit Ethernet Adapter

Advanced 25GbE Controller Super I/O Module (SIOM)
The Supermicro AOC-MH25G-m2S2T(M) is one of the most feature-rich 25GbE controllers in the market. Based on the Mellanox® ConnectX-4 Lx EN with features such as VXLAN and NVGRE; it provides flexible connectivity for different networking requirements. It is compatible with 10GbE networks and offers the most cost-effective upgrades from 10GbE to 25GbE in Data Center and Cloud deployments.
The AOC-MH25G-m2S2T(M) also supports an additional 2-ports of 10GbE RJ45 connectivity, based on the Intel® X550 controller, providing NC-SI for Remote Management. This versatile 25GbE controller is an excellent choice to enhance data center network connectivity when high-speed throughput is required.

Key Features:
• Super I/O Module (SIOM) Form Factor
• Mellanox® ConnectX-4 Lx EN 25GbE controller Dual SFP28
connectors
• Intel® X550-AT2 10GbE controller, Dual RJ45 Connectors
• Hardware offloads for NVGRE, VXLAN, and GENEVE
encapsulated traffic
• SR-IOV for virtualization
• Low latency RDMA over Converged Ethernet(RoCE)
(25GbE Controller only)
• Jumbo Frames Support
• NC-SI for Remote Management (10GbE Controller only)
• Asset Management Features with thermal sensor
• RoHS compliant 6/6

Transceivers: Not included
Remote Access

Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

ASPEED AST2500 BMC
Rackmount Rails NONE
Operating System N/A
Power Cord No

Condition: Off-lease equipment. Clean and tested by a qualified technician. Rackmount rail kit is not included.

30-Day Warranty!
