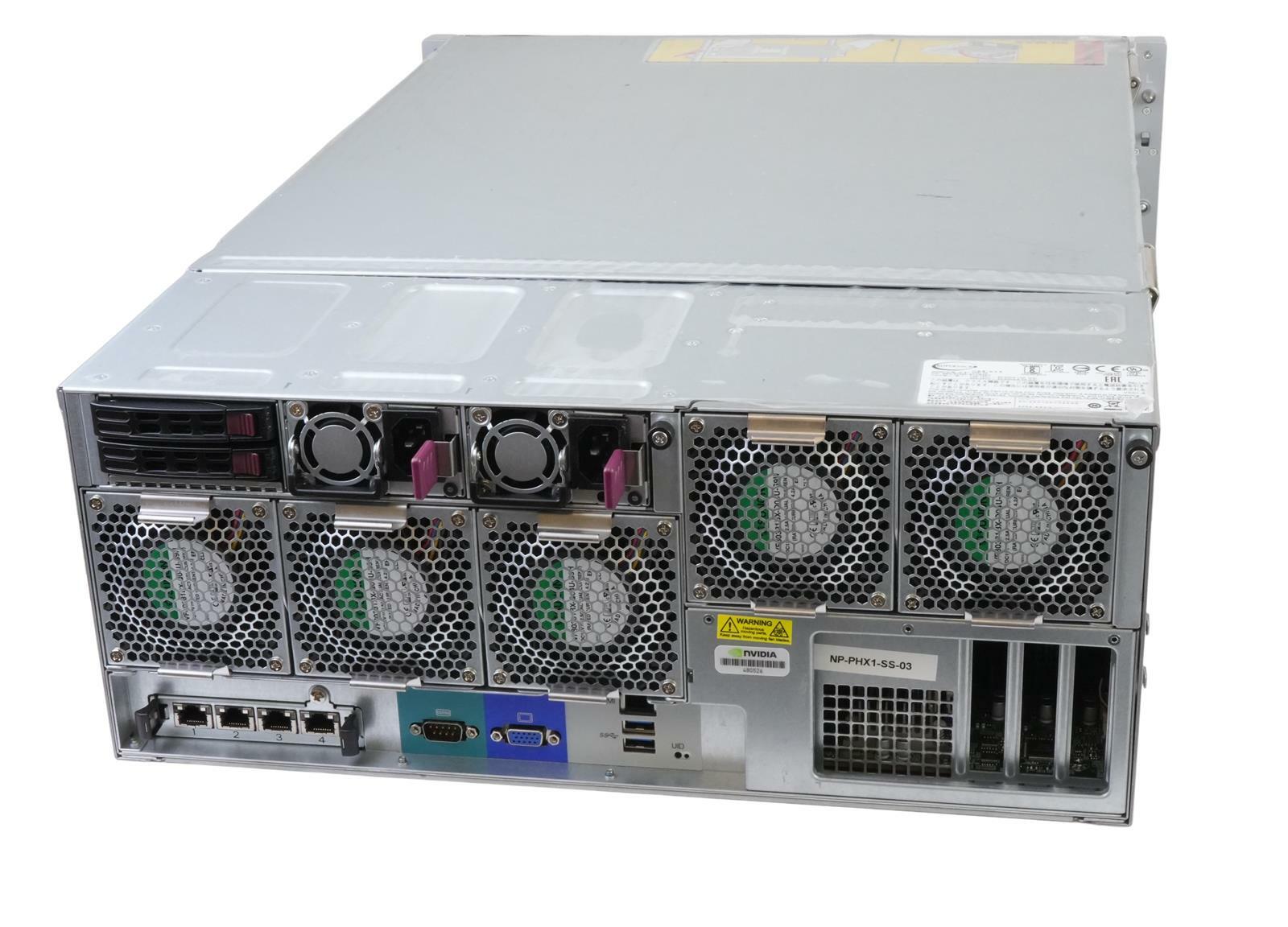

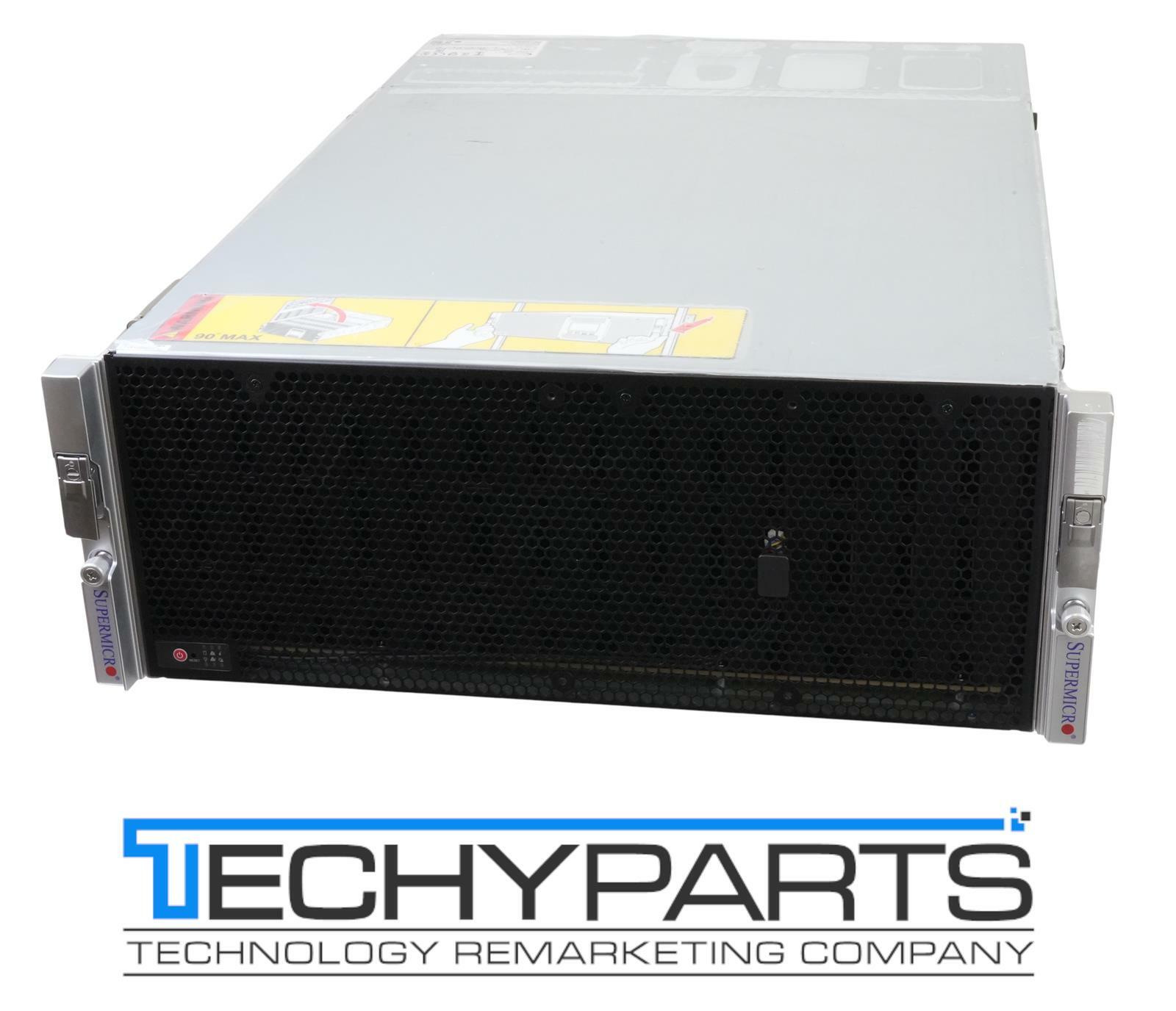

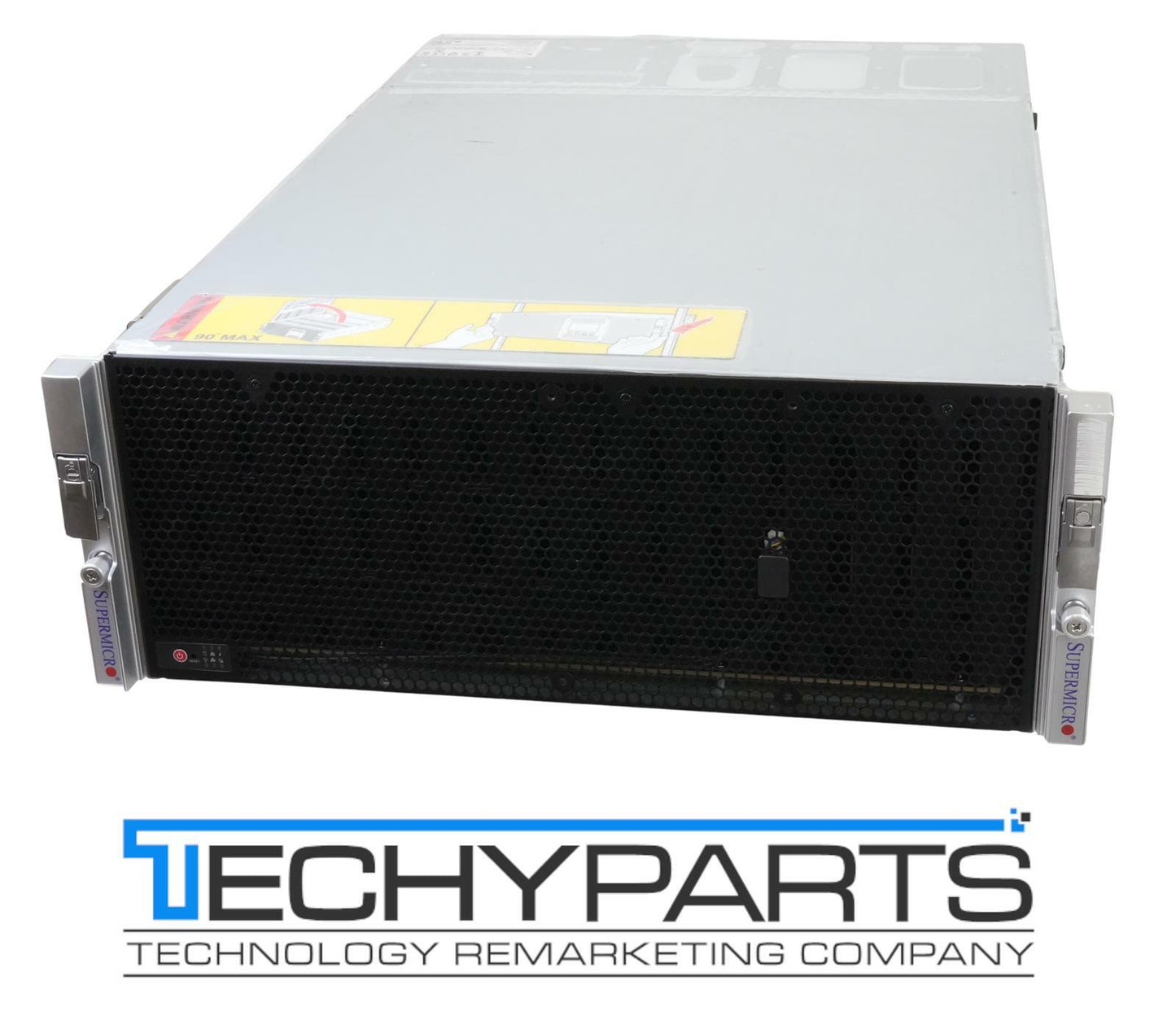

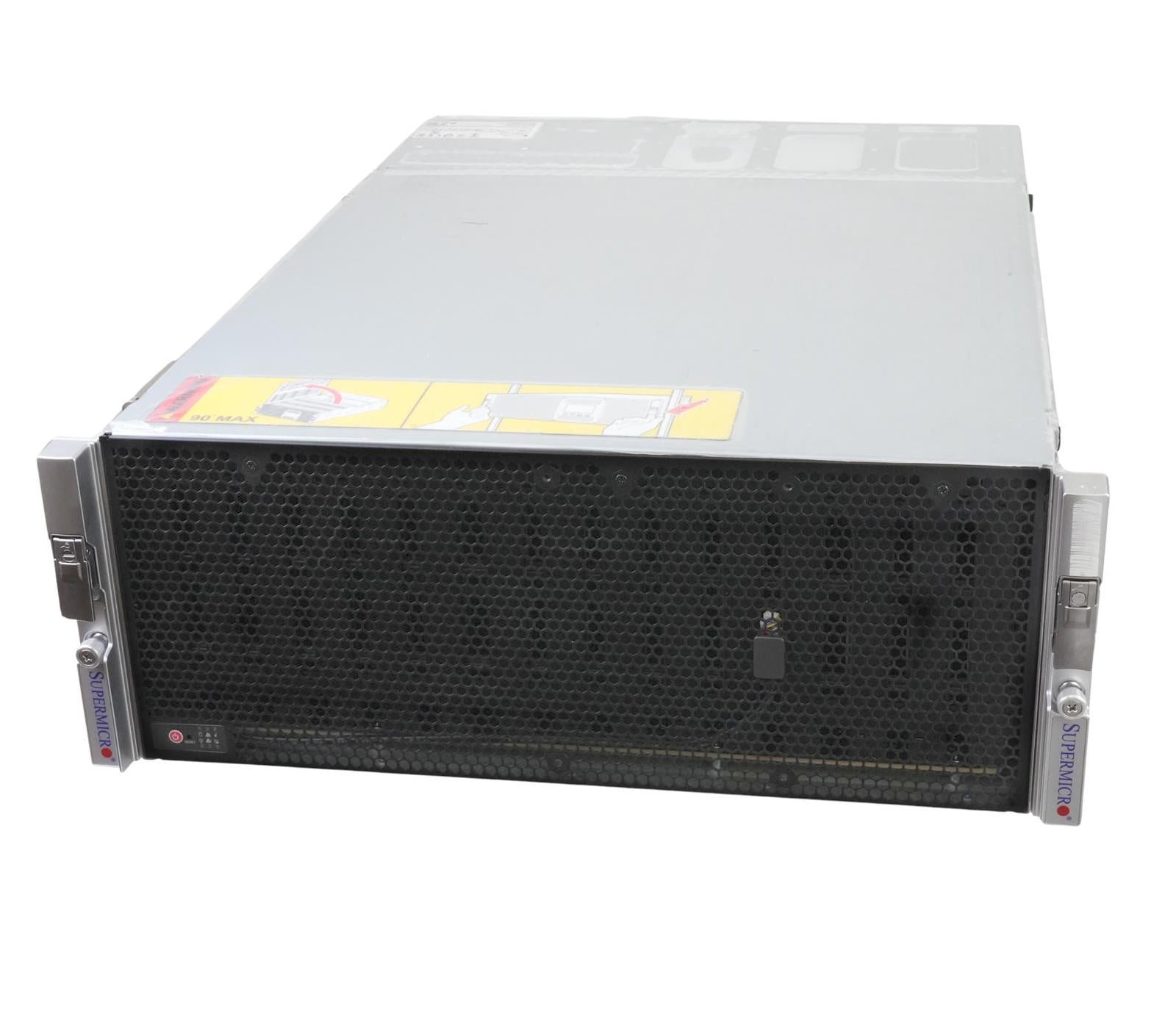

Supermicro SSG-6049P-E1CR45H 4U 45-Bay 3.5" Top-Loading Rackmount Storage Server
94577Supermicro SSG-6049P-E1CR45H 4U 45-Bay 3.5" Top-Loading Rackmount Storage Server
Supermicro SSG-6049P-E1CR45H 4U 45-Bay 3.5" Top-Loading Rackmount Storage Server | 2x Intel Xeon Scalable 5118 12-Core 2.3GHz CPUs | 32GB RAM |
Specifications:
| Form Factor | 4U Rackmount |
|---|---|
| Model | SUPERMICRO SSG-6049P-E1CR45H -453.5"Bays |
| Processor(s) | 2xIntel SR3GF Xeon Gold 5118 2.3 GHz 12-Core 16.5MB L3 Cache LGA3647 Processor CPU |
| Memory | 32GBPC4-2400T (DDR4-2400MHZ) Registered ECC Memory |
| # of DIMMs and Capacity | 2x16GBPC4-2400T (DDR4-2400MHZ) Memory Modules |

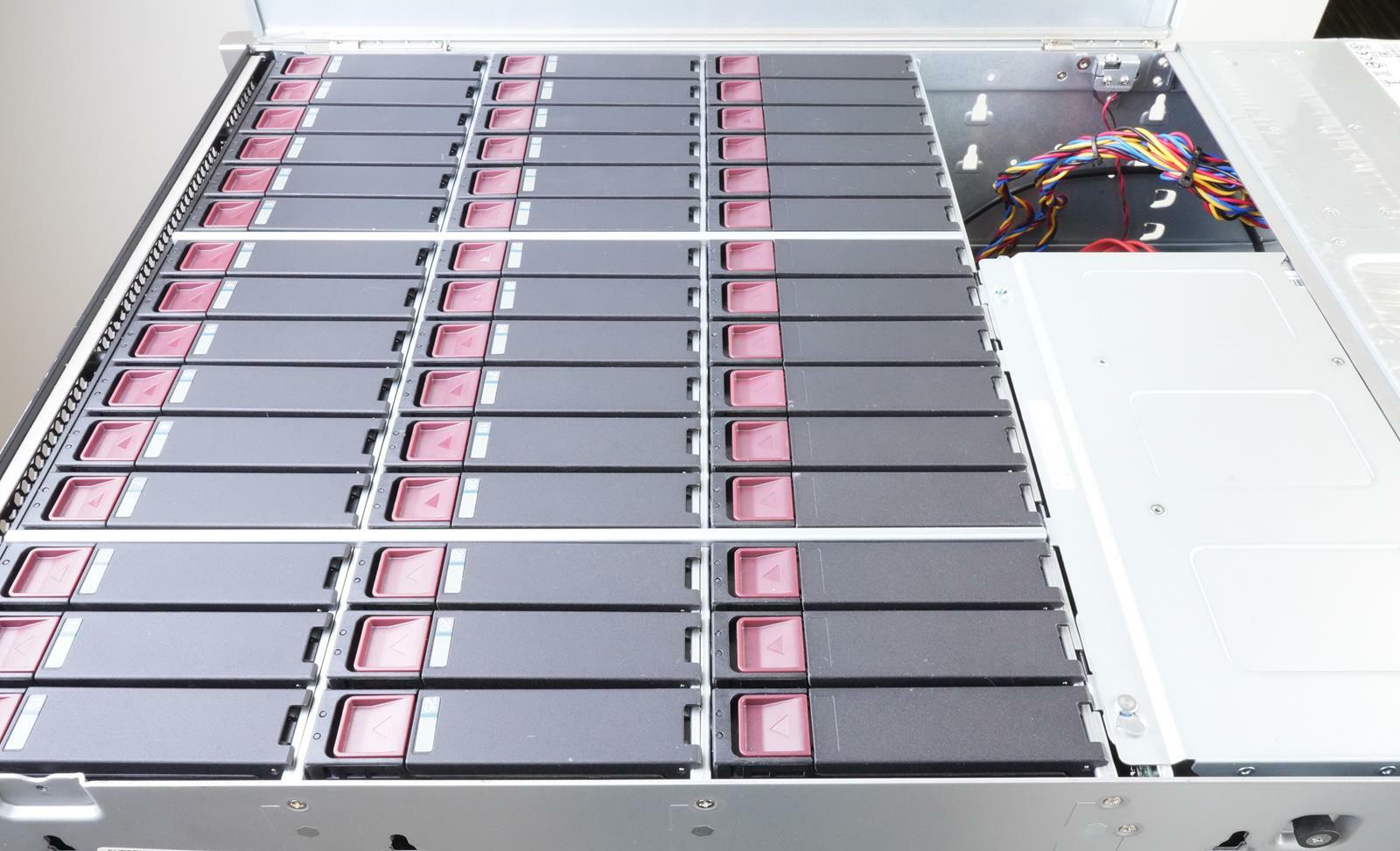

| Hard Drives | 45 Hot-swap 3.5" SAS3/SATA3 drive bays with SES3 (can support 2.5" without converter tray); 2 rear Hot-swap 2.5" drive bays |
| RAID Controller |
AOM-S3108M-H8L-P SAS3 (12Gbps) via Broadcom 3108; HW RAID |
| RAID Levels | RAID 0, 1, 5, 6, 10, 50, 60 |
| Power Supply | 2x1600W PWS-1K66P-1R |
| Optical Drive | N/A |
| Network |
Add-on Card AOC-MTG-i4T Super I/O Module (SIOM) Form Factor Intel X550 10GbE controller. The second generation, 10GBase-T controller with integrated MAC and PHY. Backward compatibility with existing 1000Base-T networks simplifies the transition to 10 GbE. Quad RJ45 Connectors Network Virtualization Offloads: VXLAN and NVGRE VMDq and SR-IOV for virtualized Environment Asset Management Features with thermal sensor NC-SI for Remote Management Supports RJ-45 Category-6 and 6A cables |
| Remote Access | Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| Rackmount Rails | Not included |
| Operating System | N/A |
| Power Cord | Not included |
Condition:Off-lease equipment. Clean and tested by a qualified technician.
30-Day Warranty!
