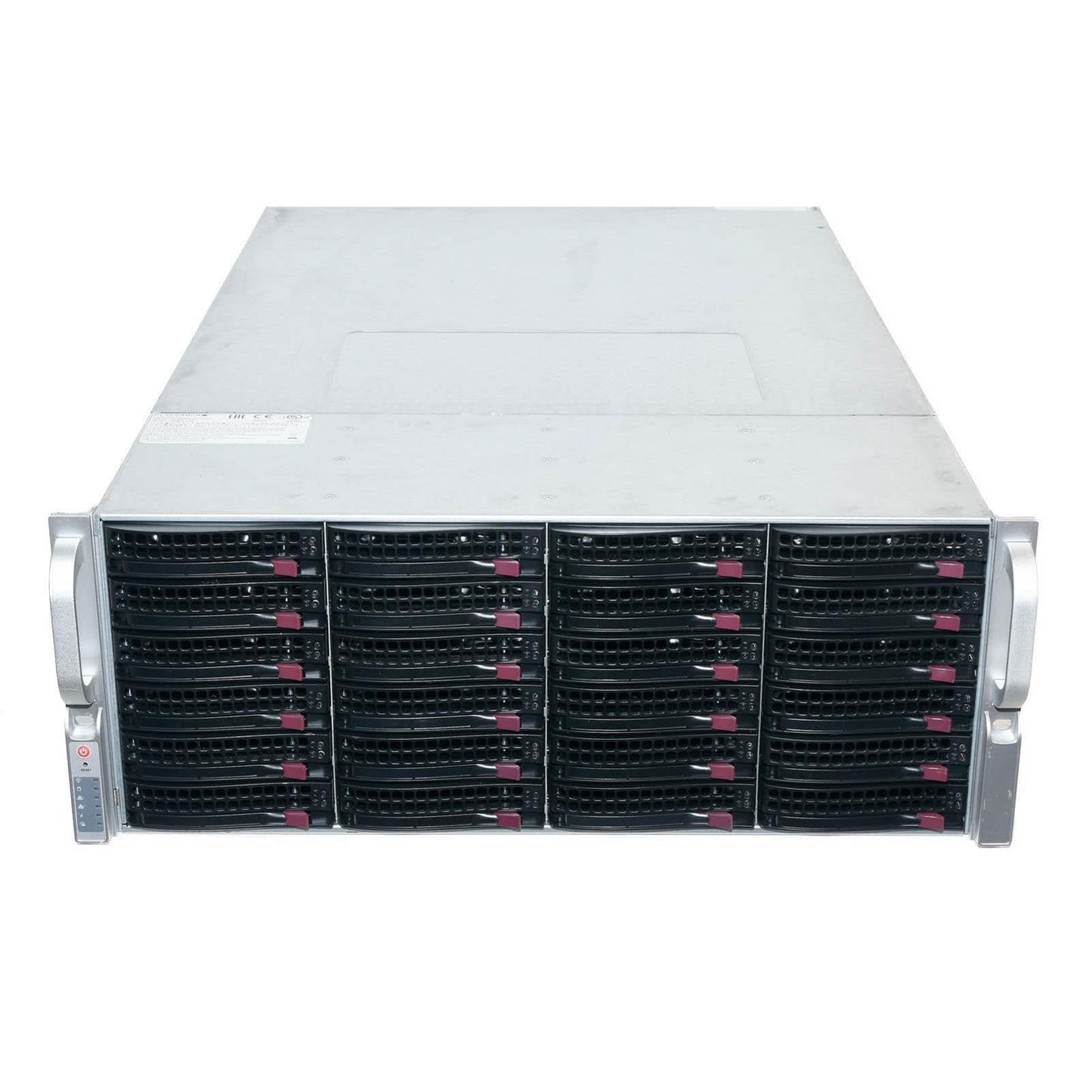

  • 89791-SSG-6048R-E1CR36L-47817_base
1 1

SUPERMICRO

$999.90 USD
$999.90 USD
Sale Sold out
Shipping calculated at checkout.

Low stock: 1 left
View full details

Supermicro SuperStorage 6048R-E1CR36L 36-Bay ZFS Unraid Truenas 4U Server +Rails

Supermicro SuperStorage 6048R-E1CR36L 36-Bay 4U ZFS Unraid Truenas Server Server with X10DRH-iT Dual LGA2011-3 E5-2600 v4/v3 family Motherboard and AOC-S3008L-L8E LSI 3008 based SAS3 12Gb/s HBA Host Bus Adapter

Condition: Used - tested barebone server (NO CPU/NO MEMORY/NO HDD). Comes with rackmount rails, drive trays with screws and CPU heatsinks.

Parts List - (Items Included) Part Number Qty Description
Motherboard / Chassis MBD-X10DRH-iT

CSE-847BE1C-R1K28LPB		 1

1		 Super X10DRH-iT Motherboard

4U Chassis
Backplane BPN-SAS3-846EL1 1 24-port 4U SAS3 12Gbps single-expander backplane, support up to 24x 3.5-inch SAS3/SATA3 HDD/SSD
Backplane BPN-SAS3-826EL1-N4 1 12-port 2U SAS3 12Gbps single-expander backplane, support up to 8x 3.5-inch SAS3/SATA3 HDD/SSD and 4x NVMe/SAS3/SATA3 storage devices
Cable 1 CBL-SAST-0531-01 4 MINI SAS HD,12G,INT,80CM,30AWG
Cable 2 CBL-SAST-0532 2 MINI SAS HD,12G,INT,50CM,30AWG
Cable 3 CBL-0296L 3 4 pin to 4 pin fan extension cord, for PWM fan. 23cm. 24AWG
Parts MCP-260-00042-0N 1 STD I/O shield for X9 socket R server MB with Gasket.
Heatsink / Retention SNK-P0048PS 2 2U Passive CPU Heat Sink for X9, X10 Generation Systems Equipped w/ a Narrow ILM MB
Power Supply PWS-1K28P-SQ 2 1280W, redundant single output power supply
Add On Card AOC-S3008L-L8E-O-P 1 LSI 3008 based SAS3 HBA, 12Gb, 8 internal ports, 122HDD, Gen3 x8 Standard Low Profile
Add On Module AOM-SAS3-8I8E-LP 1 8-port Mini SAS HD Int-to-Ext cable adapter w/ LP bracket
Rackmount Rails MCP-290-00057-0N 1 Supermicro 4U-5U Rail Kit

Key Features

  1. Dual socket R3 (LGA 2011) supports Intel Xeon processor E5-2600 v4/ v3 family; QPI up to 9.6GT/s
  2. Up to 2TB ECC 3DS LRDIMM, up to DDR4- 2400MHz; 16x DIMM slots
  3. 1 PCI-E 3.0 x16, 6 PCI-E 3.0 x8 (slot 1 & 2 occupied by controller and JBOD expansion port)
  4. Dual 10GBase-T LAN w/ Intel X540
  5. 36x 3.5" Hot-swap drive bays (24 front + 12 rear): 32x 3.5" Hot-swap SAS3/SATA3 drive bays and 4x NVMe hybrid drive bays (SAS3/SATA3/NVMe); 2x 2.5" optional Hot-swap SATA drive bays (rear) (NOT INCLUDED);
  6. SAS3 via Broadcom 3008 controller IT mode
  7. Server remote management: IPMI 2.0 / KVM over LAN / Media over LAN
  8. 7x 80mm middle cooling fans
  9. 1280W Redundant Power Supplies Platinum Level (94%)

Specifications:

Product SKUs
SSG-6048R-E1CR36L
  • SuperStorage 6048R-E1CR36L (Black)
Motherboard
  • Super X10DRH-iT
Processor/Cache
Supported CPUs
  • Intel Xeon processor E5-2600 v4/ v3 family (up to 145W TDP)
  • Dual Socket R3 (LGA 2011)
Cores / Cache
  • Up to 22 Cores / Up to 55MB Cache
System Bus
  • QPI up to 9.6 GT/s
System Memory
Max Supported Memory Capacity
  • 16x 288-pin DDR4 DIMM slots
  • Up to 2TB ECC 3DS LRDIMM, 512GB ECC RDIMM
Supported Memory Type
  • 2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
Supporterd DIMM Sizes
  • RDIMM: 32GB, 16GB, 8GB, 4GB
  • LRDIMM: 64GB, 32GB
  • 3DS LRDIMM: 128GB
Memory Voltage
  • 1.2 V
Error Detection
  • Corrects single-bit errors
On-Board Devices
Chipset
  • Intel C612 chipset
SAS
  • SAS3 (12Gbps) via Broadcom 3008
  • IT mode firmware
SATA
  • SATA3 (6Gbps) with RAID 0, 1, 5, 10
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • ASPEED AST2400 BMC
Network Controllers
  • Intel X540 Dual Port 10GbE
  • Virtual Machine Device Queues reduce I/O overhead
  • Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
  • Realtek RTL8201N PHY (dedicated IPMI)
Graphics
  • ASPEED AST2400 BMC
Input / Output
LAN
  • 2 RJ45 10GBase-T LAN ports
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 2 USB 3.0 ports (rear)
  • 2 USB 2.0 ports (rear)
  • 1 Type A
VGA
  • 1 VGA port
Serial Port / Header
  • 1 Fast UART 16550 port / 1 Header
Chassis
Form Factor
  • 4U Rackmount
Model
  • CSE-847BE1C-R1K28LPB
Dimensions and Weight
Width
  • 17.2" (437mm)
Height
  • 7" (178mm)
Depth
  • 27.5" (699mm)
Weight
  • Gross Weight: 102.5 lbs (46.4 kg)
  • Net Weight: 65.5 lbs (29.7 kg)
Available Colors
  • Black
Front Panel
Buttons
  • Power On/Off button
  • System Reset button
LEDs
  • Power status LED
  • Hard drive activity LED
  • 2 Network activity LEDs
  • System Information LED
  • Power fail LED
Expansion Slots
PCI-Express
  • 1 PCI-E 3.0 x16 slot
  • 6 PCI-E 3.0 x8 slots
  • Slot 1 & 2 occupied by controller and JBOD Expansion Port
Drive Bays
Hot-swap
  • 36x 3.5" Hot-swap SAS3/SATA3 drive bays
  • Double-sided: 24 front + 12 rear drive bays
Optional (NOT INCLUDED in the listing)
  • 2x 2.5" Hot-swap SATA drive bays (rear)
  • Fixed internal Drive Bracket supports 1x 3.5 or 2x 2.5" devices
Backplane
  • SAS3/SATA3 single expander per backplane
System Cooling
Fans
  • 7x 80mm middle cooling fans
  • Redundant cooling
Power Supply with Digital Switching Control & PMBus 1.2
  • 1280W High-Efficiency (95%+) power supply
AC Input
  • 1000W Output @ 100-140V, 12-8A, 50-60Hz
  • 1280W Output @ 180-240V, 8-6A, 50-60Hz
DC Output
  • 1000W: +12V/83A; +5Vsb/4A
  • 1280W: +12V/106.7A, +5Vsb/4A
Certification
  • 80 Plus Platinum Certified
System BIOS
BIOS Type
  • 128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features
  • Plug and Play (PnP)
  • APM 1.2
  • PCI 2.2
  • ACPI 1.0 / 2.0
  • USB Keyboard support
  • SMBIOS 2.3
  • UEFI
Operating Environment / Compliance
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:

    10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature:

    -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:

    8% to 90% (non-condensing)
  • Non-operating Relative Humidity:

    5% to 95% (non-condensing)

Condition: Off-lease equipment. Clean and tested by qualified technician.

Each server is configured to order. This process involves rigorous quality control which includes:

  • Throughout visual inspection for physical damages
  • Verification of all components and their functionality
  • Full diagnostic test is performed utilizing manufacturer's diagnostic tools
  • BIOS and firmware updates are installed
  • All logs are cleared
  • Passwords and settings are restored to factory defaults

Custom configurations are available. Please contact us for a quote or if you have questions regarding current configuration.

30-Day Warranty!
