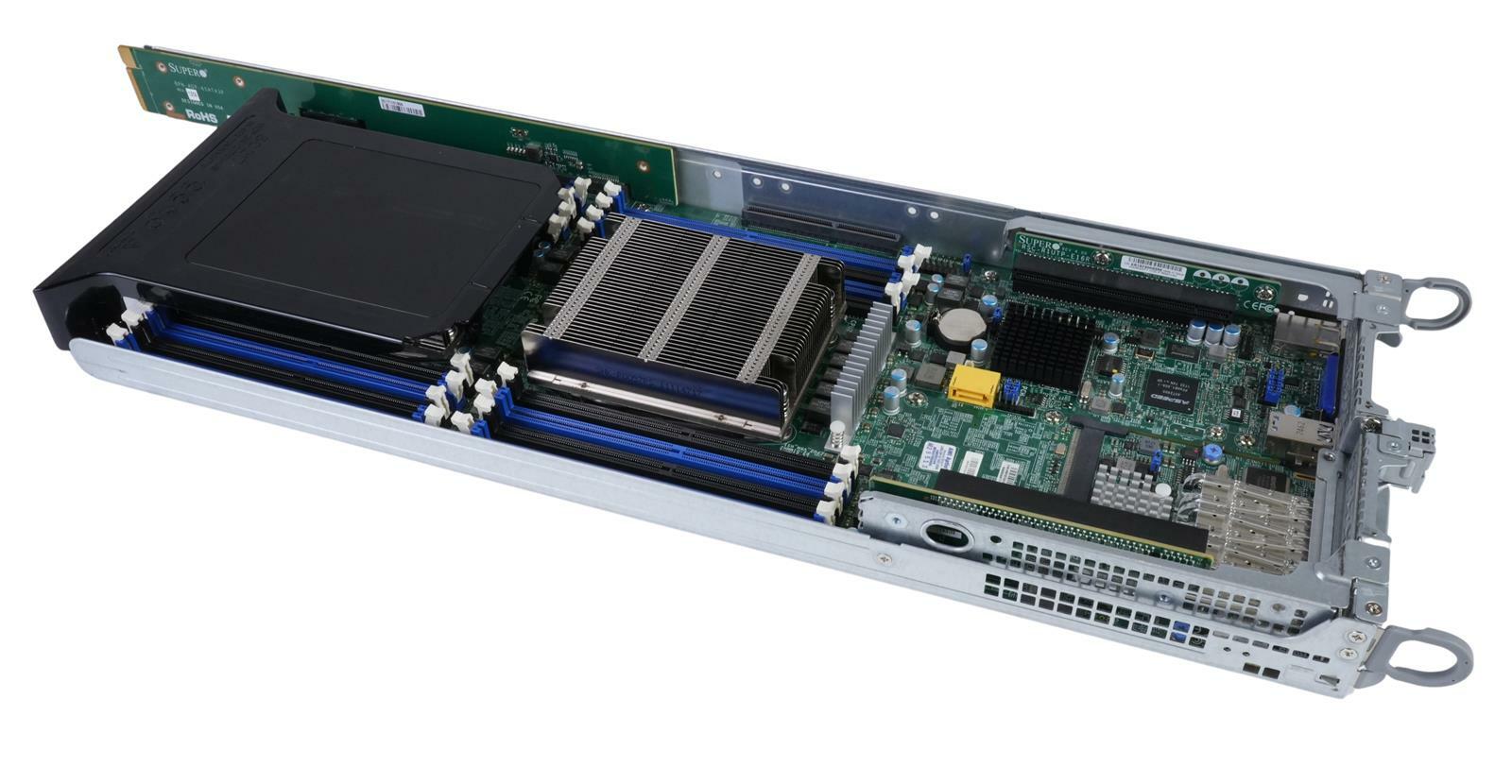

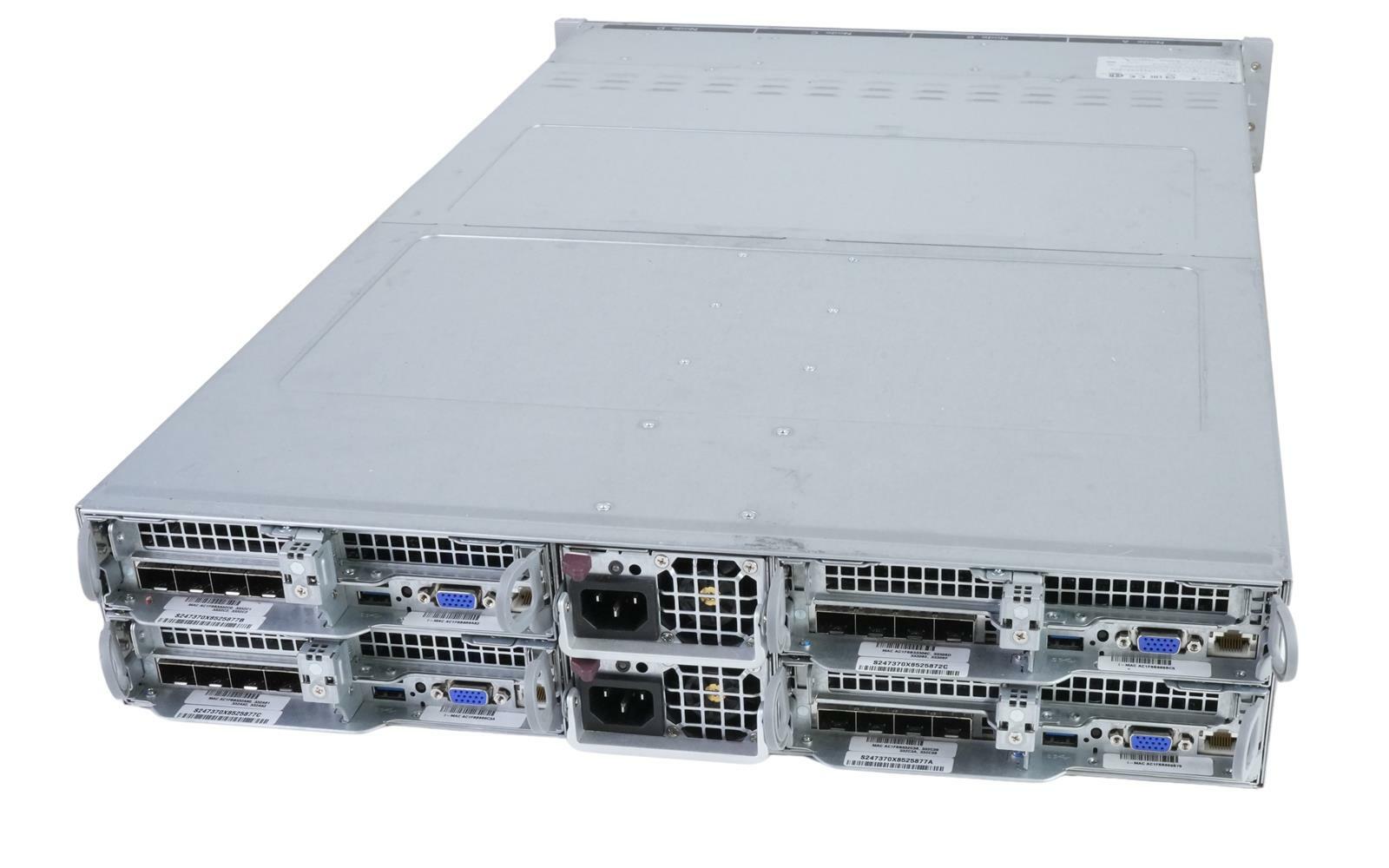

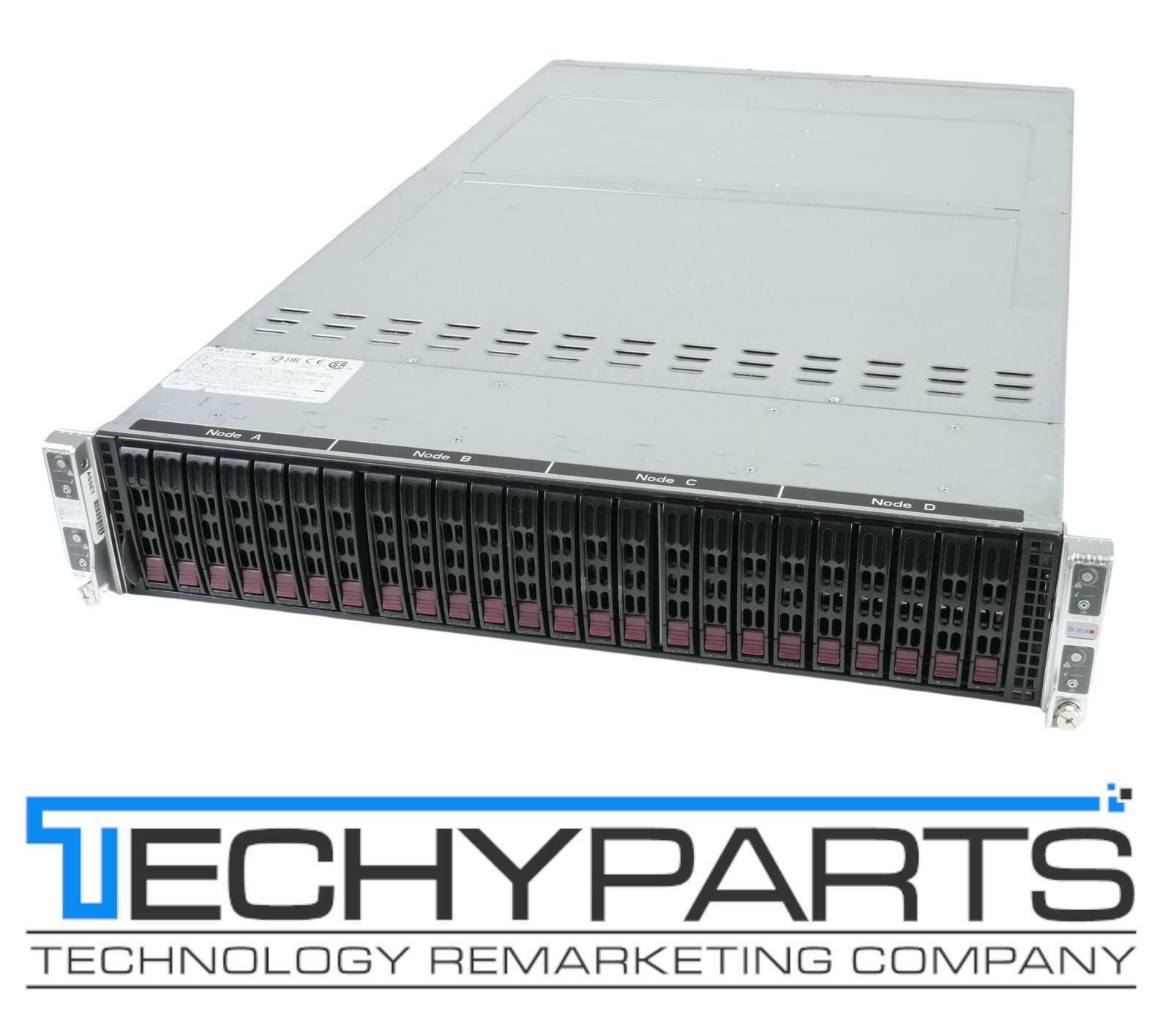

SuperMicro SYS-2028TP-HTR-SIOM 4-Node X10DRT-PS 2U SuperServer w/ AOC-MTG-i4SM

94758

SuperMicro SYS-2028TP-HTR-SIOM 4-Node X10DRT-PS 2U SuperServer w/ AOC-MTG-i4SM

1 3

SUPERMICRO

$700.00 USD
$700.00 USD
Sale Sold out
Shipping calculated at checkout.

106 in stock
View full details

SuperMicro SYS-2028TP-HTR-SIOM 4-Node X10DRT-PS 2U SuperServer Barebone/CTO withAOC-MTG-i4SM SIOMs

Barebone unit:

  • NO CPUs/NO HDDs/NO RAM
  • HDD Trays are included. The rackmount rail kit is not included but can also be purchased separately.

Specifications:

Form Factor 2U2U RACKMOUNT
Model SUPERMICRO SYS-2028TP-HTR-SIOM -242.5"Bays
Processor(s) Intel Xeon processor E5-2600 v4/ v3 family (up to 145W TDP) *
Dual Socket R3 (LGA 2011)
Memory 2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
# of DIMMs and Capacity 16x 288-pin DDR4 DIMM slots
Up to 2TB ECC 3DS LRDIMM, 512 ECC RDIMM
Hard Drives 24 Hot-swap 2.5" SAS/SATA HDD
Bays
RAID Controller Intel C612 chipset onboard
RAID Levels

SATA3 (6Gbps) with RAID 0, 1, 5, 10
Power Supply 2x2000W PWS-2K04A-1R
Optical Drive N/A
Network

Supermicro AOC-MTG-i4SM Intel XL710 4-Port 10GbE SFP+ SIOM NIC with BKT-0091L

Quad SFP+ Connectors
Super I/O Module (SIOM) Form Factor
Network Virtualization Offloads including VXLAN and NVGRE
Small Packet Performance
Data Plane Developer Kit for efficient packet processing
Low Power Consumption
Intel Flow Director
Intelligent Offloads
Unified networking providing a single wire support for LAN and storage
Asset Management Features
NC-SI for Remote Management
RoHS compliant 6/6
Supports Both Direct Attach Copper and Fiber Cables
Remote Access Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
ASPEED AST2400 BMC
Rackmount Rails NONE
Operating System N/A
Power Cord No

Condition:Off-lease equipment. Clean and tested by a qualified technician.

30-Day Warranty!
