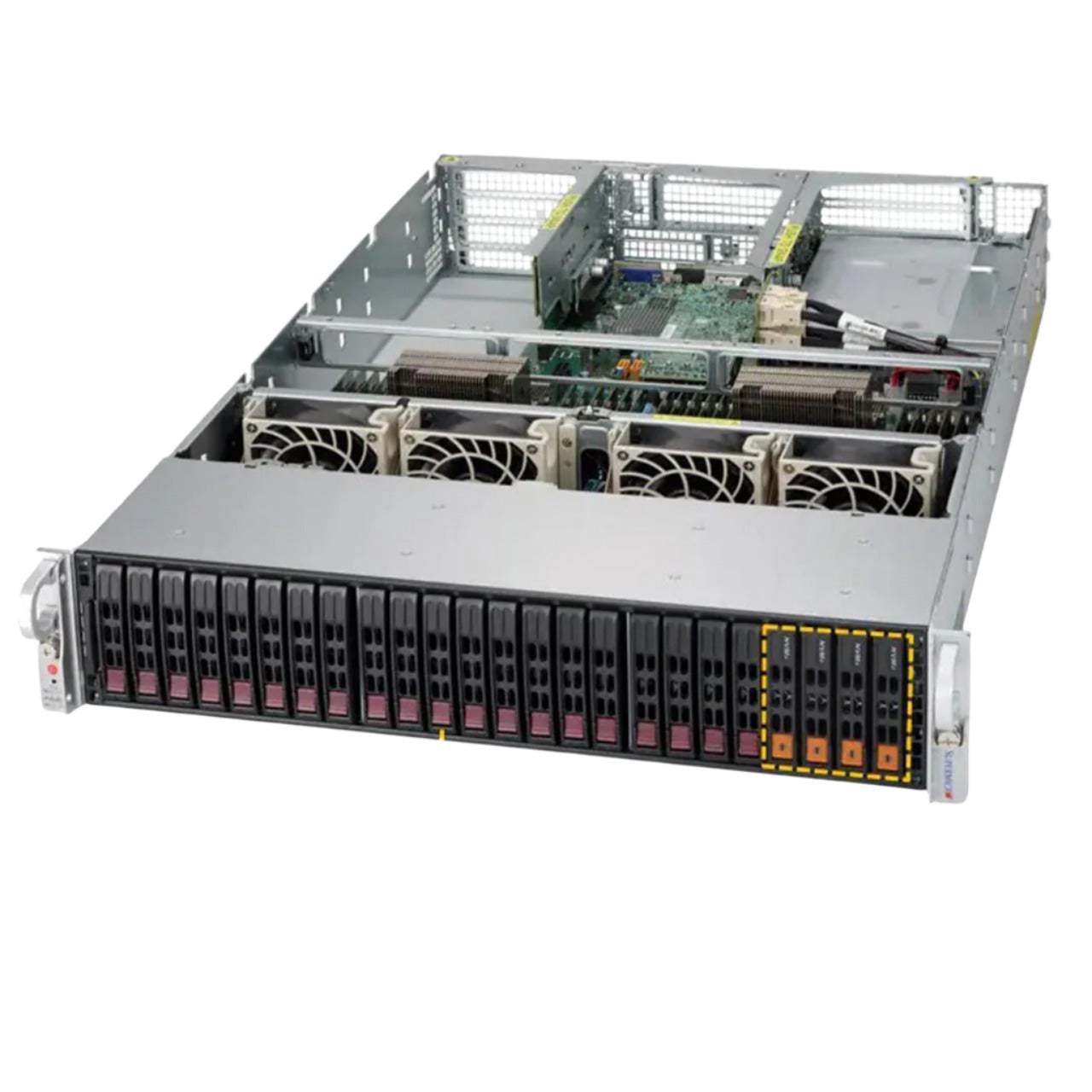

Supermicro SYS-2028U-E1CNR4T+ 2U 24-Bay 2.5" Rackmount Server w/ X10DRU-i+ CTO
91468Supermicro SYS-2028U-E1CNR4T+ 2U 24-Bay 2.5" Rackmount Server w/ X10DRU-i+ CTO
Supermicro SYS-2028U-E1CNR4T+ 2U 24-Bay 2.5" Rackmount Server w/ X10DRU-i+ CTO
Supermicro SYS-2028U-E1CNR4T+ 2U 24-Bay 2.5" Rackmount Server w/ X10DRU-i+ CTO
Barebone unit - No Memory/No CPUs
Specifications:
Form Factor | 2U RACKMOUNT |
---|---|
Model | SUPERMICRO SYS-2028U-E1CNR4T+ - 24x 2.5" Bays |
Processor(s) | Intel® Xeon® processor E5-2600 v4†/ v3 family (up to 160W TDP) * Dual Socket R3 (LGA 2011) |
Memory | 2400†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit 2666/2400 ECC DDR4 NVDIMM |
# of DIMMs and Capacity | 24x 288-pin DDR4 DIMM slots Up to 3TB† ECC 3DS LRDIMM, 1.5TB ECC RDIMM/LRDIMM |
Hard Drives | 24 Hot-swap 2.5" Drive Bays: Default 4 NVMe ports; 24 SAS3 ports via Expander and AOC: AOC-S3108L-H8iR |
RAID Controller | Supermicro AOC-S3108L-H8iR 2GB 8-Port 12Gbps SAS PCI-e 3.0 RAID Controller |
RAID Levels | RAID 0, 1, 5, 6, 10, 50, 60 |
Power Supply | 2x 1000W PWS-1K02A-1R |
Optical Drive | N/A |
Network | 4x 10GBase-T ports via AOC-2URN4-i4XT Intel® X540 10GBase-T 1 Realtek RTL8211E PHY (dedicated IPMI) |
Remote Access | Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support ASPEED AST2400 BMC |
Rackmount Rails | Yes |
Operating System | N/A |
Power Cord | NONE |
Condition: Off-lease equipment. Clean and tested by a qualified technician. A rackmount rail kit is included.
30-Day Warranty!
