SUPERMICRO

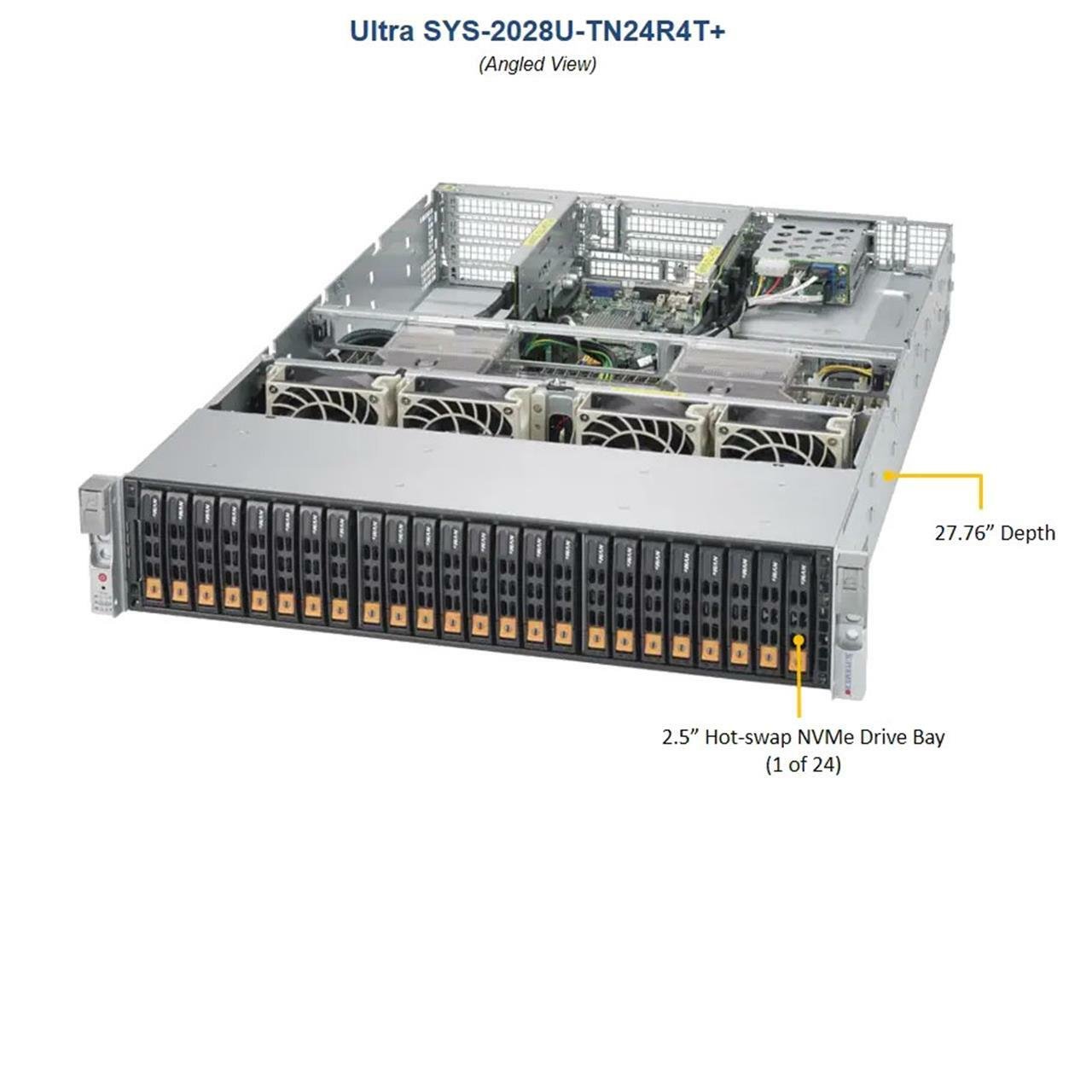

Supermicro SYS-2028U-TN24R4T+ 2x E5-2690v4 2.6GHz 1TB RAM 24x Bay NVMe 2U Server
Supermicro SYS-2028U-TN24R4T+ 2x E5-2690v4 2.6GHz 1TB RAM 24x Bay NVMe 2U Server
Regular price
$2,999.00 USD
Regular price
Sale price
$2,999.00 USD
Unit price
/
per
Shipping calculated at checkout.
Low stock: 3 left
Couldn't load pickup availability
SKU:92578
Supermicro SYS-2028U-TN24R4T+ 2x Intel Xeon E5-2690v4 14-Core 2.6GHz CPUs 1TB RAM 24x Bay NVMe 2U Server
Specifications:
| Form Factor | 2U Rack Mount |
|---|---|
| Model | SUPERMICRO SYS-2028U-TN24R4T+ - 24 2.5" NVMe Bays |
| Processor(s) | 2x SR2N2 Intel Xeon E5-2690v4 2.6Ghz 14-Core 35M 9.6GTs QPI LGA2011-3 Processor CPU |
| Memory | 1TB (1024GB) PC4-2400T-L (DDR4-2400MHZ) Load-Reduced Memory installed |
| # of DIMMs and Capacity | 16x 64GB PC4-2400T-L (DDR4-2400MHZ) Load-Reduced LRDIMMs |
| Hard Drives | 24x NVMe Hot-swap 2.5" drive bays (4 Hybrid ports - optional SAS3 supported via AOC(NOT INCLUDED)); 2x rear SATA3 Hot-swap 2.5" drive bays |
| RAID Controller | Intel C612 chipset |
| RAID Levels | SATA3 (6Gbps) with RAID 0, 1, 5, 10 |
| Power Supply | 2x 1600W PWS-1K62A-1R |
| Optical Drive | N/A |
| Network | 4x 10GBase-T ports via AOC-2UR6N4-i4XT Intel X540 10GBase-T 1x Realtek RTL8211E PHY (dedicated IPMI) |
| Remote Access | Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support ASPEED AST2400 BMC |
| Rackmount Rails | Yes - Included |
| Operating System | N/A |
| Power Cord | No - Not Included |
Condition: Off-lease equipment. Clean and tested by a qualified technician. Rackmount rail kit included.
30-Day Warranty!
