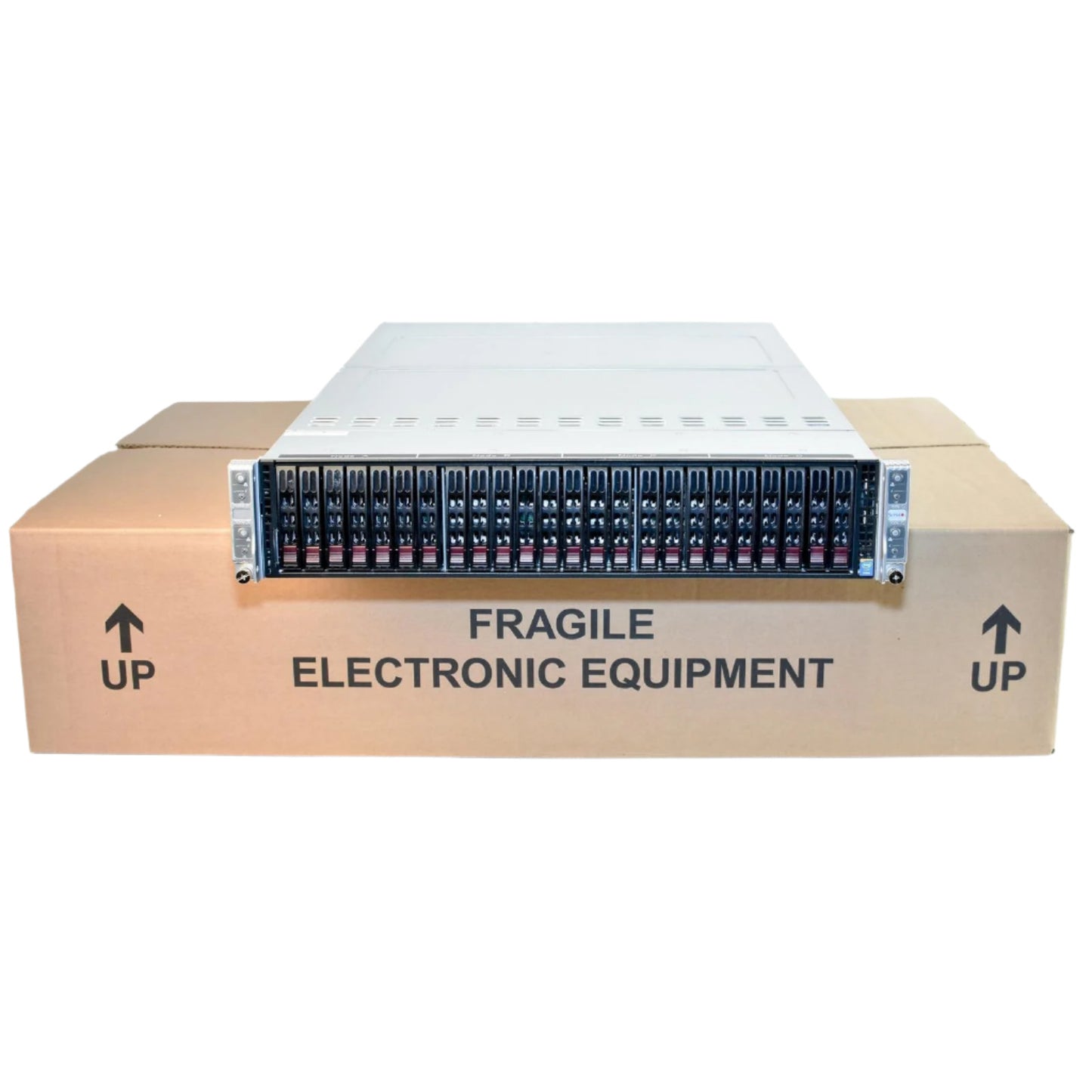

Supermicro SYS-2029TP-HC1R 2U 2.5 24-Bay 4-Node X11DPT-PS dual 10GbE SuperServer
92114Supermicro SYS-2029TP-HC1R 2U 2.5 24-Bay 4-Node X11DPT-PS dual 10GbE SuperServer
Supermicro SYS-2029TP-HC1R 2U 2.5 24-Bay 4-Node X11DPT-PS dual 10GbE SuperServer
Supermicro SYS-2029TP-HC1R 2U 2.5 24-Bay 4-Node X11DPT-PS dual 10GbE SuperServer
Condition: Off-lease equipment. Clean and tested by a qualified technician. Rail kit included. NO CPUs/NO MEMORY/NO HDDs.
Four hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:
- Dual Socket P (LGA 3647) support 2nd Gen Intel® Xeon® Scalable processors (Cascade Lake/Skylake)‡
- 16 DIMMs; up to 4TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM††
- 2 PCI-E 3.0 x16 (LP) slots
- Flexible Networking support via SIOM; Dedicated IPMI 2.0 LAN
- 6 Hot-swap 2.5" SAS/SATA drive bays
- Broadcom 3108 SAS3 controller; RAID 0, 1, 5, 6, 10, 50, 60 with SuperCap option (SUPERCAP OPTION IS NOT INCLUDED)
- Up to 2200W Redundant Power Supplies
Titanium Level (96%)
Specifications:
Form Factor | 2U 2U RACKMOUNT |
---|---|
Model | SUPERMICRO SYS-2029TP-HC1R - 24 2.5" Bays Four hot-pluggable systems (nodes) in a 2U form factor. |
Processor(s) | Dual Socket P (LGA 3647) supports 2nd Gen Intel® Xeon® Scalable processors (Cascade Lake/Skylake) (EACH NODE) |
Memory | 2933†/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM |
# of DIMMs and Capacity | 16 DIMM slots (EACH NODE) Up to 4TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM Supports Intel® Optane™ DCPMM†† |
Hard Drives | 6 Hot-swap 2.5" SAS/SATA drive bays (PER NODE) |
RAID Controller | BPN-ADP-S3108L-H6iRP Broadcom 3108 SAS3 (12Gbps) controller, 2GB cache; RAID 0, 1, 5, 6, 10, 50, 60 support |
RAID Levels | RAID 0, 1, 5, 6, 10, 50, 60 support |
Power Supply | 2x 2200W PWS-2K20A-1R Titanium Level Redundant Power Supplies with PMBus |
Optical Drive | N/A |
Network | AOC-MTG-I2TM Super I/O Module (SIOM) Form Factor • Intel® X550 10GbE DUAL PORT controller. The second generation, 10GBase-T controller with integrated MAC and PHY. • Backward compatibility with existing 1000Base-T networks simplifies the transition to 10 GbE. • Dual RJ45 Connectors • Network Virtualization Offloads: VXLAN and NVGRE • VMDq and SR-IOV for Virtualized Environment • Asset Management Features with thermal sensor • NC-SI for Remote Management • Supports RJ-45 Category-6 and 6A cables • RoHS compliant 6/6 |
Remote Access |
ASPEED AST2500 BMC Support for Intelligent Platform Management Interface v.2.0 |
Rackmount Rails | Yes |
Operating System | N/A |
Power Cord | No |
Condition: Off-lease equipment. Clean and tested by a qualified technician. Rail kit included. NO CPUs/NO MEMORY/NO HDDs.
30-Day Warranty!
