Supermicro SYS-5018D-FN4T X10SDV-8C-TLN4F Xeon D-1541 2x 2.5" bay 1U Server CTO
95185Supermicro SYS-5018D-FN4T X10SDV-8C-TLN4F Xeon D-1541 2x 2.5" bay 1U Server CTO

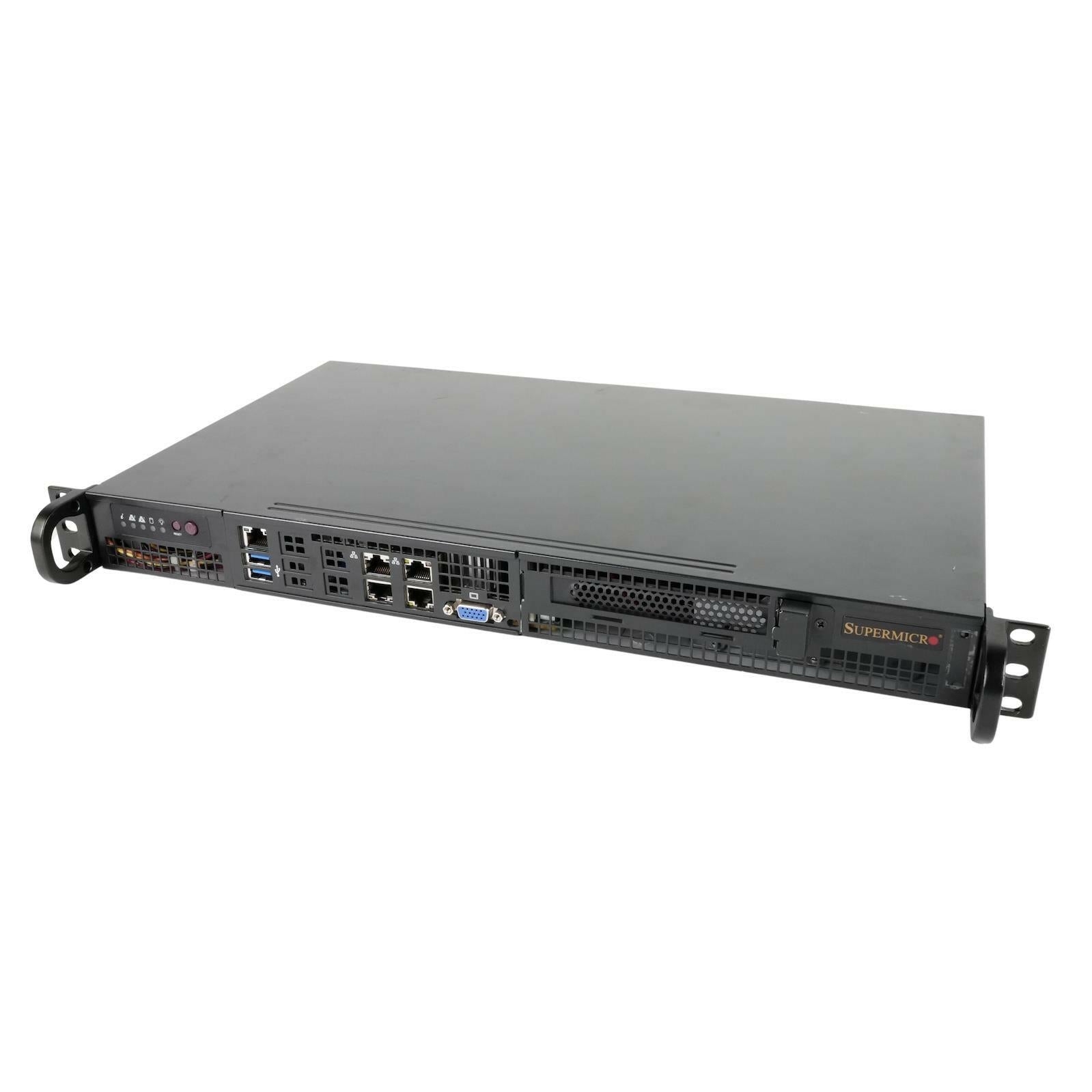

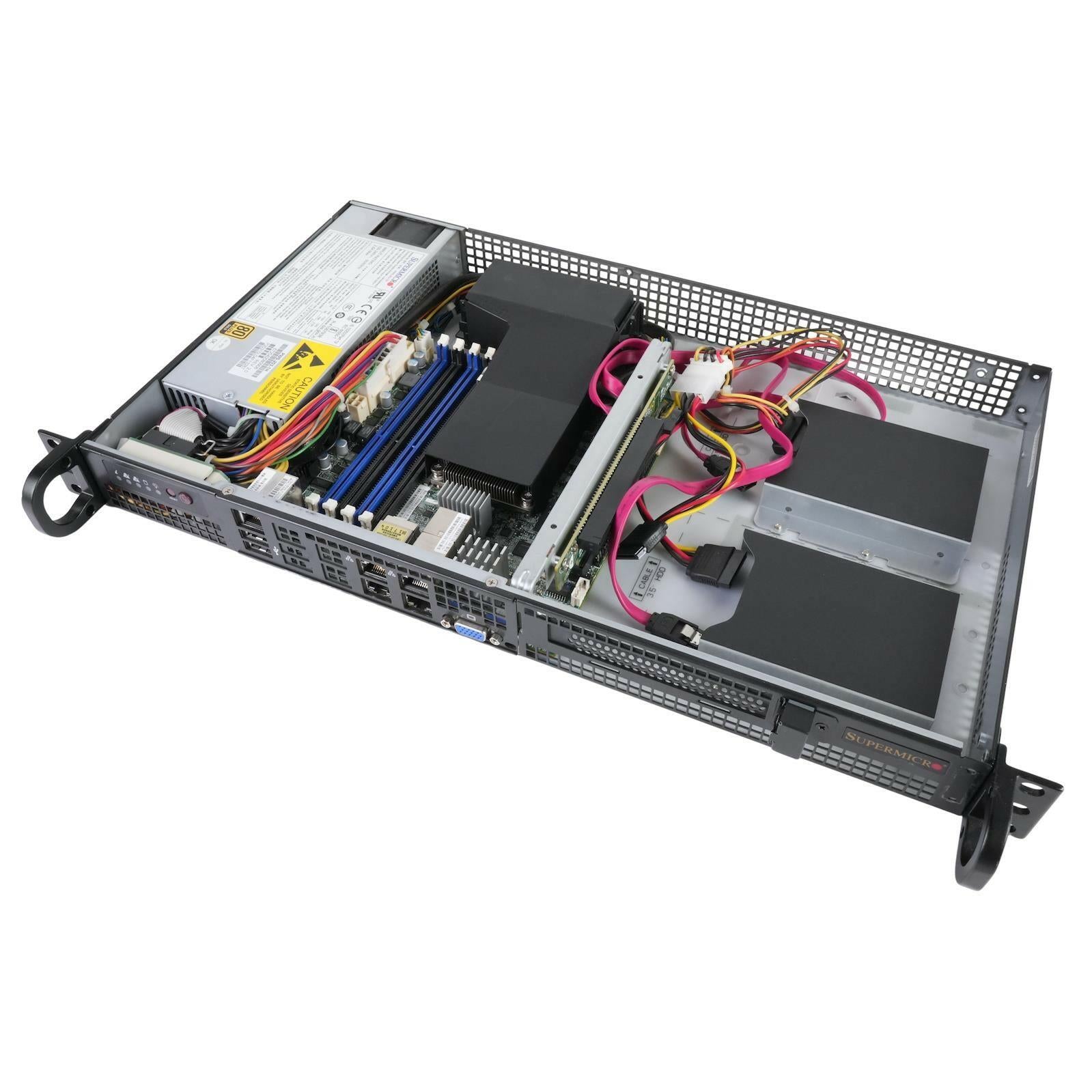

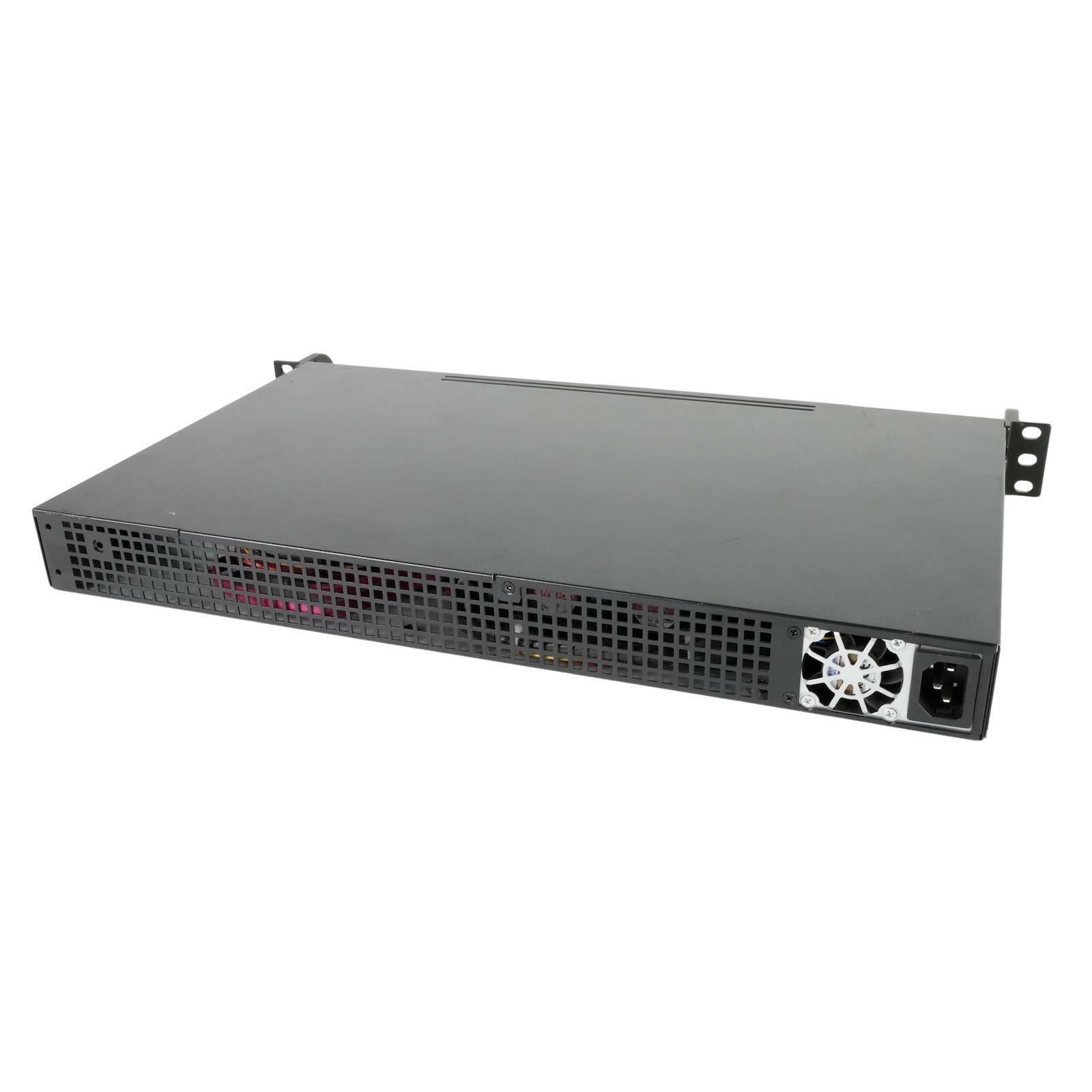

Supermicro SYS-5018D-FN4T 2.1GHz 8-Core Xeon D-1541 Dual 2.5" Bays Front IO Mini 1U Rackmount Server
Specifications:
| Form Factor | 1U Rackmount |
|---|---|
| Model | SUPERMICRO SYS-5018D-FN4T - X10SDV-8C-TLN4F Motherboard |
| Processor(s) | 1x Xeon D-1541 2.1 GHZ 8-Core |
| Memory | 0GB |
| # of DIMMs and Capacity | N/A |
| Hard Drives | None - 2x 2.5" bays |
| RAID Controller | SoC controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10 |
| RAID Levels | RAID 0,1,5,10 |
| Power Supply | 1x 200W PWS-203-1H |
| Optical Drive | N/A |
| Network | Dual LAN with Intel Ethernet Controller I350-AM2 Dual LAN with SoC Dual 10GbE Single LAN with Virtual Machine Device Queues reduce I/O overhead Single LAN with Supports 10Base-T, 100BASE-TX, and 1000BASE-T, RJ45 output Single LAN with 1 Realtek RTL8211E PHY (dedicated IPMI) |
| Remote Access | Support for Intelligent Platform Management Interface v.2.0 Aspeed AST2400 BMC |
| Rackmount Rails | N/A |
| Operating System | N/A |
| Power Cord | NONE |
Condition: Off-lease equipment. Clean and tested by a qualified technician.
Each server is configured to order. This process involves rigorous quality control which includes:
- Throughout visual inspection for physical damages
- Verification of all components and their functionality
- A full diagnostic test is performed utilizing the manufacturer's diagnostic tools
- BIOS and firmware updates are installed
- All logs are cleared
- Passwords and settings are restored to factory defaults
Custom configurations are available. Please contact us for a quote or if you have questions regarding the current configuration.
30-Day Warranty!
