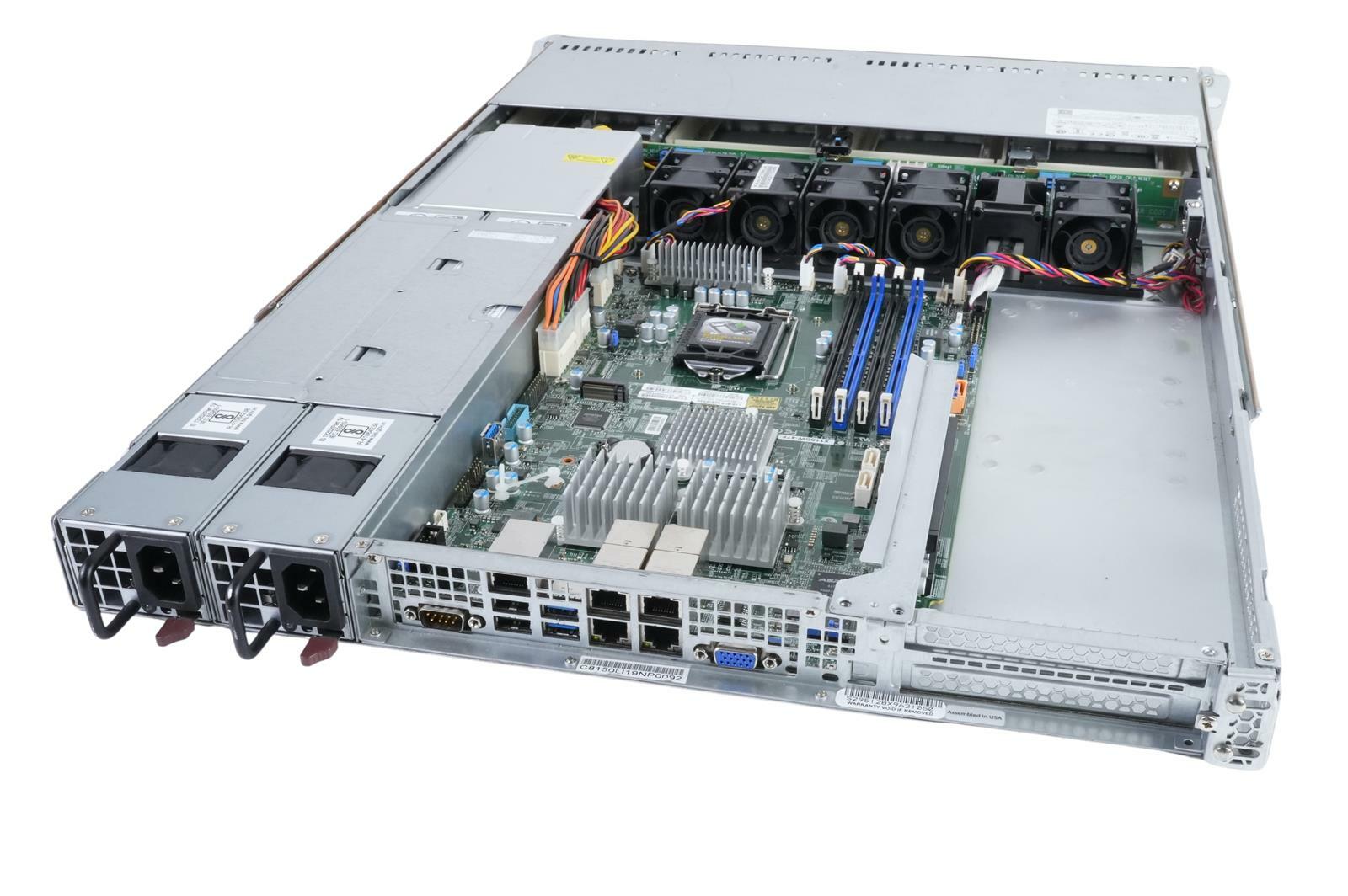

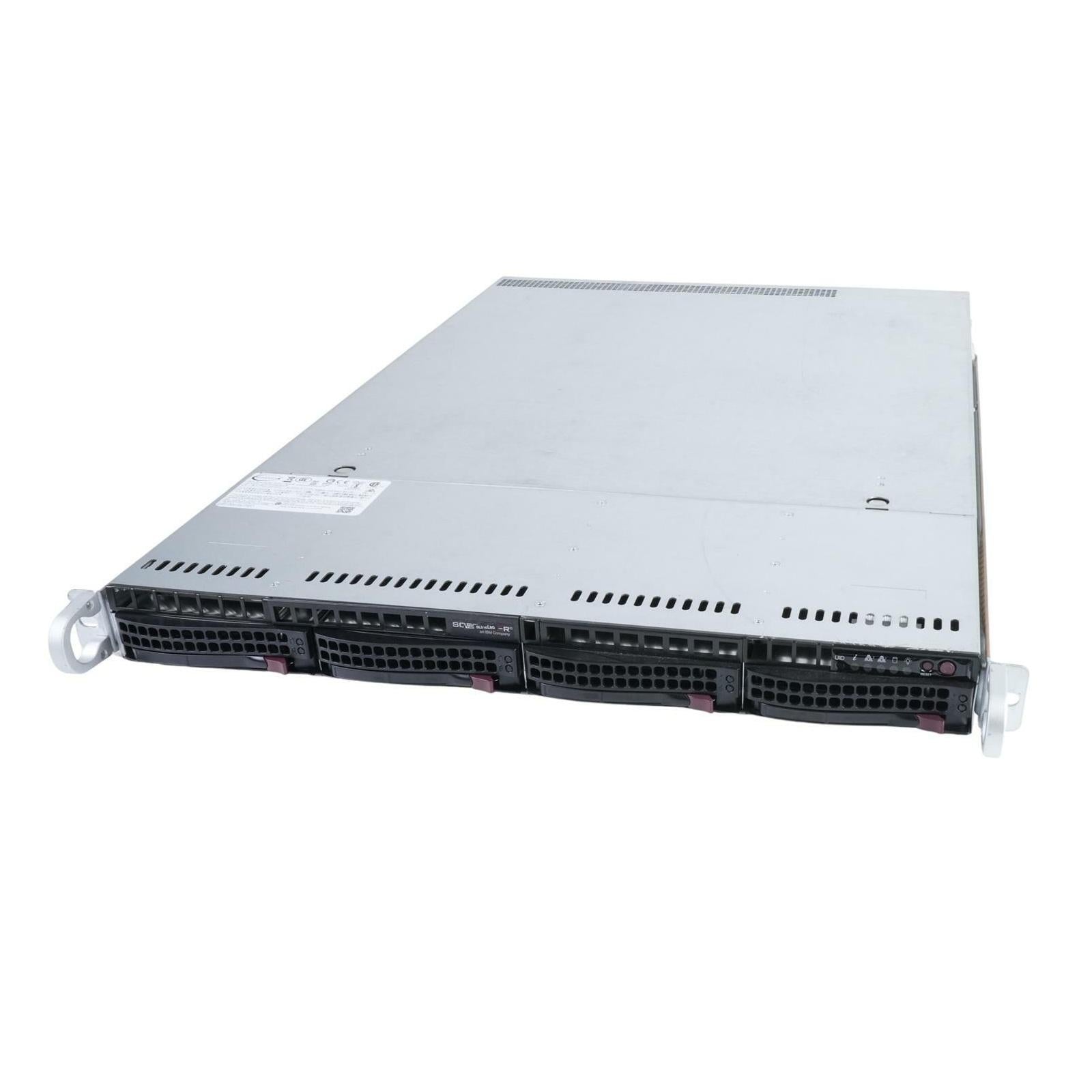

Supermicro SYS-5019S-W4TR X11SSW-4TF 4-Bay 1U Rackmount Server Barebones/CTO
94078Supermicro SYS-5019S-W4TR X11SSW-4TF 4-Bay 1U Rackmount Server Barebones/CTO
Supermicro SYS-5019S-W4TR X11SSW-4TF 4-Bay 1U Rackmount Server Barebones/CTO
Notes:
This is a barebone server — you'll need to provide CPU, RAM, storage, and cooling. Standard 1U LGA1151 Supermicro heatsinks are compatible.
Condition: Used – No CPU, no memory, no storage, no heatsink, no rails, no SATA cables
Specifications:
| Form Factor | 1U Rack Mount |
|---|---|

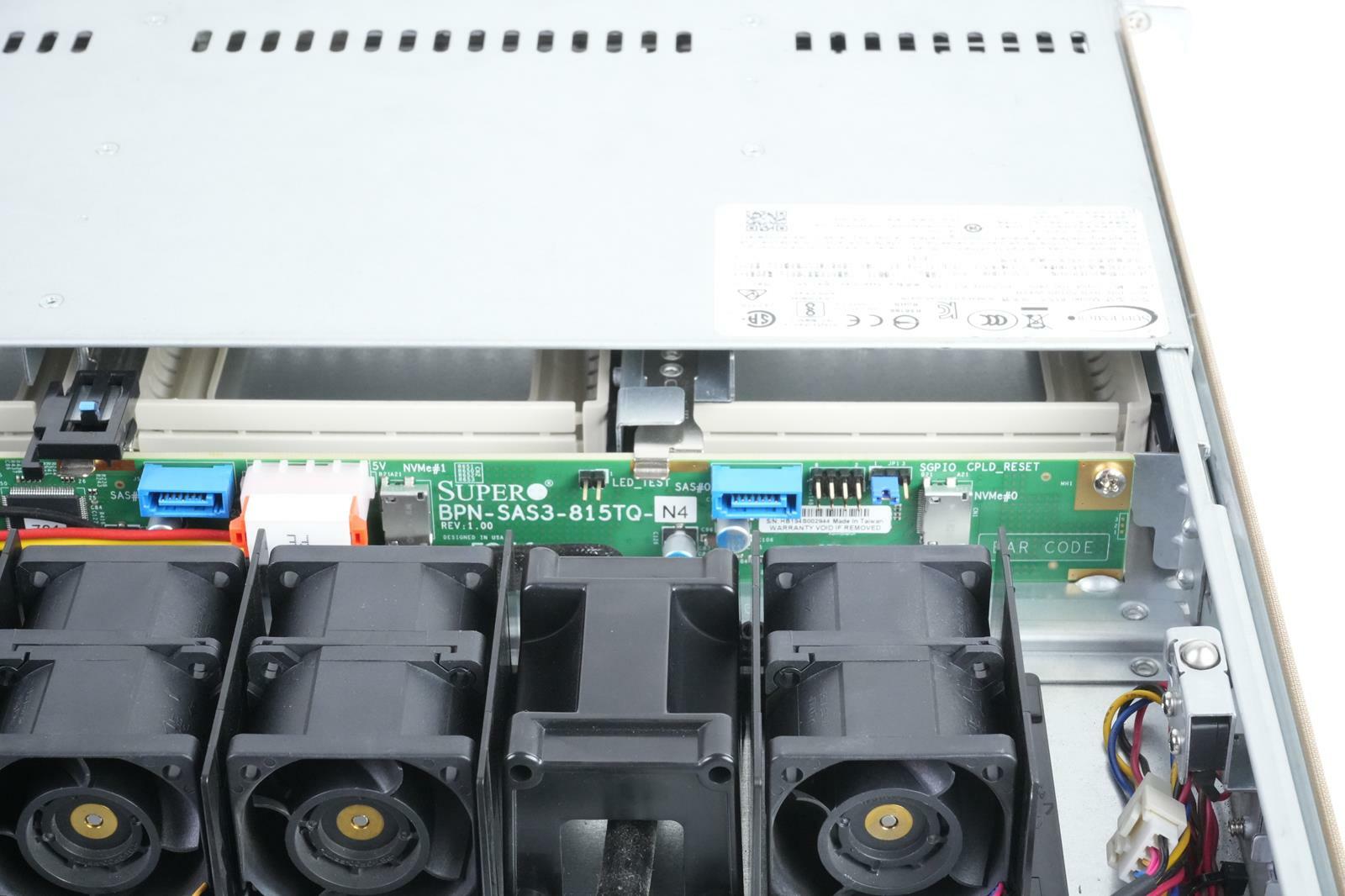

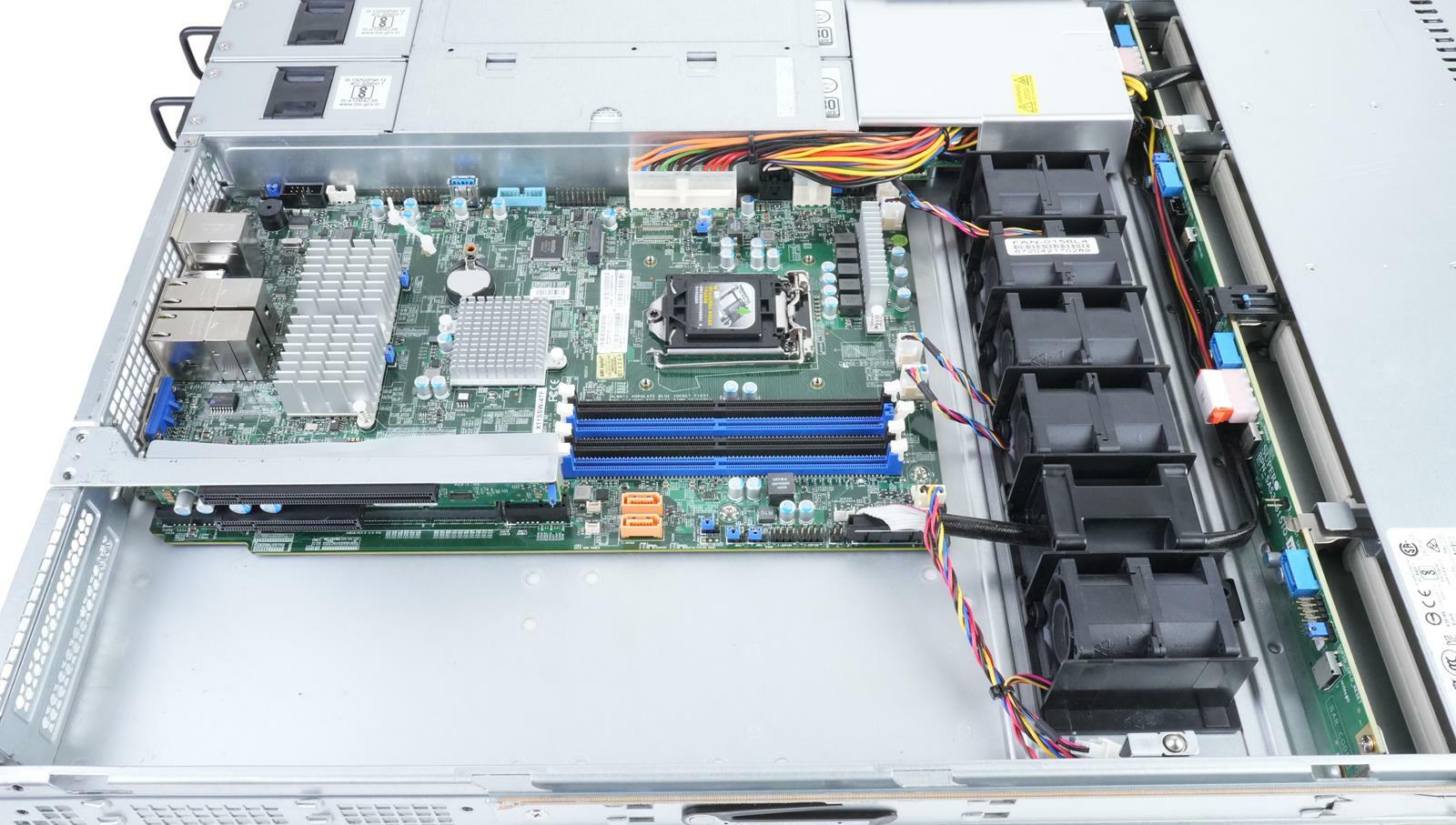

| Model | SUPERMICRO SYS-5019S-W4TR - 4x 3.5" Bays CSE-815TQC-R504WB3 Chassis with BPN-SAS3-815TQ-N4 Backplane and X11SSW-4TF Motherboard |
| Processor(s) | Single Socket H4 (LGA 1151) supports: Intel® Xeon® processor E3-1200 v6/v5, CPU TDP up to 80W |
| Memory | 2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit, 288-pin (UDIMM) gold-plated DIMMs |
| # of DIMMs and Capacity | 4x 288-pin DDR4 DIMM slots Up to 64GB DDR4 ECC UDIMM |
| Hard Drives | 4 Hot-swap 3.5" SATA3 drive bays |
| RAID Controller | SATA3 (6Gbps) via C236 controller (onboard) |
| RAID Levels | RAID 0, 1, 5, 10 support |
| Power Supply | 2x 500W PWS-504P-1R |
| Optical Drive | NONE |
| Network | Quad LAN with Intel® X540 10GBase-T Ethernet Controller Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output |
| Remote Access | IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| Rackmount Rails | EARS ONLY/Rail Kit Not Included |
| Operating System | N/A |
| Power Cord | None |
Condition: Off-lease equipment. Clean and tested by qualified technician.
30-Day Warranty!
