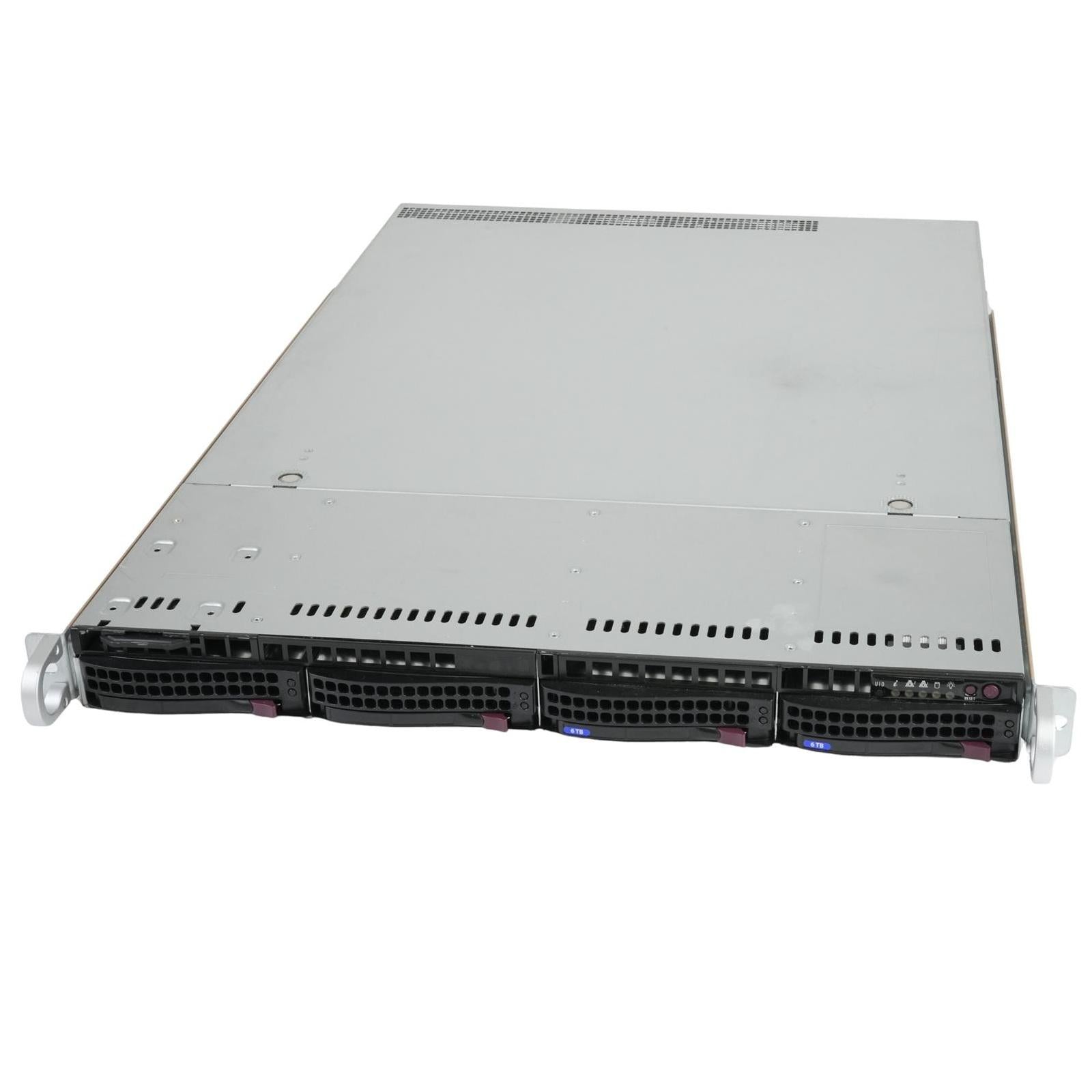

Supermicro SYS-510P-WTR 4Bay LFF X12SPW-TF LGA-4189 Intel Scalable 1U Server CTO
94492Supermicro SYS-510P-WTR 4Bay LFF X12SPW-TF LGA-4189 Intel Scalable 1U Server CTO
Supermicro SYS-510P-WTR 4-Bay LFF w/ X12SPW-TF LGA-4189 Intel Scalable 1U Server Barebone/CTO
- Barebone unit - NO CPUs/NO Memory/NO Storage
- HDD Trays/CPU heatsink and Rackmount Rail kit are included
- You will need to add CPU, memory, and storage to make it complete
Specifications:
| Form Factor | 1U1U Rackmount |
|---|---|
| Model | SUPERMICRO SYS-510P-WTR -43.5"Bays |
| Processor(s) | Single Socket P+ (LGA-4189) for 3rd Gen Intel Xeon Scalable processors |
| Memory |
Slot Count: 8 DIMM slots
Max Memory (1DPC): Up to 2TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
Supports Intel Optane persistent memory 200 series
|
| Hard Drives | Total 4 bays 4 front hot-swap 3.5" PCIe 4.0 NVMe*/SAS*/SATA drive bays (*NVMe/SAS support may require additional storage controller and/or cables) |
| RAID Controller | Onboard SATA (6Gbps) ; RAID 0/1/5/10 support |
| Power Supply | 2x500W PWS-504P-1R |
| Optical Drive | NONE |
| Network | 2 RJ45 10 GbE LAN ports (Intel X550) 1 RJ45 1 GbE Dedicated BMC LAN port (IPMI shared on LAN port 1) |
| Remote Access | IPMI 2.0 remote management with KVM and remote virtual media mount |
| Rackmount Rails | Yes |
| Operating System | N/A |
| Power Cord | Not included |
Condition: Off-lease equipment. Clean and tested by a qualified technician.
30-Day Warranty!
