Supermicro SYS-6016T-URF X8DTU-F Dual LGA1366 Xeon 5500/5600 1U Server

89251

Supermicro SYS-6016T-URF X8DTU-F Dual LGA1366 Xeon 5500/5600 1U Server

Skip to product information
1 of 1

SUPERMICRO

Regular price $149.99 USD
Regular price Sale price $149.99 USD
Sale Sold out
Shipping calculated at checkout.

Out of stock

View full details

Supermicro SYS-6016T-URF X8DTU-F Dual LGA1366 Xeon 5500/5600 1U Server

Supermicro SYS-6016T-URF X8DTU-F Dual LGA1366 Xeon 5500/5600 1U Server

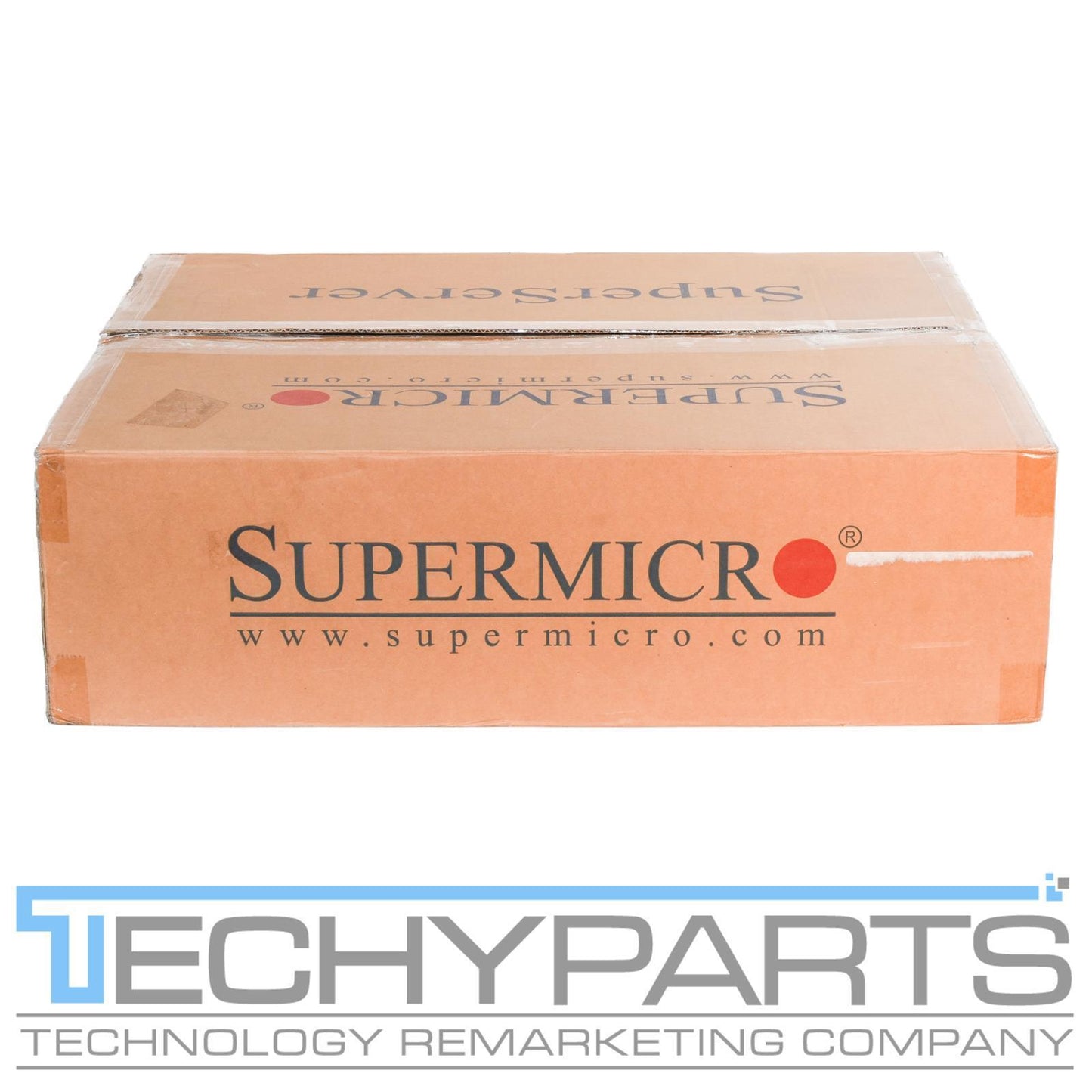

New - inbox. With a rail kit and all the original accessories included.

Specifications:

Form Factor 1U 1U Rackmount
Model SUPERMICRO SYS-6016T-URF - 4 3.5" Bays CSE-815TQ-R650UB Chassis/ X8DTU-F Motherboard
Processor(s) Dual 1366-pin LGA Sockets

Supports up to two Intel® 64-bit Xeon® processor(s) of the same type below:


Intel® Xeon® Processor X5600/E5600/L5600 Series

(Westmere) 40W - 130W


Intel® Xeon® Processor X5500/E5500/L5500 Series

(Nehalem-EP) 38W - 95W
Memory 1333 / 1066 / 800MHz ECC Registered / ECC or Non ECC Unbuffered DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
# of DIMMs and Capacity 12x 240-pin DIMM slots

Supports up to 192 GB 1333 / 1066 / 800MHz DDR3 ECC Registered memory

Supports up to 48 GB 1333 / 1066 / 800MHz DDR3 ECC / Non ECC Unbuffered memory

Memory Mirroring supported
Hard Drives 4x 3.5" Hot-swap SATA Drive Bays,

For Customizable Storage
RAID Controller Intel ICH10R SATA 3.0Gbps Controller
RAID Levels RAID 0, 1, 5, 10 support (Windows)

RAID 0, 1, 10 support (Linux)
Power Supply 2x 650W PWS-651-1R
Optical Drive DVD-ROM
Network Intel® 82576 Dual-Port Gigabit Ethernet Controller

Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output

Intel® I/OAT 3 support for fast, scalable, and reliable networking

VMDq support for better performance of virtualization

1x Realtek RTL8201N PHY (dedicated IPMI)
Remote Access Support for Intelligent Platform Management Interface v.2.0

IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Nuvoton WPCM450 BMC
Rackmount Rails Yes
Operating System N/A
Power Cord YES

30-Day Warranty!
