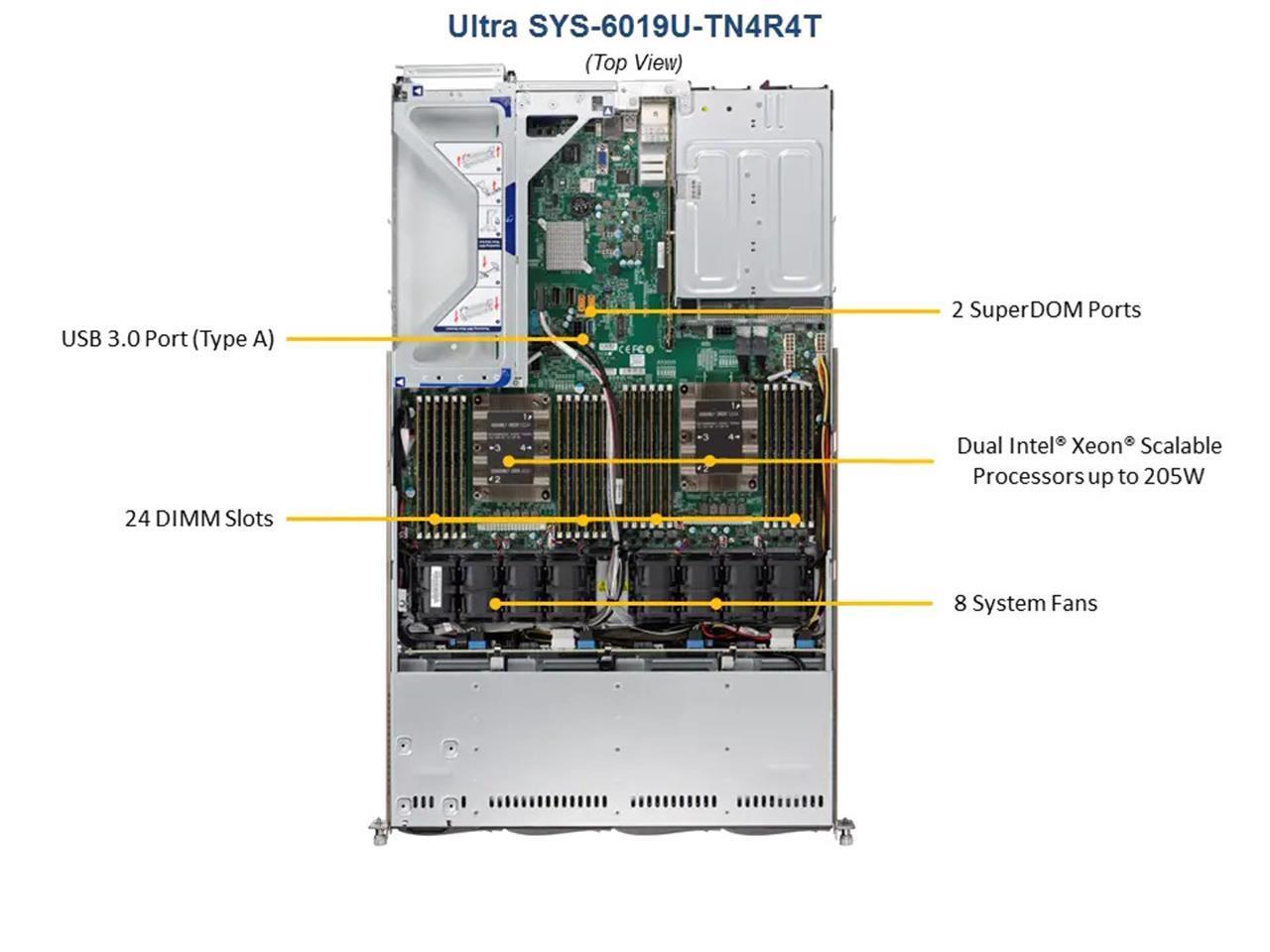

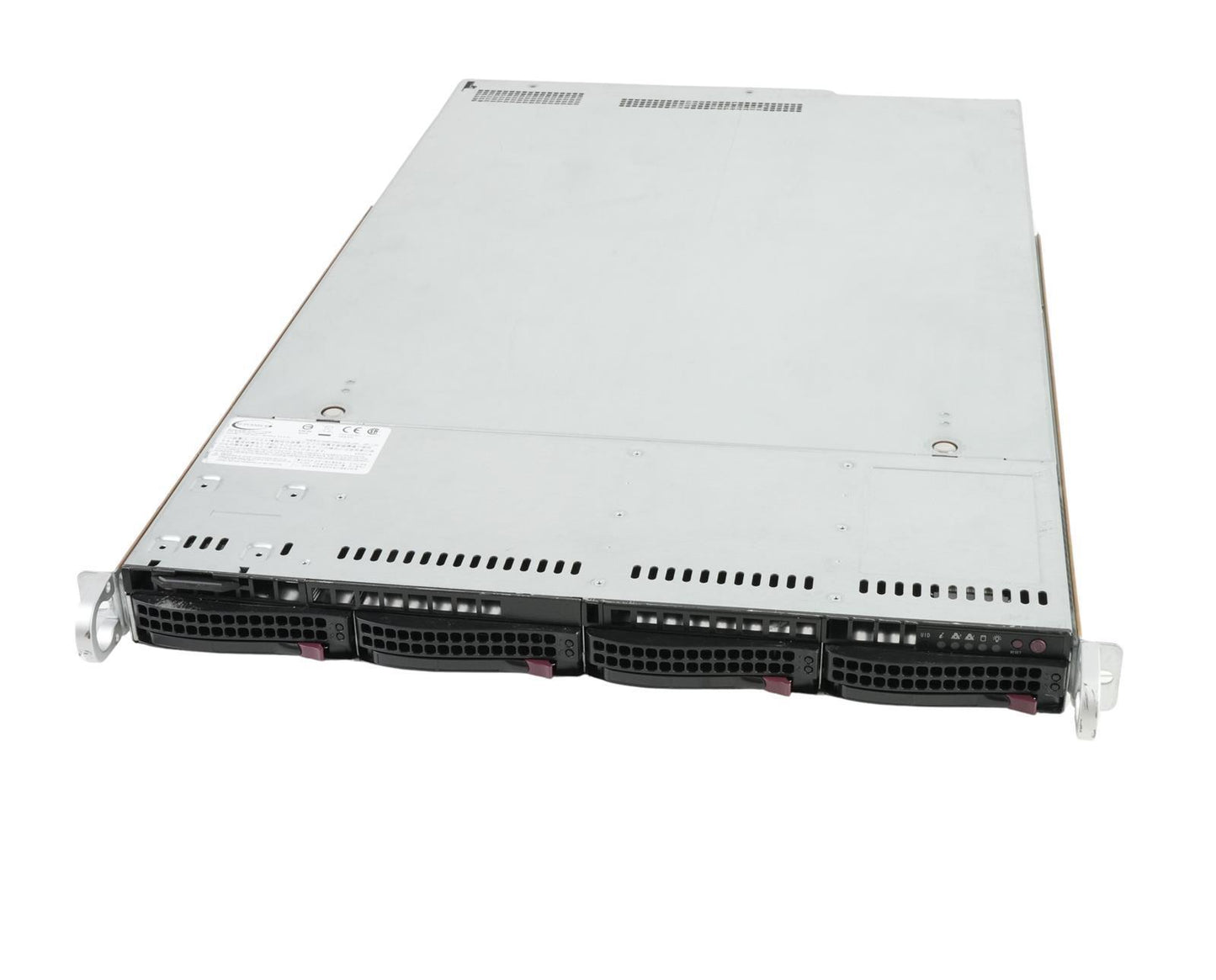

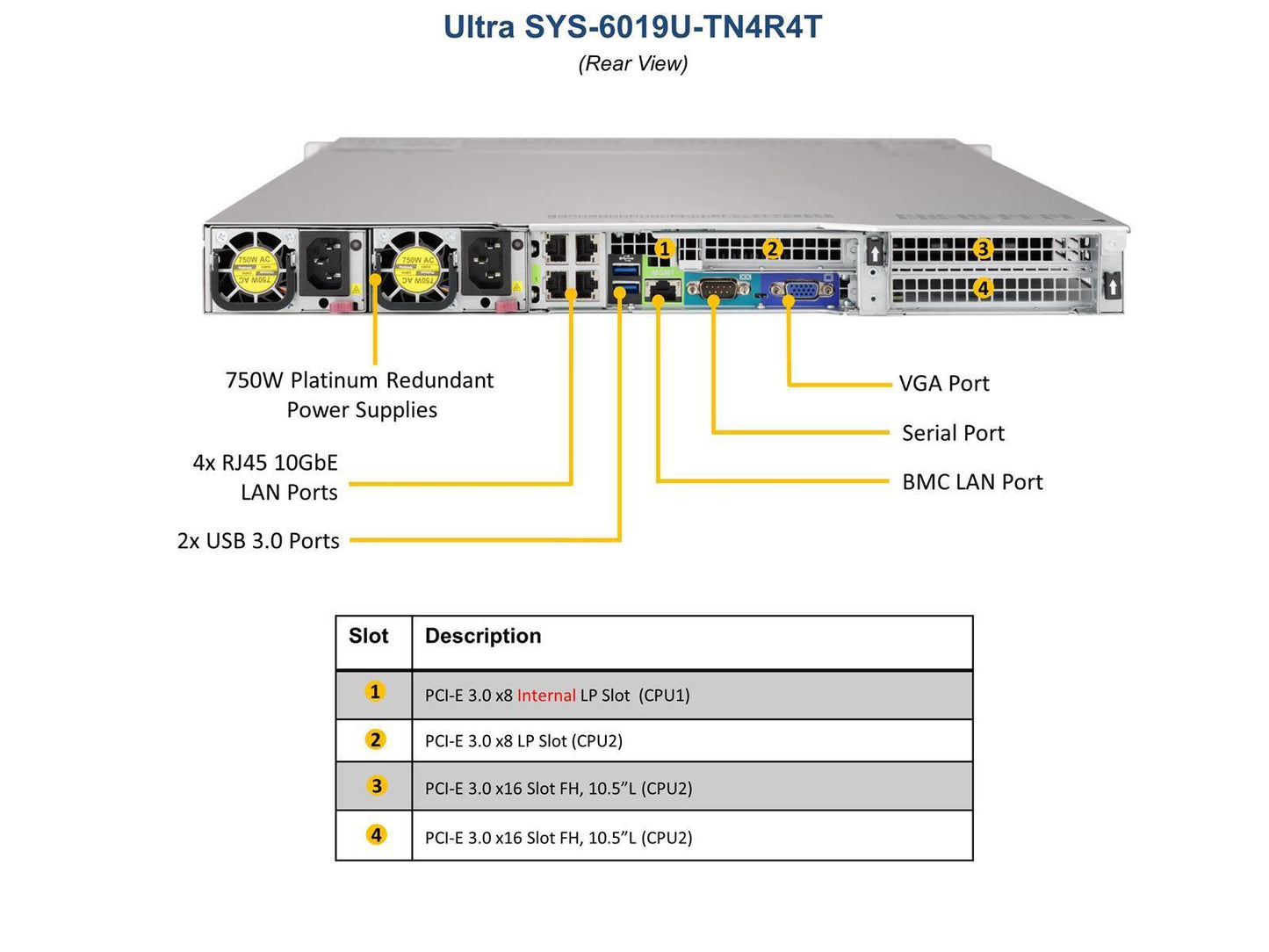

SuperMicro SYS-6019U-TN4R4T X11DPU 2x Xeon Gold 6244 192GB 4x LFF NVMe 1U Server
93701SuperMicro SYS-6019U-TN4R4T X11DPU 2x Xeon Gold 6244 192GB 4x LFF NVMe 1U Server
SuperMicro SYS-6019U-TN4R4T X11DPU 2x Xeon Gold 6244 192GB RAM 4x LFF NVMe 1U Server
- Rackmount rail kit, 4x 3.5" HDD trays, and CPU heatsinks are included.
- Supermicro AOC-S3108L-H8IR-16DD 2GB 8-Port SAS3 12Gbps PCI-e 3.0 RAID Controller
- Supermicro AOC-UR-i4XTF 1U Ultra Riser with 4-port 10Gbase-T RJ45, Intel XL710 and X557
- 4 Hot-swap 3.5" drive bays: 4 NVMe/SAS3/SATA3 hybrid ports; 2 internal M.2 (1 SATA3, 1 NVMe)
Specifications:
| Form Factor | 1U Rackmount |
|---|---|
| Model | SUPERMICRO SYS-6019U-TN4R4T - 4 Hot-swap 3.5" drive bay |
| Processor(s) | 2x Intel SRF8Z Xeon Gold 6244 3.6Ghz 8-Core 24.75MB L3 LGA3647 CPU CD8069504194202 |
| Memory | 192GB PC4-2933Y Registered ECC Memory |
| # of DIMMs and Capacity | 12x 16GB PC4-2933Y Registered ECC Memory Modules |
| Hard Drives | 4 Hot-swap 3.5" drive bays: 4 NVMe/SAS3/SATA3 hybrid ports; 2 internal M.2 (1 SATA3, 1 NVMe) |
| RAID Controller | SUPERMICRO AOC-S3108L-H8IR-16DD 2GB 8-Port SAS3 12Gbps PCI-e 3.0 RAID Controller |
| RAID Levels | RAID Levels: 0, 1, 5, 6, 10, 50, 60 |
| Power Supply | 2x 750W PWS-750P-1R |
| Optical Drive | NONE |
| Network | Supermicro AOC-UR-i4XTF 1U Ultra Riser with 4-port 10Gbase-T RJ45, Intel XL710 and X557 |
| Remote Access |
Support for Intelligent Platform Management Interface v.2.0 ASPEED AST2500 BMC |
| Rackmount Rails | Yes |
| Operating System | N/A |
| Power Cord | None |
Condition: Off-lease equipment. Clean and tested by a qualified technician. Rackmount rail kit included.
30-Day Warranty!
