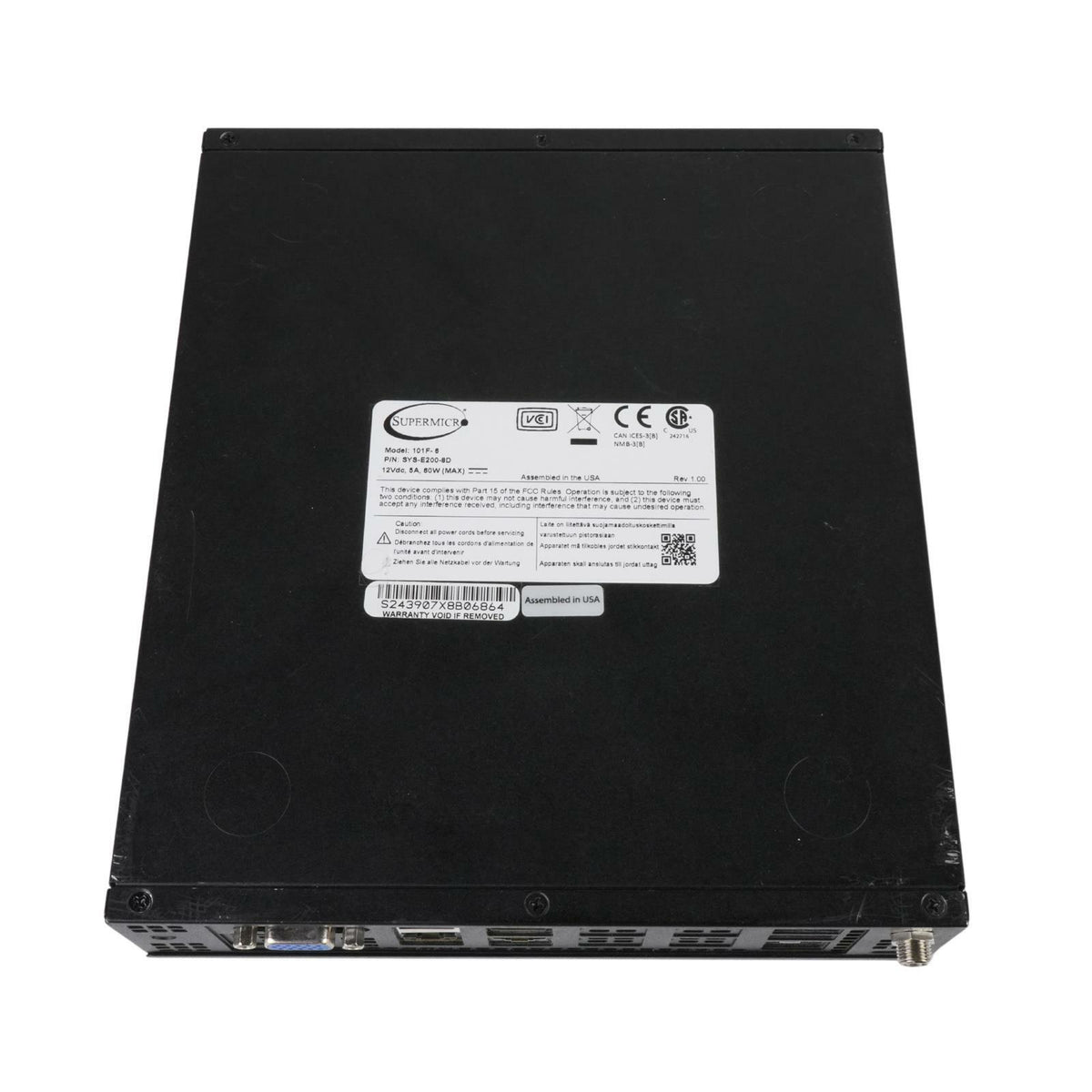

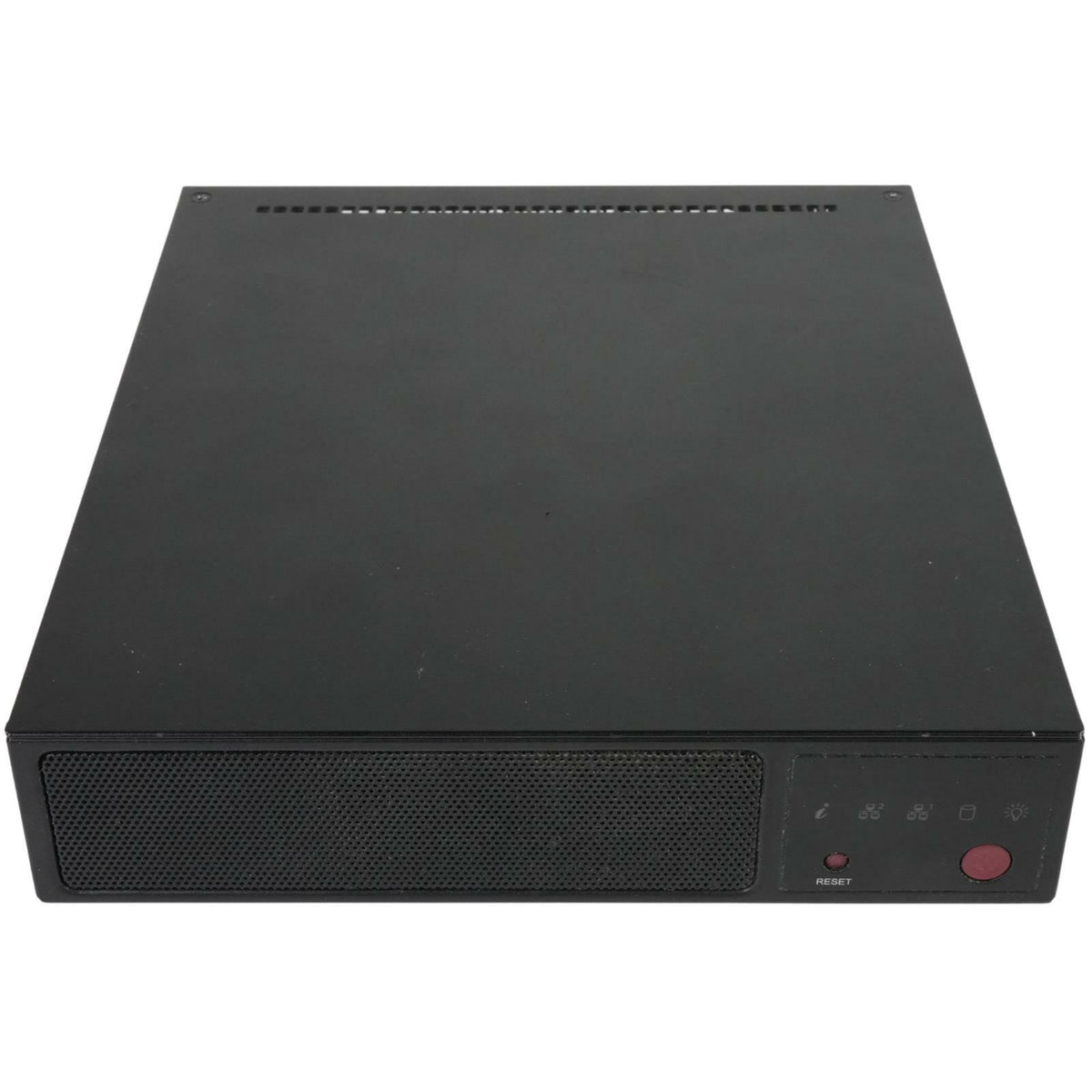

Supermicro SYS-E200-8D X10SDV-6C-TLN4F Xeon D-1528 32GB RAM 84W PSU Mini Server
95350Supermicro SYS-E200-8D X10SDV-6C-TLN4F Xeon D-1528 32GB RAM 84W PSU Mini Server
Supermicro SYS-E200-8D X10SDV-6C-TLN4F Xeon D-1528 32GB RAM 84W PSU Mini Server
Manufacturer: Supermicro
Model: SYS-E200-8D
Motherboard: X10SDV-6C-TLN4F
Chassis: CSE-101F Mini-1U
This is a genuine Supermicro SuperServer E200-8D compact Mini-1U box with a soldered Intel Xeon D-1528 6-core SoC, dual 10GBase-T, dual 1GbE, and IPMI. It is a solid platform for firewall, uCPE, virtualization, and edge networking.
Specifications:
| Form Factor | Mini-1U (CSE-101F) - 7.6" W x 1.7" H x 8.9" D |
|---|---|
| Model | Supermicro SuperServer E200-8D |
| Motherboard | X10SDV-6C-TLN4F |
| Processor | Intel Xeon D-1528 SoC - 6-Core / 12-Thread, 1.9-2.2GHz, 9MB cache, 35W |
| Memory Installed | 32GB (2x 16GB DDR4-2400 REG ECC RDIMM). Board supports up to 128GB RDIMM or 64GB UDIMM in 4 slots. Installed modules clock to 2133 MT/s on Xeon D. |
| Storage | NONE installed. 1x internal 2.5" fixed bay (9.5mm) and 1x M.2 2242/2280 (PCIe 3.0 x4 / SATA) |
| RAID | SoC SATA RAID 0, 1, 5, 10 |

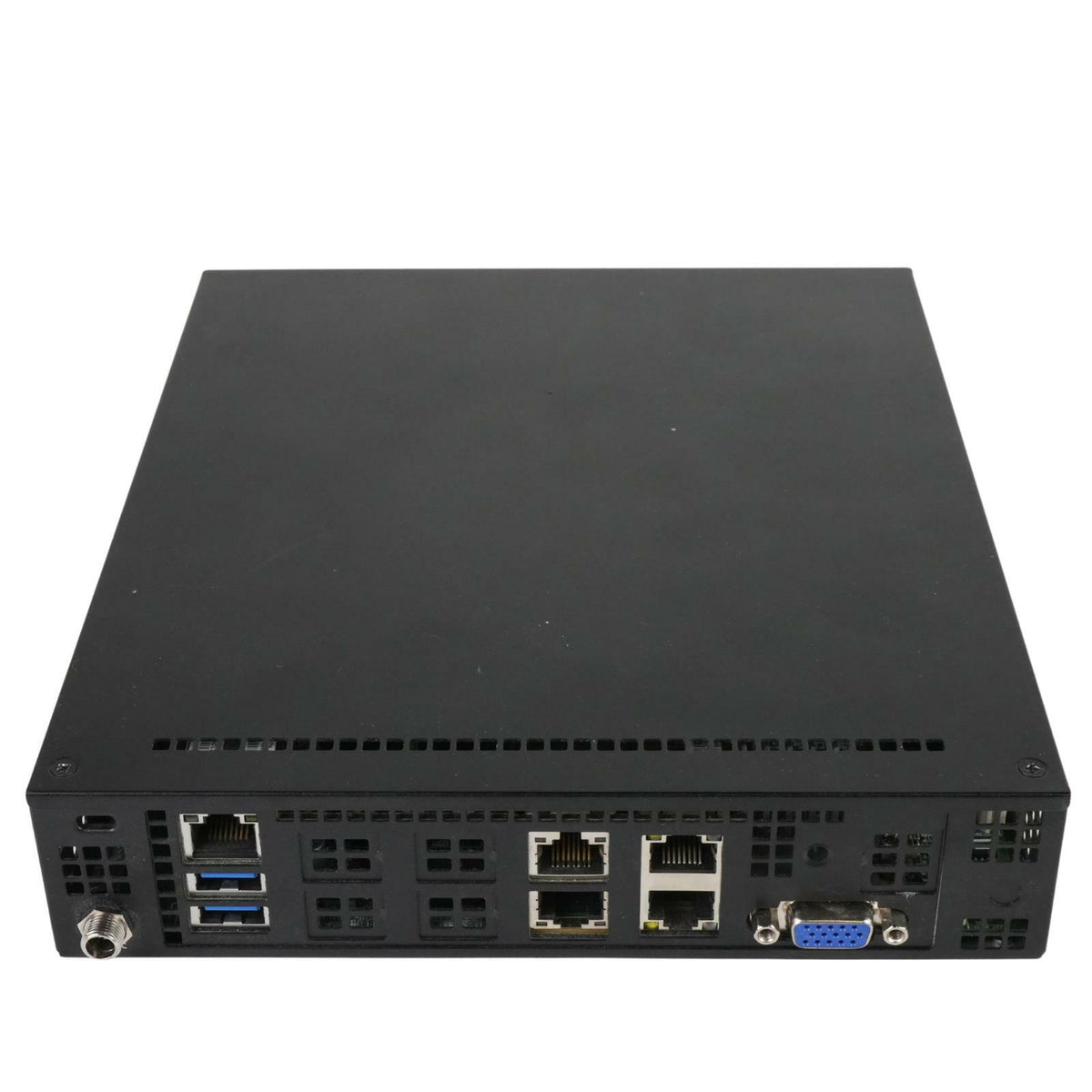

| Network | 2x 10GBase-T (SoC) + 2x 1GbE Intel I350-AM2 + 1x dedicated IPMI LAN |
| Expansion | 1x PCIe 3.0 x16 |
| Remote Access | IPMI 2.0 with virtual media and KVM-over-LAN (ASPEED AST2400) |
| Power Supply | Supermicro MCP-250-10137-0N 84W external 12V DC lockable adapter included |
| Cooling | Passive CPU heatsink + 2x 40mm chassis fans |
Condition: Off-lease equipment. Clean and tested by a qualified technician.
What's Included:
• Supermicro SYS-E200-8D Mini Server with Xeon D-1528
• 32GB DDR4 REG ECC memory (2x 16GB)

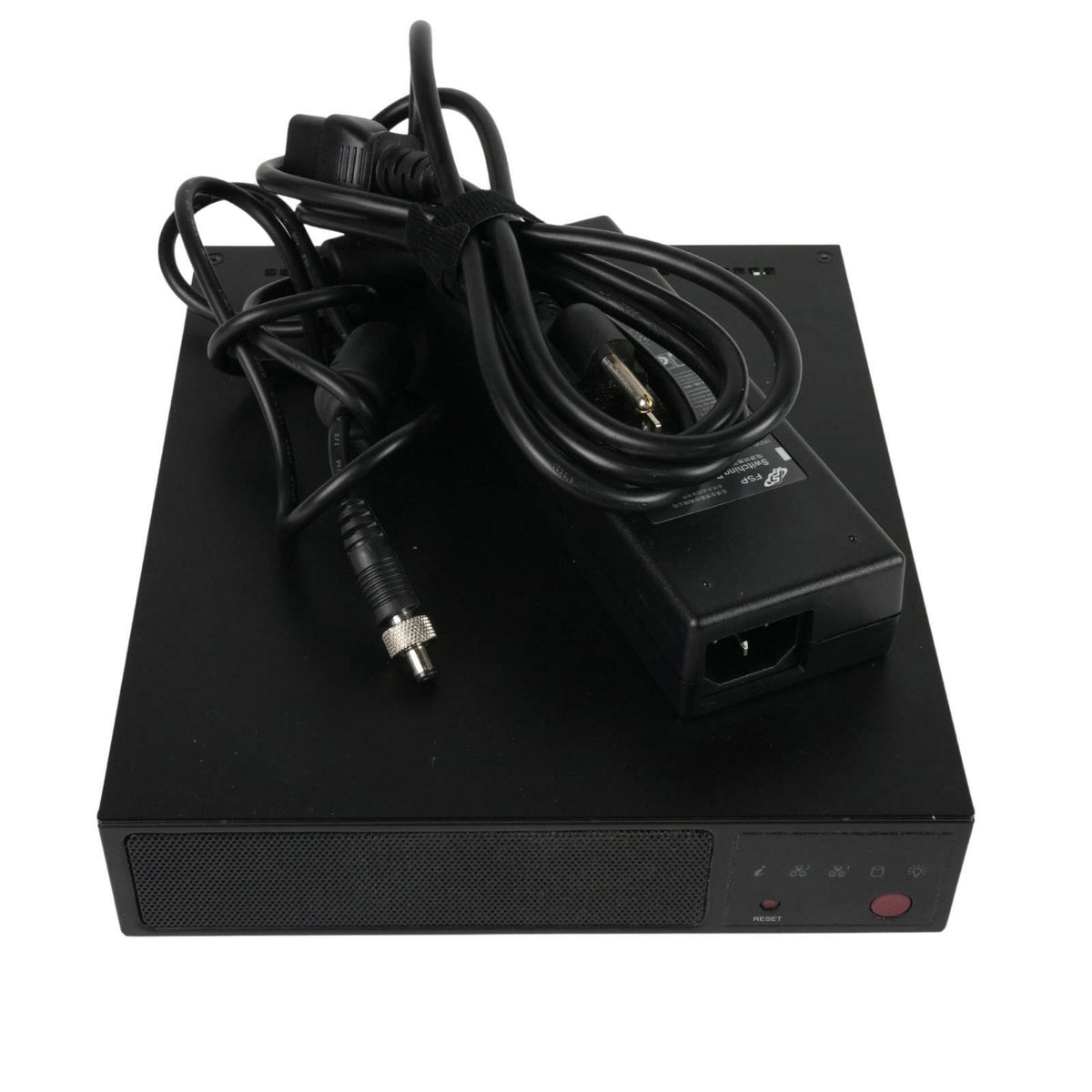

• 84W external DC power adapter
Note: No SSD, HDD, M.2 drive, rails, or extra cables are included unless pictured. Storage is not installed.
Each server is configured to order. This process involves rigorous quality control which includes:
- Thorough visual inspection for physical damage
- Verification of all components and their functionality
- Full diagnostic test utilizing manufacturer diagnostic tools
- BIOS and firmware updates are installed
- All logs are cleared
- Passwords and settings are restored to factory defaults
Custom configurations are available. Please contact us for a quote or if you have questions regarding the current configuration.
30-Day Warranty Included!
Low-power Xeon D mini server with dual 10GbE and 32GB ECC RAM already installed.
