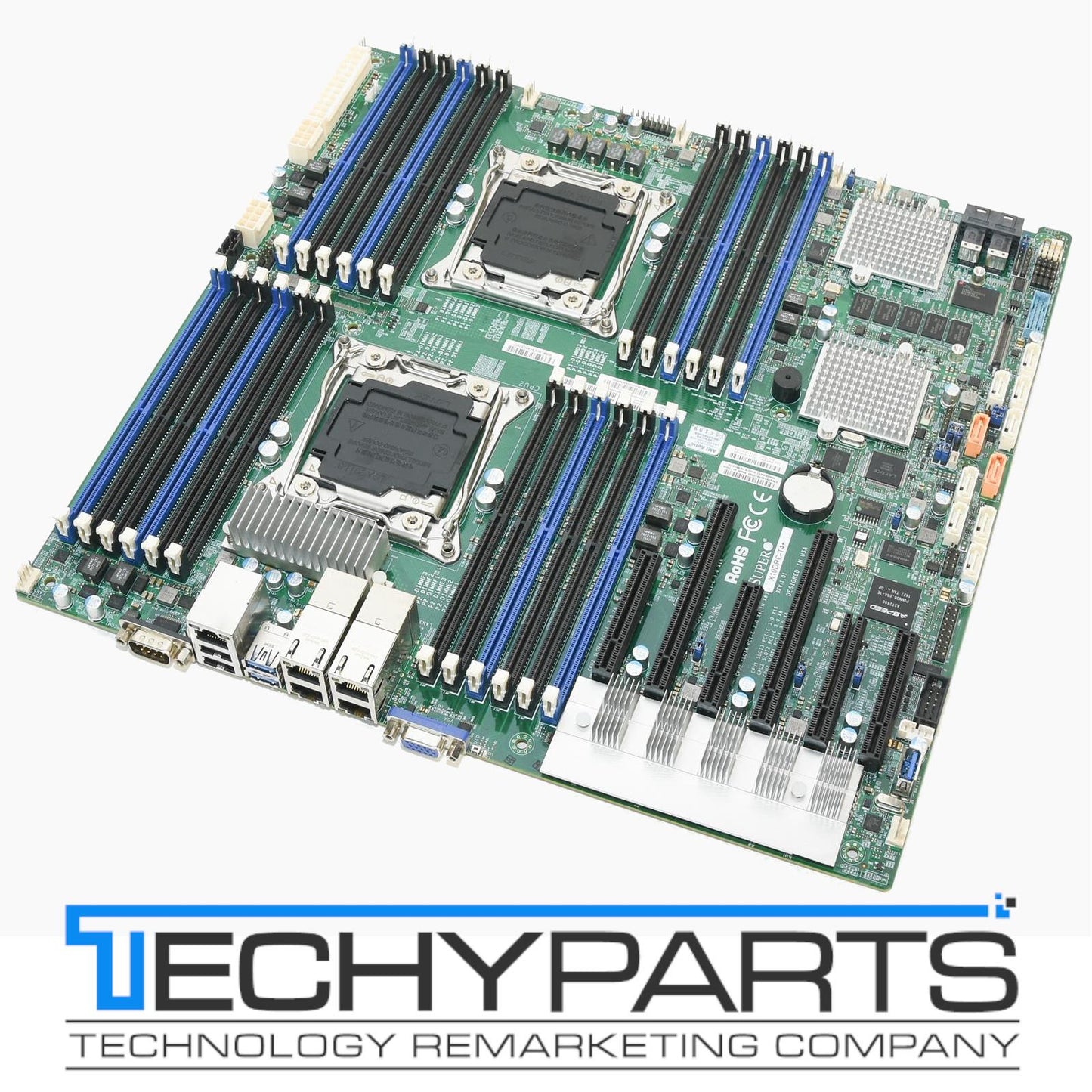

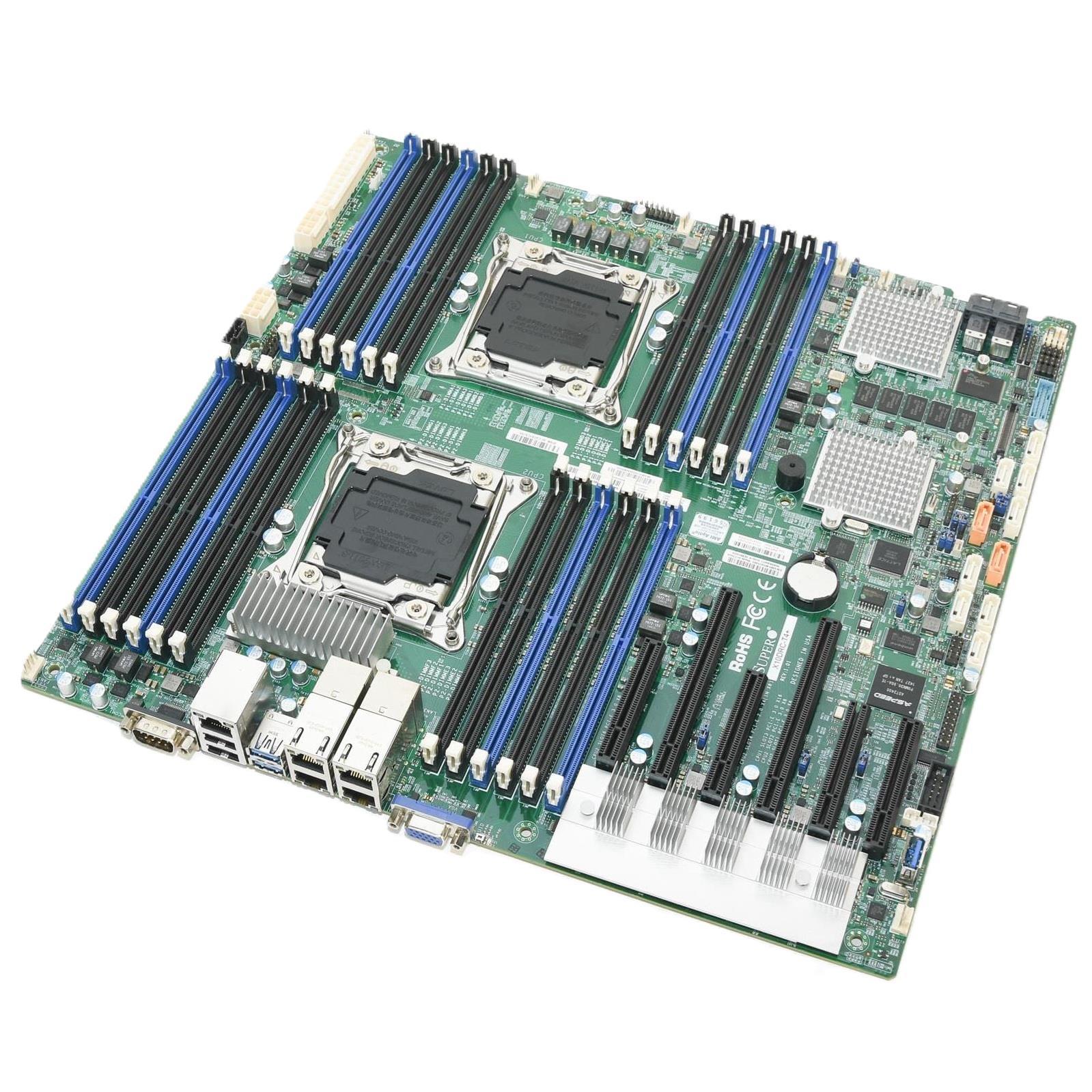

Supermicro X10DRC-T4+ Intel C612 EE-ATX Dual LGA2011-3 10Gb LAN SAS3 Motherboard

SUPERMICRO MBD-X10DRC-T4+ Enhanced Extended ATX Xeon Server Motherboard Dual LGA 2011 Intel C612

• Dual socket R3 (LGA 2011) supports Intel Xeon processor E5-2600 v4/ v3 family; UPI up to 9.6GT/s
• Intel C612 chipset
• Up to 3TB ECC 3DS LRDIMM, up to DDR4- 2400MHz ; 24x DIMM slots
• 2 PCI-E 3.0 x16, 3 PCI-E 3.0 x8, and 1 PCI-E 2.0 x4 (in x8) slot
• Quad LAN w/ Intel X540 10GBase-T
• 10 SATA3 (6Gbps) ports w/ Intel C612 controller; RAID 0, 1, 5, 10
• 8 SAS3 (12Gbps) ports w/ Broadcom 3108 controller; RAID 0, 1, 5, 6, 10, 50, 60
• SuperCap option support
• Integrated IPMI 2.0 and KVM with Dedicated LAN
• 5 USB 3.0 (2 rear, 2 front panel, 1 Type-A)
• 4 USB 2.0 (2 rear, 2 front panel)

Condition: Clean, tested pull - Guaranteed 100% working! IO Shield included.

30-Day Warranty!
