Supermicro X10DRH-CLN4 Intel C612 Dual LGA2011-3 E-ATX Motherboard
Clean Tested Pull • 100% Fully Working • Ready to Build!
What's Included:

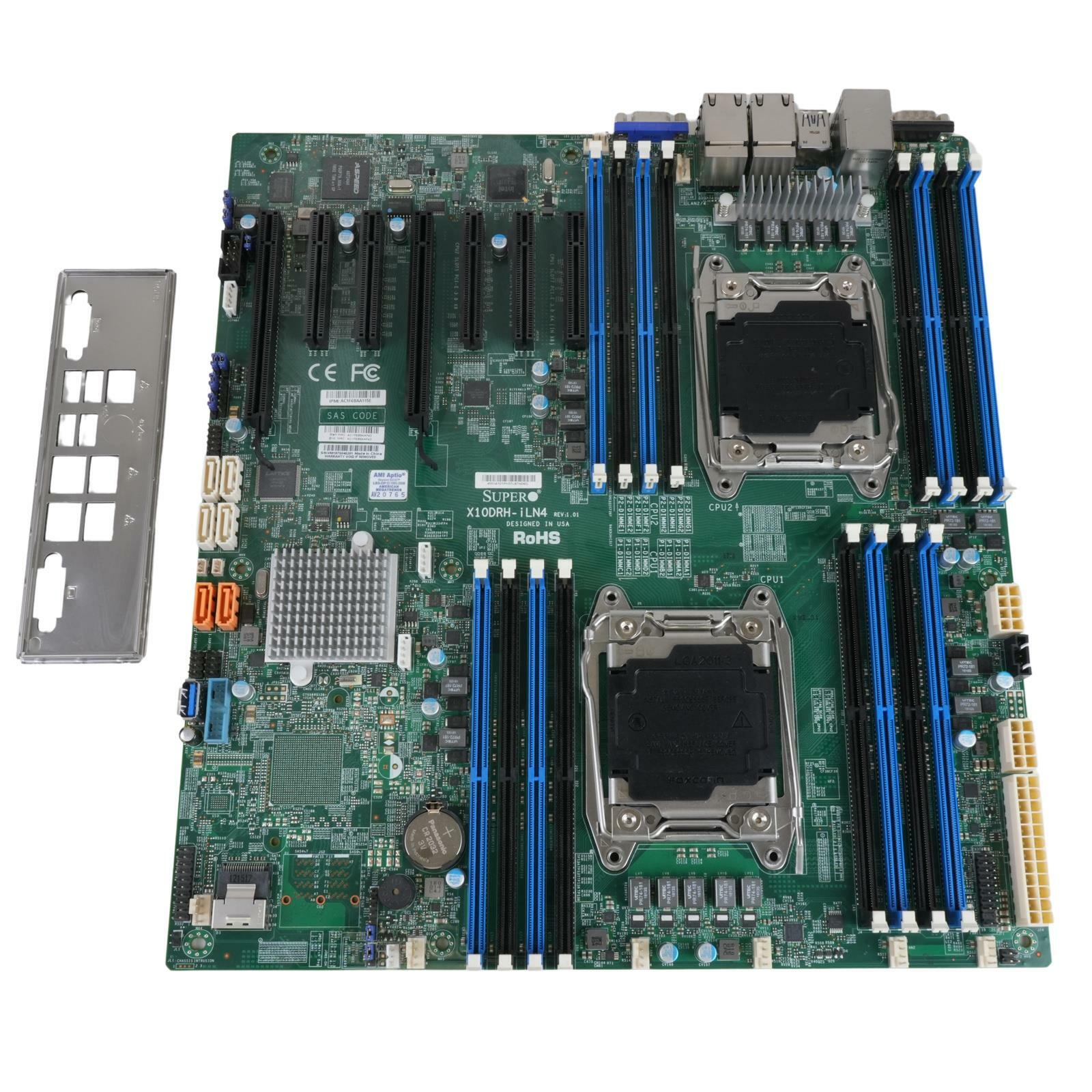

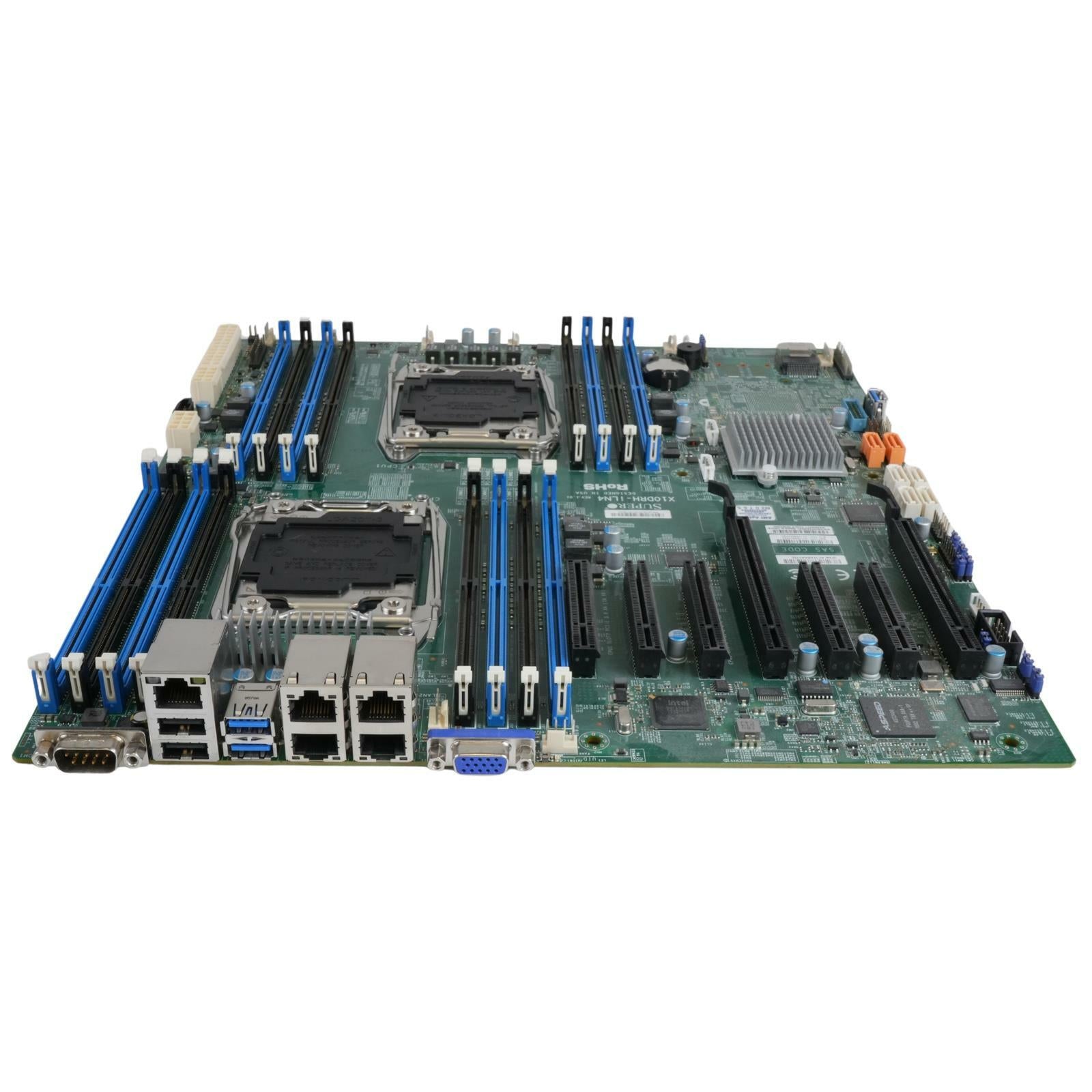

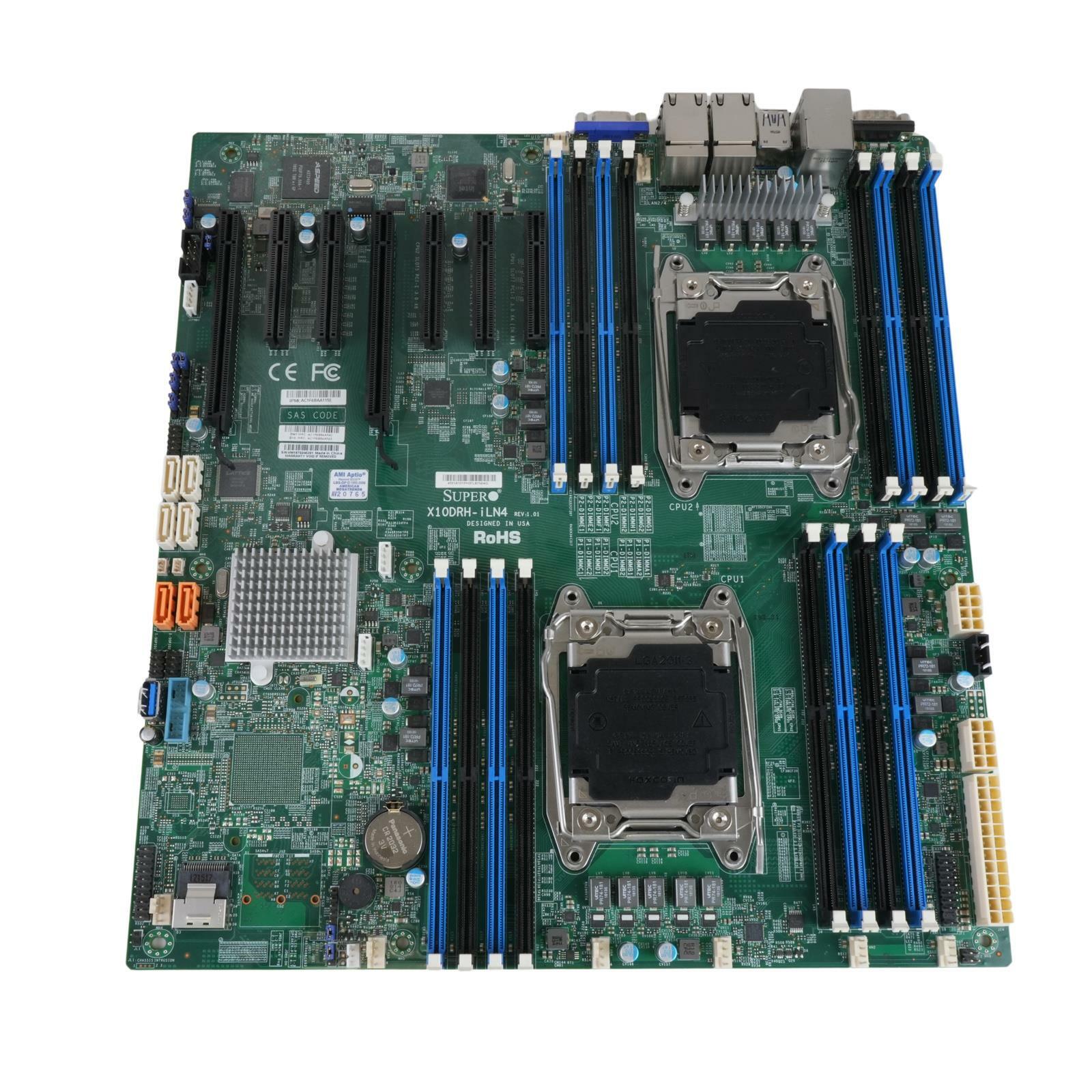

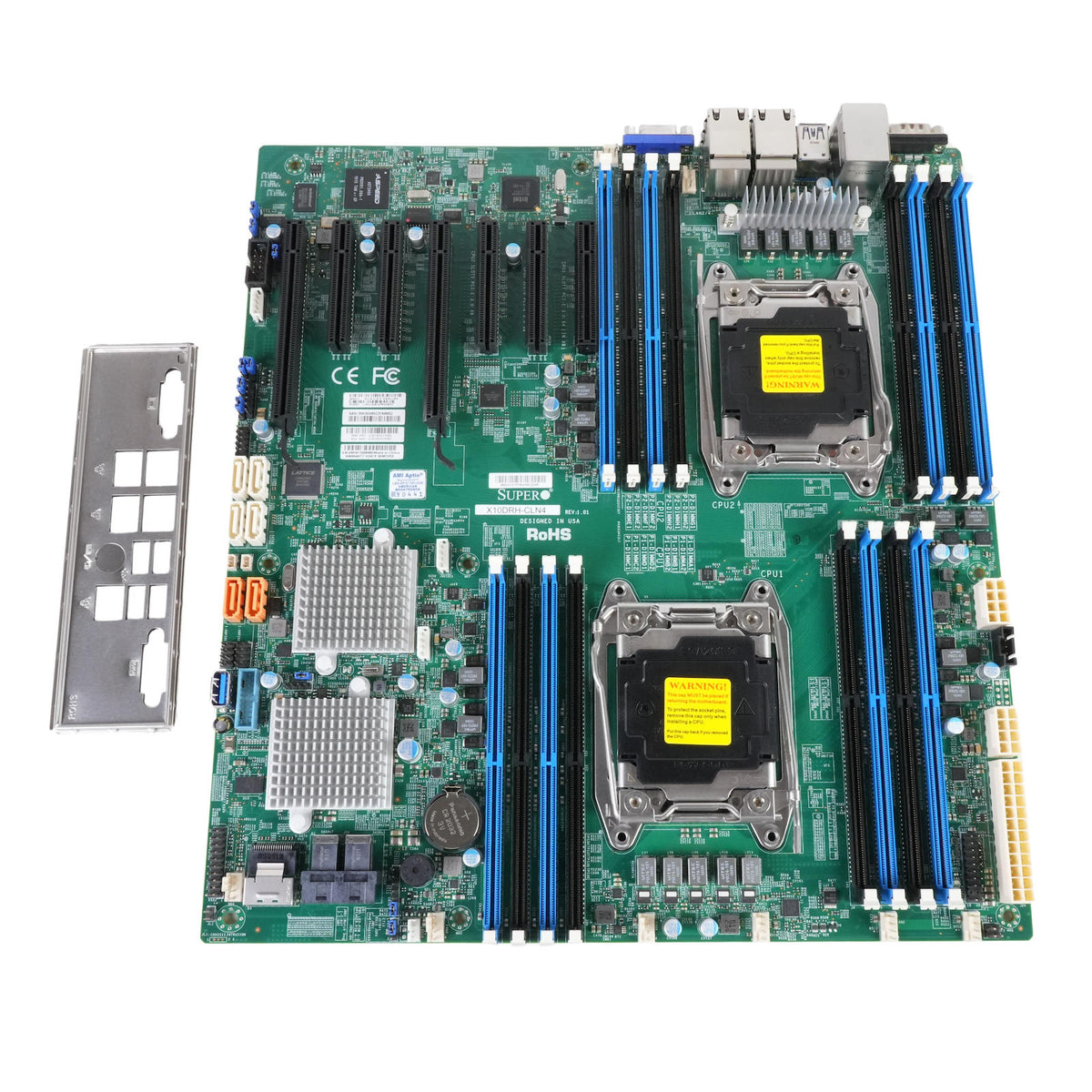

1 × Supermicro X10DRH-CLN4 Motherboard
1 × Matching I/O Shield
No additional accessories included
30-Day Warranty!
Why This Board?
Reliable dual-socket platform for Intel Xeon E5-2600 v3/v4 processors (Haswell/Broadwell). Features quad 1GbE LAN (Intel i350), integrated IPMI with dedicated port, Broadcom 3008 SAS3 controller (IT mode/JBOD capable), and extensive PCIe 3.0 expansion. Professionally pulled from a working enterprise environment – pristine condition, no dust or damage.
Shipping:
Ships fast and securely packaged from the USA – same day if ordered before 3PM EST!
Manufacturer's Specifications:
| Product SKU | X10DRH-CLN4 (Discontinued – contact Supermicro for alternatives) |
| Form Factor | E-ATX |
| Dimensions | 12" × 13" (30.48cm × 33.02cm) |
| CPU | Dual Intel® Xeon® E5-2600 v3/v4 Socket R3 (LGA 2011-3) Up to 145W TDP, 1 QPI up to 9.6 GT/s |
| Cores / Cache | Up to 22 cores / 55MB per CPU (BIOS 2.0+ required) |
| Memory Capacity | 16 DIMM slots Up to 512GB ECC Registered DDR4-2133MHz |
| Memory Type | 2400/2133/1866/1600MHz ECC DDR4 SDRAM |
| DIMM Sizes | RDIMM: 4GB, 8GB, 16GB, 32GB LRDIMM: 32GB, 64GB 3DS LRDIMM: 128GB |
| Memory Voltage | 1.2V |
| Chipset | Intel® C612 |

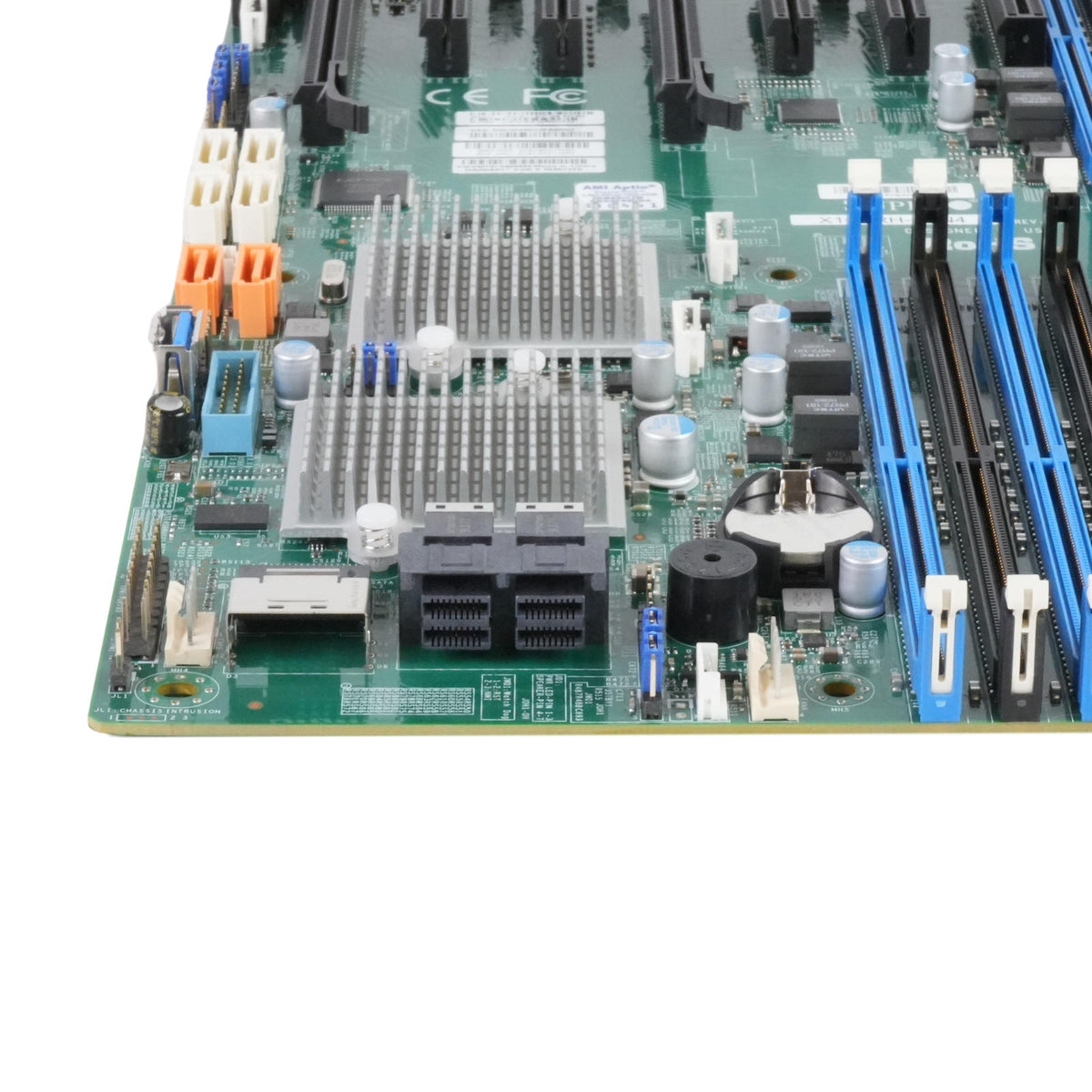

| SATA/SAS | 10 × SATA3 (6 Gbps) 8 × SAS3 (12 Gbps) via Broadcom 3008 (RAID 0,1,5,6,10,50,60 or IT/JBOD mode) |
| IPMI | ASPEED AST2400 BMC IPMI 2.0 with KVM-over-LAN and virtual media |
| Network | Quad 1GbE LAN (Intel® i350) 1 × Dedicated IPMI LAN port |
| Graphics | ASPEED AST2400 BMC |

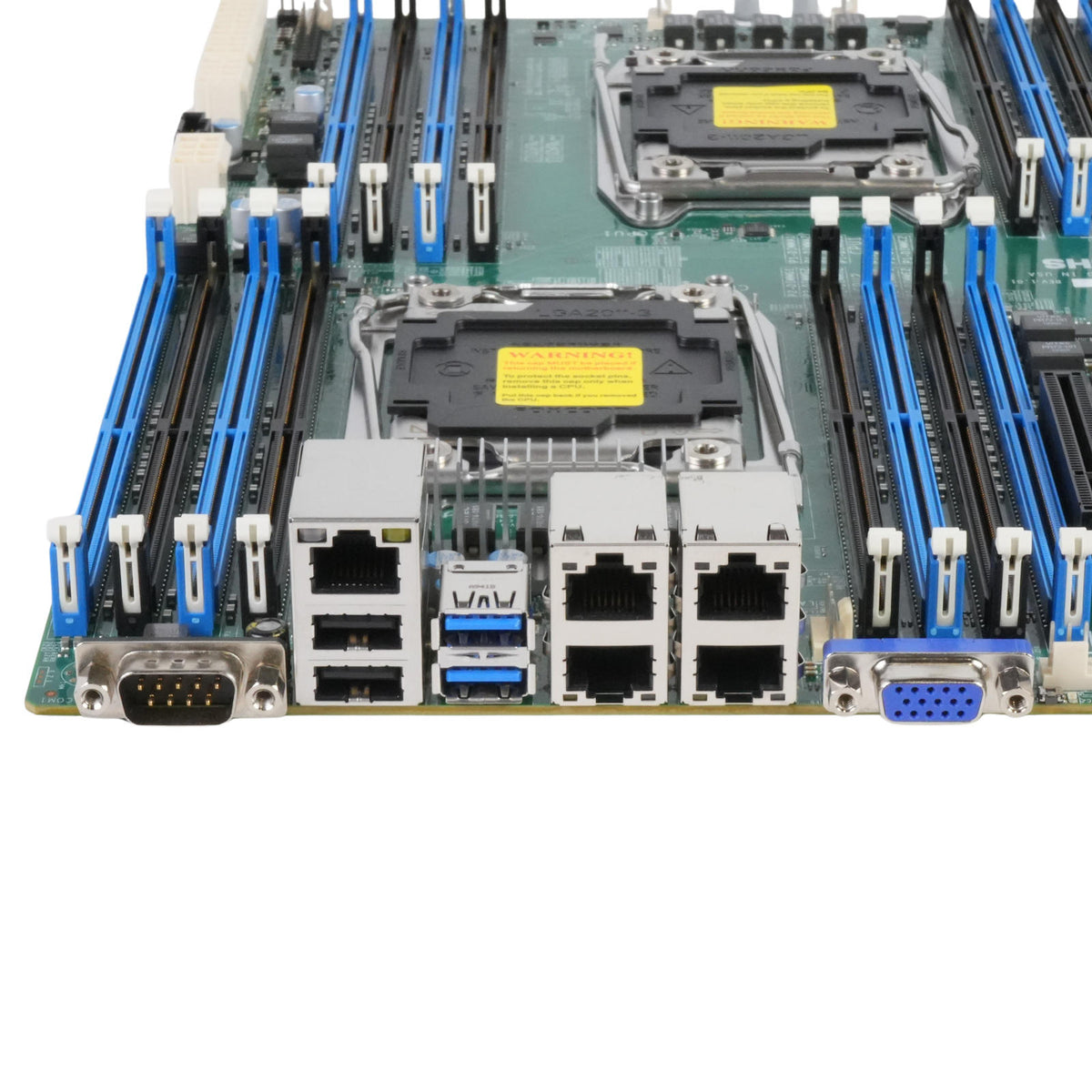

| LAN Ports | 4 × RJ45 Gigabit Ethernet 1 × RJ45 Dedicated IPMI |
| USB | 5 × USB 3.0 (2 rear + 2 headers + 1 Type A) 4 × USB 2.0 (4 headers/Type A) |
| Video | 1 × VGA port |
| Serial | 2 COM ports (1 rear + 1 header) |
| TPM | 1 TPM header |
| PCIe Slots | 2 × PCI-E 3.0 x16 4 × PCI-E 3.0 x8 1 × PCI-E 3.0 x4 (in x8 slot) |
| BIOS Type | 128Mb SPI Flash with AMI BIOS |
| BIOS Features | PnP, PCI 2.3, ACPI 1.0/2.0/3.0/4.0, USB Keyboard, SMBIOS 2.7.1, UEFI 2.3.1 |
| Management | Intel® Node Manager, IPMI 2.0, SPM, SSM, SUM, SuperDoctor® 5, Watchdog |
| Power Configurations | ACPI Power Management Power-on mode for AC recovery |
| Operating Temperature | 10°C – 35°C (50°F – 95°F) |
| Non-Operating Temperature | -40°C – 70°C (-40°F – 158°F) |
