Supermicro X10SDD-F Intel Xeon D-1541 8-Core SoC Node w/Tray AOC-CGP-i2
93765Supermicro X10SDD-F Intel Xeon D-1541 8-Core SoC Node w/Tray AOC-CGP-i2

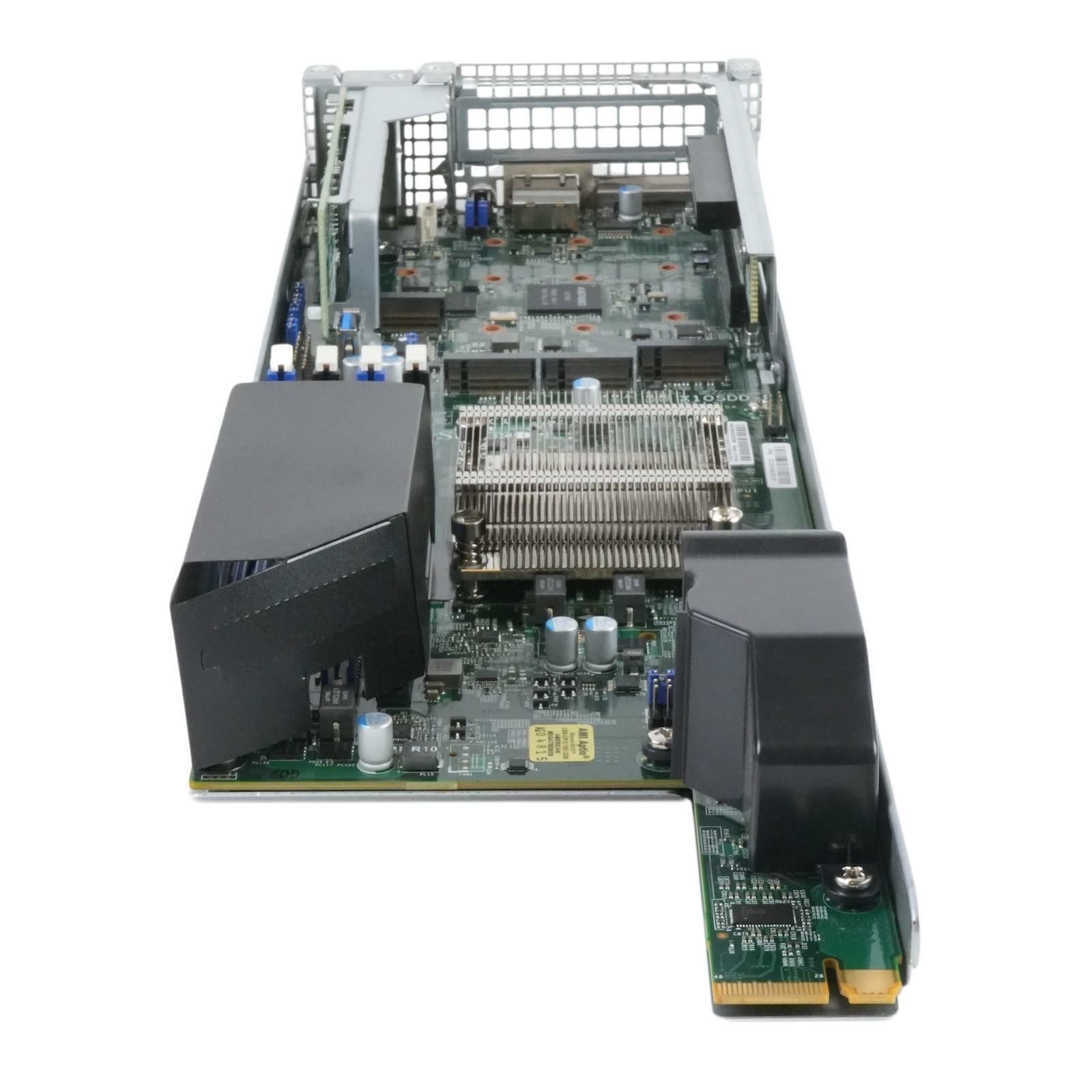

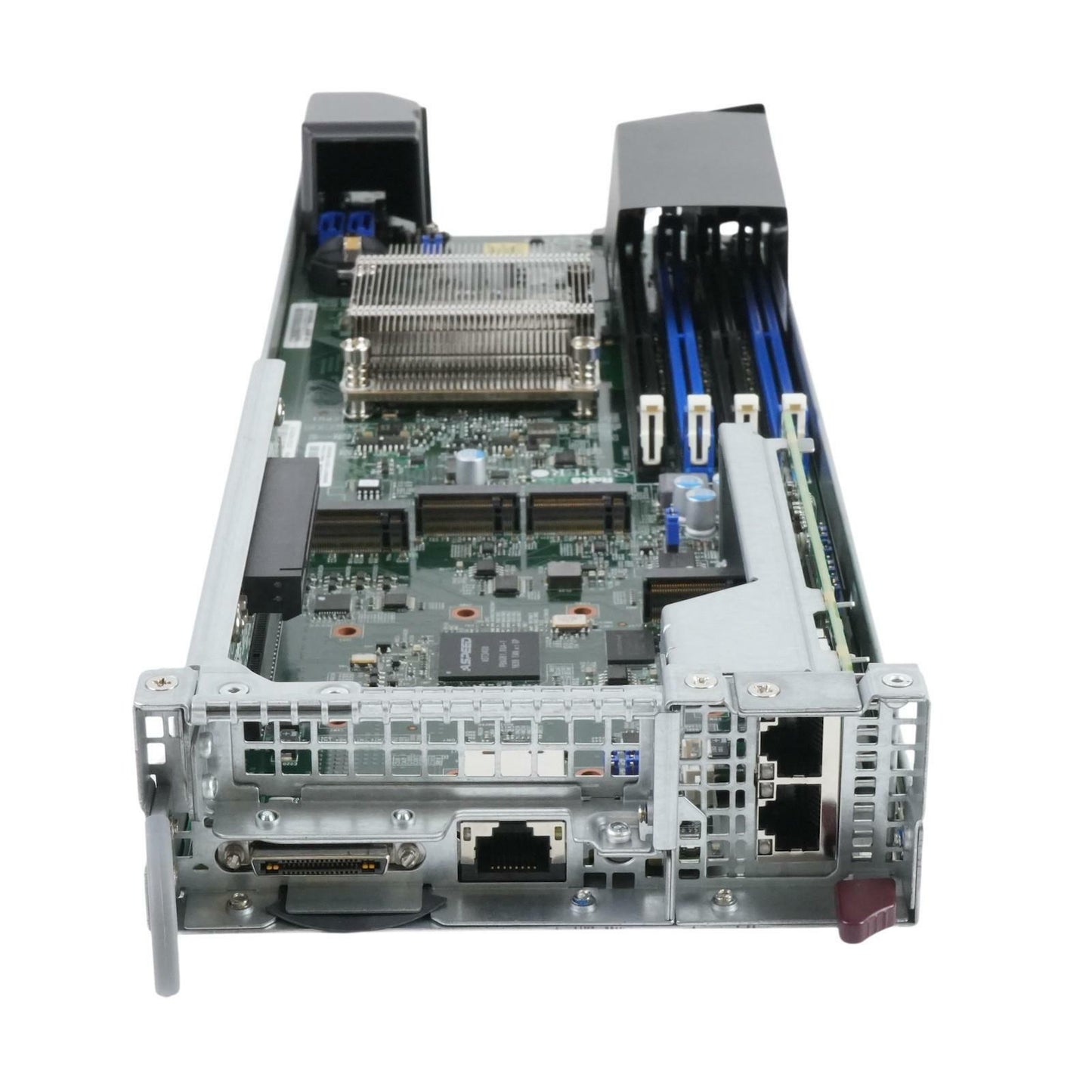

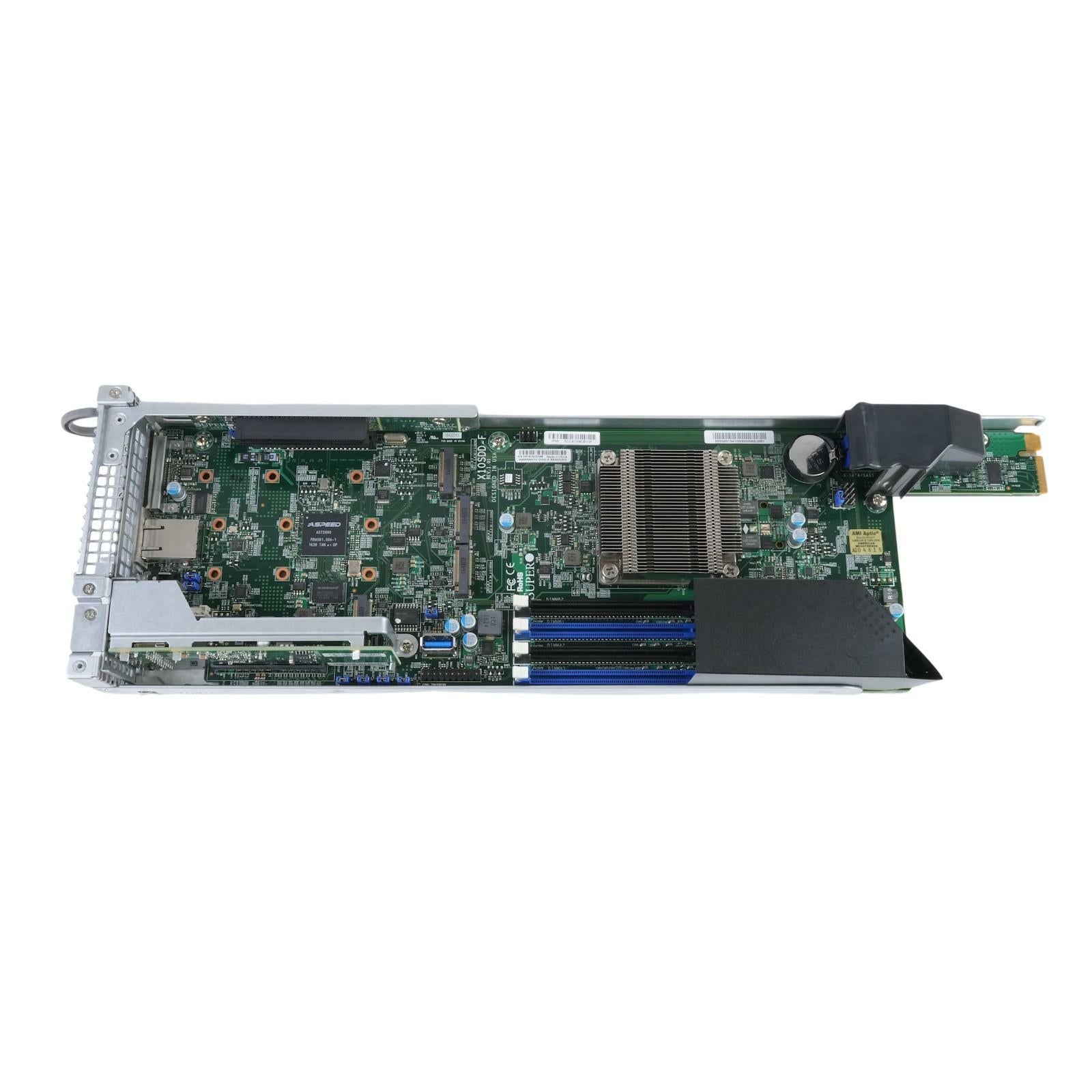

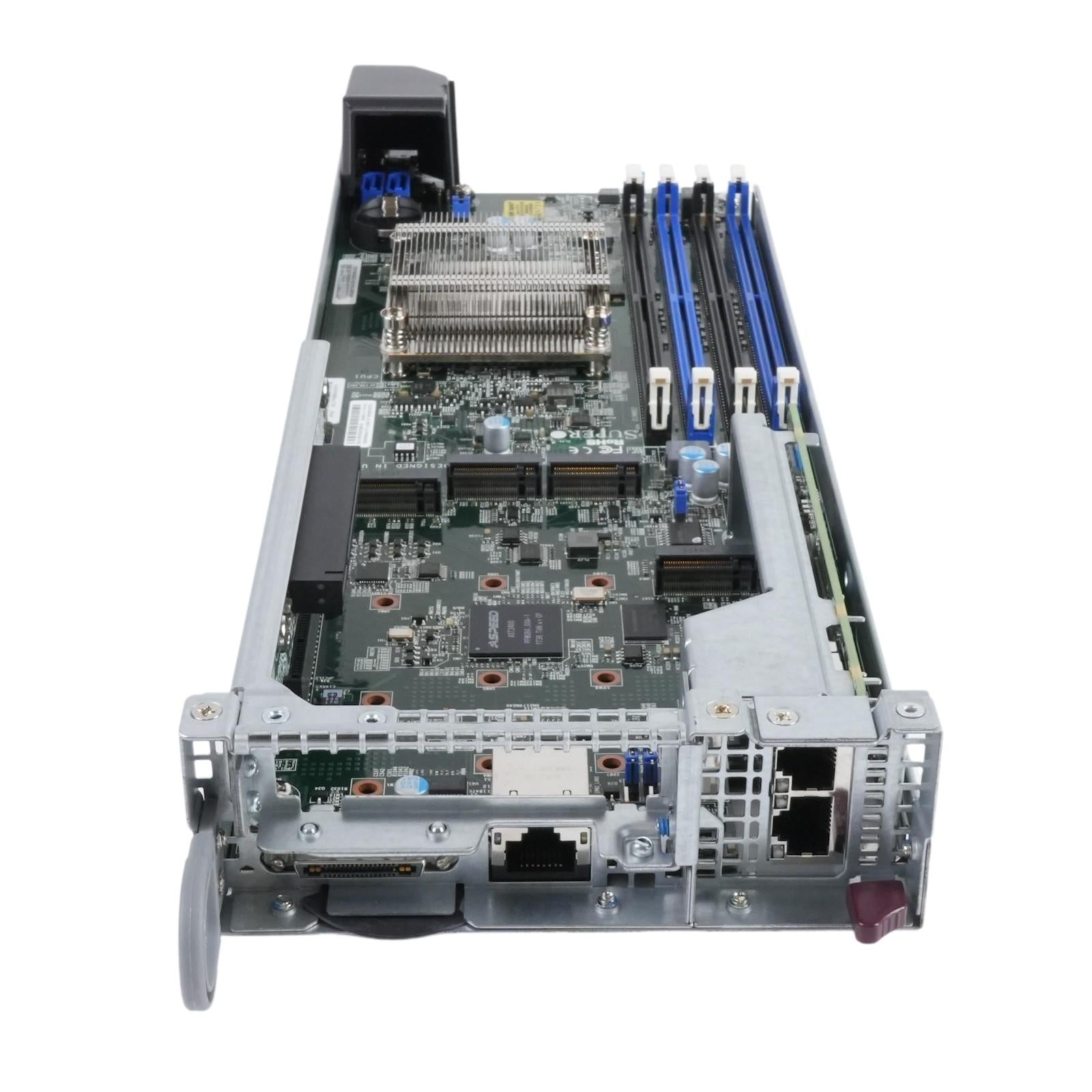

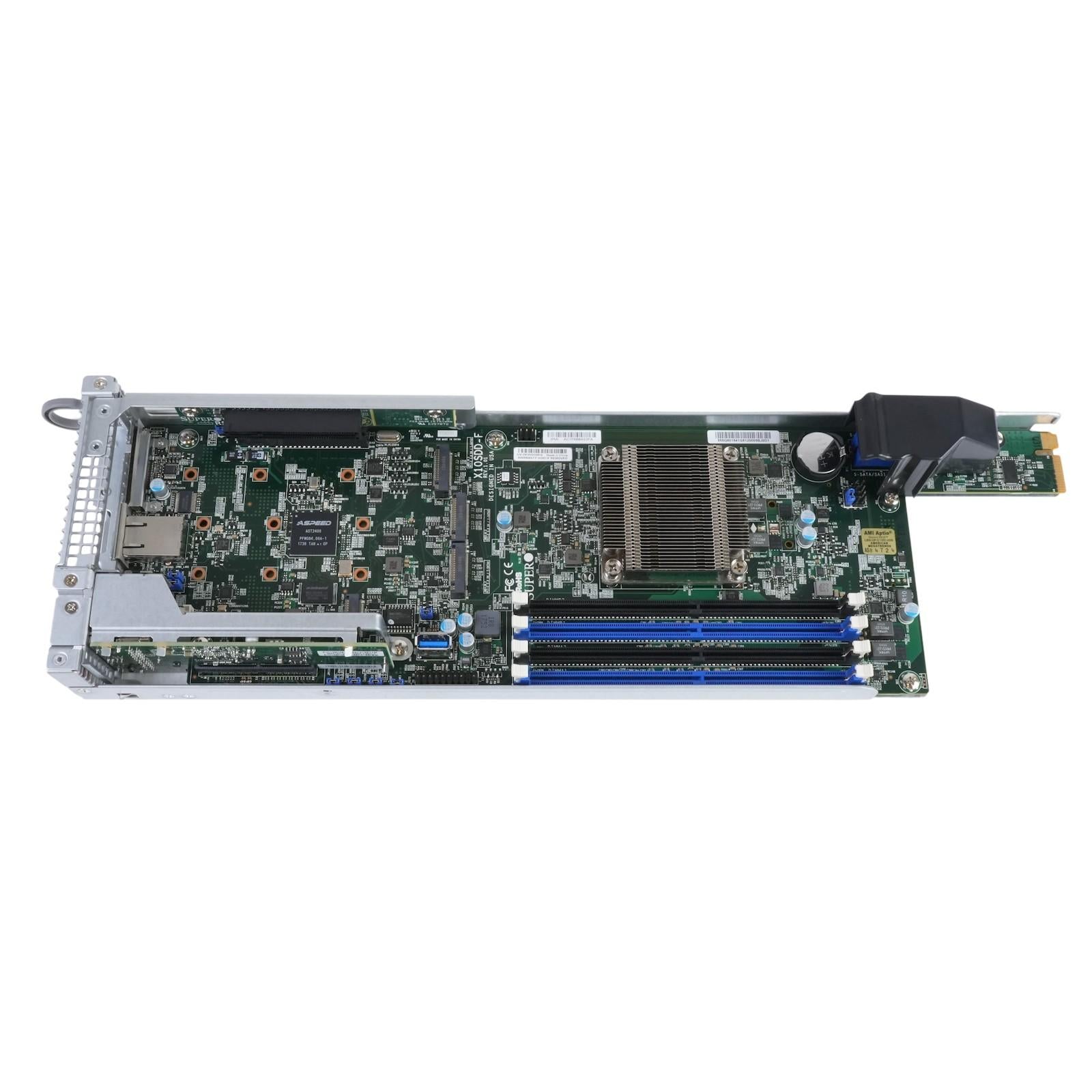

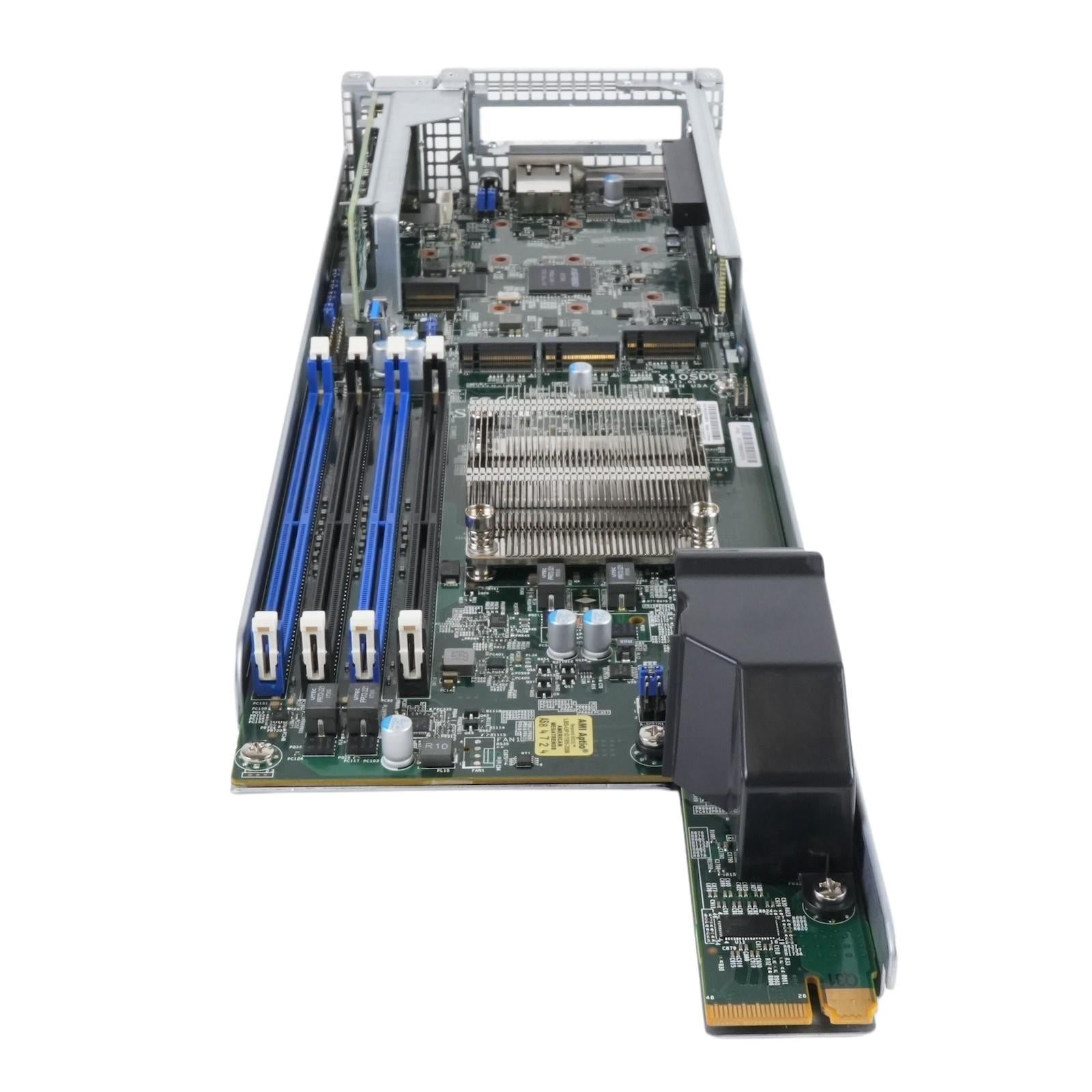

Supermicro X10SDD-F Intel Xeon D-1541 8-Core System on Chip Node Motherboard with Tray
- Intel Xeon processor D-1541, Single socket FCBGA 1667, 8-Core, 45W System on Chip
- Up to 128GB ECC RDIMM DDR4 2133MHz or 64GB ECC/Non-ECC UDIMM in 4 Sockets
- Expansion slots: 1 PCI-E 3.0 x8,1 PCI-E 3.0 x8 (Micro LP) M.2 Interface: PCI-E 3.0 x4, PCI-E 3.0 x4, PCI-E 2.0 x4, PCI-E 2.0 x2; M.2 Form Factor: 2242, 2280, 22110
- Network option via Micro LP card
- 2 SATA3 (6Gbps ports)
- 1 USB 3.0 (Type A), 2 USB 2.0 via KVM
- VGA, serial, COM, KVM mouse/kb port
Specifications:
| Form Factor | Blade |
|---|---|
| Model | X10SDD-F |
| Processor(s) | Xeon D-1541 8-Core, 16 Threads 2.1GHz 45W TDP CPU |
| Memory | NONE |
| # of DIMMs and Capacity | NONE |
| Network | AOC-CGP-I2 2-port GbE LAN ports via Intel i350 |
| Remote Access | Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM over LAN support ASPEED AST2400 BMC |
Condition: Off-lease equipment. Clean and tested by a qualified technician.
30-Day Warranty!
