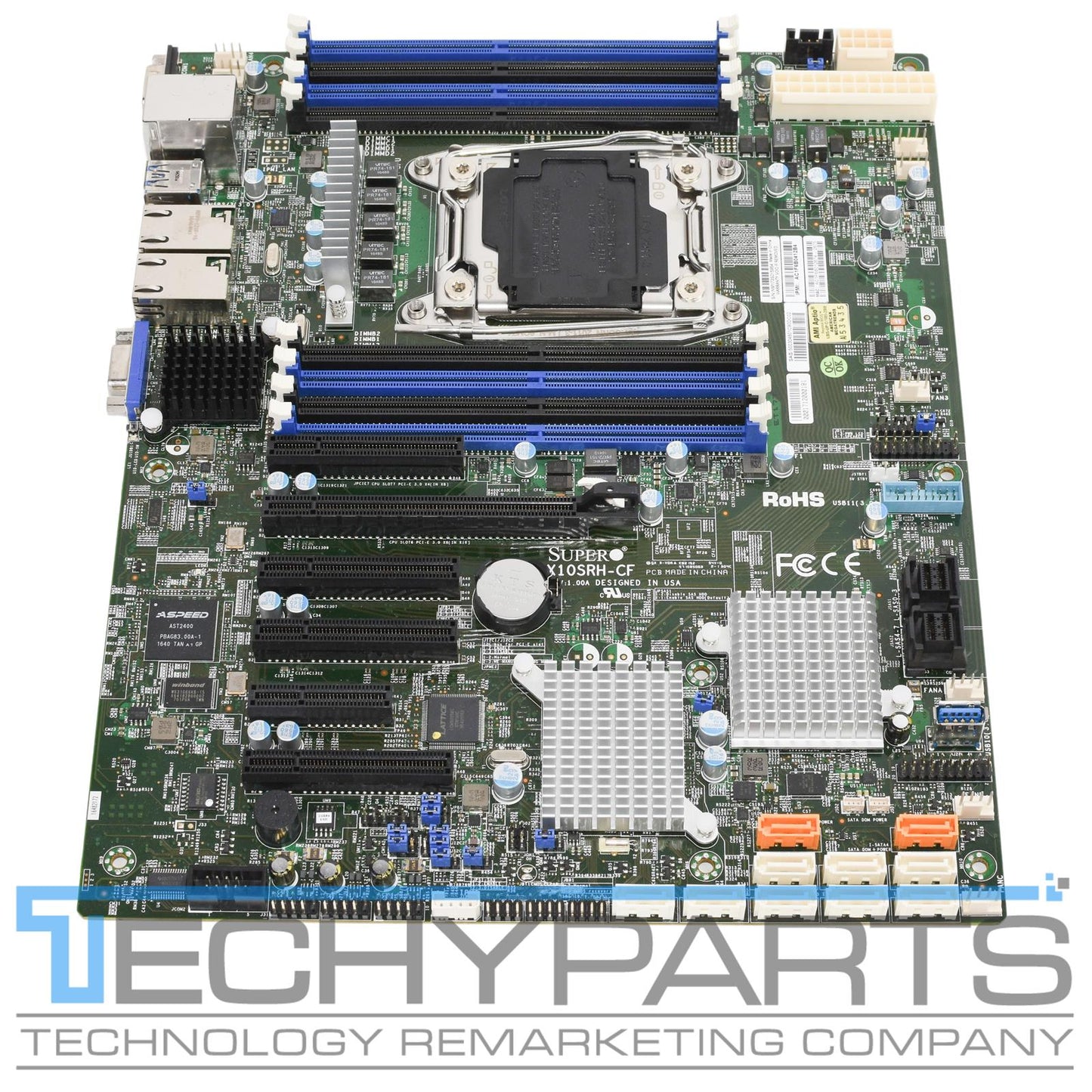

Supermicro X10SRH-CF ATX Intel C612 E5-16xx v3/4 LGA2011-3 DDR4 ATX Motherboard
88941Supermicro X10SRH-CF ATX Intel C612 E5-16xx v3/4 LGA2011-3 DDR4 ATX Motherboard

Supermicro X10SRH-CF ATX Intel C612 E5-16xx v3/4 LGA2011-3 DDR4 ATX Motherboard
Supermicro X10SRH-CF ATX Intel C612 E5-16xx v3/4 LGA2011-3 DDR4 ATX Motherboard
Key Features:
- Single socket R3 (LGA 2011) supports
- Intel® Xeon® processor E5-2600 v4/ v3 and E5-1600 v4/ v3 family
- Intel® C612 chipset
- Up to 1TB ECC 3DS LRDIMM, up to DDR4- 2400MHz; 8 DIMM slots
- 1 PCI-E 3.0 x4 (in x8), 1 PCI-E 3.0 x8 (in x16), 2 PCI-E 3.0 x8, 1 PCI-E 2.0 x2 (in x4), 1 PCI-E 2.0 x4 (in x8)
- Intel® i350-AM2 Dual port GbE LAN
- 10 SATA3 (6Gbps) via C612
- 8x SAS3 (12Gbps) via Broadcom 3008 SW controller; RAID 0, 1, 10
- 1 VGA, 2 COM, 1 TPM
- 4 USB 3.0 ports, 8 USB 2.0 ports
- Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support ASPEED AST2400 BMC
Condition: Clean, tested pull - Guaranteed 100% working! IO Shield is included.
30-Day Warranty!
