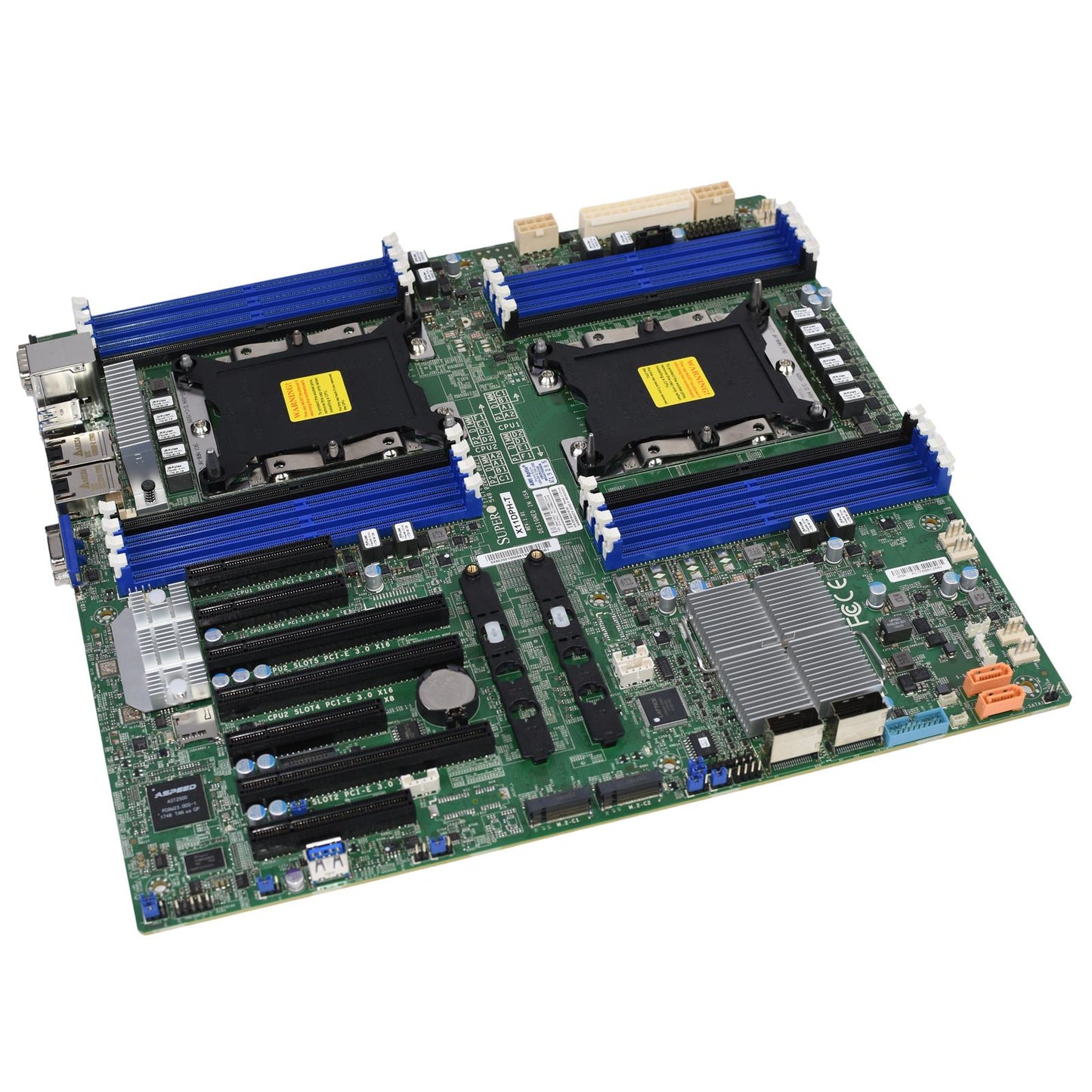

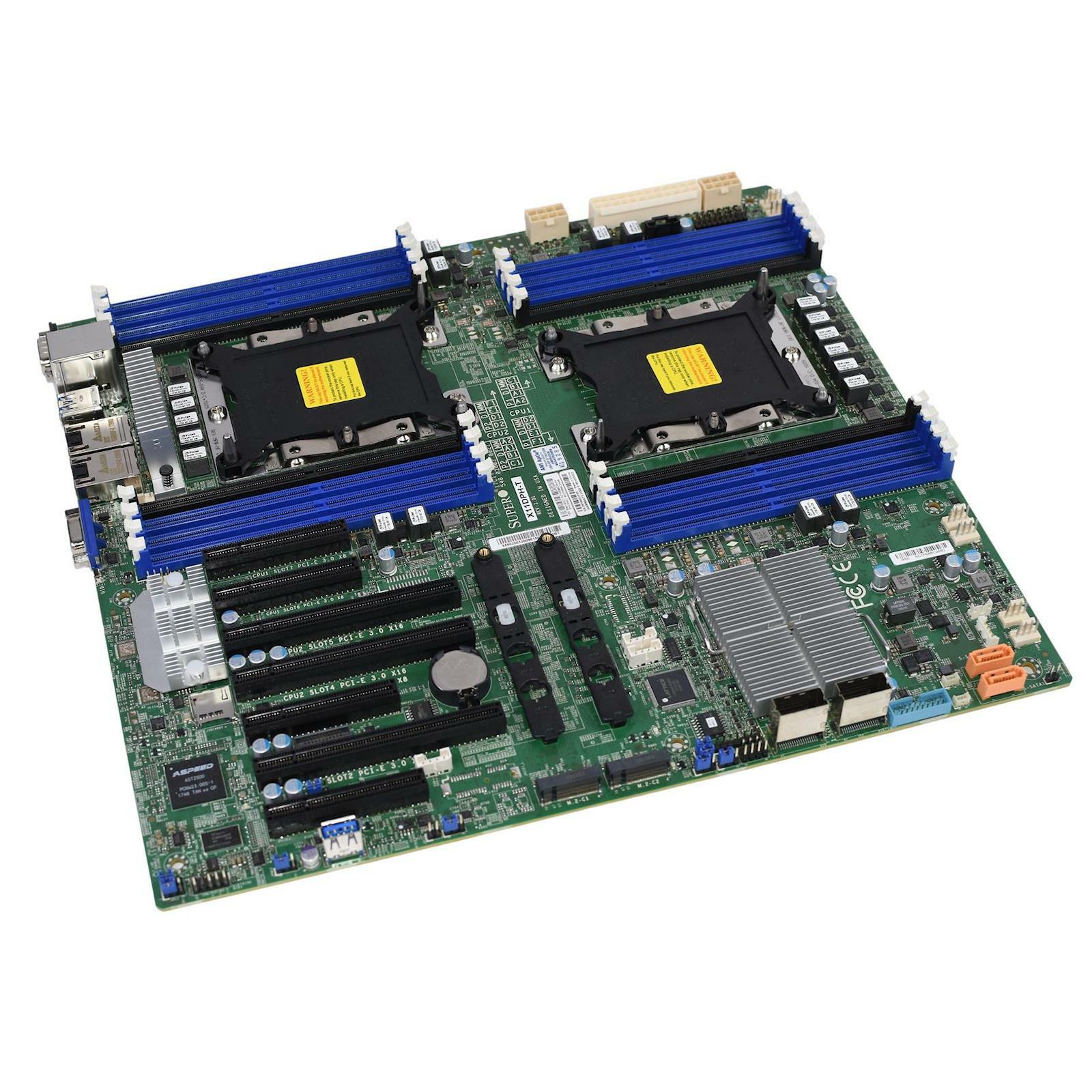

Supermicro X11DPH-T Intel C622 E-ATX Dual LGA-3647 Motherboard System Board

90265

Supermicro X11DPH-T Intel C622 E-ATX Dual LGA-3647 Motherboard System Board

  • 90265-X11DPH-T-48704_base
1 1

SUPERMICRO

$299.95 USD
$299.95 USD
Sale Sold out
Shipping calculated at checkout.

Low stock: 1 left
View full details

Supermicro X11DPH-T Intel C622 E-ATX Dual LGA-3647 Motherboard System Board

Supermicro X11DPH-T Intel C622 E-ATX Dual LGA-3647 Motherboard System Board

  • 2nd Generation Intel Xeon Scalable Processors (Cascade Lake-SP), Intel Xeon Scalable Processors
  • Dual Socket P (LGA 3647) supported, CPU TDP support 205W, 2 UPI up to 10.4 GT/s
  • Intel C622 controller for 10 x SATA3 (6 Gbps) ports; RAID 0, 1, 5, 10
  • Dual LAN with 10GBase-T with Intel X557
  • 3 x PCI-E 3.0 x16 & 4 x PCI-E 3.0 x8
Specifications
Product SKUs
MBD-X11DPH-T X11DPH-T
Physical Stats
Form Factor E-ATX
Dimensions 12" x 13" (30.48cm x 33.02cm)
Processor/Cache
CPU
  • 2nd Generation Intel Xeon Scalable Processors (Cascade Lake-SP), Intel Xeon Scalable Processors.
  • Dual Socket P (LGA 3647) supported, CPU TDP support 205W TDP, 3 UPI up to 10.4 GT/s
Note BIOS version 3.0a or above is required to support 2nd Generation Intel Xeon Scalable Processors-SP
System Memory
Memory Capacity
  • Up to 4TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 4TB 3DS ECC LRDIMM, DDR4-2933MHz, in 16 DIMM slots;
  • Up to 2TB Intel Optane DC Persistent Memory in memory mode (Cascade Lake only);
Memory Type 2933/2666/2400/2133MHz ECC DDR4 RDIMM, LRDIMM
DIMM Sizes
  • RDIMM: 64GB
  • LRDIMM: 64GB
  • 3DS LRDIMM: 128GB, 256GB
Memory Voltage 1.2V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset Intel C622 chipset
SATA Intel C622 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
IPMI ASPEED AST2500
Network Controllers Dual LAN with 10GBase-T with Intel X722 + X557
Input / Output
SATA 10 SATA3 (6Gbps) ports
LAN 2 RJ45 10GBase-T ports
USB 7 USB 3.0 ports (4 rear + 2 headers + 1 Type A)
Video Output 1 VGA port
Serial Port / Header 1 COM Port (1 rear)
TPM 1 TPM Header
Expansion Slots
PCI-E
  • 3 PCI-E 3.0 x16
  • 4 PCI-E 3.0 x8
M.2
  • M.2 Interface: 2 PCI-E 3.0 x4
  • Form Factor: 2242/2260/2280/22110
  • Key: M-Key (RAID 0,1 support)
System BIOS
BIOS Type AMI UEFI
Management
Software Intel Node Manager, IPMI2.0, KVM with dedicated LAN, SPM, SSM, SUM, SuperDoctor 5, Watchdog
PC Health Monitoring
Voltage +1.8V, +12V, +3.3V, +5V, +5V standby, 1.05 (PCH), Chipset Voltage, Memory Voltages, Monitors CPU voltages
FAN 8x 4-pin fan headers (up to 8 fans), 8x fans with tachometer monitoring, PWM fan speed control
Temperature CPU thermal trip support, Monitoring for CPU and chassis environment, Thermal Control for 8 Fan Connectors
LED BMC/IPMI Heartbeat LED, Power LED, UID/Remote UID
Other Features 8-pin 12v DC power connector, ACPI power management, ATX Power connector, Chassis intrusion detection, Chassis intrusion header, CPU thermal trip support for processor protection, NCSI header, RoHS, SDDC, UID, WOL
Operating Environment
Operating Temperature Range 10°C - 35°C (50°F - 95°F)
Non-Operating Temperature Range -40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range 8% - 90% (non-condensing)
Non-Operating Relative Humidity Range 5% - 95% (non-condensing)
Condition: Clean, tested pull - Guaranteed 100% working! IO Shield included.

30-Day Warranty!
