Supermicro X11DPL-i Intel C621 Dual Xeon Scalable LGA-3647 DDR4 ATX Motherboard

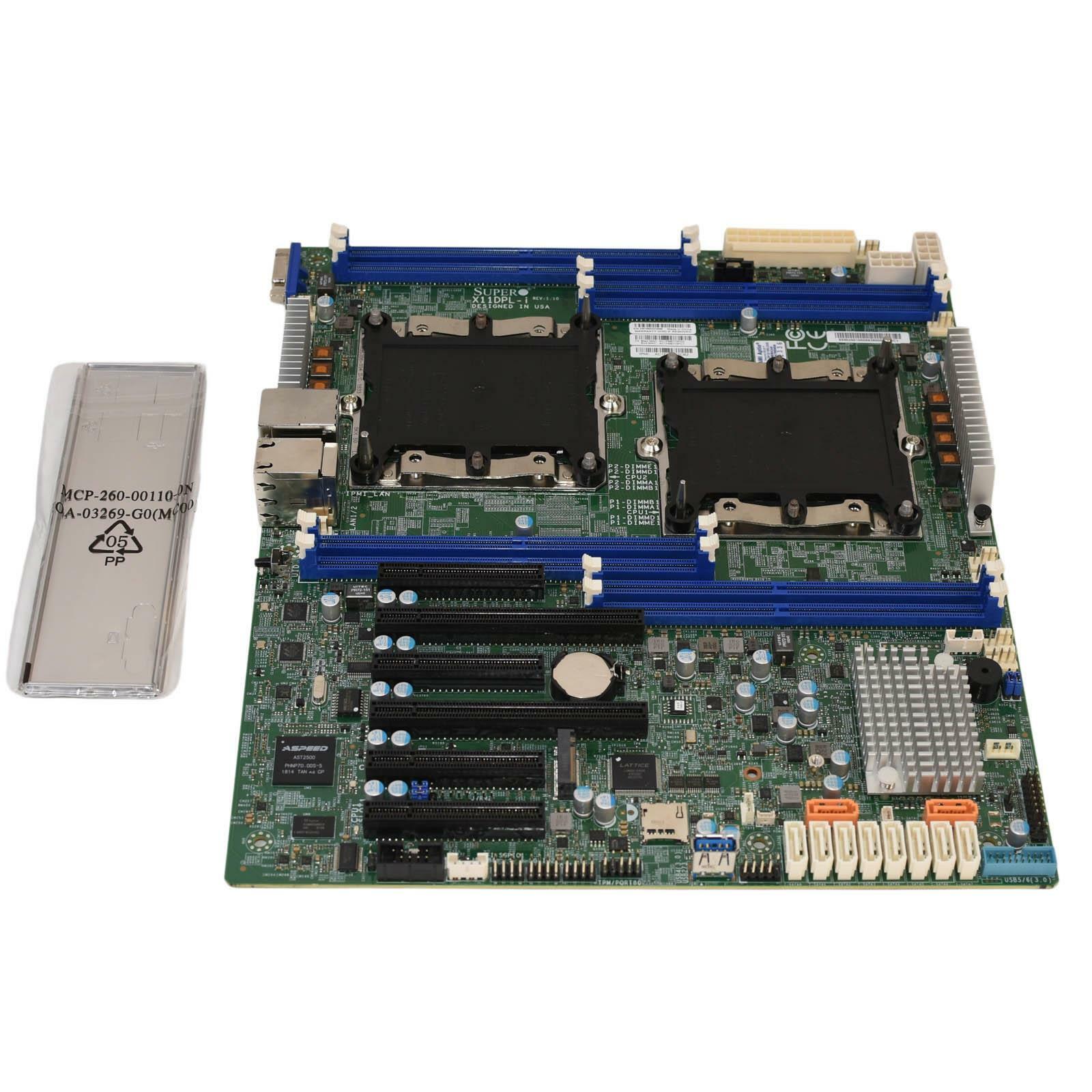

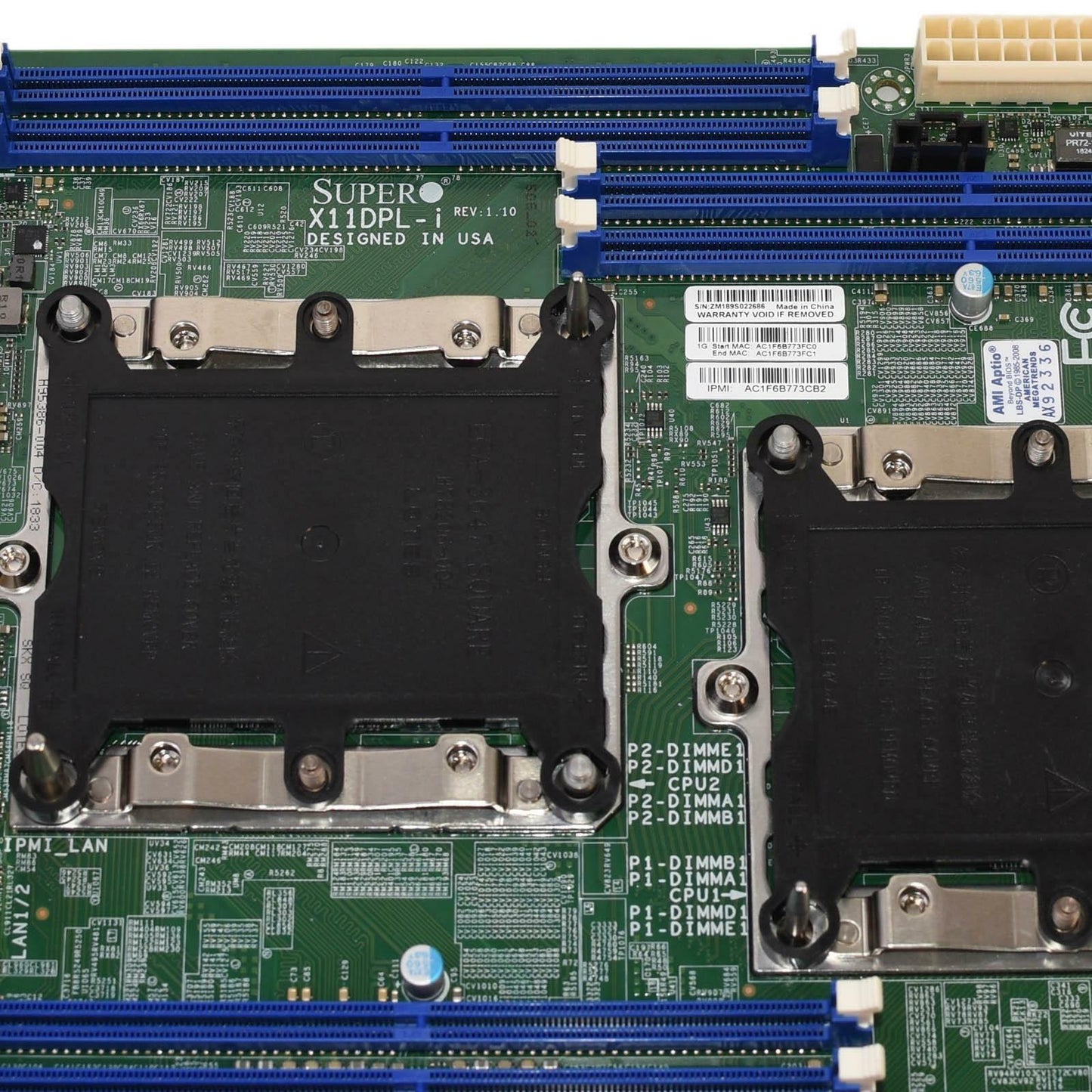

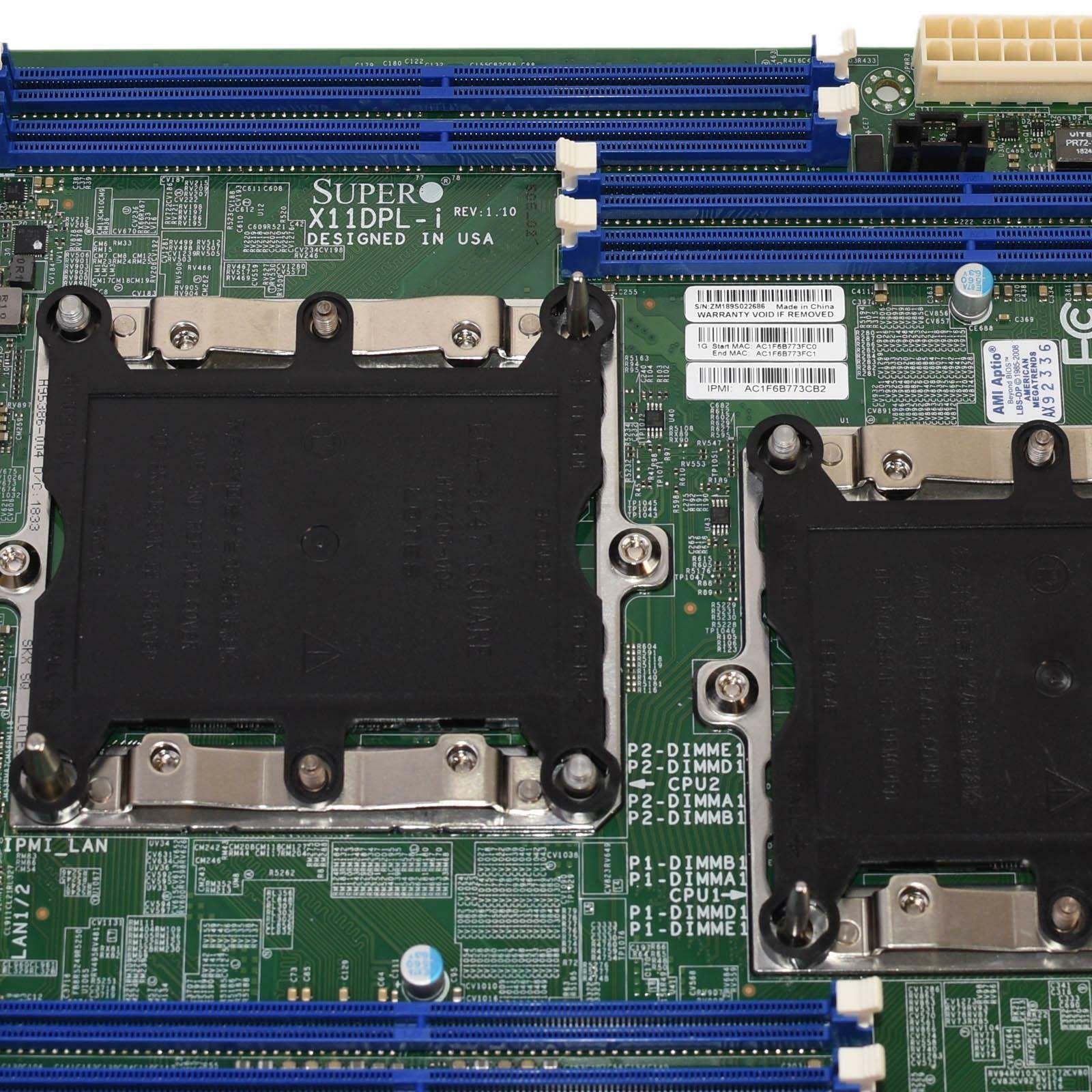

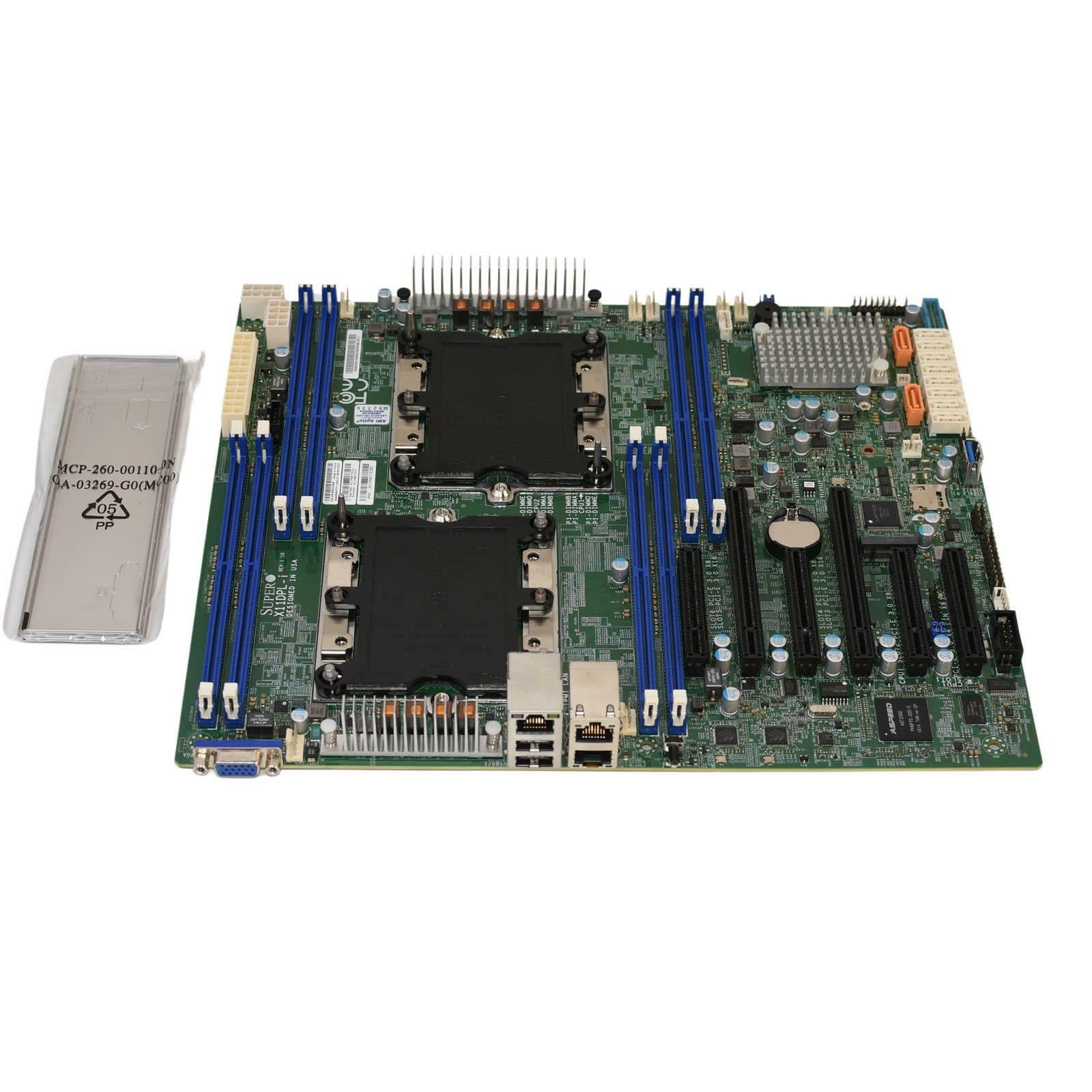

Supermicro X11DPL-i Intel C621 Dual Xeon Scalable LGA-3647 (Square ILM) DDR4 ATX Motherboard

Condition: Clean, tested pull - Guaranteed 100% working! IO Shield is included.

30-Day Warranty!

Manufacturer's description and specifications:

Key features:

  1. 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors,

    Dual Socket LGA-3647 (Socket P) supported, CPU TDP support Up to 140W TDP,

    2 UPI up to 10.4 GT/s
  2. Intel® C621
  3. Up to 2TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 2TB 3DS ECC LRDIMM, DDR4-2933MHz, in 8 DIMM slots
  4. 2 PCIe 3.0 x16,

    3 PCIe 3.0 x8,

    1 PCIe 3.0 x4 (in x8 slot)
    M.2 Interface: 1 SATA/PCIe 3.0 x4
    M.2 Form Factor: 2260, 2280
    M.2 Key: M-Key
  5. Intel® C621 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
  6. Dual LAN with 1GbE with Intel® X722 + Marvell 88E1512
  7. 1 VGA port
Product SKUs
MBD-X11DPL-I
Physical Stats
Form Factor
  • ATX
Dimension
  • 12.076" x 10.15" (30.67cm x 25.78cm)
Processor
CPU
  • 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors
  • Dual Socket LGA-3647 (Socket P) supported, CPU TDP supports Up to 140W TDP, Dual UPI up to 10.4 GT/s
System Memory
Memory Capacity
  • 8 DIMM slots
  • Up to 2TB 3DS ECC LRDIMM, DDR4-2933MHz; Up to 2TB 3DS ECC RDIMM, DDR4-2933MHz
Memory Type
  • 2933/2666/2400/2133MHz ECC DDR4 LRDIMM (3DS), RDIMM (3DS)
DIMM Sizes
  • LRDIMM: 128GB
  • RDIMM: 64GB
Memory Voltage
  • 1.2V
Error Detection
  • Corrects single-bit errors
On-Board Devices
Chipset
  • Intel® C621
SATA
  • Intel® C621 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
IPMI
  • ASPEED AST2500
Graphics
  • 1 ASPEED AST2500 BMC port(s)
Network Controllers
  • Dual LAN with 1GbE with Intel® X722 + Marvell 88E1512
Input / Output
SATA
  • 10 SATA3 (6Gbps) port(s)
LAN
  • 2 RJ45 Gigabit Ethernet LAN ports
USB
  • 4 USB 2.0 port(s) (2 rear; 2 via header)
  • 3 USB 3.2 Gen1 port(s) (2 via header; 1 type A)
Video Output
  • 1 VGA port(s)
Serial Port
  • 1 COM Port(s) (1 header)
DOM
  • 2 SuperDOM (Disk on Module) ports
TPM
  • 1 TPM Header
Expansion Slots
PCIe
  • 2 PCIe 3.0 x16,
  • 3 PCIe 3.0 x8,
  • 1 PCIe 3.0 x4 (in x8 slot)
M.2
  • M.2 Interface: 1 SATA/PCIe 3.0 x4
  • Form Factor: 2280, 2260
  • Key: M-Key
System BIOS
BIOS Type
  • AMI UEFI
Management
Software
  • SuperDoctor® 5, NMI, SUM, KVM with dedicated LAN, SPM, Intel® Node Manager, SSM, IPMI2.0, Watchdog
System Management Software
  • IPMICFG, IPMIView for Linux/Windows, SMCIPMITool
Power Configurations
  • ACPI Power Management
PC Health Monitoring
Voltage
  • Supports system management utility, Monitors CPU voltages, Chassis intrusion header, 3.3V standby, +5V standby, +5V, +3.3V, +12V, 8 -fan status
LED
  • UID/Remote UID
  • CPU / System Overheat LED
Temperature
  • CPU thermal trip support
  • PECI
FAN
  • 8x 4-pin fan headers (up to 8 fans)
  • PWM fan speed control
  • Overheat LED indication
Other Features
  • UID, Node Manager Support, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, Chassis intrusion header, Chassis intrusion detection, ATX Power connector, ACPI power management, SDDC
Operating Environment
Operating Temperature Range
  • 10°C - 35°C (50°F - 95°F)
Non-Operating Temperature Range
  • -40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range
  • 8% - 90% (non-condensing)
Non Operating Relative Humidity Range
  • 5% - 95% (non-condensing)
