Supermicro X11SCH-LN4F Intel C246 Xeon 9th Gen LGA1151 DDR4 MicroATX Motherboard
95359Supermicro X11SCH-LN4F Intel C246 Xeon 9th Gen LGA1151 DDR4 MicroATX Motherboard
Supermicro X11SCH-LN4F Rev 1.01 Intel C246 Xeon 8th/9th Gen LGA1151 DDR4 MicroATX Motherboard
Manufacturer: Supermicro
Model: X11SCH-LN4F
Part Number: MBD-X11SCH-LN4F

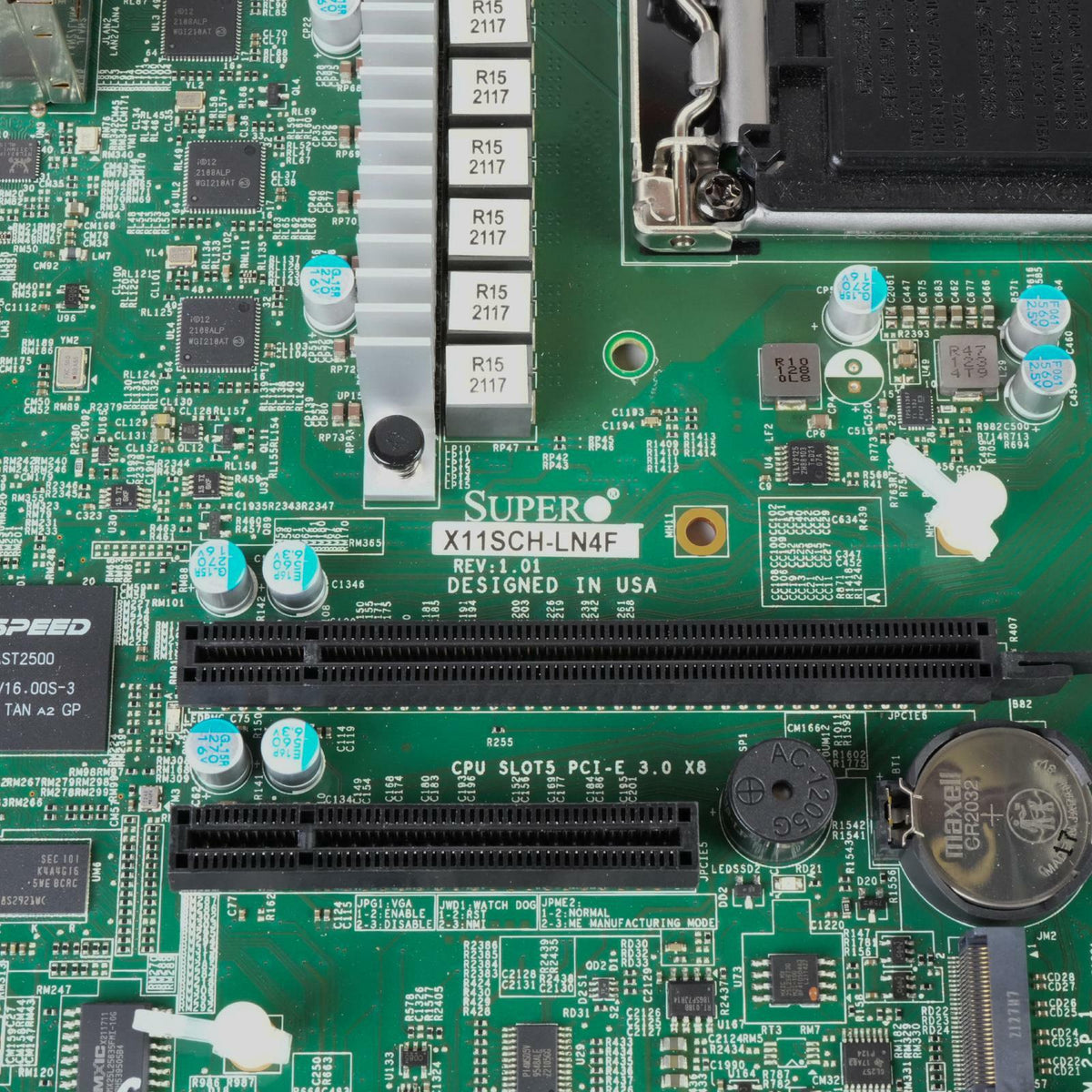

Revision: 1.01
This is a genuine Supermicro X11SCH-LN4F Micro-ATX server board with Intel C246, quad Intel I210 Gigabit LAN, IPMI, and dual M.2. It is a compact 9.6" x 9.6" board for Xeon E and selected 8th/9th Gen LGA1151 processors.
Condition: Clean working pull from enterprise equipment. Fully tested by a qualified technician and guaranteed 100% working.
What's Included:

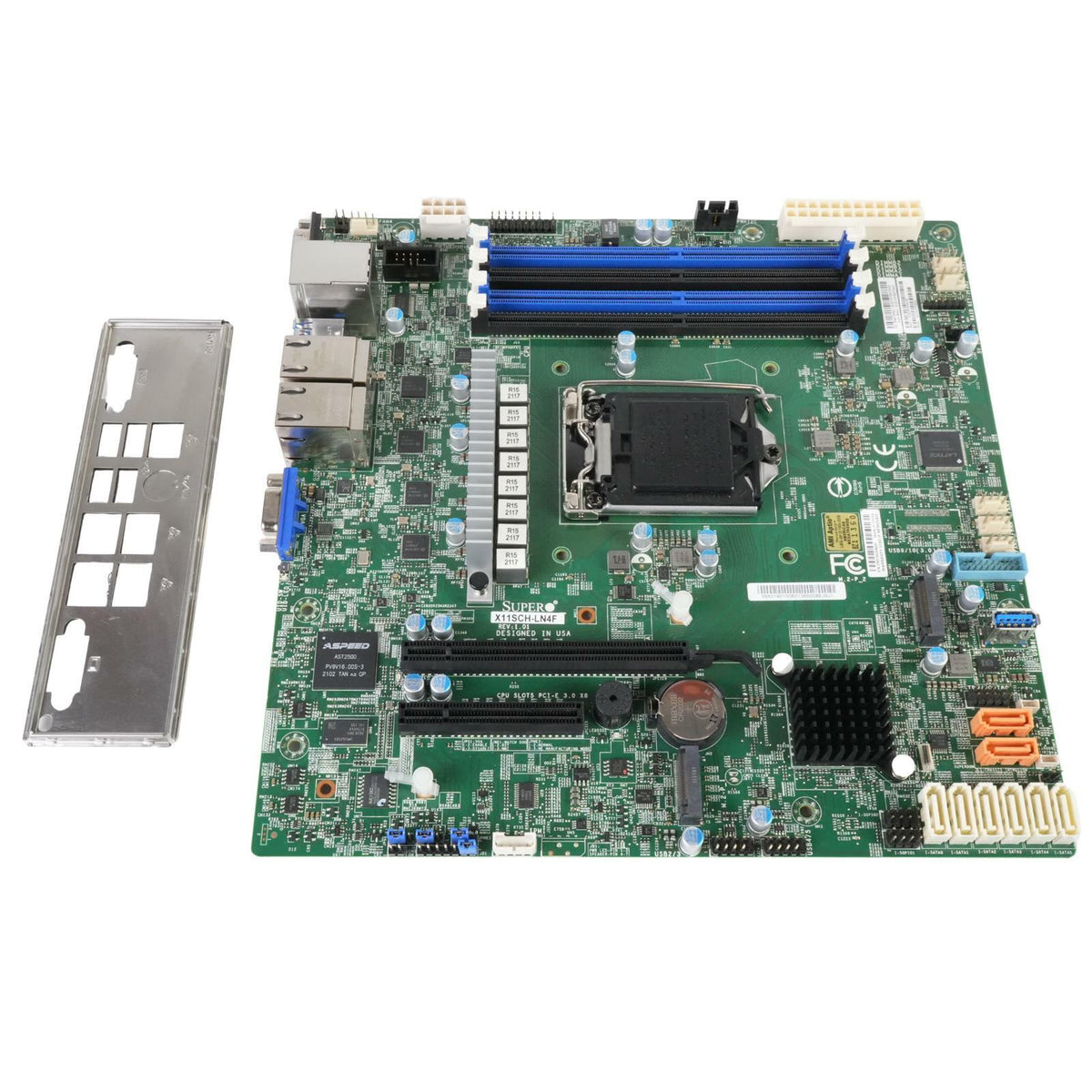

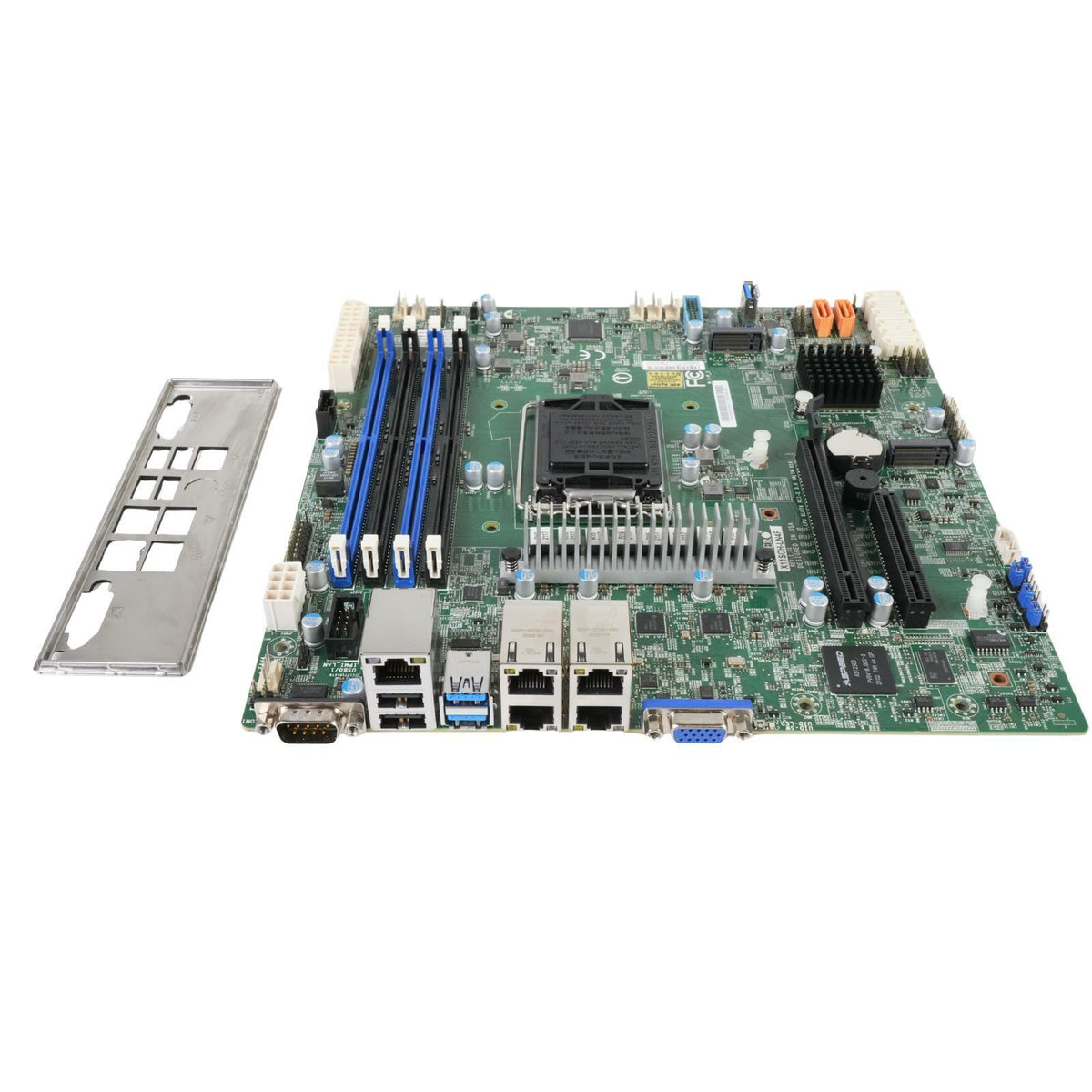

• Supermicro X11SCH-LN4F Rev 1.01 Motherboard
• I/O Shield
Important compatibility notes:
• Socket LGA1151 (H4) Coffee Lake only. Supports Intel Xeon E-2100 / E-2200 and 8th/9th Gen Core i3, Pentium, and Celeron up to 95W.
• Does NOT support 6th/7th Gen Skylake/Kaby Lake CPUs.
• Does NOT support 8th/9th Gen Core i5 / i7 desktop processors.
• Memory: DDR4 ECC Unbuffered UDIMM only (up to 2666 MHz, 4 slots, up to 128GB). This is server ECC UDIMM, not registered RDIMM and not typical desktop non-ECC DIMMs unless specifically supported by the installed CPU.
Note: CPU, memory, cooler, cables, and other accessories are not included unless pictured.
30-Day Warranty!
Compact C246 mATX board with 4x 1GbE, IPMI, 8x SATA, and dual M.2 for small Xeon E servers and appliances.
Manufacturer's description and specifications:
The Super X11SCH-LN4F supports an Intel Xeon E-2200/E-2100 or 9th/8th Generation Core i3, Pentium, and Celeron processor in Socket H4 (LGA1151) with up to 8 cores and up to 95W TDP. Built on the Intel C246 chipset, it supports 4 DIMMs of DDR4 ECC UDIMM memory up to 2666 MHz, PCIe 3.0 expansion, 8 SATA3 ports, two M.2 connectors, and four Intel I210 1GbE LAN ports plus a dedicated IPMI LAN.
Key Specifications:
Form Factor: Micro-ATX (9.6" x 9.6")
Socket: Single LGA1151 (Socket H4)
Chipset: Intel C246
CPU Support: Xeon E-2100 / E-2200, 8th/9th Gen Core i3 / Pentium / Celeron, up to 95W
Memory: 4x DDR4 ECC UDIMM, up to 128GB, 2666/2400/2133 MHz, 1.2V
LAN: 4x Intel I210 1GbE + 1x dedicated IPMI LAN
BMC / Video: ASPEED AST2500 IPMI 2.0 with VGA
Storage: 8x SATA3 6Gb/s, RAID 0, 1, 5, 10
M.2: 2x M-Key 2280/22110, PCIe 3.0 x4
Expansion: 1x PCIe 3.0 x8 (in x16 slot), 1x PCIe 3.0 x8
SuperDOM: 2 ports with built-in power (I-SATA6 / I-SATA7)
Rear I/O: VGA, 2x USB 3.1 Gen2, 2x USB 2.0, 4x 1GbE, 1x IPMI LAN, COM, UID
