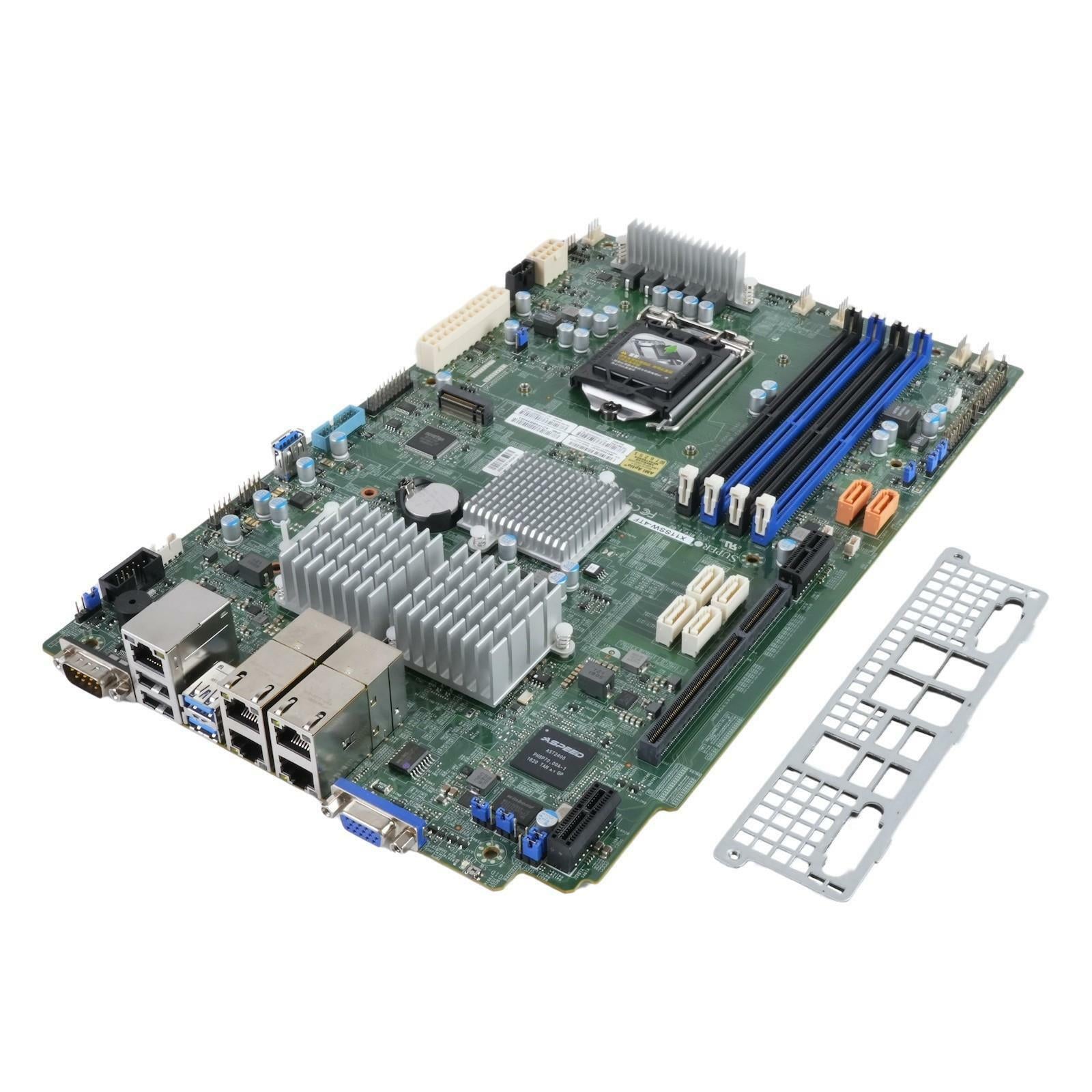

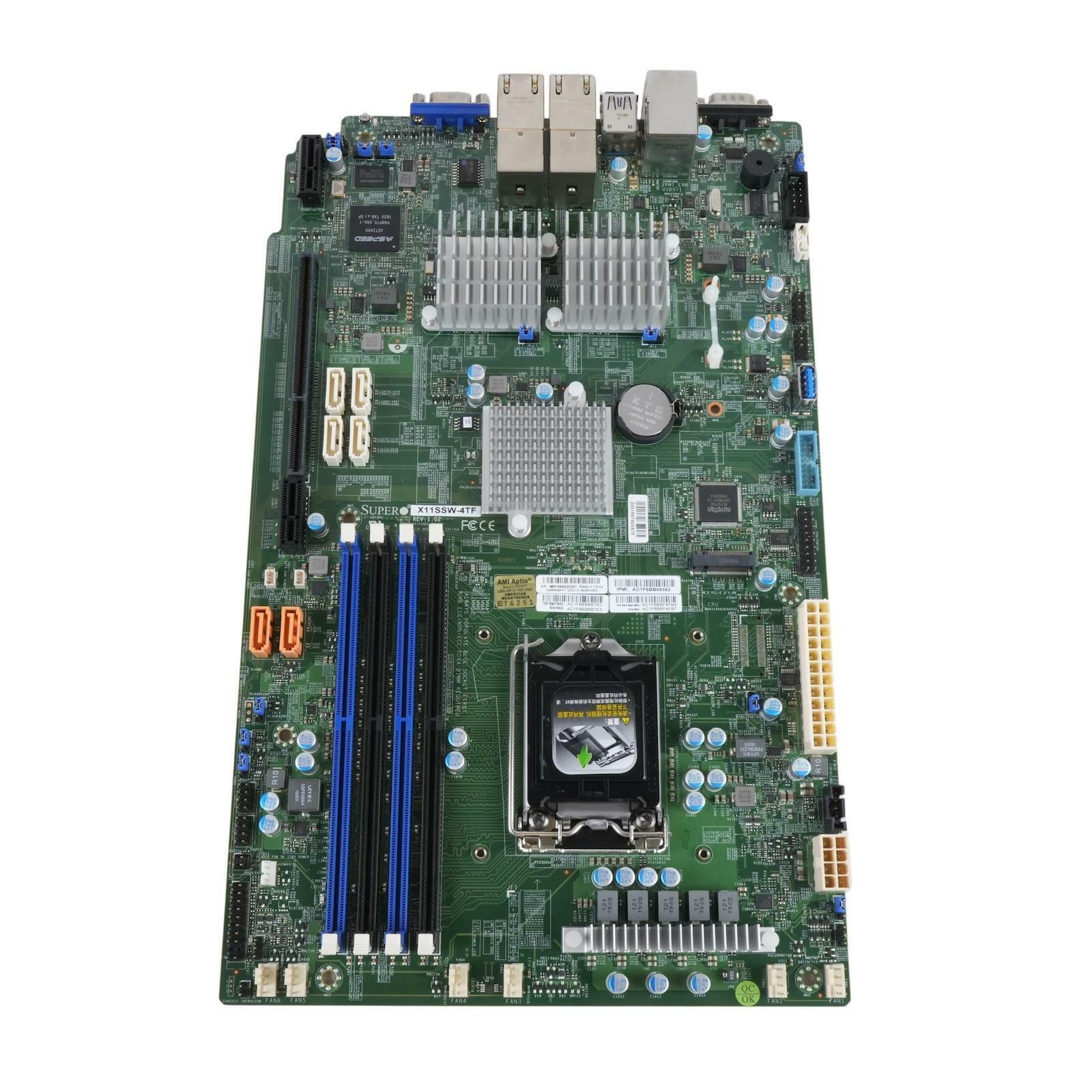

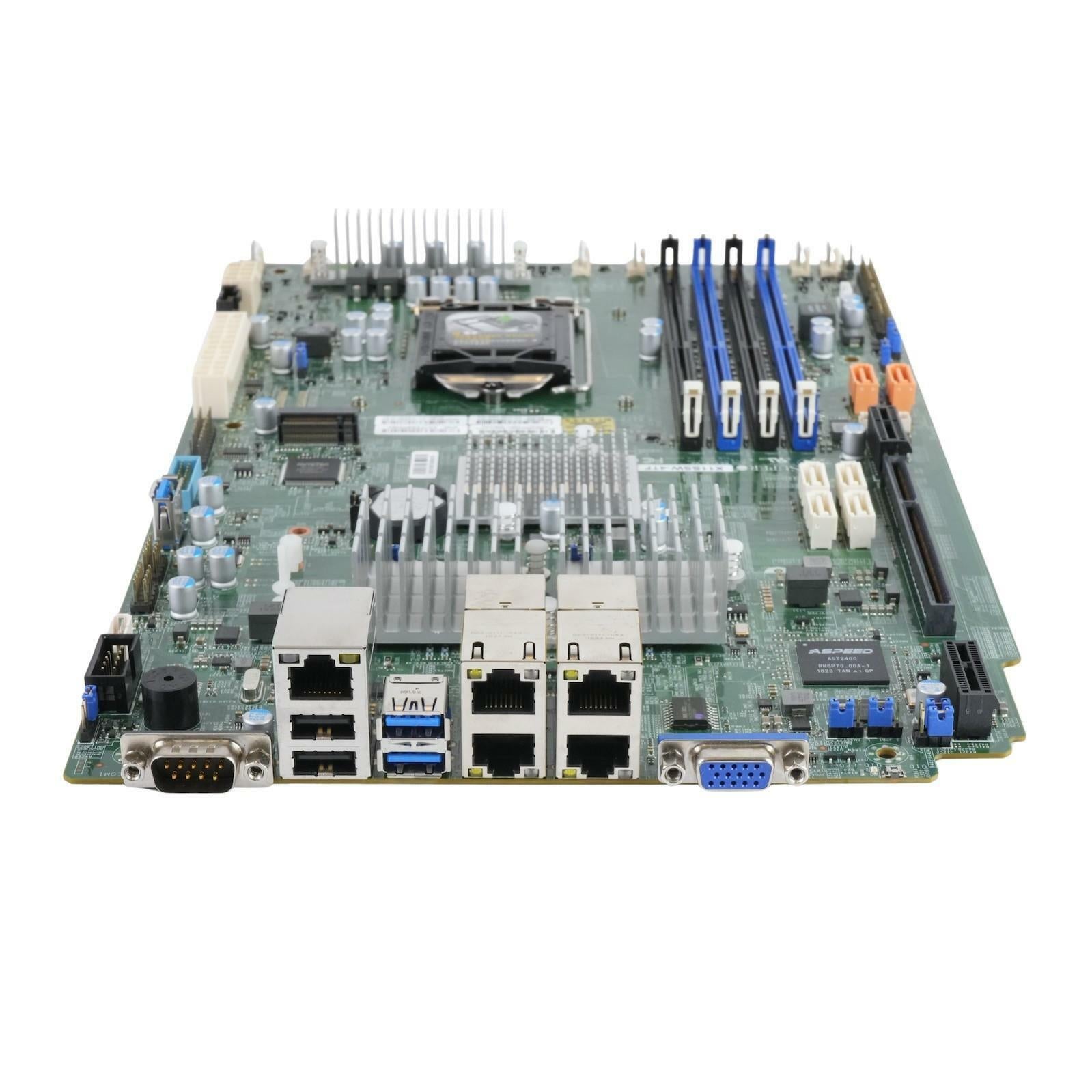

Supermicro X11SSW-4TF Intel LGA 1151 DDR4 Quad X540 NIC Proprietary Motherboard

Condition: Clean, tested pull - Guaranteed 100% working!

Includes:

• MCP-260-00078-0N IO Shield

30-Day Warranty!

Manufacturer Specifications:

Physical Stats

• Form Factor: Proprietary
• Dimensions: 8" x 13" (20.32cm x 33.02cm)

Processor

• CPU: Intel® Celeron®, Intel® Pentium®, Intel® 7th/6th Generation Core i3 series, Intel® Xeon® processor E3-1200 v6/v5
• Socket: Single Socket Socket H4 (LGA-1151), supports up to 80W TDP
• Note: BIOS version 2.0 or above is required to support 7th Gen Intel® Core™ i3 and Xeon® E3-1200 v6 series

System Memory

• Memory Capacity: 4 DIMM slots, up to 64GB Unbuffered ECC UDIMM DDR4-2400MT/s
• Memory Type: 2400/2133/1866/1600 MT/s SDRAM, 72-bit, 288-pin gold-plated DIMMs
• DIMM Sizes: 4GB, 8GB, 16GB
• Memory Voltage: 1.2V
• Error Detection: Corrects single-bit errors

On-Board Devices

• Chipset: Intel® C236
• SATA: Intel® C236 controller, 6 SATA3 (6 Gbps) ports; supports RAID 0,1,5,10
• IPMI: ASPEED AST2400 BMC
• Graphics: 1 ASPEED AST2400 BMC port
• Network Controllers: Quad LAN with Intel® X540 10GBase-T Ethernet Controller

Input / Output

• SATA: 6 SATA3 (6Gbps) ports
• LAN: 4 RJ45 10GBase-T ports
• Video Output: 1 VGA port
• Serial Port: 2 COM ports
• DOM: 2 SuperDOM (Disk on Module) power connectors
• TPM: 1 TPM Header

Expansion Slots

• PCIe: 1 PCIe 3.0 x16 Left Riser Slot (compatible with RSC-W-68)
• M.2 Interface: PCIe 3.0 x4
• M.2 Form Factor: 22110, 2280, 2260
• M.2 Key: M-Key
