Supermicro X12SPI-TF 3rd Gen Intel Xeon Scalable LGA-4189 ATX Server Motherboard
94458Supermicro X12SPI-TF 3rd Gen Intel Xeon Scalable LGA-4189 ATX Server Motherboard
Supermicro X12SPI-TF 3rd Gen Intel Xeon Scalable LGA-4189 Intel C621A ATX Server Motherboard
Clean Tested Pull • 100% Fully Working • Ready to Build!
What's Included:

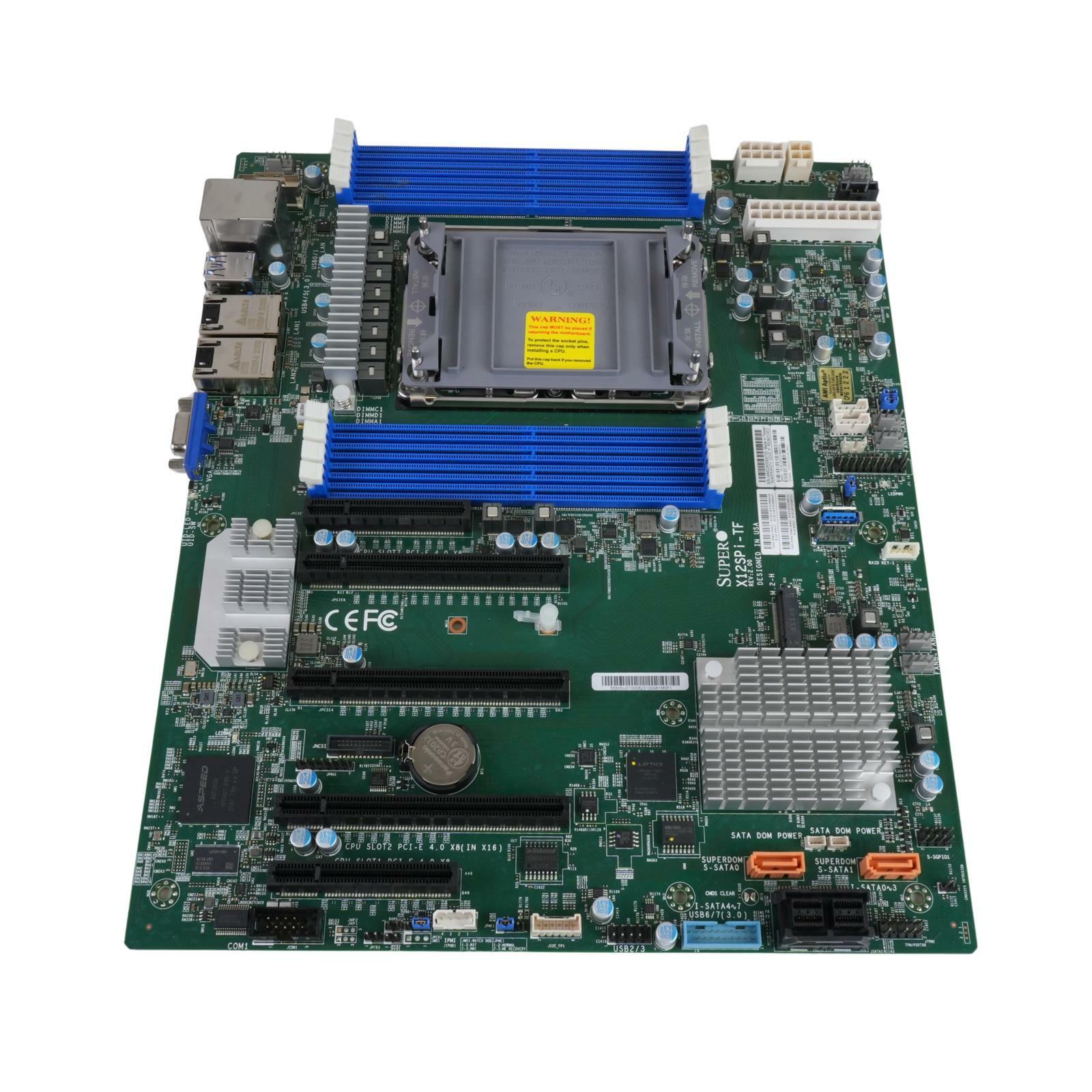

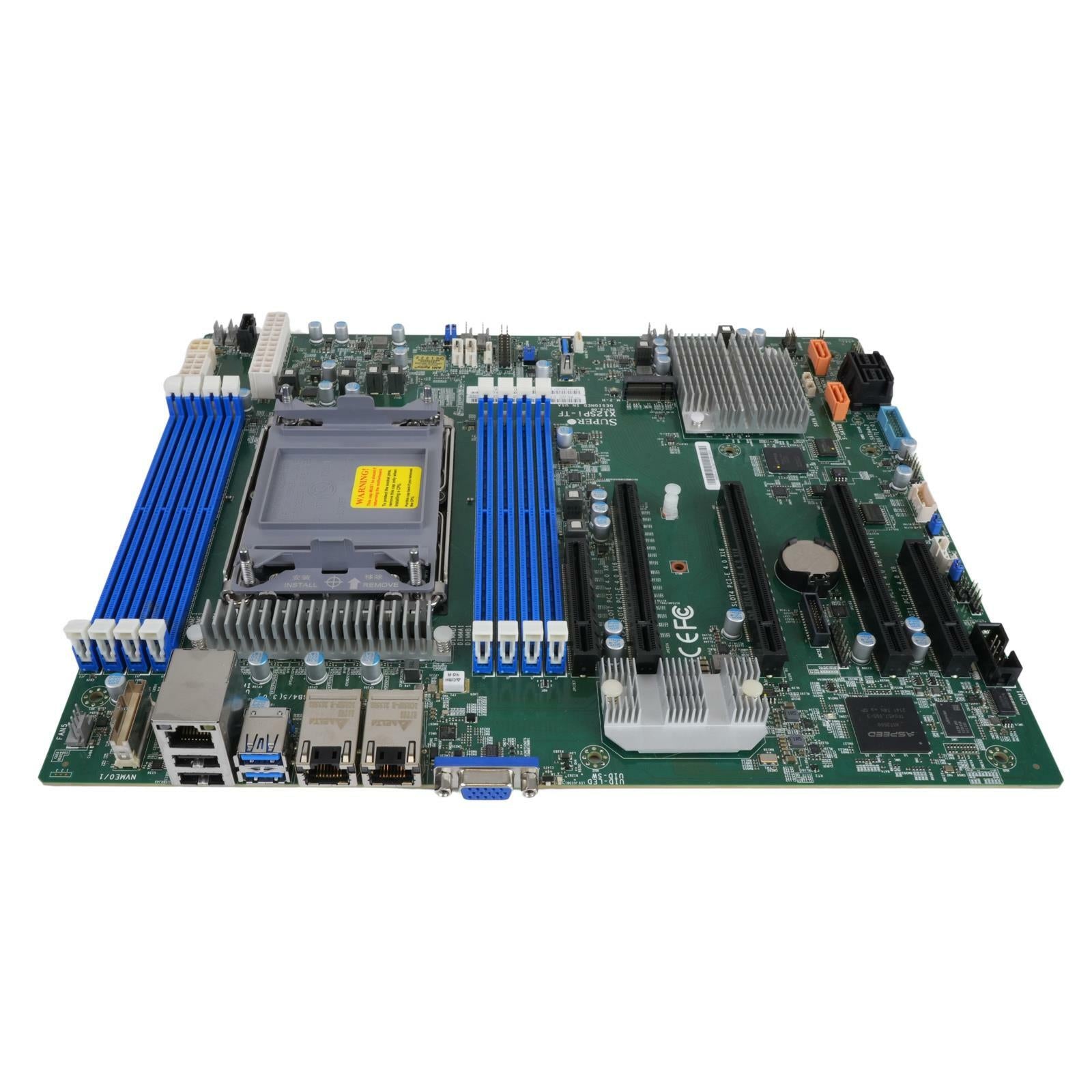

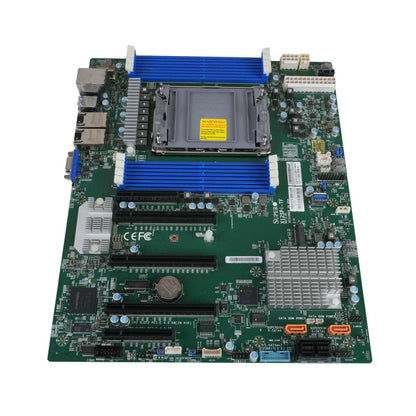

- Supermicro X12SPI-TF Motherboard

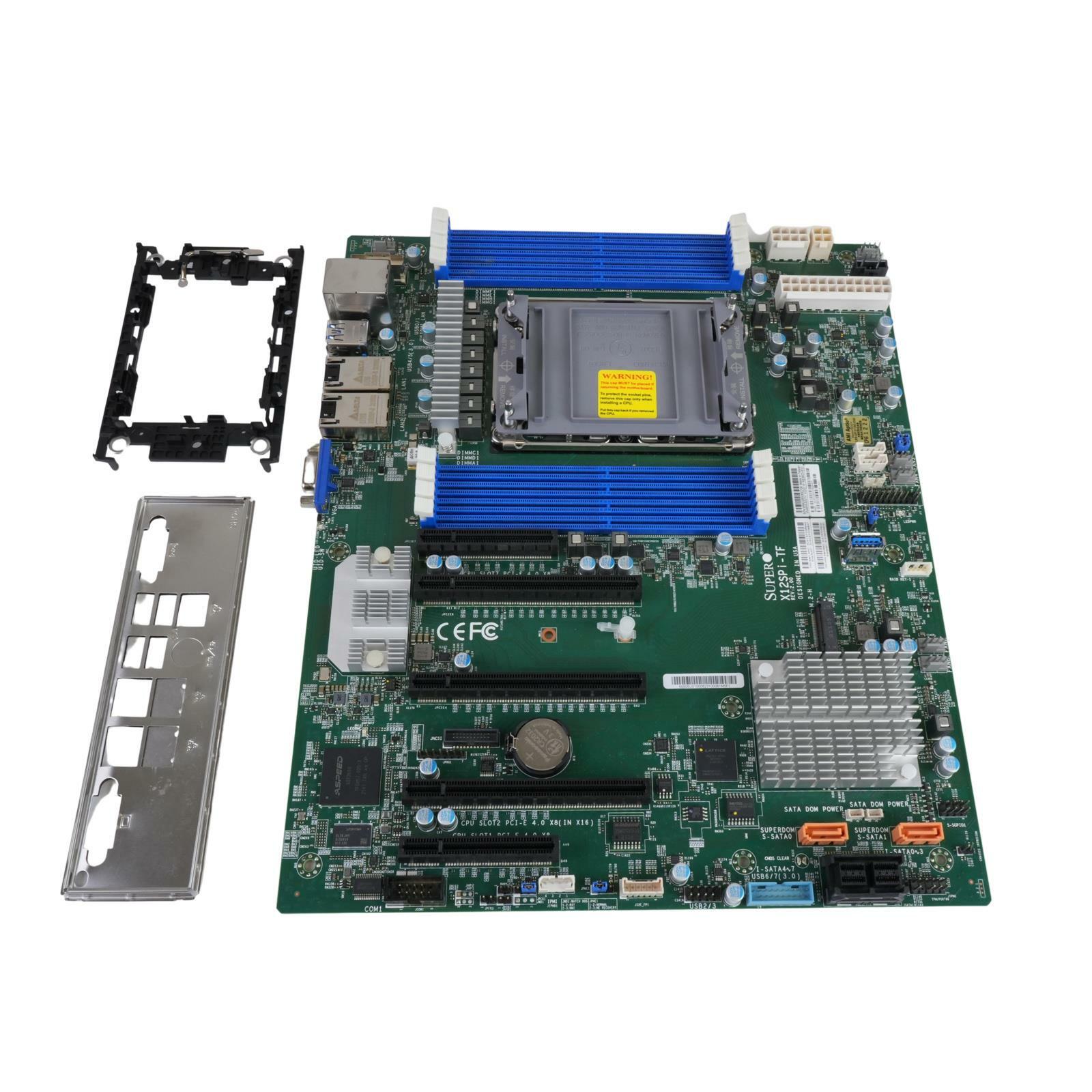

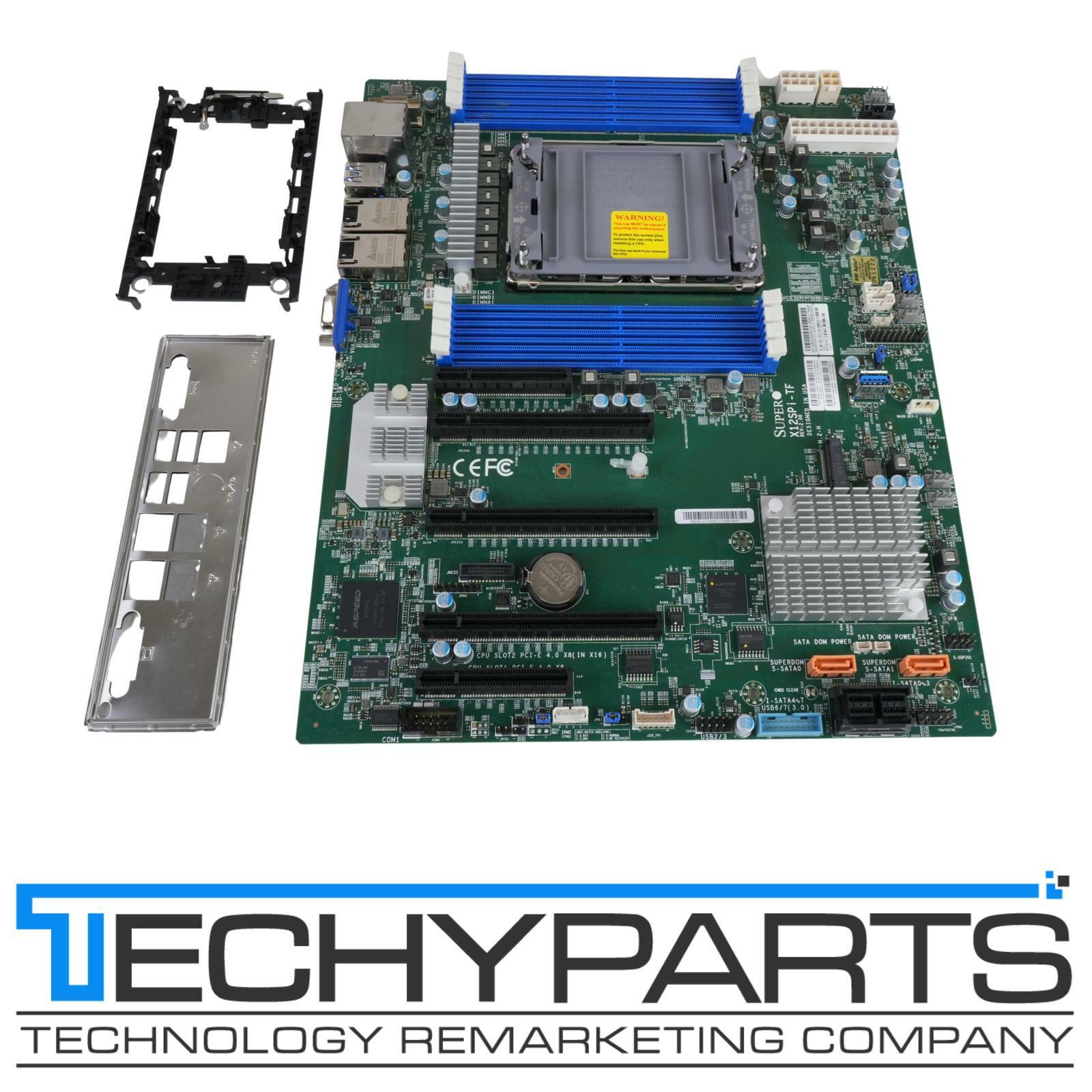

- Compatible Supermicro I/O Shield (MCP-260-00042-0N) – Fits perfectly but includes an extra cutout for a serial port (this board has no rear serial port; the cutout will simply remain unused and covered by the case blank)
90-Day Warranty!
Why this board?
Excellent single-socket platform for high-performance workstations, rendering, AI/ML, or compact servers. Supports 3rd Gen Intel Xeon Scalable (Ice Lake) processors up to 270W TDP, 8-channel DDR4-3200 with up to 2TB capacity, dual 10GbE LAN with Intel X550, IPMI, and PCIe 4.0 expansion. Pulled from a lightly used, climate-controlled environment – no dust, no damage, no issues.
Ships fast & securely packaged – same day if ordered before 3PM EST!
Manufacturer's specifications:
| Product SKUs | |
| MBD-X12SPI-TF | |
| Physical Stats | |
| Form Factor | ATX |
| Dimension | 12.1" x 10" (30.73cm x 25.4cm) |
| Processor | |
| CPU | 3rd Gen Intel® Xeon® Scalable processors Single Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP |
| Core | Up to 40 cores |
| System Memory | |
| Memory Capacity | 8 DIMM slots Up to 2TB Intel® Optane™ Persistent Memory 200 Series Up to 2TB 3DS ECC LRDIMM, DDR4-3200MT/s; Up to 2TB 3DS ECC RDIMM, DDR4-3200MT/s |
| Memory Type | ECC DDR4 LRDIMM (3DS), RDIMM (3DS) |
| DIMM Sizes | 8GB, 16GB, 32GB, 64GB, 128GB, 256GB LRDIMM: 64GB, 128GB RDIMM: 8GB, 16GB, 32GB, 64GB |
| Memory Voltage | 1.2V |
| Error Detection | Corrects single-bit errors |
| On-Board Devices | |
| Chipset | Intel® C621A |
| SATA | Intel® C621A controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10 |
| IPMI | ASPEED AST2600 BMC |
| Graphics | 1 ASPEED AST2600 BMC port(s) |
| Network Controllers | Dual LAN with 10GBase-T with Intel® X550 |
| Input / Output | |
| LAN | 2 RJ45 10 Gigabit Ethernet LAN ports |
| Video Output | 1 VGA D-Sub Connector port(s) |
| Serial Port | 1 COM |
| DOM | 2 SATA DOM (Disk on Module) power connector support |
| TPM | 1 TPM Header |
| Expansion Slots | |
| PCIe | 2 PCIe 4.0 x16 1 PCIe 4.0 x8 (in x16 slot) 2 PCIe 4.0 x8 |
| M.2 | M.2 Interface: 1 SATA/PCIe 3.0 x4 Form Factor: 2280/22110 Key: M-Key |
| System BIOS | |
| BIOS Type | AMI UEFI |
| BIOS Features | ACPI 6.2 SMBIOS 3.0 or later UEFI 2.7 |
| Management | |
| Software | SuperCloud Composer®, Supermicro Server Manager (SSM), Supermicro Power Manager (SPM), Supermicro Update Manager (SUM), Supermicro SuperDoctor® 5 (SD5), Super Diagnostics Offline (SDO), Supermicro Thin-Agent Service (TAS), SuperServer Automation Assistant (SAA), Plug-ins for 3rd Party Software, IPMI Utilities |
| System Management Software | IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support |
| Power Configurations | Power-on mode for AC power recovery, ACPI Power Management, CPU thermal trip support for processor protection |
| Security | |
| Hardware | Trusted Platform Module (TPM) 2.0 |
| PC Health Monitoring | |
| Voltage | VBAT, System temperature, Monitors CPU voltages, HT, Chassis intrusion header, 3.3V standby, +5V standby, +5V, +3.3V, +12V, +1.8V, 7-fan status |
| LED | UID/remote UID LED BMC/IPMI Heartbeat LED Suspend static indicator LED CPU/system overheat LED |
| Temperature | CPU thermal trip support PECI |
| FAN | 7x 4-pin fan headers (up to 7 fans) System level control PWM fan speed control Fan speed control Overheat LED indication |
| Other Features | UID, RoHS, Dual cooling zones, Chassis intrusion detection, ATX power connector, ACPI power management, RoT, NCSI header |
| Operating Environment | |
| Operating Temperature Range | 0°C - 50°C (32°F - 122°F) |
| Non-Operating Temperature Range | -20°C - 60°C (-4°F - 140°F) |
| Operating Relative Humidity Range | 10% - 85% (non-condensing) |
| Non Operating Relative Humidity Range | 10% - 95% (non-condensing) |
