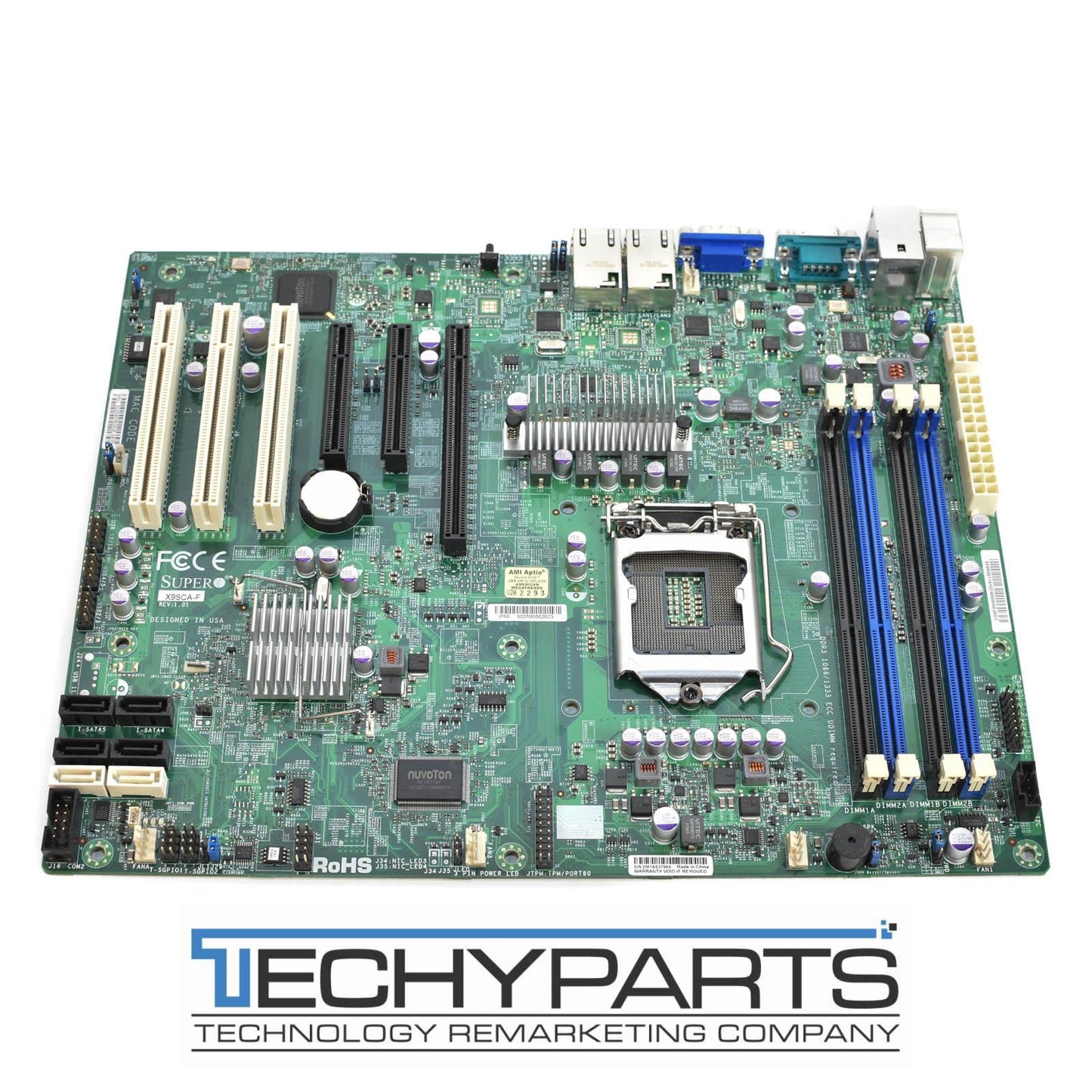

Supermicro X9SCA-F Intel C204 Socket LGA1155 ATX Xeon E3 Server Motherboard

Up for Sale is a genuine SUPERMICRO X9SCA-F motherboard. This SUPERMICRO X9SCA-F motherboard is in excellent condition and ready to be redeployed. All of our motherboards go through an extensive testing and refurbishing process which ensures 100% satisfaction to our customers.

Supermicro P/N: X9SCA-F

Item Condition: Used, tested, guaranteed working. Sold as pictures, no other accessories are included. IO shield not included.

30-day warranty!

Specifications:

MBD-X9SCA-F -B
  • X9SCA-F (Bulk Pack)
Physical Stats
Form Factor
  • ATX
Dimensions
  • 12" x 9.6", (30.48cm x 24.4 cm)
Processor/Cache
CPU
  • Intel® Xeon® processor E3-1200 & v2 series, Intel® 2nd Gen and 3rd Gen Core i3, Intel® Pentium® and Celeron processors *** *
  • Socket H2 (LGA 1155)
System Memory
Memory Capacity
  • 4x 240-pin DDR3 DIMM sockets
  • Supports up to 32 GB DDR3 ECC Un-Buffered memory (UDIMM)
Memory Type
  • 1333/1600MHz*** ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes
  • 8GB, 4GB, 2GB, 1GB
Memory Voltage
  • 1.5 V, 1.35V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset
  • Intel® C204 PCH chipset
SATA
  • SATA 2.0 3Gb/s with RAID 0, 1, 5, 10

    SATA 3.0 6Gb/s with RAID 0, 1
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • Nuvoton WPCM450 BMC
Network Controllers
  • Intel® 82574L, 2x Gigabit LAN ports
  • Virtual Machine Device Queues High efficient I/O overhead
  • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
  • 1x Realtek RTL8201N PHY (dedicated IPMI)
VGA
  • BMC integrated Matrox G200
Super I/O
  • Nuvoton WPCM450RA0BX
Input / Output
Serial ATA
  • 6x SATA ports total (4x 3Gb, 2x 6Gb)
LAN
  • 2x RJ45 Gigabit Ethernet LAN ports
  • 1x RJ45 Dedicated IPMI LAN port
USB
  • 8x USB 2.0 ports total

    (2x rear + 6x via header)
VGA
  • 1x VGA port
Serial Port / Header
  • 2x Fast UART 16550 serial port

    (one header and one rear port)
DOM
  • 1x DOM (Disk on Module) power connector
TPM
  • 1x TPM Header
OS Compatibility
• Please see OS Compatibility Chart on manufacturer's website
Chassis ( Optimized for X9SCA-F )
1U Chassis
  • CSE-111LT-330CB
  • CSE-111LT-360CB
  • CSE-111T-560CB
  • CSE-113MTQ-560CB
  • CSE-113MTQ-563CB
  • CSE-113MTQ-R400CB
  • CSE-512-200B
  • CSE-512-260B
Important Chassis Notes
  • To support the new generation Intel® Xeon® processor-based motherboards, a Revision K chassis is recommended for most models.
Expansion Slots
PCI-Express
  • 1 (x16) PCI-E 3.0 slot***
  • 2 (x4) PCI-E 2.0 (in x8) slots
PCI
  • 3 PCI 32-bit slots
System BIOS
BIOS Type
  • 32Mb SPI Flash EEPROM with AMI BIOS
BIOS Features
  • DMI (SMBIOS) 2.7
  • ACPI 4.0
  • PCI 2.3
  • USB Keyboard support
Management
Software
  • IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
  • SuperDoctor® III
  • Watch Dog
  • NMI
Power Configurations
  • ACPI / ACPM Power Management
  • Main Switch Override Mechanism
  • Power-on mode for AC power recovery
  • Internal/External modem ring-on
PC Health Monitoring
Voltage
  • Monitors for CPU Cores, +1.8V, +3.3V, +5V, ±12V, +3.3V Standby, +5V Standby, VBAT, HT, Memory, Chipset Voltages.
  • 5-Phase-switching voltage regulator with auto-sense from 0.8375V-1.60V
FAN
  • Total of 5 fan headers supporting up to 5 fans
  • Five 4-pin fan headers
  • 5x fans with tachometer status monitoring
  • Status monitor for speed control
  • Status monitor for on/off control
  • Support 3-pin fans (w/o speed control)
  • Low noise fan speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • CPU thermal trip support
  • FC temperature sensing logic
  • Thermal Monitor 2 (TM2) support
  • PECI
LED
  • CPU / System Overheat LED
  • +5V Standby alert LED
Other Features
  • Chassis intrusion detection
  • Chassis intrusion header

* Per Intel's spec, for platforms using C202/C204 PCH:

1) Intel i5/i7 CPUs are not supported

2) Intel E3-12x5 series processors which have integrated graphics support are not recommended.

** Supermicro X9SCA-F motherboard is using a dedicated graphic from Matrox G200eW.

*** BIOS rev. 2.0 or above is needed to support new E3-1200 v2 CPUs, which supports PCI-E 3.0 & DDR3 1600.
